NCC DNC-T2010-A220 Spare for DNC-T Series Automation

NCC DNC-T2010-A220 Spare for DNC-T Series Automation: Spare Replacement & Industrial Downtime Risk Control

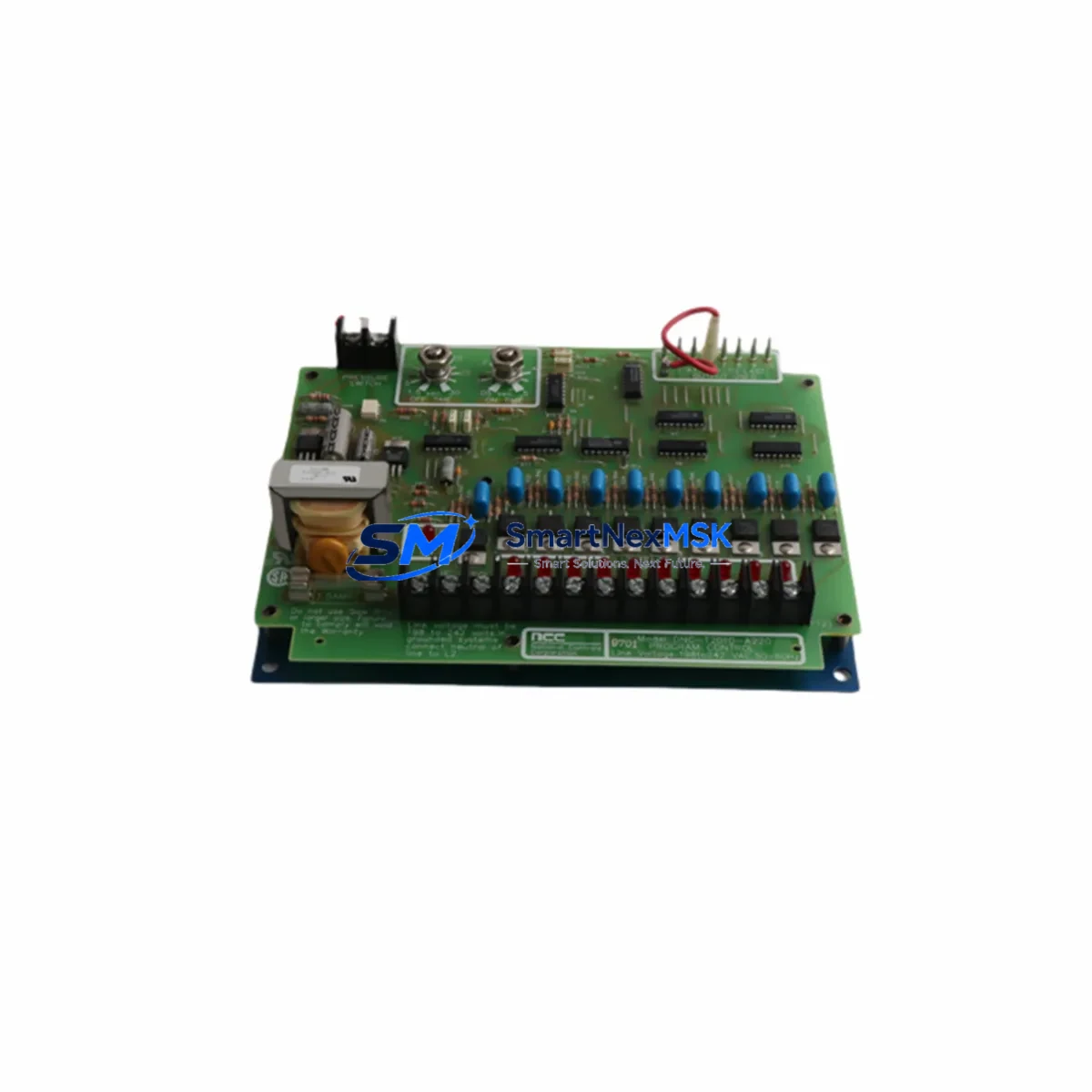

The NCC DNC-T2010-A220 is an original AC 220V PLC control board designed for the DNC-T series industrial automation platform. As a maintenance-ready spare part, it is engineered to support rapid field replacement, minimize unplanned downtime, and extend the operational life of legacy and active control systems. Whether you are managing a planned shutdown, responding to an emergency fault, or building a strategic spare parts inventory, the DNC-T2010-A220 delivers the compatibility, reliability, and traceability that maintenance engineers and procurement teams demand.

Each unit is sourced directly from authorized supply channels, fully tested prior to shipment, and backed by a 12-month warranty. With original NCC part numbers and verified firmware compatibility, this board integrates seamlessly into existing DNC-T series control cabinets without requiring hardware modifications or software reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DNC-T2010-A220 in a live production environment, a thorough inspection of the surrounding electrical system is essential to prevent repeat failures and ensure stable recommissioning. Maintenance engineers should treat this board replacement as an opportunity for a full control cabinet audit.

Begin by verifying the AC 220V power supply module feeding the control board — voltage fluctuations or ripple are a leading cause of premature board failure. Check the 24VDC auxiliary power supply that powers field sensors and I/O modules, as an unstable DC rail can corrupt board initialization. Inspect all terminal blocks and wiring harnesses connected to the DNC-T2010-A220 for signs of oxidation, loose crimps, or thermal damage, particularly on high-current I/O circuits.

Review the status of digital I/O expansion modules in the same rack — a failed I/O card can generate fault signals that are misdiagnosed as a main board failure. Similarly, inspect any relay output modules or solid-state relay (SSR) assemblies in the output circuit; worn relay contacts can cause intermittent faults that stress the control board over time.

For systems with RS-485 or RS-232 communication modules, verify cable shielding and termination resistors, as communication noise can interfere with board diagnostics. If the cabinet includes a signal isolator or signal conditioner on analog input channels, confirm isolation integrity — degraded isolators are a common hidden fault in aging systems. Check the fuse holders and circuit breakers protecting the board’s power input; replace any fuses showing signs of heat stress even if not blown.

If the system interfaces with an HMI panel (human-machine interface), verify the communication link between the HMI and the DNC-T2010-A220 after replacement to confirm parameter mapping and screen data refresh are functioning correctly. For installations with a backplane or rack bus connector, inspect the bus contacts for corrosion or mechanical wear before seating the new board.

Stocking complementary spares — including the DNC-T series power supply board, I/O expansion cards, and communication interface modules — alongside the DNC-T2010-A220 ensures that your maintenance team can resolve multi-component faults within a single maintenance window, dramatically reducing mean time to repair (MTTR).

Site Replacement Workflow

Step 1 — Fault Isolation: Use the system’s diagnostic interface or HMI alarm log to confirm the DNC-T2010-A220 as the fault source before initiating replacement. Document the fault code and operating conditions at time of failure.

Step 2 — Safe Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Discharge any capacitive circuits and verify zero voltage with a calibrated meter before handling the board.

Step 3 — Board Removal: Photograph the existing wiring and connector positions before disconnection. Label all connectors if not already marked. Remove the board carefully, noting any DIP switch or jumper settings that must be replicated on the replacement unit.

Step 4 — Replacement Verification: Confirm the replacement DNC-T2010-A220 SKU matches the original. Replicate all DIP switch, jumper, and parameter settings. Seat the board firmly and reconnect all connectors in the documented sequence.

Step 5 — Recommissioning: Restore power and observe the board’s initialization sequence. Verify I/O status, communication link to HMI, and output relay operation before returning the system to production. Log the replacement in your maintenance management system (CMMS).

This workflow is compatible with both emergency replacement scenarios and planned preventive maintenance schedules, ensuring system compatibility is maintained and downtime is minimized.

Spare Parts Support FAQ

Q1: Is the DNC-T2010-A220 a direct drop-in replacement for the original NCC board?
Yes. The DNC-T2010-A220 is an original NCC part sourced from authorized supply channels. It is a direct replacement for the same SKU in DNC-T series control systems, requiring no hardware modification. Verify DIP switch and jumper settings match your existing configuration before powering up.

Q2: How is the board tested before shipment?
Every DNC-T2010-A220 unit undergoes functional and electrical verification prior to dispatch. Testing covers power-on initialization, I/O channel integrity, and communication port functionality. A test report is available upon request for quality-critical procurement.

Q3: What is the recommended spare parts stocking strategy for DNC-T series systems?
For production-critical installations, we recommend maintaining at least one DNC-T2010-A220 board on-site alongside key ancillary spares such as the series power supply module, I/O expansion cards, and communication modules. This ensures single-window fault resolution and reduces dependency on lead times during unplanned outages.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with replacement or refund, subject to fault verification. Contact our technical team for RMA procedures.
