Neles A413311 Maintenance-Ready Spare for Valmet DCS

Neles A413311 Maintenance-Ready Spare for Valmet DCS Automation

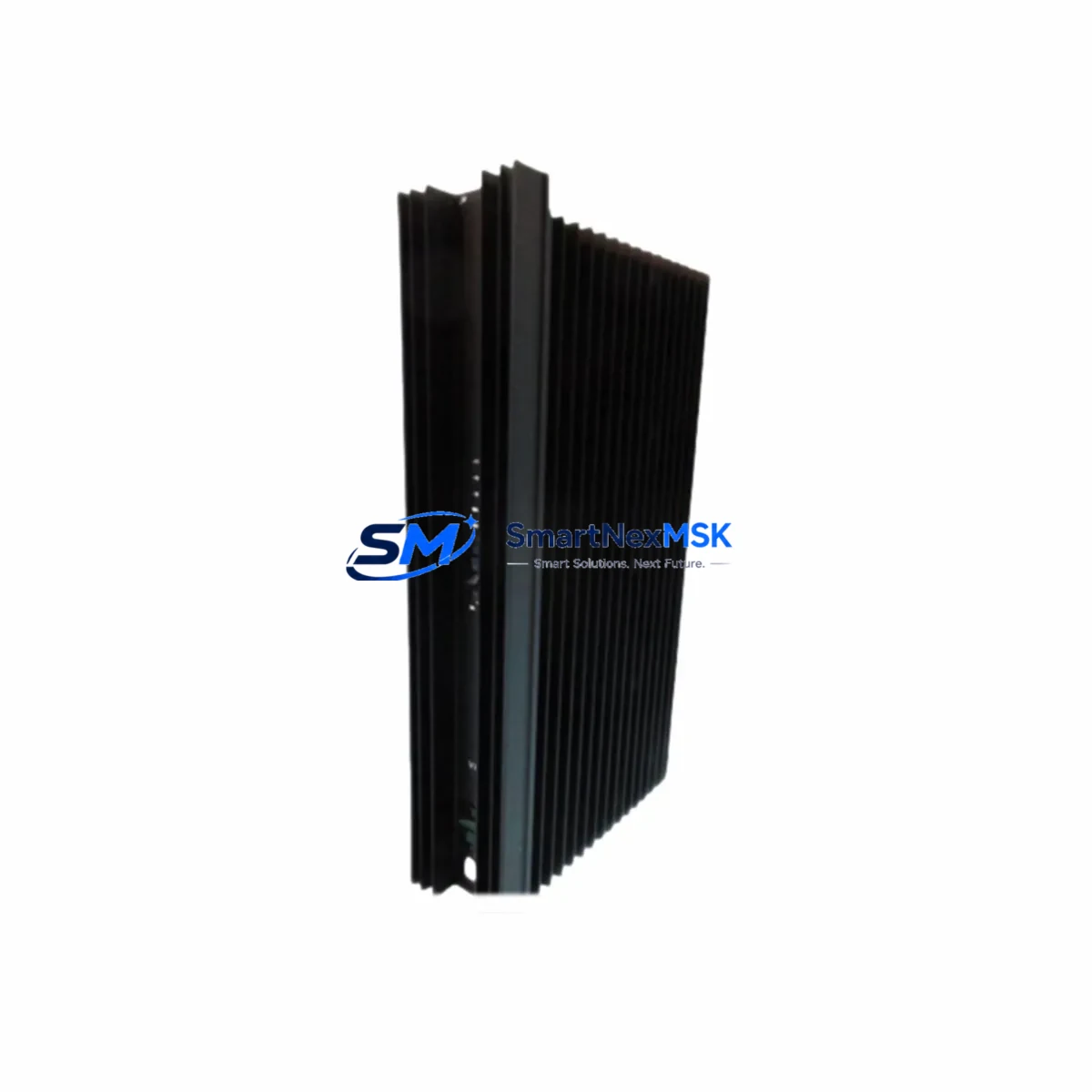

The Neles Automation A413311 is an original DC Power Supply Module engineered for continuous-duty industrial automation environments. Designed for integration within Valmet (formerly Metso/Neles) DCS rack systems, this module delivers regulated DC power to field I/O cards, communication modules, and processor boards across process control installations in pulp & paper, oil & gas, and heavy manufacturing sectors. Maintaining a verified stock of the A413311 is a cornerstone of any proactive maintenance strategy — power supply failures are among the leading causes of unplanned DCS shutdowns, and rapid spare availability is the single most effective countermeasure against extended downtime.

For maintenance engineers managing aging Valmet or Metso DCS infrastructure, the A413311 represents a direct, form-fit-function replacement that eliminates the compatibility risk associated with third-party alternatives. Each unit shipped by SMARTNEXMSK undergoes functional testing prior to dispatch, and is covered by a 12-month warranty from the date of delivery. Whether you are executing a planned annual shutdown, responding to an emergency fault, or building out a strategic spare parts inventory for a remote facility, the A413311 is available for fast worldwide delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply module failure rarely occurs in isolation. When replacing the A413311 during a corrective or preventive maintenance event, experienced maintenance engineers treat the intervention as an opportunity to audit the entire power distribution chain within the DCS cabinet. The following components should be inspected or tested concurrently:

Begin with the rack backplane and bus connectors — oxidized or loose backplane contacts are a common root cause of intermittent power faults that are misdiagnosed as module failures. Next, verify the 24 VDC distribution fuses and fuse holders (typically Phoenix Contact or Weidmüller terminal-mounted types) feeding each rack slot; a blown fuse upstream of the A413311 will cause the replacement module to appear faulty on first power-up. Check the AC/DC primary power supply unit feeding the DCS cabinet — units such as the Valmet PSU-24/10 or equivalent third-party 24 VDC/10 A DIN-rail supplies should be load-tested to confirm they can sustain full rack current draw after the A413311 is reinstated.

On the I/O side, inspect analog input modules and digital output modules seated in adjacent rack slots; a shorted output channel on a neighboring I/O card can impose excess load on the power bus and accelerate power supply wear. If the DCS rack includes HART communication modules or PROFIBUS DP interface cards, confirm their power draw is within the rack’s total budget after the A413311 replacement. For installations using signal isolators (e.g., MTL or Pepperl+Fuchs loop-powered isolators) between field instruments and DCS I/O, verify that isolator supply rails remain within specification — these devices are sensitive to supply voltage sag during module hot-swap.

Cabinet-level inspection should also cover terminal blocks and marshalling panels for signs of thermal discoloration or loose terminations, and the UPS or battery backup module (if fitted) should be load-tested to confirm it can sustain the rack through a mains interruption. Finally, if the installation includes an operator HMI station connected via the DCS network, confirm that the HMI communication link is restored and alarm states are cleared after the A413311 is commissioned — a latent communication fault can mask a successful power supply replacement during post-maintenance verification.

Site Replacement Workflow

Step 1 — Isolation and safety: Follow site LOTO (Lockout/Tagout) procedures. Confirm the rack slot is de-energized before extraction. Document the existing module’s LED status and any active alarms in the DCS historian prior to removal.

Step 2 — Module extraction: Release the A413311 from its rack slot using the ejector levers (if fitted). Inspect the backplane connector pins on both the module and the rack for damage or contamination. Clean with isopropyl alcohol if required.

Step 3 — Compatibility verification: Confirm the replacement A413311 carries the same firmware revision label and hardware revision suffix as the removed unit. For Valmet DCS systems, mismatched hardware revisions between redundant power supply slots can trigger configuration mismatch alarms — verify against the system’s hardware configuration database before insertion.

Step 4 — Installation and power-up: Seat the replacement module firmly until the backplane connector is fully engaged. Restore power in sequence: primary AC supply first, then rack bus, then individual slot enables (if applicable). Monitor the module’s status LEDs and the DCS operator station for fault-free initialization.

Step 5 — Post-replacement verification: Measure output voltage at the rack bus test points (target: 24.0 VDC ±2%). Confirm all I/O modules in the rack have returned to normal scan status. Clear maintenance alarms in the DCS and update the site maintenance log with the replacement date, new module serial number, and next scheduled inspection interval.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement is documented for future audits — a critical requirement in ISO 55000-aligned asset management programs.

Spare Parts Support FAQ

Q1: Is the A413311 an original Neles Automation part or a compatible substitute?
The A413311 supplied by SMARTNEXMSK is an original OEM spare manufactured by Neles Automation (now part of the Valmet group). We do not supply rebranded or third-party compatible substitutes for this SKU. Each unit is individually tested for output voltage regulation and ripple before shipment.

Q2: What is the warranty coverage and what does it include?
All A413311 units carry a 12-month warranty from the date of confirmed delivery. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed via sales@smartnexmsk.com with photographic evidence and a fault description.

Q3: How do I confirm compatibility with my specific Valmet or Metso DCS rack revision?
Provide your rack model number, system software version, and existing module hardware revision label to our technical team at sales@smartnexmsk.com. We will cross-reference against our compatibility database and confirm suitability before shipment. For legacy Neles ND800 and Metso DNA installations, we maintain revision-specific inventory records to prevent hardware mismatch issues.

Q4: Can I order multiple units for strategic spare inventory, and what are the lead times?
Yes — we support bulk spare inventory orders for maintenance departments and MRO procurement teams. Standard single-unit orders ship within 3–7 business days. For multi-unit strategic stock orders, lead times are confirmed at the time of quotation. Contact us at +86 18259474341 or sales@smartnexmsk.com for volume pricing and scheduled delivery arrangements.
