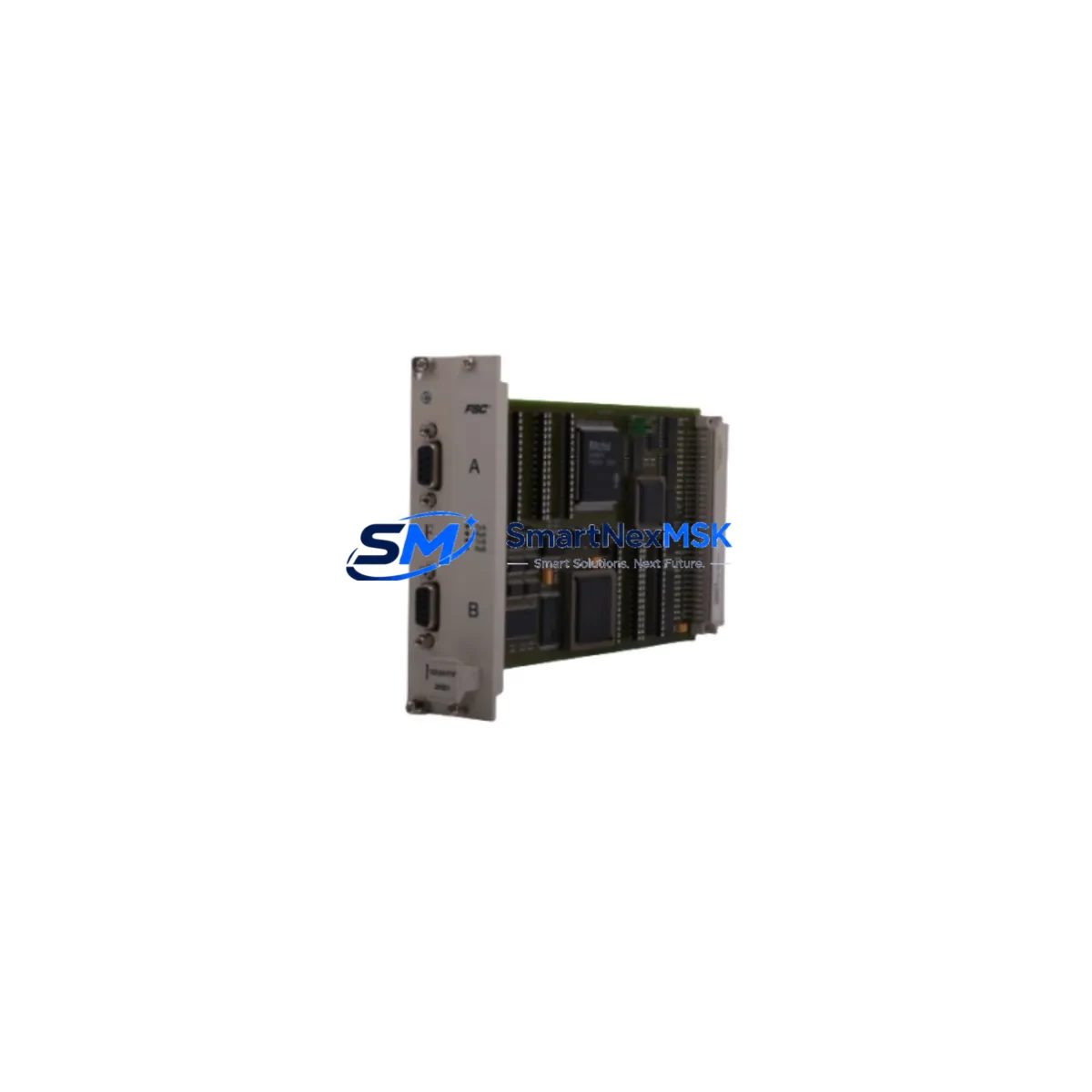

Norcontrol HA337232B/B/B NA1032.1 Retrofit-Ready I/O Module

Norcontrol HA337232B/B/B NA1032.1 Retrofit-Ready Serial I/O & Power Module for NA1032 DCS Control Systems

The Norcontrol HA337232B/B/B NA1032.1 is a Serial I/O & Power Module originally designed for the Norcontrol NA1032 Distributed Control System (DCS) platform — a proven architecture widely deployed across marine automation, offshore process control, and industrial plant management applications. As the NA1032 series has reached end-of-life status, sourcing verified replacement modules has become a critical challenge for maintenance engineers and system integrators responsible for keeping legacy control infrastructure operational.

SMARTNEXMSK maintains ready stock of the HA337232B/B/B NA1032.1 module, fully tested and backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm serial communication integrity, power rail output stability, and backplane interface continuity — ensuring that your replacement module performs identically to the original factory specification upon installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the HA337232B/B/B NA1032.1 in an active control system requires careful pre-work to avoid unplanned downtime and configuration loss. Before the physical swap, engineers should document the existing terminal wiring layout — particularly the RS-232 or RS-485 serial connections routed through the module — and photograph the DIP switch or jumper positions that define the module’s station address on the NA1032 backplane.

The NA1032 platform typically integrates multiple module types within a shared rack assembly. During a retrofit, it is common to simultaneously audit adjacent components such as the NA1032 CPU controller module, the NA1032 power supply unit, and any installed NA1032 analog input/output modules sharing the same backplane. If the control cabinet also houses a Norcontrol operator interface terminal or a legacy HMI panel connected via serial link, the communication parameters — baud rate, parity, stop bits — must be recorded and re-verified after the new module is seated.

For systems that have expanded beyond the original NA1032 rack capacity, engineers may find that the retrofit is an appropriate moment to evaluate I/O extension modules or remote I/O adapters compatible with the NA1032 communication bus. Similarly, if the existing serial communication infrastructure relies on older RS-232 point-to-point wiring, the replacement project may present an opportunity to migrate segments of the network to RS-485 multi-drop topology using a compatible serial converter or protocol bridge module, reducing long-term cabling complexity.

Where the NA1032 system interfaces with a supervisory SCADA layer or a distributed network via Modbus RTU, the HA337232B/B/B NA1032.1 replacement must be validated against the Modbus register map to confirm that all process variable addresses remain intact. Any mismatch between the replacement module’s default configuration and the SCADA polling table will result in communication faults that must be resolved at the engineering workstation before returning the loop to automatic control.

Customers upgrading multiple cabinets simultaneously often source the NA1032 rack chassis, terminal block assemblies, and DIN rail mounting hardware as part of the same procurement to standardize the retrofit bill of materials. SMARTNEXMSK can advise on compatible ancillary components based on your existing system documentation.

Downtime Control During System Migration

Minimizing control system downtime during a module replacement begins with preparation, not execution. Before any physical work begins, export a full backup of the NA1032 engineering database from the programming workstation — including all function block configurations, I/O assignments, alarm setpoints, and communication parameters. This backup is your recovery baseline if the replacement module requires re-commissioning from scratch.

Where process conditions allow, schedule the module swap during a planned maintenance window rather than responding reactively to a module failure. A controlled shutdown of the affected I/O loop — with field devices placed in manual or safe-state mode — allows the replacement to proceed without risking process upsets. After seating the HA337232B/B/B NA1032.1 replacement, power the rack and allow the NA1032 CPU to perform its self-diagnostic cycle before re-enabling automatic control.

If the system cannot tolerate a full shutdown, consider a partial isolation strategy: identify which field signals are routed through the failing module, temporarily reroute critical signals to spare I/O channels on adjacent modules if available, and perform the swap with only non-critical loops offline. This approach preserves overall system continuity while the replacement is completed.

Post-installation, verify all serial communication links are re-established — particularly any connections to remote operator stations, data historians, or third-party controllers that depend on the NA1032 serial I/O path. Confirm that HMI displays are updating correctly and that no spurious alarms have been generated by the module reinsertion. Document the completed replacement in the site maintenance log, including the new module’s serial number and the date of installation, to support future warranty claims and audit requirements.

Retrofit Support FAQ

Q1: Is the HA337232B/B/B NA1032.1 a direct drop-in replacement for the original module?
Yes. The replacement module is manufactured or sourced to match the original HA337232B/B/B NA1032.1 form factor, backplane connector pinout, and electrical specification. No mechanical modification to the rack or wiring is required. However, you should verify that the firmware or hardware revision of the replacement is compatible with your specific NA1032 system version — particularly if your installation has been through incremental software upgrades since original commissioning.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, power up the rack and allow the NA1032 CPU to complete its initialization sequence. Confirm that the module is recognized in the engineering station’s I/O configuration view. Re-verify all serial communication parameters (baud rate, address, parity) match the original settings. Perform a loop check on all field signals routed through the module and confirm HMI tag values are updating correctly before returning the system to automatic operation.

Q3: How do I verify wiring compatibility before installation?
Refer to the original NA1032 system wiring diagrams and compare terminal assignments against the replacement module’s terminal block layout. The HA337232B/B/B NA1032.1 uses the standard NA1032 terminal interface — terminal numbering and signal assignments should be identical. If your site documentation is incomplete, SMARTNEXMSK can provide reference wiring guidance based on the module’s known specification.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each module is tested prior to dispatch to verify serial communication function, power output stability, and backplane interface integrity. Warranty claims are supported by SMARTNEXMSK’s technical team — contact sales@smartnexmsk.com with your order reference and a description of the fault. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is not covered under the standard warranty terms.
