NORCONTROL NN-791.12 Retrofit-Ready Interface for K-Chief 500

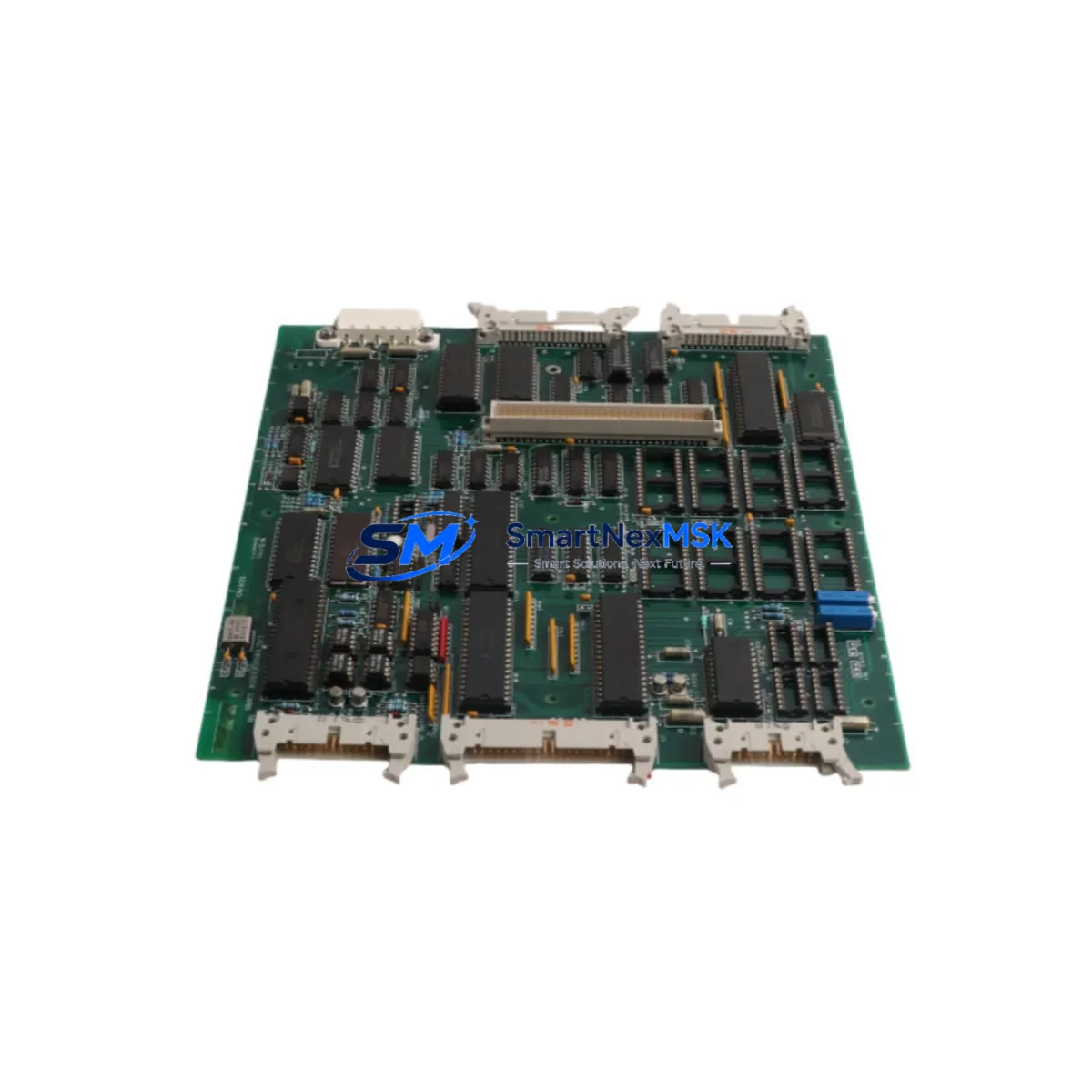

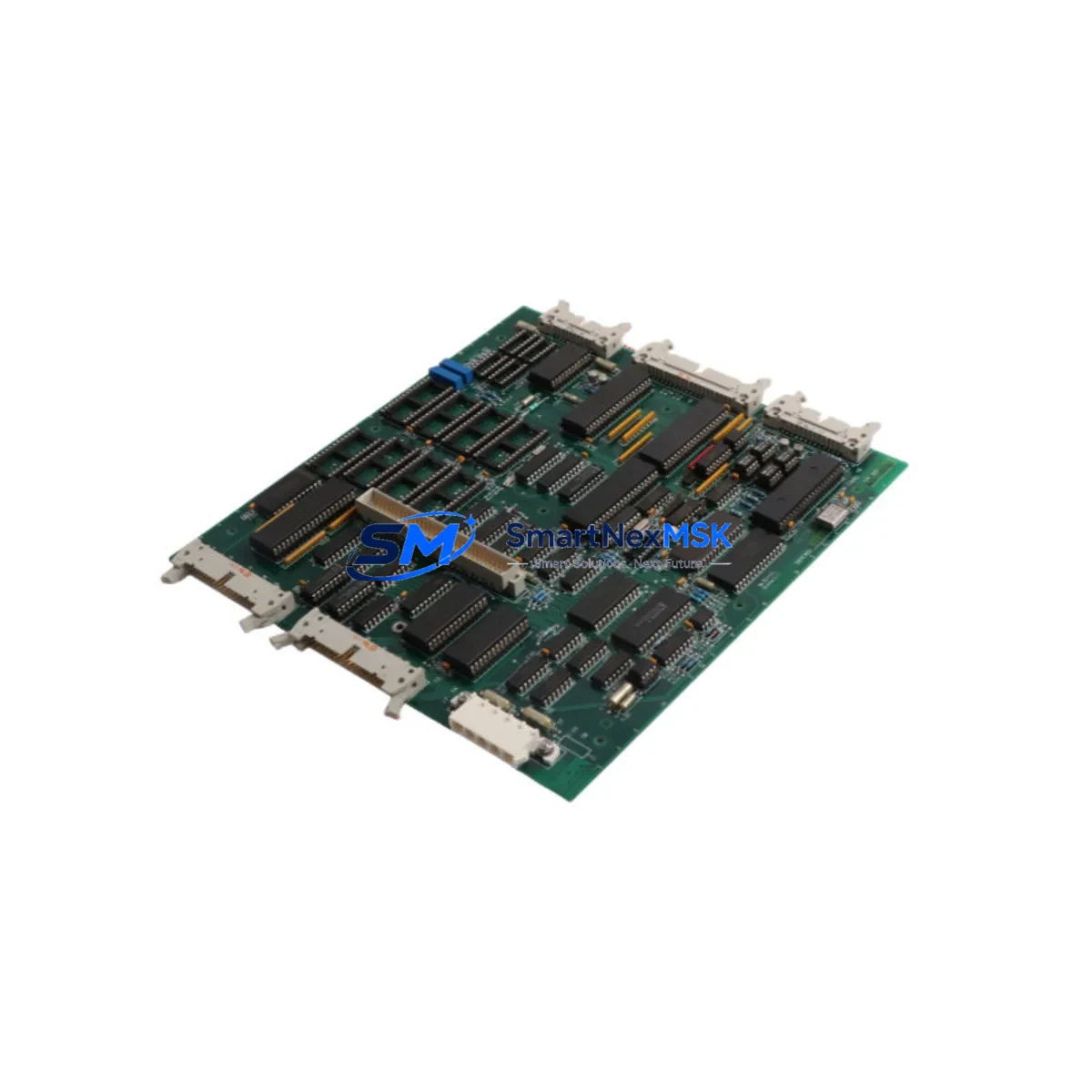

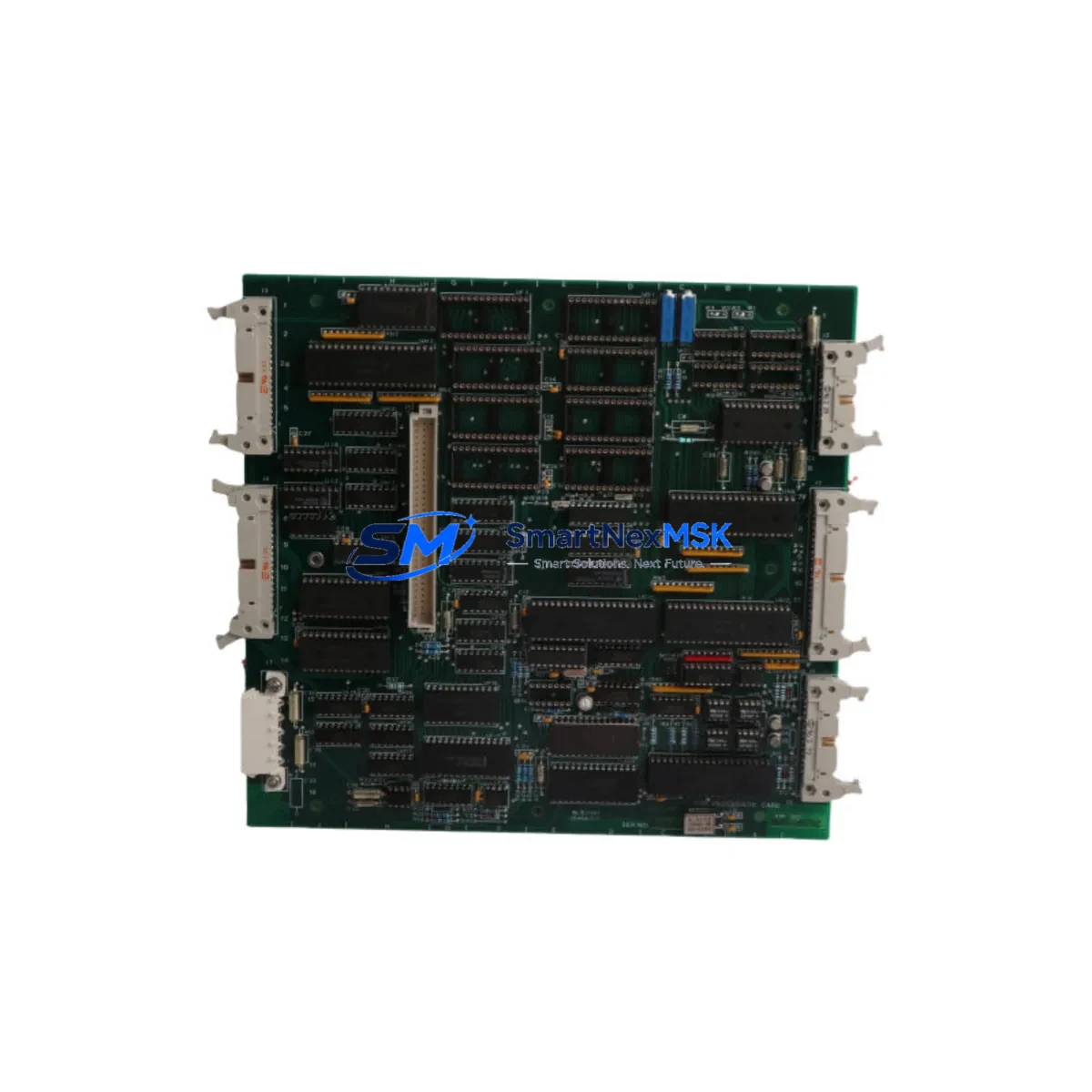

NORCONTROL NN-791.12 Retrofit-Ready Interface Module for K-Chief 500 Control Systems

The NORCONTROL NN-791.12 is a high-reliability DCS interface module engineered for seamless integration into K-Chief 500 distributed control and alarm monitoring systems. As legacy marine automation platforms age beyond their supported lifecycle, vessel operators and system integrators increasingly require verified, drop-in replacement modules that eliminate the risk of extended downtime, costly re-engineering, and unplanned dry-dock periods. The NN-791.12 addresses this need directly — offering full backward compatibility with the K-Chief 500 backplane architecture, original terminal wiring layouts, and the communication protocols used across the K-Chief platform family.

Whether you are replacing a failed unit in an active installation, upgrading a control cabinet ahead of a scheduled class survey, or migrating from an end-of-life K-Chief 400 system to the K-Chief 500 platform, the NN-791.12 provides the interface continuity required to maintain uninterrupted vessel control. The module supports the internal serial communication bus used by the K-Chief 500 system controller, ensuring that existing HMI screen layouts, alarm group assignments, and I/O channel mappings remain intact without requiring software re-configuration or PLC program modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the NN-791.12 into an existing K-Chief 500 installation begins with a thorough pre-replacement audit. Engineers should document the current module address assignment, confirm the backplane slot position, and photograph the existing terminal wiring before removal. The K-Chief 500 system typically distributes I/O and interface functions across a multi-slot rack; adjacent modules such as the NN-790 analog input module and NN-792 digital output module must remain undisturbed during the swap to avoid triggering cascading alarm states on the operator station.

Power supply integrity is a critical pre-check. The K-Chief 500 rack is typically fed by a 24 VDC distributed power supply unit — confirm that the PSU output voltage is within tolerance and that the rail can support the NN-791.12 current draw without exceeding the rack’s total power budget. If the existing PSU is also approaching end-of-life, a concurrent replacement with a compatible NORCONTROL rack power supply module is advisable to avoid a secondary failure shortly after the interface module is restored.

For installations migrating from the older K-Chief 400 platform, the NN-791.12 serves as a key bridge component. The K-Chief 400 used a different backplane pinout and communication framing; during migration, the system integrator must update the K-Chief 500 system controller configuration file to reflect the new module’s channel assignments. The K-Chief 500 engineering workstation software provides a module configuration wizard that simplifies this process, but field engineers should verify each I/O channel individually against the original K-Chief 400 loop schedule before declaring the migration complete.

Communication link integrity should be validated end-to-end. The NN-791.12 interfaces with the K-Chief 500 internal bus, which in turn feeds data to the K-Chief 500 alarm printer interface, the voyage data recorder (VDR) interface module, and — where fitted — the integrated bridge system (IBS) gateway. Each of these downstream consumers must be checked for correct data reception after the NN-791.12 is commissioned. In installations where a MODBUS RTU or NMEA 0183 gateway module is used to bridge K-Chief data to third-party systems, the gateway’s polling configuration should be reviewed to ensure the new module’s register map is correctly addressed.

I/O expansion considerations are also relevant during retrofit planning. If the replacement is being carried out as part of a broader control cabinet upgrade — for example, adding additional alarm monitoring points or integrating new machinery sensors — the rack may require an additional NN-790 series I/O expansion module. Confirm available backplane slots before ordering expansion hardware, and ensure the system controller’s I/O license supports the additional channel count.

Downtime Control During System Migration

Minimizing vessel downtime during a K-Chief 500 interface module replacement requires disciplined pre-staging and a clear rollback plan. Before the replacement window opens, the replacement NN-791.12 should be bench-tested and pre-configured with the correct module address to match the unit being removed. This eliminates address conflict errors on first power-up and reduces the commissioning window to a functional verification rather than a full configuration exercise.

The original PLC or DCS program logic stored in the K-Chief 500 system controller does not need to be modified for a like-for-like NN-791.12 replacement. The system controller retains its configuration in non-volatile memory; provided the replacement module is addressed identically to the failed unit, the controller will recognize it automatically on the next scan cycle. This is a significant advantage over cross-platform migrations, where program re-compilation and HMI screen re-mapping may be required.

To protect field control continuity during the swap, operators should place the affected alarm groups into maintenance bypass mode via the K-Chief 500 operator station before removing the module. This prevents nuisance alarms from propagating to the bridge and avoids triggering automated shutdown sequences tied to the affected I/O channels. Once the NN-791.12 is seated and powered, maintenance bypass should be released group by group, with each channel verified against its expected state before the next group is released.

For critical machinery monitoring points — such as main engine temperature, bilge level, or fire detection loops — a second engineer should monitor the physical sensor outputs at the field terminal box while the module replacement is in progress. This provides an independent verification layer and ensures that any wiring anomaly introduced during re-termination is caught before the system is returned to normal operation. All replacement activities should be logged in the vessel’s maintenance management system, with the new module’s serial number recorded for warranty tracking purposes.

Retrofit Support FAQ

Q1: Is the NN-791.12 a direct drop-in replacement for the original NORCONTROL NN-791.12 fitted in my K-Chief 500 system?
Yes. The NN-791.12 supplied by SMARTNEXMSK is functionally equivalent to the original NORCONTROL factory unit. It uses the same backplane connector, the same terminal block layout, and the same internal communication protocol. No wiring modifications or software changes are required for a like-for-like replacement in an existing K-Chief 500 installation.

Q2: What commissioning steps are required after installing the NN-791.12?
After seating the module and restoring power to the rack, verify that the K-Chief 500 system controller recognizes the module on its internal bus — this is typically confirmed by a green status LED on the module face and the absence of a “Module Fault” alarm on the operator station. Perform a functional loop test on each I/O channel assigned to the module, confirm alarm setpoints are active, and release any maintenance bypasses applied during the swap. Document the commissioning results and retain the test record for class surveyor review if required.

Q3: Can the NN-791.12 be used during a migration from K-Chief 400 to K-Chief 500?
Yes, with configuration. The NN-791.12 is a K-Chief 500 native module and is not backward-compatible with the K-Chief 400 backplane. During a K-Chief 400 to K-Chief 500 migration, the NN-791.12 is installed into the new K-Chief 500 rack and configured via the K-Chief 500 engineering workstation software. Field wiring from the K-Chief 400 terminal blocks must be re-mapped to the K-Chief 500 terminal layout — a wiring schedule comparison is strongly recommended before commencing field re-termination.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failure under normal operating and environmental conditions as specified in the NORCONTROL K-Chief 500 installation manual. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the module serial number, purchase order reference, and a description of the fault. A replacement or repair will be arranged within the warranty period at no additional cost.
