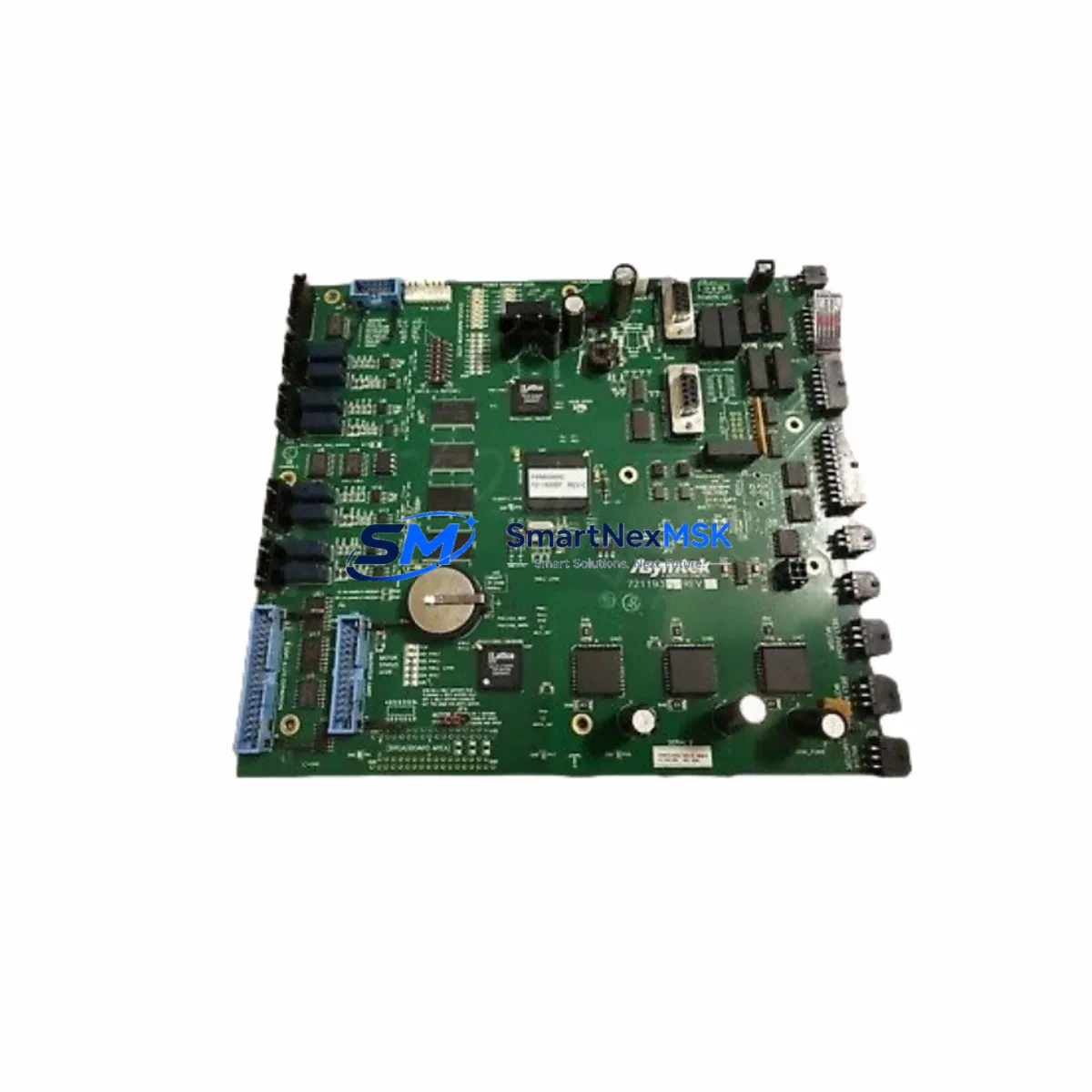

Nordson ASYMTEK ASM7211930G Retrofit-Ready Control Board

Nordson ASYMTEK ASM7211930G Retrofit-Ready Control Board for Fluid Dispensing Control Systems

The Nordson ASYMTEK ASM7211930G (also referenced as SKU 7211930) is a retrofit-ready dispensing control board engineered for seamless integration into legacy Nordson ASYMTEK Fluid Dispensing platforms. Whether you are replacing a failed board in an aging production line, upgrading a discontinued control module, or migrating an entire dispensing cell to a more reliable hardware baseline, the ASM7211930G delivers the electrical compatibility, firmware alignment, and mechanical fit required for a low-risk, minimum-downtime changeover.

Industrial facilities operating Nordson ASYMTEK dispensing systems — including the S-920, S-940, Spectrum S-series, and Axiom series dispensers — frequently encounter obsolescence challenges as original control boards reach end-of-life. The ASM7211930G addresses this directly, serving as a verified drop-in replacement that preserves existing program logic, recipe libraries, and dispense parameters without requiring a full system re-qualification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ASM7211930G retrofit begins well before the board is physically installed. Engineers and maintenance teams should start by auditing the existing control cabinet layout, confirming that the 24VDC or 48VDC power supply module within the dispensing system cabinet can sustain the current draw of the replacement board under full dispensing load. In many legacy Nordson ASYMTEK installations, the original switching power supply unit may be operating near its rated capacity, particularly in multi-valve or high-speed dispensing configurations.

Terminal wiring is the next critical checkpoint. The ASM7211930G uses the same terminal block pinout as the original 7211930 board, but technicians should photograph and document all existing wiring before disconnection — particularly the valve driver outputs, pressure transducer signal lines, and encoder feedback cables from the XY motion stage. In systems where the dispensing head interfaces with a Nordson ASYMTEK motion controller board or a dedicated servo drive module, the inter-board ribbon cable and backplane connector seating must be verified after installation.

For facilities running the Nordson ASYMTEK Dispatch software or a third-party SPC/MES integration via RS-232 or RS-485, the communication link configuration — baud rate, parity, stop bits, and device address — must be re-confirmed after the board swap. If the host system communicates through a USB-to-serial converter or a PROFIBUS DP gateway module, these interface devices should be tested independently before reconnecting to the new board.

I/O mapping is equally important. The ASM7211930G supports the same digital I/O channel assignments as the original board, but any I/O expansion module connected via the system backplane should be re-addressed and verified in the dispenser’s configuration menu. Facilities that have added vision alignment modules, weight-based dispense verification sensors, or barcode readers to the dispensing cell should confirm that these peripheral devices re-enumerate correctly after the control board replacement.

HMI screen mapping is a frequently overlooked step. If the dispensing system uses a Nordson ASYMTEK operator panel or a third-party touchscreen HMI terminal connected via serial or Ethernet, the screen tag database and alarm configuration should be validated against the new board’s firmware to ensure all status indicators, fault codes, and recipe selection screens function as expected.

Finally, before returning the system to production, a full dispense pattern verification cycle should be run using a test substrate. This confirms needle-to-substrate height, dot diameter, bead continuity, and tail-off behavior — all of which can shift slightly when a new control board introduces minor timing differences in valve actuation.

Downtime Control During System Migration

Minimizing unplanned downtime during a control board replacement is a primary concern for any production environment. The ASM7211930G retrofit is designed to support a structured, time-controlled changeover that protects existing program logic and maintains field control continuity throughout the process.

The recommended approach is a pre-staged swap: the replacement board is received, inspected, and bench-tested against a known-good power supply before the production system is taken offline. This eliminates the risk of discovering a shipping or handling issue only after the line has been stopped. Our pre-shipment functional test protocol covers power-on self-test, communication port verification, and output channel continuity — results are documented and shipped with the unit.

During the changeover window, the original board should be retained and stored in an ESD-safe bag as a fallback. If the replacement board does not initialize correctly within the first 30 minutes of commissioning, the original board can be reinstalled to restore production while the issue is diagnosed — this rollback capability is only possible if the original board has not been discarded or damaged during removal.

Program logic protection is straightforward for the ASM7211930G: because the board is a direct hardware replacement, the dispense recipes and motion parameters stored in the system’s host PC or recipe server are not affected by the board swap. The control board itself does not store production recipes in non-volatile memory in a format that would be lost during replacement. However, any board-level calibration offsets — such as pressure sensor zero-point calibration or valve timing trim values — should be recorded from the original board’s configuration menu before removal and re-entered on the new board during commissioning.

For facilities with strict change-control requirements, the ASM7211930G retrofit can be documented as a like-for-like replacement under most quality management frameworks, provided the board’s part number, revision level, and functional test results are recorded in the maintenance log. Our 12-month warranty documentation supports this process by providing a traceable record of the unit’s pre-shipment test status.

Retrofit Support FAQ

Q1: Is the ASM7211930G a direct drop-in replacement for the original 7211930 board?
Yes. The ASM7211930G is mechanically and electrically compatible with the original 7211930 dispensing control board. The connector footprint, terminal block pinout, and backplane interface are identical. No mechanical modification to the dispenser chassis or wiring harness is required. Firmware revision compatibility should be confirmed against your system’s software version before installation.

Q2: What commissioning steps are required after installation?
After physical installation and power-on, technicians should verify communication link parameters (baud rate, device address), re-enter any board-level calibration offsets recorded from the original board, confirm I/O channel mapping for any connected expansion modules, and run a full dispense pattern verification cycle on a test substrate before returning the system to production.

Q3: Does the replacement board come pre-tested, and what does the 12-month warranty cover?
Yes. Every ASM7211930G unit undergoes a pre-shipment functional test covering power-on self-test, communication port verification, and output channel continuity. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or ESD mishandling. Warranty claims are supported with a replacement-or-refund resolution within the coverage period.

Q4: Can this board be used in a system that has been upgraded with additional I/O or communication modules?
Yes, provided the expanded I/O or communication modules interface through the system backplane or external terminal blocks in a manner consistent with the original board’s I/O channel assignments. After installation, all expansion modules should be re-addressed and verified in the dispenser’s configuration menu. If your system includes a PROFIBUS DP gateway, RS-485 multi-drop network, or vision alignment module, these should be tested independently before full production restart.
