nVent RAYCHEM EMDR-10 Spare for EMDR Series Automation

nVent RAYCHEM EMDR-10 Spare for EMDR Series Automation: Spare Replacement & Industrial Downtime Risk Control

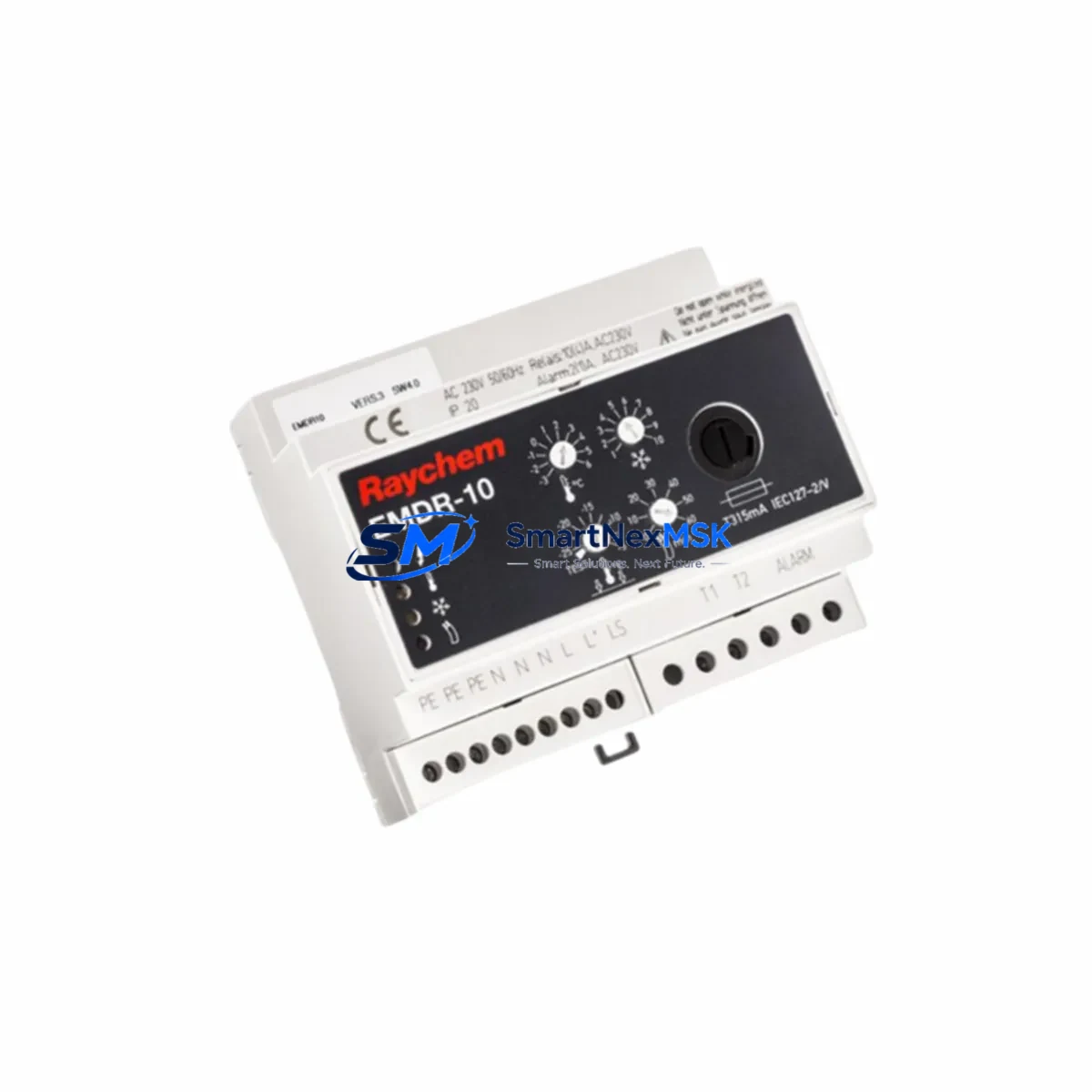

The nVent RAYCHEM EMDR-10 is a single-circuit electronic heat tracing controller designed for industrial freeze protection and process temperature maintenance applications. As a maintenance-ready original spare, the EMDR-10 is a critical component in continuous-operation facilities where unplanned downtime carries significant operational and financial risk. Whether you are managing a planned shutdown, responding to an emergency fault, or building a strategic spare parts inventory, the EMDR-10 delivers the reliability and compatibility that maintenance engineers and procurement teams demand.

Sourced as an original spare, each EMDR-10 unit is tested before shipment and backed by a 12-month warranty, ensuring that your replacement component meets the same performance standards as the original installation. Long-term supply availability is maintained to support aging EMDR Series systems and extend the operational life of existing control infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the EMDR-10 controller in a heat tracing panel or control cabinet, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the incoming power supply voltage and confirming that the circuit breaker or fuse protecting the EMDR-10 load circuit is correctly rated — typically a dedicated thermal-magnetic breaker matched to the heating cable load current. Fuse holders and fuse links within the panel should be inspected for signs of overheating or corrosion.

The RTD temperature sensor (PT100) connected to the EMDR-10 sensing input is a common wear item and should be tested for correct resistance values before commissioning the replacement controller. Damaged or moisture-ingressed sensor cables can cause erratic temperature readings and premature controller failure. Similarly, the heating cable itself — whether a self-regulating type such as the RAYCHEM XL-Trace or a constant-wattage series — should be tested for insulation resistance using a megohmmeter before reconnection.

Terminal blocks and wiring within the control cabinet should be inspected for loose connections, oxidation, and correct torque. In multi-circuit panels, adjacent EMDR-10 units or EMDR-20 dual-circuit controllers should be checked for similar signs of wear, as shared power bus faults can affect multiple controllers simultaneously. Ground fault protection devices, where installed, should be tested for correct trip thresholds.

For facilities using a supervisory SCADA or building management system, the communication interface — whether via Modbus RTU, dry contact relay output, or alarm signal wiring — should be verified after replacement to confirm that the new EMDR-10 is correctly integrated into the monitoring architecture. Signal isolators or relay modules in the alarm circuit should be inspected as part of the same maintenance event. Panel-mounted HMI displays or remote annunciator panels connected to the EMDR Series system should also be tested to confirm correct status indication after the controller swap.

Procurement engineers building a strategic spare parts inventory for EMDR Series heat tracing systems should consider stocking the EMDR-10 alongside compatible components including RTD sensors, circuit breakers, terminal blocks, and heating cable end seals to enable rapid, complete restoration of a failed circuit without waiting for multiple separate deliveries.

Site Replacement Workflow

Step 1 — Isolation: De-energize the heat tracing circuit at the panel breaker and apply lockout/tagout (LOTO) procedures. Confirm zero voltage at the EMDR-10 load terminals using a calibrated voltage tester.

Step 2 — Documentation: Photograph or record existing wiring connections, DIP switch settings, and setpoint configuration before removal. The EMDR-10 setpoint and control mode settings must be replicated on the replacement unit.

Step 3 — Component Inspection: Before installing the new EMDR-10, inspect the RTD sensor, heating cable insulation resistance, terminal block condition, and fuse integrity as described above.

Step 4 — Installation: Mount the replacement EMDR-10 on the DIN rail or panel position, reconnect all wiring per the original documentation, and confirm correct torque on all terminals. Restore DIP switch settings and temperature setpoints to match the original configuration.

Step 5 — Commissioning: Re-energize the circuit and verify correct controller operation — confirm that the EMDR-10 energizes the heating cable at the correct setpoint, that the RTD sensor reading is stable, and that any alarm or communication outputs are functioning correctly.

Step 6 — System Compatibility Confirmation: Confirm that the replacement EMDR-10 is compatible with the existing EMDR Series panel wiring, load current, and sensor type. No firmware or hardware modification is required when replacing like-for-like within the EMDR Series.

This workflow minimizes downtime, maintains system compatibility, and ensures that the replacement is completed safely and correctly on the first attempt — reducing the risk of a second callout or extended outage.

Spare Parts Support FAQ

Q1: Is the EMDR-10 a direct drop-in replacement for an existing EMDR Series controller?
Yes. The EMDR-10 is designed as a direct replacement within the EMDR Series. It uses the same DIN rail mounting footprint, terminal layout, and wiring configuration as the original unit. No panel modifications are required for a like-for-like swap, provided the replacement unit is configured to match the original setpoint and control mode settings.

Q2: How is the EMDR-10 tested before shipment?
Each EMDR-10 spare is function-tested prior to dispatch to verify correct switching operation, sensor input response, and output relay function. Units are inspected for physical integrity and packaged to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts inventory strategy for EMDR Series heat tracing systems?
For critical freeze protection applications, it is recommended to maintain at least one EMDR-10 spare per five installed circuits, or one unit per panel for smaller installations. For facilities with aging EMDR Series infrastructure or limited local supplier access, a higher buffer stock is advisable. Pairing the EMDR-10 spare with a compatible RTD sensor, spare fuses, and terminal block connectors enables a complete circuit restoration without secondary procurement delays.

Q4: Can the EMDR-10 be used to replace older or discontinued nVent RAYCHEM heat tracing controllers?
The EMDR-10 is compatible with standard EMDR Series panel configurations. For applications involving older or discontinued nVent RAYCHEM controller models, compatibility should be verified against the original panel wiring diagram and load specifications before installation. Our technical team can assist with compatibility confirmation prior to order placement.
