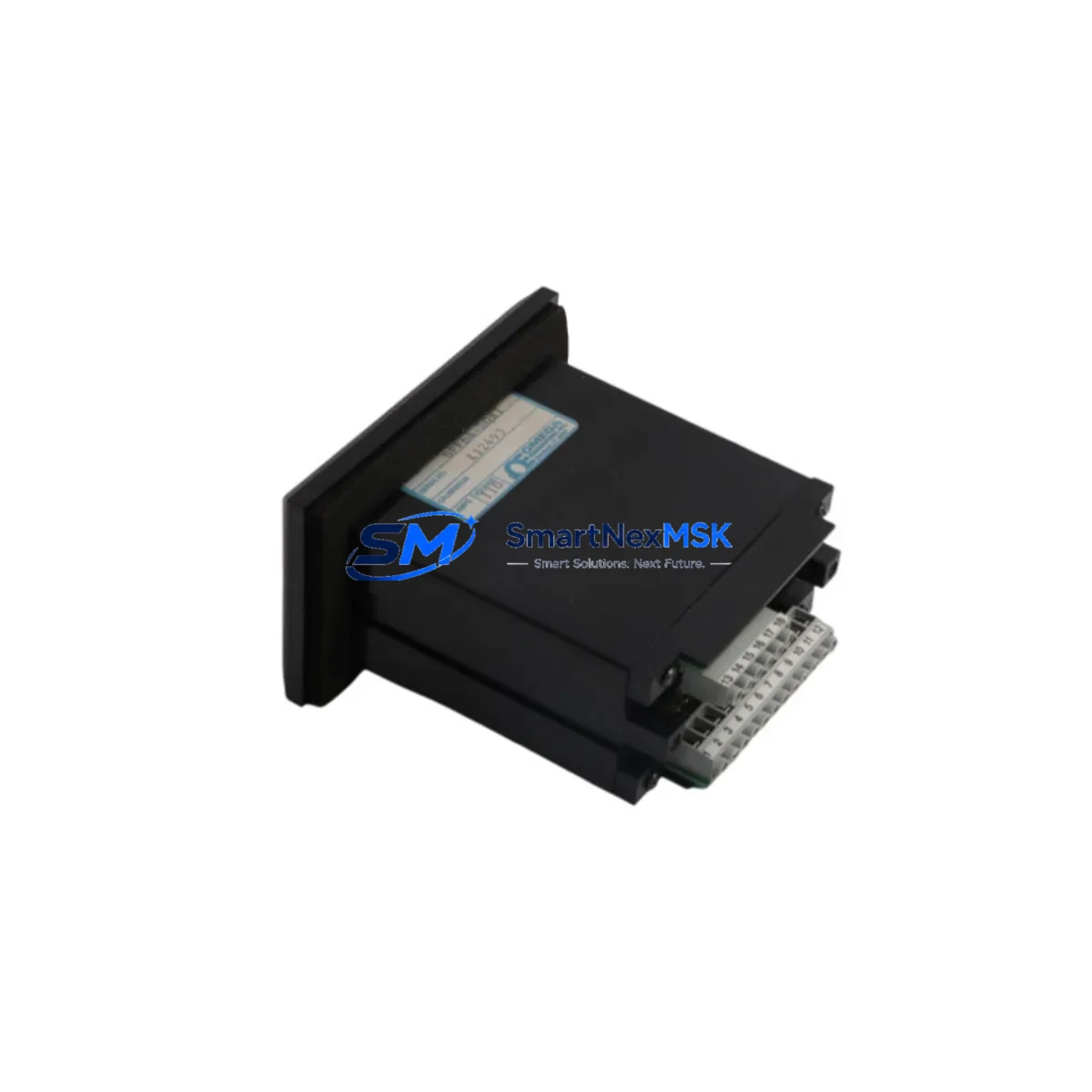

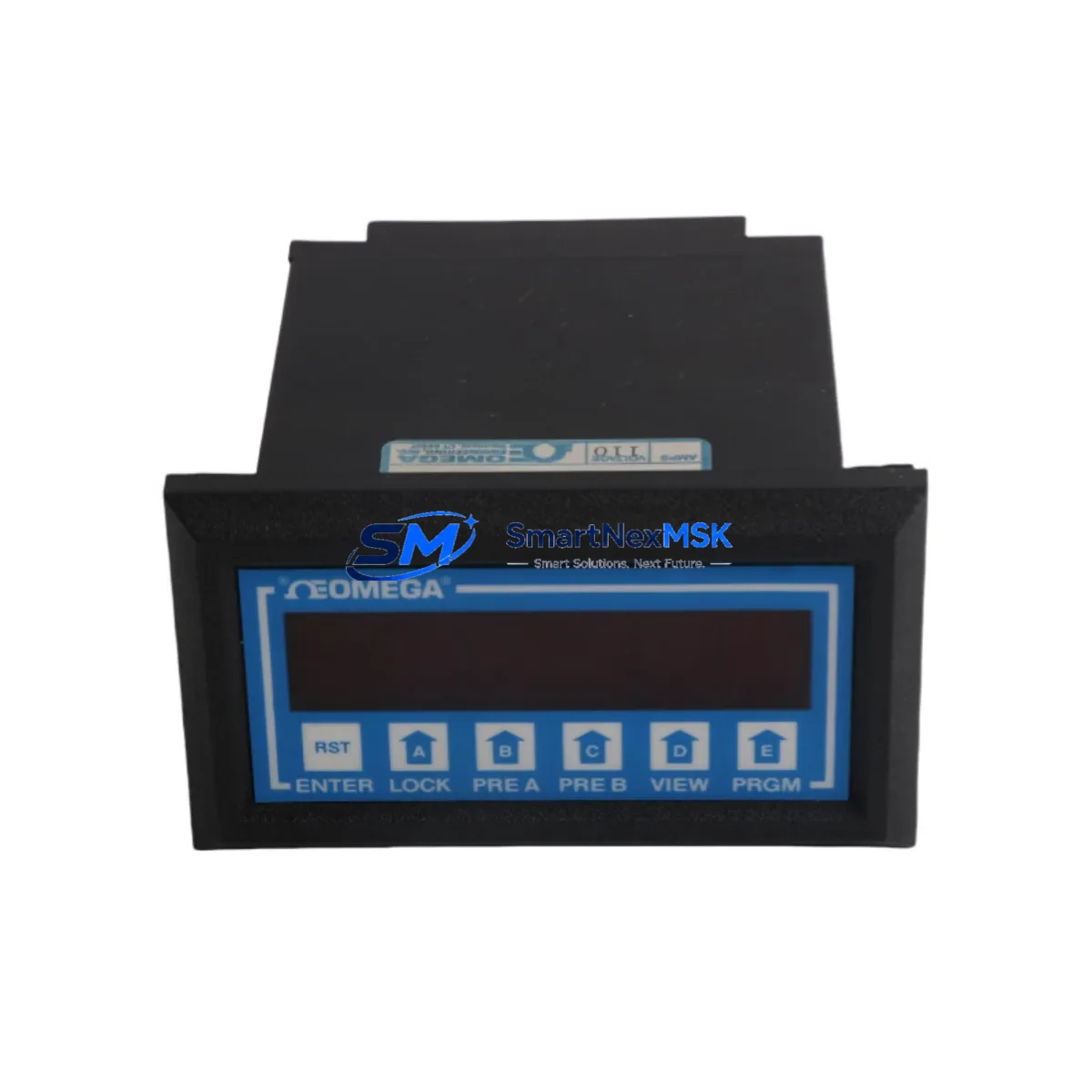

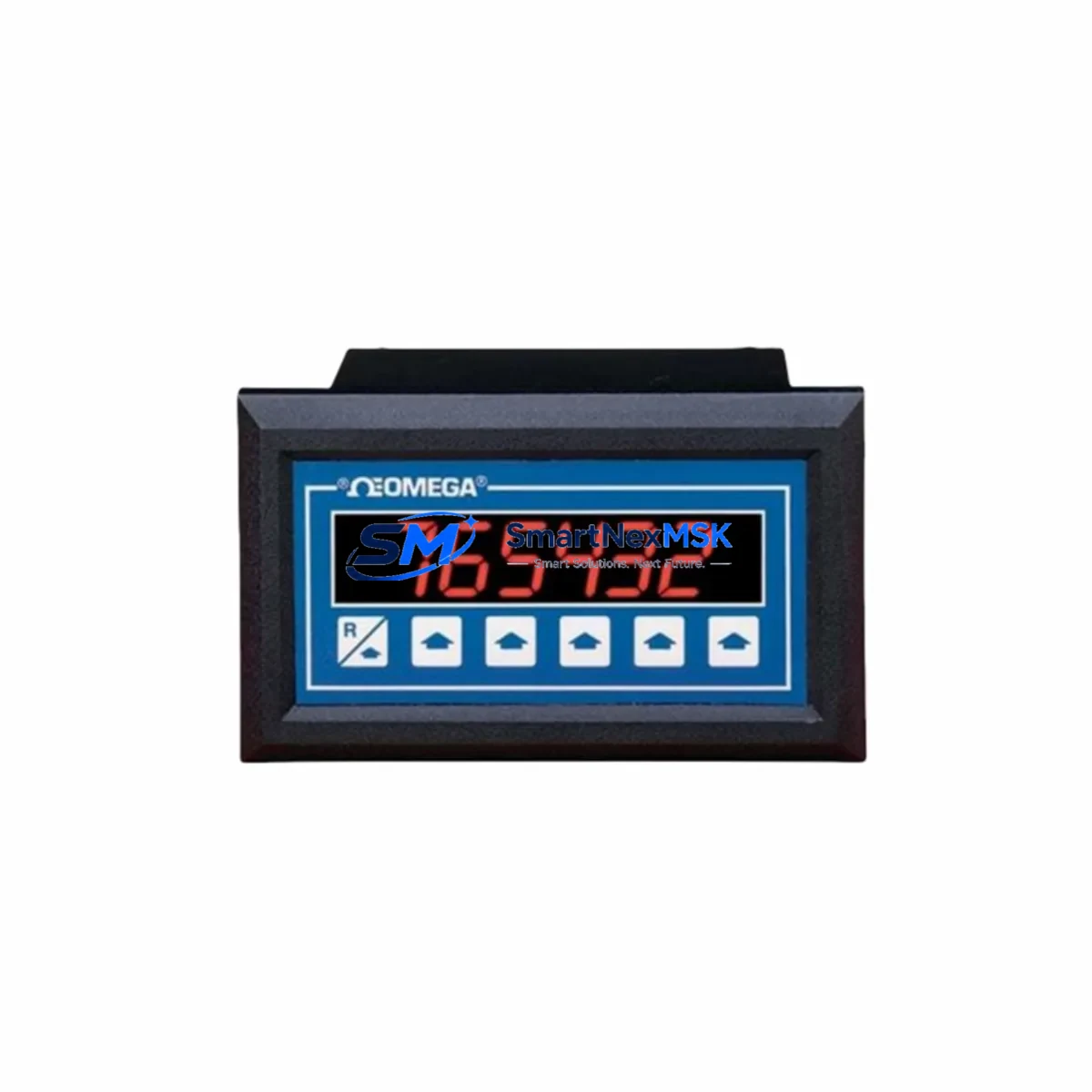

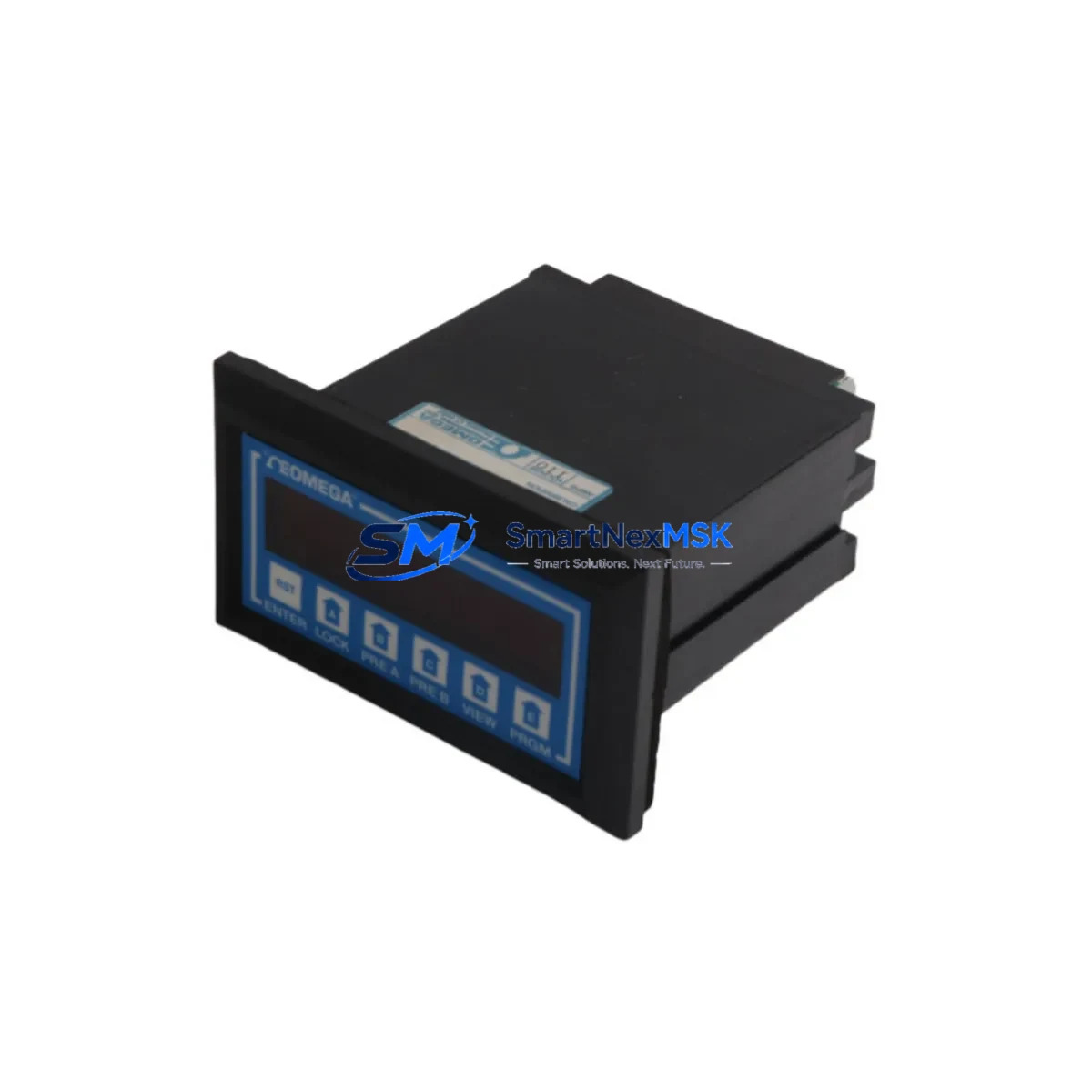

OMEGA DPF64-SQRT Maintenance-Ready Spare for DPF Series Automation
The OMEGA DPF64-SQRT is a 1/8 DIN panel-mount rate meter with built-in square root extraction, engineered for continuous process monitoring in industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid replacement in flow measurement, pump control, and process rate monitoring applications. Whether you are managing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory for a DPF Series control panel, the DPF64-SQRT delivers the drop-in compatibility and measurement accuracy your system demands.
Maintenance engineers and procurement teams working with OMEGA DPF Series instrumentation recognize the DPF64-SQRT as a critical front-panel component. Its square root extraction function is essential in differential pressure flow applications where the raw sensor signal must be linearized before display or relay output. A failed or drifted DPF64-SQRT can cause incorrect rate readings, nuisance alarms, or process shutdowns — making fast, verified replacement a priority for any site reliability program.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Model / SKU | DPF64-SQRT |
| Brand | OMEGA Engineering |
| Series | DPF Series |
| Form Factor | 1/8 DIN Panel Mount |
| Function | Rate Meter with Square Root Extraction |
| Display | 4-digit LED, engineering units |
| Input Signal | 4–20 mA / 0–10 V (process standard) |
| Output | Relay / Analog retransmission (model dependent) |
| Power Supply | 85–264 VAC universal input |
| Operating Temperature | 0°C to 55°C |
| Panel Cutout | 92 × 45 mm (1/8 DIN standard) |
| Compatibility | Drop-in replacement for DPF Series panel meters |
| Application | Flow rate, pump control, differential pressure monitoring |
| Condition | Original spare, pre-shipment tested |
| Warranty | 12 Months |
| Origin | USA (OMEGA Engineering) |
Maintenance Planning for Continuous Operation
When a DPF64-SQRT panel rate meter is flagged for replacement during a control cabinet inspection or routine calibration check, experienced maintenance engineers know that the meter itself is rarely the only component requiring attention. A comprehensive site replacement workflow should include inspection of the following associated components to prevent repeat failures and ensure system integrity:
Begin with the signal input wiring and terminal blocks — loose or corroded connections on the 4–20 mA input loop are a common root cause of erratic rate readings. Inspect the OMEGA PSU-series or equivalent 24 VDC loop power supply feeding the transmitter circuit; a degraded power supply can cause the DPF64-SQRT to display unstable values even after meter replacement. Check the differential pressure transmitter upstream of the meter — if the DP transmitter output has drifted, replacing the rate meter alone will not restore accurate flow readings.
For panels with relay outputs, verify the condition of the output relay module or solid-state relay (SSR) connected to the DPF64-SQRT alarm or control output. Relay contacts degrade over time in high-cycle applications. If the panel includes a signal isolator or signal conditioner between the field transmitter and the meter input, inspect it for drift or insulation breakdown — these components are often overlooked during meter-focused maintenance. Review the fuse or circuit breaker protecting the meter’s power input; a marginal fuse can cause intermittent resets that mimic meter failure.
In DCS or PLC-integrated panels, confirm that the analog input card receiving the DPF64-SQRT retransmission output is reading correctly after meter replacement. For systems using OMEGA DP series or DPF series companion meters on adjacent panel positions, cross-check calibration consistency across all meters in the same loop. If the control cabinet includes an HMI or operator panel displaying the rate value, verify that the engineering unit scaling and square root configuration in the HMI tag matches the new meter’s output range. Finally, inspect the DIN rail, backplane grounding, and cabinet ventilation — poor grounding and thermal buildup are leading causes of premature meter failure in industrial enclosures.
Site Replacement Workflow
Step 1 — Isolation and Safety: De-energize the panel section containing the DPF64-SQRT. Apply LOTO (Lockout/Tagout) per site procedure. Confirm loop power is off before disconnecting signal wiring.
Step 2 — Documentation: Photograph the existing wiring configuration and record the current meter parameter settings (setpoints, scaling, relay assignments) before removal. The DPF64-SQRT stores configuration in non-volatile memory, but settings should always be documented prior to replacement.
Step 3 — Removal: Release the panel clip retainers and slide the meter out from the front of the panel. Disconnect the rear terminal block wiring in sequence, labeling each wire.
Step 4 — Installation: Insert the replacement DPF64-SQRT into the 92 × 45 mm panel cutout. Reconnect wiring per the documented configuration. Confirm terminal torque to manufacturer specification to prevent loose connections.
Step 5 — Configuration and Verification: Power up the loop and enter the meter’s programming mode to restore setpoints, input scaling, and square root extraction parameters. Verify the displayed rate value against a known reference (e.g., flow totalizer or DCS tag) before returning the loop to service.
Step 6 — System Handover: Update the maintenance log with the replacement date, new unit serial number, and post-replacement calibration verification result. Return the removed unit for evaluation or disposal per site policy.
This workflow minimizes downtime and ensures the replacement DPF64-SQRT is fully commissioned before the process loop is returned to automatic control.
Spare Parts Support FAQ
Q1: Is the DPF64-SQRT a direct drop-in replacement for the existing DPF Series meter in my panel?
Yes. The DPF64-SQRT is designed to the 1/8 DIN form factor standard and is compatible with existing DPF Series panel cutouts and rear terminal wiring. No panel modification is required. After installation, restore your site-specific setpoints and scaling parameters via the front-panel programming interface.
Q2: How is the unit tested before shipment?
Each DPF64-SQRT spare is functionally tested prior to dispatch. Testing includes power-on verification, display check, input signal response, and relay output continuity. A test record is maintained for traceability. Units are packed in anti-static, shock-protected packaging to prevent transit damage.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the specified operating range. Warranty claims are supported by SMARTNEXMSK with direct replacement or repair coordination.
Q4: Can you support long-term or repeat supply of the DPF64-SQRT for our spare parts program?
Yes. SMARTNEXMSK maintains sourcing relationships to support ongoing spare parts programs for OMEGA DPF Series instrumentation. For sites managing multiple panels or planning a multi-year maintenance contract, contact our team to discuss volume availability, lead times, and consignment stocking options.
