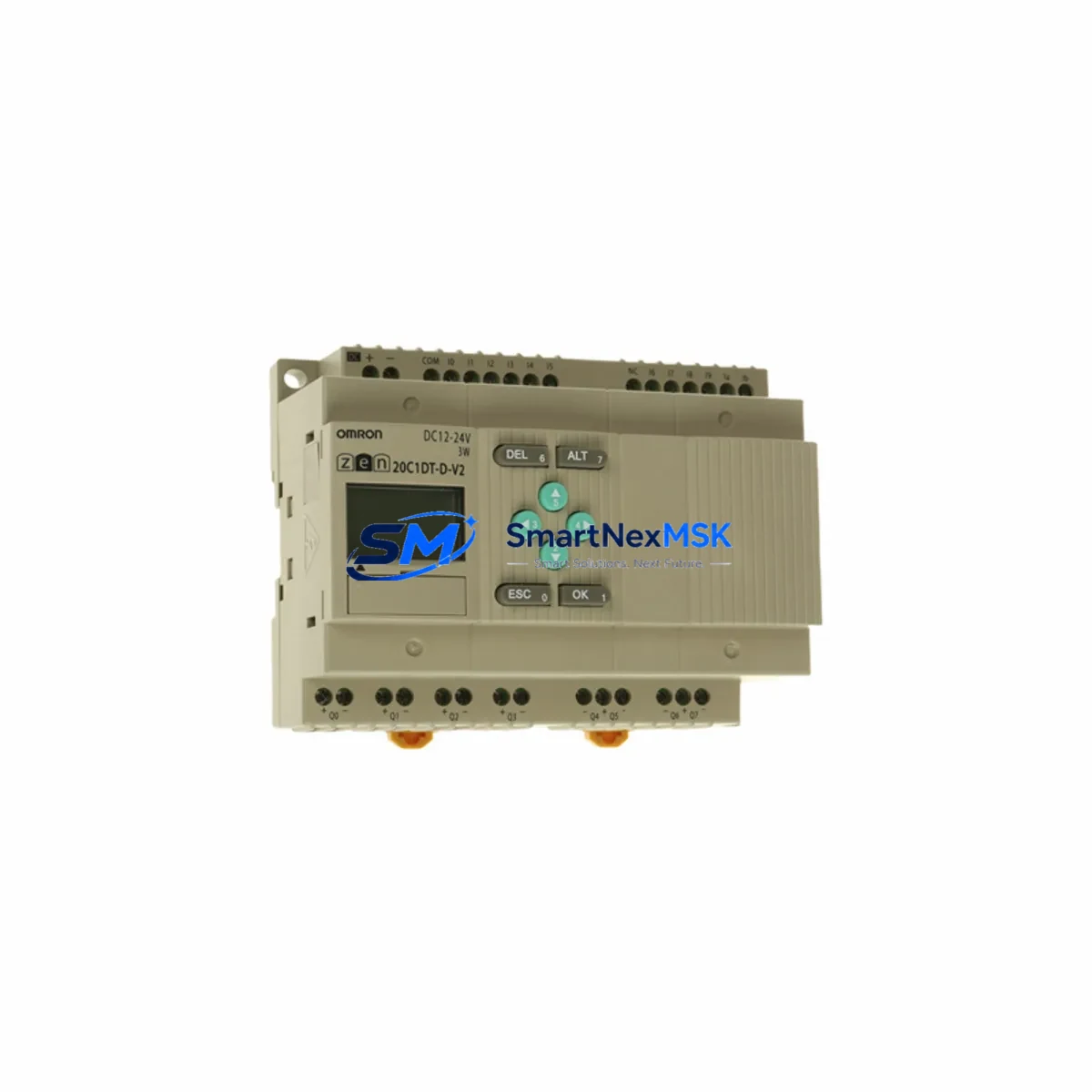

The OMRON ZEN-20C1DR-D-V1 is a compact programmable relay CPU unit from OMRON’s ZEN Series, designed for small-scale industrial automation, machine control, and building management applications. With 20-point I/O (12 DC inputs / 8 relay outputs), this unit delivers reliable logic control in space-constrained control cabinets. As a maintenance-ready original spare, the ZEN-20C1DR-D-V1 is an essential component for facilities running ZEN-based control systems that require fast fault recovery, minimal downtime, and long-term parts availability.

For maintenance engineers and procurement teams managing aging ZEN installations, having a verified replacement unit on the shelf is the single most effective strategy for reducing mean time to repair (MTTR). This unit ships tested, with a 12-month warranty, and is compatible with the full ZEN Series ecosystem.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a ZEN-20C1DR-D-V1 fails or reaches end-of-service life, the replacement process should be treated as a full control-cabinet audit, not just a unit swap. Maintenance engineers should use this event as an opportunity to inspect all interconnected components and reduce the risk of cascading failures.

Begin by verifying the 24 VDC power supply feeding the ZEN CPU — a degraded power supply is a common root cause of intermittent CPU faults. Check the input wiring terminals and confirm that all DC input signals are within the rated 12–24 VDC range. Inspect the relay output contacts for signs of arcing or contact wear, particularly on outputs driving inductive loads such as solenoids or motor starters.

If the ZEN-20C1DR-D-V1 is connected to expansion I/O modules such as the ZEN-8E1AR (8-point relay expansion) or ZEN-8E2AR (8-point transistor expansion), verify the expansion bus connector and ribbon cable integrity before powering up the replacement unit. A faulty expansion connection can cause the new CPU to report I/O errors immediately after installation.

For systems using the ZEN-CIF01 RS-232C communication cable to interface with a PC or HMI, confirm that the communication parameters (baud rate, parity, stop bits) are correctly configured in the replacement unit before going live. If the system includes a ZEN-ME01 memory cassette for program backup, verify that the cassette firmware version is compatible with the V1 CPU revision.

In control cabinets where the ZEN relay is part of a larger panel, also inspect the terminal blocks, fuse holders, and DIN rail grounding. Loose terminal connections and blown fuses are frequently overlooked during CPU replacement and can cause the new unit to appear faulty. If the cabinet includes signal isolators between field sensors and ZEN inputs, verify isolator output voltage levels match the ZEN DC input specifications.

For facilities with multiple ZEN-based machines, a recommended spare parts inventory should include at minimum: one ZEN-20C1DR-D-V1 CPU unit, one ZEN-8E1AR expansion module, one ZEN-ME01 memory cassette, one ZEN-CIF01 programming cable, and a set of replacement relay output modules or relay sockets for the output circuit. Maintaining this kit ensures that any ZEN-related fault can be resolved within a single maintenance shift without waiting for parts procurement.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Switch off the control cabinet main breaker and verify zero voltage at the ZEN power supply terminals using a calibrated multimeter.

Step 2 — Backup the program: If the existing ZEN-20C1DR-D-V1 is still partially functional, use the ZEN-ME01 memory cassette or ZEN Support Software via the ZEN-CIF01 cable to export the ladder program before removal. If the unit is completely failed, retrieve the program backup from your maintenance records or SCADA archive.

Step 3 — Remove the failed unit: Disconnect all input/output wiring, label each terminal, and release the DIN rail locking tab. Remove the expansion modules if present.

Step 4 — Install the replacement ZEN-20C1DR-D-V1: Snap the new unit onto the DIN rail, reconnect expansion modules, and rewire all terminals according to the labeled connections. Verify that the power supply polarity is correct before energizing.

Step 5 — Restore and verify the program: Load the ladder program from the memory cassette or via ZEN Support Software. Confirm all I/O points respond correctly in monitor mode before returning the machine to production.

Step 6 — Document the replacement: Record the replacement date, new unit serial number, and any wiring changes in the equipment maintenance log. Update the spare parts inventory accordingly.

This workflow minimizes downtime to under two hours for a trained maintenance technician and ensures full system compatibility without requiring PLC reprogramming or hardware modifications.

Spare Parts Support FAQ

Q1: Is the ZEN-20C1DR-D-V1 still available as a new original spare?
Yes. We supply original OMRON ZEN-20C1DR-D-V1 units sourced from authorized distribution channels. Each unit is inspected and tested before shipment. Although OMRON has introduced newer compact PLC platforms, the ZEN Series remains widely deployed and we maintain long-term stock to support ongoing maintenance needs.

Q2: How do I verify compatibility with my existing ZEN system before ordering?
Confirm that your existing installation uses the ZEN Series (not the ZEN-L or CP1L series). The ZEN-20C1DR-D-V1 is a direct replacement for any ZEN CPU unit with the same I/O configuration (12 DC inputs / 8 relay outputs, 12–24 VDC power). Check the version label on your existing unit — V1 units are fully interchangeable. If you are replacing a V2 unit, contact us to confirm firmware compatibility.

Q3: What testing is performed before shipment?
Every ZEN-20C1DR-D-V1 unit undergoes power-on functional testing, I/O point verification, and communication port check prior to packaging. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q4: What is your recommended spare parts stocking strategy for ZEN-based systems?
For facilities with 3 or more ZEN-controlled machines, we recommend maintaining at least one ZEN-20C1DR-D-V1 CPU unit and one ZEN-8E1AR expansion module as on-site cold spares. For critical production lines, a hot spare (pre-programmed and ready to install) significantly reduces MTTR. We offer volume pricing for multi-unit spare kit orders — contact our sales team for a customized spare parts proposal.
