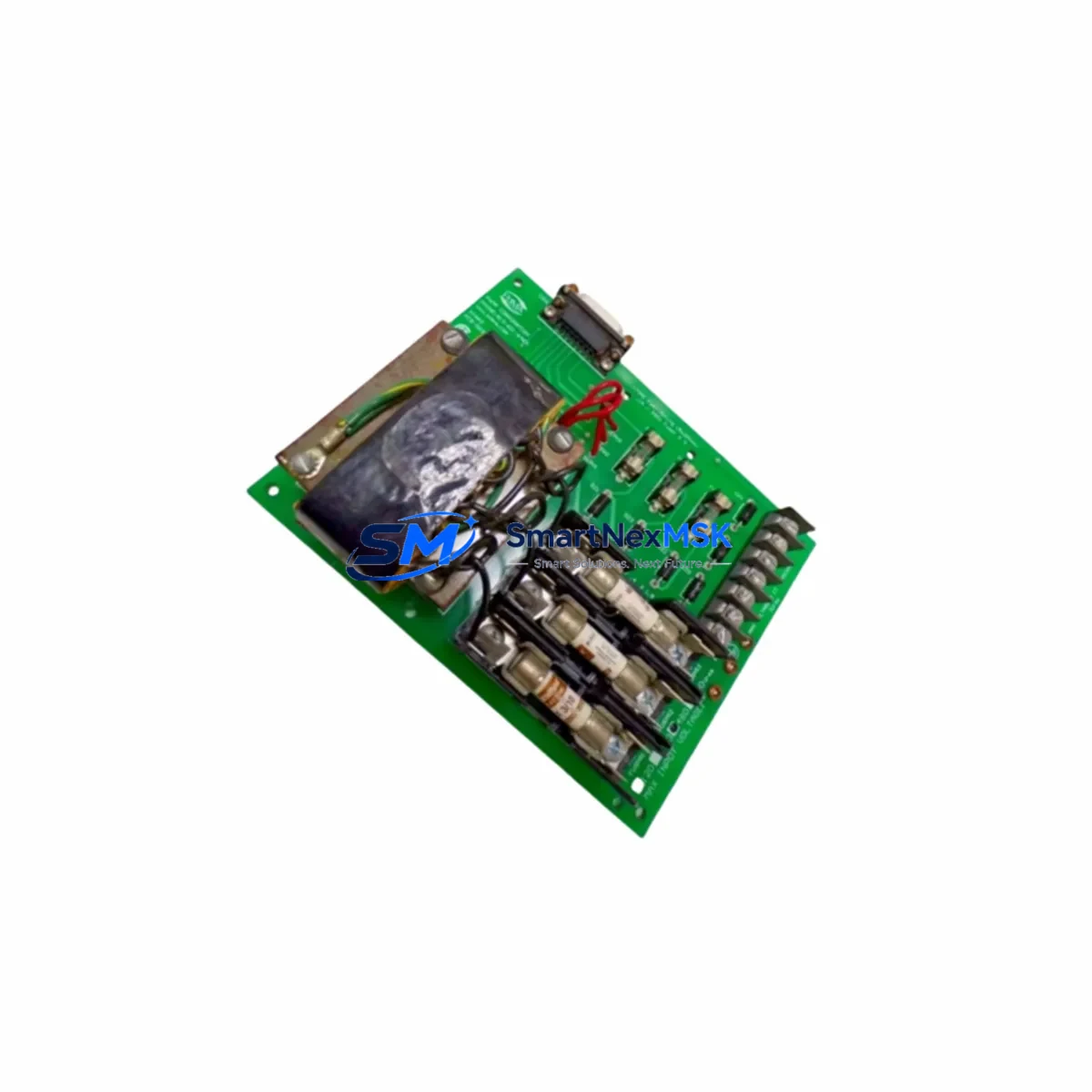

PDMA MTAP2 PCB-00322-REVD Safety Motor Test Port

PDMA MTAP2 PCB-00322-REVD Safety-Enhanced Motor Test Port for Harsh Industrial Sites

The PDMA MTAP2 PCB-00322-REVD is a ruggedized Motor Test Access Port engineered for continuous, safety-critical motor diagnostics in the most demanding industrial environments. Designed to interface directly with PDMA’s ALL-TEST Pro motor analysis instruments, this module delivers reliable, repeatable electrical signature analysis (ESA) and motor circuit analysis (MCA) results even under conditions of high electromagnetic interference, voltage fluctuation, and mechanical vibration. For facilities operating in petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical processing lines, port logistics systems, or continuous manufacturing environments, the MTAP2 PCB-00322-REVD provides a permanent, safe test point that eliminates the need to de-energize or disconnect motor circuits during routine condition monitoring.

In high-load, high-interference control environments, the risk of signal drift, transient surges, and communication anomalies can compromise both equipment integrity and personnel safety. The MTAP2 PCB-00322-REVD addresses these risks by providing a dedicated, isolated test access point that decouples the diagnostic instrument from the live motor circuit. This isolation architecture protects both the test technician and the connected PDMA ALL-TEST Pro IV PRO or ALL-TEST Pro 7 analyzer from voltage spikes and inductive kickback events that are common in heavy industrial switchgear cabinets. The module’s PCB design — revision D — incorporates enhanced surge suppression and improved trace routing to minimize crosstalk and signal contamination, ensuring that motor winding resistance, inductance imbalance, and insulation degradation readings remain accurate even in the presence of nearby variable frequency drives (VFDs), soft starters, and high-current bus bars.

Safety Reliability Table

Control Cabinet Protection Strategy

Integrating the MTAP2 PCB-00322-REVD into your motor control center (MCC) or control cabinet is a proactive step toward a comprehensive predictive maintenance and safety architecture. In a typical heavy industrial control cabinet, the MTAP2 is installed between the motor terminal block and the outgoing cable to the motor, providing a permanent, labeled test point accessible without opening live compartments. This approach is fully compatible with IEC 60204-1 and NFPA 70E safe work practice requirements, reducing arc flash exposure during routine motor health checks.

When planning cabinet-level protection, the MTAP2 PCB-00322-REVD works in concert with a range of complementary components. Upstream, a properly rated motor circuit protector (MCP) or molded case circuit breaker (MCCB) provides short-circuit and overload protection for the motor branch circuit. In variable-speed applications, a PDMA-compatible VFD bypass contactor assembly ensures that the MTAP2 test point remains accessible regardless of whether the motor is running under inverter or across-the-line control. For motors operating in classified hazardous locations, the test access port can be installed in conjunction with an explosion-proof junction box or Ex-rated terminal enclosure to maintain zone compliance.

Within the same control cabinet, the MTAP2 is frequently deployed alongside a PDMA ALL-TEST Pro 7 handheld analyzer, which connects to the test port via a standard four-wire Kelvin clip lead set. For facilities managing large motor populations, the MTAP2 pairs naturally with the PDMA WinALT software platform for trending and alarm management. In motor control centers equipped with intelligent electronic devices (IEDs) or protective relays — such as a Schweitzer SEL-710 motor protection relay or an ABB PSTX soft starter with built-in motor protection — the MTAP2 provides a non-intrusive diagnostic window that does not interfere with the relay’s CT or VT inputs. Power quality monitoring instruments, including a Fluke 435-II power quality analyzer installed on the incoming bus, complement the MTAP2’s motor-side data by correlating supply-side disturbances with motor winding anomalies detected during MCA testing. For facilities using Modbus RTU or PROFIBUS DP communication networks within their MCC, the MTAP2’s passive architecture ensures zero protocol interference with existing fieldbus wiring.

Critical Industrial Safety Applications

The PDMA MTAP2 PCB-00322-REVD is deployed across a wide spectrum of safety-critical and continuous-process industries where unplanned motor failure carries significant operational, financial, and safety consequences.

In petrochemical and refinery facilities, the MTAP2 is installed on cooling water pump motors, compressor drive motors, and agitator drives in process vessels. Continuous MCA monitoring via the MTAP2 allows maintenance teams to detect developing insulation faults or rotor bar cracks before they escalate into motor failures that could trigger process upsets, emergency shutdowns, or hazardous material releases. The module’s isolated test architecture is particularly valued in areas where intrinsically safe work practices are mandated.

In power generation and substation environments, the MTAP2 is used on forced-draft fan motors, boiler feed pump motors, and cooling tower fan drives. These motors operate continuously at high load factors, and any undetected winding degradation can lead to forced outages with significant grid impact. The MTAP2 enables offline MCA testing during planned maintenance windows without requiring motor disconnection, dramatically reducing outage duration.

In mining and mineral processing, where conveyor drive motors, crusher motors, and slurry pump motors operate in high-dust, high-vibration, and high-humidity conditions, the MTAP2’s ruggedized PCB construction and enhanced surge suppression provide reliable test access even after years of service in harsh environments. The module is equally effective in water and wastewater treatment facilities, where submersible pump motors and blower drives are monitored for insulation degradation caused by moisture ingress and thermal cycling.

In metallurgical and steel mill applications, the MTAP2 supports condition monitoring of rolling mill drive motors, ladle crane motors, and fume extraction fan motors — all of which are subject to extreme thermal and electrical stress. Port and logistics facilities rely on the MTAP2 for crane hoist motor monitoring, where unexpected motor failure can create both safety hazards and significant cargo handling delays.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the PDMA MTAP2 PCB-00322-REVD?
Every MTAP2 PCB-00322-REVD unit ships with a 12-month warranty covering manufacturing defects and functional performance. Prior to shipment, each unit undergoes a full functional test to verify electrical continuity, isolation integrity, and connector interface quality. Units that do not meet specification are not shipped.

Q2: Is the MTAP2 PCB-00322-REVD compatible with all PDMA ALL-TEST Pro instruments?
The MTAP2 PCB-00322-REVD is designed for use with the PDMA ALL-TEST Pro instrument family, including the ALL-TEST Pro IV PRO, ALL-TEST Pro 7, AT5, and AT33 models. The standard four-wire Kelvin interface is consistent across these instruments. If you are unsure about compatibility with a specific instrument revision, contact our technical team before ordering.

Q3: Can the MTAP2 be installed on motors in hazardous or classified locations?
The MTAP2 PCB-00322-REVD is a passive PCB-based test access module and does not itself carry an ATEX or IECEx hazardous location rating. For installation in classified zones, the module must be housed within an appropriately rated enclosure (e.g., explosion-proof or purged-and-pressurized) in accordance with local electrical codes and zone classification requirements. Our team can advise on suitable enclosure options for your specific application.

Q4: What is the lead time and long-term supply availability?
The MTAP2 PCB-00322-REVD is maintained in stock for immediate shipment. For facilities requiring multiple units for fleet-wide MCC retrofits or spare parts programs, we recommend contacting our sales team to discuss volume availability and scheduled delivery arrangements. Long-term supply continuity is a priority for our industrial customers operating critical infrastructure.
