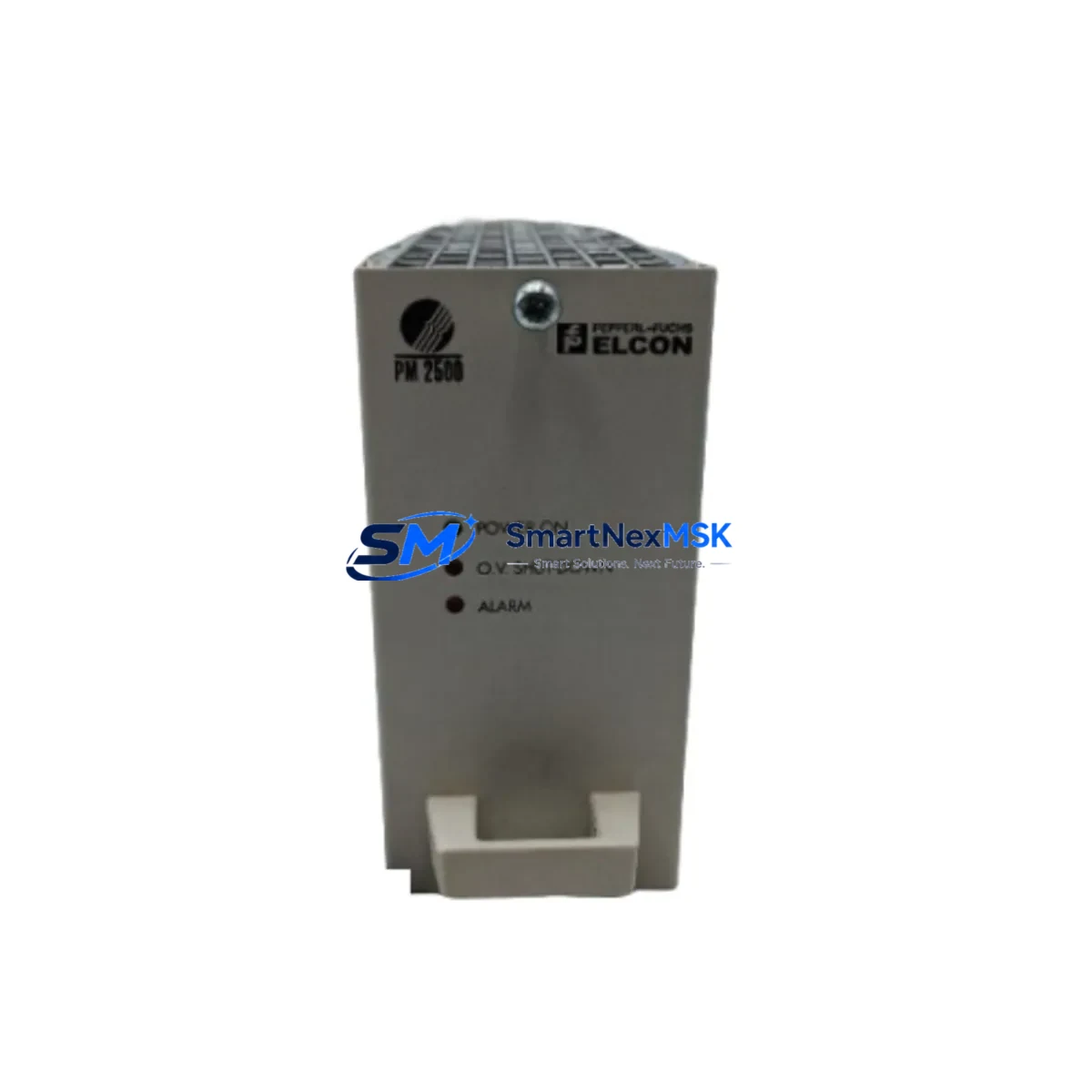

Pepperl+Fuchs PS2500/PM-115: Safety-Enhanced Bus Power Supply for Harsh Industrial Sites
The Pepperl+Fuchs PS2500/PM-115 is a ruggedized intrinsic safety bus power supply engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to power Zener barrier networks and associated intrinsically safe field circuits, the PS2500/PM-115 delivers stable, regulated DC output even under severe electrical stress — including voltage surges, load transients, and high-frequency electromagnetic interference common in petrochemical plants, offshore platforms, mining operations, and heavy process industries.
In safety-critical control architectures, the integrity of the power supply is the foundation of every protective function. A momentary voltage collapse or uncontrolled ripple on the barrier bus can propagate through the entire intrinsic safety loop, causing signal drift in field transmitters, spurious trips in solenoid valve drivers, or — most critically — loss of communication between the DCS and field instruments in a hazardous zone. The PS2500/PM-115 is specifically designed to eliminate these failure modes, providing a clean, stable power rail that keeps Zener barriers, isolators, and associated apparatus operating within their certified energy limits at all times.
When integrated into a control cabinet alongside Pepperl+Fuchs Z787 Zener barriers, KFD2-series galvanic isolators, and KCD2-type signal conditioners, the PS2500/PM-115 forms a coherent, fully coordinated intrinsic safety power architecture. Its regulated output ensures that each barrier in the network receives precisely the voltage and current it requires, preventing the over-energization scenarios that could compromise Ex ia or Ex ib certification in Zone 0, Zone 1, or Zone 2 classified areas. This is particularly important in installations where multiple barriers share a common bus, as load imbalances can otherwise cause voltage droop that degrades measurement accuracy in 4–20 mA HART loops or discrete switch inputs.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | PS2500/PM-115 (Pepperl+Fuchs) |
| Input Voltage | 115 VAC ±10%, 50/60 Hz |
| Output Voltage | Regulated DC (Zener barrier bus rated) |
| Safety Concept | Intrinsic Safety (Ex ia / Ex ib) bus power |
| Applicable Standards | IEC 60079-11, ATEX, IECEx |
| Hazardous Area Classification | Zone 0, Zone 1, Zone 2 (associated apparatus) |
| Surge / Transient Protection | Built-in overvoltage and short-circuit protection |
| EMC / Interference Immunity | Designed for high-EMI industrial environments |
| Mounting | DIN rail (35 mm) |
| Operating Temperature | -20°C to +60°C |
| Country of Origin | Germany |
| Housing / Protection | Ruggedized industrial enclosure |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-shipment Testing | Full functional and output regulation test performed before dispatch |
| Inventory Status | In stock — available for immediate shipment |
Control Cabinet Protection Strategy
A robust intrinsic safety control cabinet built around the PS2500/PM-115 requires a carefully coordinated selection of protective and signal-conditioning components. In a typical heavy-process installation, the PS2500/PM-115 bus power supply feeds a rail of Pepperl+Fuchs Z787 Zener barriers, which clamp energy to safe levels for field-connected sensors and actuators in the hazardous zone. Alongside these barriers, KFD2-SH-Ex1 galvanic isolators provide complete electrical separation between the safe-area control system and the hazardous-area field wiring, eliminating ground loop interference that can corrupt 4–20 mA signals in long cable runs through electrically noisy plant environments.
For digital I/O protection, KCD2-SR-Ex2 solenoid drivers and KFD2-DU-Ex1.D switch amplifiers are commonly deployed in the same cabinet, powered from the same regulated bus. These devices rely on the PS2500/PM-115’s stable output to maintain their certified operating parameters — any bus voltage deviation outside specification can cause nuisance trips or, worse, failure to trip when a genuine process safety demand occurs. In installations with redundant safety loops, a secondary PS2500/PM-115 unit is often installed in a hot-standby configuration, with automatic changeover to ensure uninterrupted power to the barrier network during planned maintenance or unexpected primary unit failure.
On the power input side, a Pepperl+Fuchs surge protection device or equivalent DIN-rail SPD is recommended upstream of the PS2500/PM-115 to protect against lightning-induced transients on the 115 VAC supply line — a critical consideration in outdoor substations, remote pump stations, and coastal or high-altitude installations where atmospheric discharge risk is elevated. Downstream, KFD2-UT2-Ex1 universal temperature transmitter interfaces and KFD2-CD-Ex1.32 current drivers complete the signal conditioning layer, ensuring that every field measurement and control output maintains accuracy and integrity throughout the production cycle.
Critical Industrial Safety Applications
The PS2500/PM-115 is deployed across a wide spectrum of safety-critical industries where continuous, uninterrupted power to intrinsic safety circuits is non-negotiable.
In petrochemical and refinery operations, the PS2500/PM-115 powers the Zener barrier networks that interface DCS systems with flammable-atmosphere field instruments — pressure transmitters on reactor feed lines, level sensors in hydrocarbon storage tanks, and temperature elements in distillation columns. Any interruption to barrier bus power in these applications risks loss of process visibility at exactly the moment when accurate measurement is most critical.
In coal and hard-rock mining, where methane and coal dust create persistent explosion risk, the PS2500/PM-115 supports the intrinsically safe instrumentation loops that monitor ventilation airflow, gas concentration, and conveyor belt tension. Its ruggedized construction and wide operating temperature range make it suitable for installation in surface control rooms serving underground operations, where ambient conditions can be harsh and supply voltage quality is often poor.
In power generation and electrical utilities, the PS2500/PM-115 is used in turbine control panels and transformer protection cabinets where intrinsically safe field wiring runs into areas classified as hazardous due to hydrogen cooling gas or battery room off-gassing. Its stable output ensures that protective relay inputs and position feedback signals from hazardous-area actuators remain accurate under all load conditions.
In water and wastewater treatment, the PS2500/PM-115 supports intrinsically safe instrumentation in chlorine dosing stations, biogas digester monitoring systems, and chemical storage areas — environments where toxic or flammable gas accumulation demands the highest level of electrical safety in field wiring design.
In metallurgical and steel production facilities, the PS2500/PM-115 provides reliable bus power for safety instrumentation in coke oven gas handling systems, blast furnace tuyere monitoring, and ladle tracking applications — all environments characterized by extreme heat, vibration, and electromagnetic interference from large induction furnaces and arc welders.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the PS2500/PM-115?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to meet its specified output regulation, protection, or safety parameters within the warranty period, we will repair or replace it at no charge. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your downtime.
Q2: What pre-shipment testing is performed on each PS2500/PM-115 unit?
Every PS2500/PM-115 unit undergoes a full functional test before dispatch, including input voltage application at rated and tolerance limits, output voltage and regulation verification under load, and confirmation of overvoltage and short-circuit protection operation. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.
Q3: Is the PS2500/PM-115 compatible with existing Pepperl+Fuchs Zener barrier and isolator installations?
Yes. The PS2500/PM-115 is designed as a direct bus power supply for Pepperl+Fuchs Zener barrier systems and is fully compatible with the Z-series and KFD2-series product families. It can be retrofitted into existing DIN-rail installations without modification to barrier wiring or field circuit design, making it an ideal replacement for aging or failed bus power supplies in legacy safety systems.
Q4: Can long-term supply continuity be guaranteed for the PS2500/PM-115?
We maintain dedicated stock of the PS2500/PM-115 to support both immediate replacement needs and planned maintenance programs. For customers with critical spares requirements, we can discuss reserved inventory arrangements to ensure availability for scheduled turnarounds and emergency breakdowns. Our supply chain is structured to support long-term industrial maintenance contracts, with consistent lead times and no minimum order quantity for single-unit replacement purchases.
