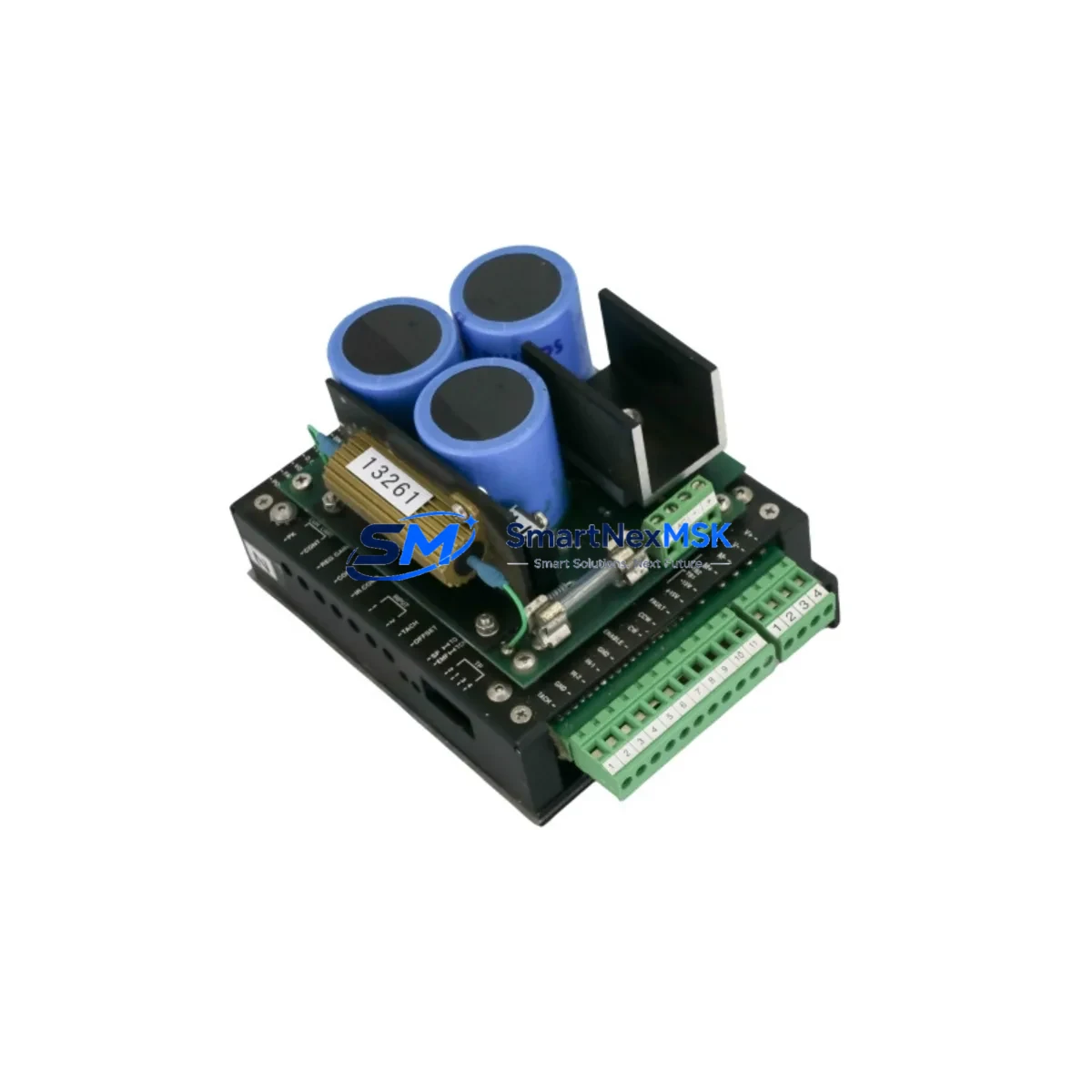

PMI KXA-48-8-16 Maintenance-Ready Spare for KXA Automation
The PMI KXA-48-8-16 PS/AUX/PS (cross-reference: 0088060-004 / PH265-02 / MDVHX30ITC02 / 7KG7500-0AA02-0AA0/CC) is a PWM servo amplifier designed for multi-axis motion control in demanding industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and tested to support rapid field replacement and minimize unplanned downtime across KXA Series servo drive systems. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a strategic spare parts inventory, the KXA-48-8-16 is a critical component to keep on hand for continuous production assurance.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | KXA-48-8-16 PS/AUX/PS |
| Cross Reference | 0088060-004 | PH265-02 | MDVHX30ITC02 | 7KG7500-0AA02-0AA0/CC |
| Brand | PMI Motion Technologies |
| Series | KXA Series |
| Product Type | PWM Servo Amplifier |
| Drive Topology | Pulse Width Modulation (PWM), Multi-Axis Capable |
| Power Configuration | PS/AUX/PS (Primary Supply / Auxiliary / Primary Supply) |
| Compatibility | KXA Series servo systems; compatible with standard 48V bus architectures |
| Application Environment | Industrial automation, CNC machining, robotics, semiconductor handling, precision motion |
| Installation | Panel-mount / rack-mount per KXA Series mechanical specification |
| Maintenance Recommendation | Inspect bus capacitors, feedback connectors, and power stage annually; replace at first sign of thermal stress or output instability |
| Origin | USA |
| Weight | 2.6 kg |
| Warranty | 12 Months — Tested Before Shipment |
Maintenance Planning for Continuous Operation
When a KXA-48-8-16 servo amplifier is flagged for replacement during a planned inspection or emergency fault response, experienced maintenance engineers know that the amplifier itself is rarely the only component requiring attention. A thorough site assessment should include the following associated components to prevent repeat failures and ensure full system restoration:
Begin with the DC bus power supply module feeding the KXA amplifier — verify bus voltage stability and check for ripple or sag under load. Inspect the auxiliary power supply (AUX rail) separately, as the PS/AUX/PS configuration relies on a clean auxiliary feed for control logic; a degraded AUX supply can cause erratic amplifier behavior even after a drive swap. Check all motor feedback cables and encoder connectors for pin corrosion, shield continuity, and connector seating — damaged feedback wiring is a leading cause of premature servo drive failure.
Review the I/O interface board or breakout terminal block connected to the amplifier’s enable, fault, and reference signal lines. Loose or oxidized terminals on these signal circuits can introduce noise that mimics amplifier faults. If the system uses a motion controller or PLC axis card to command the KXA drive, verify the command signal integrity and check for ground loops between the controller chassis and the amplifier chassis.
For multi-axis cabinets, inspect the shared DC bus capacitor bank and any regenerative braking resistor or dynamic braking module — these components absorb energy during deceleration and are often overlooked until a bus overvoltage fault occurs. Examine the 24VDC control power supply that powers relay logic, safety circuits, and the amplifier’s enable chain; a marginal control supply can cause intermittent enable faults that are difficult to diagnose without a spare on hand.
Also assess the EMC line filter and input fusing upstream of the amplifier. A blown fuse or degraded filter can allow line transients to damage replacement drives. Finally, if the system includes a KXA-compatible HMI or operator panel for drive parameter display and fault acknowledgment, confirm that the communication link (typically RS-232 or RS-485) is intact and that drive parameters are backed up before the swap — restoring tuning parameters from a backup significantly reduces recommissioning time and gets the axis back to production faster.
Site Replacement Workflow
Step 1 — Isolate and de-energize: Follow site LOTO procedures. Discharge the DC bus fully before handling the amplifier — KXA Series drives retain bus voltage for several minutes after power-off.
Step 2 — Document existing configuration: Record all DIP switch settings, parameter values, and wiring labels on the outgoing unit. Photograph connector positions before disconnection.
Step 3 — Verify cross-reference compatibility: Confirm the replacement KXA-48-8-16 matches the cross-reference codes (0088060-004 / PH265-02 / MDVHX30ITC02 / 7KG7500-0AA02-0AA0/CC) applicable to your system revision. Mixing incompatible firmware revisions in a multi-axis cabinet can cause axis synchronization errors.
Step 4 — Install and reconnect: Mount the replacement unit, reconnect power, feedback, and signal wiring per the original layout. Torque all terminal screws to specification to prevent intermittent connections under vibration.
Step 5 — Restore parameters and test: Upload saved parameters to the new drive. Perform a no-load jog test before engaging the full motion profile. Verify fault-free operation across the full speed and torque range before returning the axis to production.
Maintaining a pre-configured, tested KXA-48-8-16 spare on-site reduces mean time to repair (MTTR) from hours to under 30 minutes for experienced technicians — a critical advantage in high-throughput manufacturing environments where every hour of downtime carries significant cost.
Spare Parts Support FAQ
Q1: Is this KXA-48-8-16 unit tested before shipment?
Yes. Every unit undergoes functional verification and visual inspection prior to dispatch. A 12-month warranty is included from the date of shipment, covering manufacturing defects and verified operational failures under normal use conditions.
Q2: How do I confirm compatibility with my existing KXA Series system?
Match the full part number KXA-48-8-16 PS/AUX/PS and verify against your system’s BOM or the cross-reference codes: 0088060-004, PH265-02, MDVHX30ITC02, and 7KG7500-0AA02-0AA0/CC. If your system uses a specific firmware revision, contact our technical team with your cabinet serial number for confirmation before ordering.
Q3: Can I order multiple units for a strategic spare parts inventory?
Yes. We support bulk spare parts procurement for maintenance departments and MRO purchasing teams. Volume pricing and reserved stock arrangements are available for customers managing multiple KXA Series installations or planning long-term system support for legacy equipment.
Q4: What is the lead time and how is the unit packaged for shipment?
In-stock units ship within 1–3 business days. Each amplifier is packaged in anti-static foam with moisture barrier protection to prevent transit damage. Expedited shipping options are available for emergency downtime recovery situations.
