PRE-TECH PT-005J20 Retrofit-Ready Control Module for Finejet

PRE-TECH PT-005J20 Retrofit-Ready Control Module for Finejet Control Systems

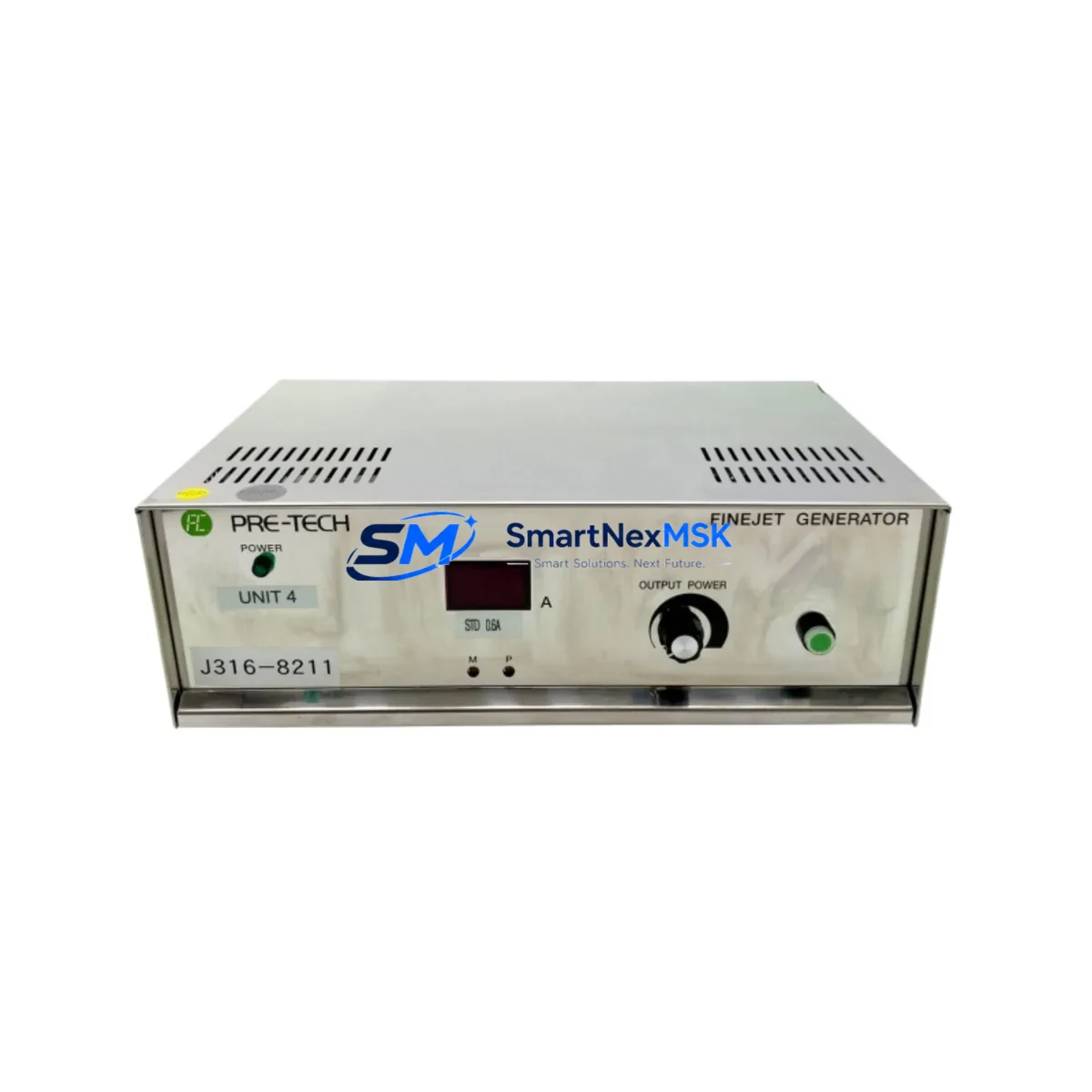

The PRE-TECH PT-005J20 0100-02805 RLD10 X3 DI S-9LSS-0153 is an industrial-grade generator control module engineered for seamless compatibility with legacy Finejet series control systems. Designed to serve as a direct retrofit replacement for discontinued or end-of-life Finejet controller boards, this module enables plant engineers and system integrators to modernize aging genset control panels without requiring full system redesign. Whether you are managing a planned upgrade cycle or responding to an unplanned failure of an obsolete controller, the PT-005J20 delivers the electrical compatibility, communication protocol support, and field-proven reliability required for mission-critical power generation environments.

With its Modbus RTU communication interface, the PT-005J20 integrates directly into existing SCADA architectures and HMI systems without protocol conversion middleware. The module’s terminal layout mirrors the original Finejet wiring scheme, significantly reducing rewiring labor during panel retrofits. Engineers familiar with the original Finejet DI/DO signal assignments will find the transition straightforward, with minimal changes required to existing field wiring and control cabinet layouts.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the PT-005J20 into an existing Finejet-based genset control system begins with a thorough site survey of the control cabinet. Before removing the legacy module, engineers should document all existing terminal connections, verify the available power supply capacity from the panel’s 24 VDC rail, and photograph the original wiring harness for reference. In many installations, the Finejet control cabinet also houses a Finejet annunciator relay module and a dedicated RS-485 communication gateway that bridges the genset controller to the plant SCADA system — both of which must remain operational during the module swap to avoid interrupting monitoring continuity.

For sites running multi-genset parallel configurations, the control rack may include a Finejet synchronizing module or a third-party DSE (Deep Sea Electronics) parallel controller mounted in the same cabinet. These companion modules communicate with the main control board via Modbus RTU over a shared RS-485 bus. When replacing the PT-005J20’s predecessor, it is essential to verify that the new module’s Modbus device address does not conflict with existing nodes on the bus — particularly if the rack also contains a Finejet AVR (Automatic Voltage Regulator) interface card or a Woodward governor control module sharing the same communication chain.

On the I/O side, the PT-005J20’s X3 DI channel configuration supports the standard digital input signals used in Finejet installations: remote start/stop commands, emergency stop interlock, low oil pressure shutdown, high coolant temperature alarm, and generator breaker status feedback. If the existing system uses a Finejet expansion I/O module for additional alarm inputs or a Beckhoff EtherCAT terminal block for distributed I/O, confirm that the signal routing to these peripheral modules is preserved during the main controller replacement. In some legacy installations, a Finejet programming cable (USB-to-RS232 adapter) is required to access the module’s configuration interface for initial parameter setup and address assignment.

HMI screens connected to the Finejet system — whether a panel-mounted Weintek MT series touchscreen or a PC-based SCADA running on a Siemens WinCC platform — will require a Modbus tag audit after the module replacement. The PT-005J20 uses a compatible register map structure, but engineers should verify that alarm status registers, measurement data addresses, and control command registers align with the existing HMI configuration before returning the system to automatic mode. In most cases, only minor tag address adjustments are needed, and the original HMI project file can be retained with minimal modification.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a generator control module in a live facility. For sites where the genset serves as emergency backup power, the replacement window should be coordinated with the facility’s planned maintenance schedule to ensure the unit is not called upon during the swap procedure. Before beginning the physical replacement, create a full backup of the existing module’s parameter configuration using the Finejet configuration software or the site’s standard commissioning tool. If the original module is non-functional and parameter backup is not possible, reconstruct the configuration from the original commissioning report or factory default settings documented in the Finejet series technical manual.

During the physical swap, label all terminal connections before disconnection and use insulated terminal covers to prevent accidental short circuits on the live 24 VDC supply rail. The PT-005J20 can be installed and powered up in bench-test mode before being connected to the field wiring, allowing engineers to verify communication link establishment and basic I/O response without exposing the live system to an untested module. Once the module is confirmed operational on the bench, transfer it to the panel, reconnect all terminals per the documented wiring reference, and perform a structured commissioning sequence: power-on self-test, Modbus communication verification, DI signal simulation, alarm acknowledgment test, and remote start/stop command validation. This structured approach typically allows a complete module replacement to be completed within a two-to-four-hour maintenance window, preserving the site’s control continuity and minimizing exposure to uncontrolled downtime.

For sites with redundant control architectures, the PT-005J20 can be pre-configured and held as a hot-standby spare, reducing future replacement time to under 30 minutes. SMARTNEXMSK maintains in-stock inventory of the PT-005J20 0100-02805 to support urgent replacement requirements, with same-day dispatch available for verified orders.

Retrofit Support FAQ

Q1: Is the PT-005J20 0100-02805 a direct drop-in replacement for the original Finejet control module?
The PT-005J20 is designed as a retrofit-compatible replacement for the Finejet series generator control module. Terminal wiring assignments and Modbus RTU communication protocol are compatible with the original Finejet architecture. Minor parameter reconfiguration (device address, alarm thresholds, I/O polarity) is typically required during commissioning. A full wiring verification against the site’s original documentation is recommended before energizing the replacement module.

Q2: What commissioning steps are required after installation?
After physical installation, the standard commissioning sequence includes: (1) power-on self-test confirmation, (2) Modbus device address assignment and RS-485 bus communication verification, (3) digital input signal simulation and response validation, (4) alarm channel testing (low oil pressure, high temperature, emergency stop), (5) remote start/stop command test from the SCADA or HMI, and (6) a full-load run test under controlled conditions. All commissioning results should be documented in the site’s maintenance log.

Q3: Does the 12-month warranty cover field installation failures?
The 12-month warranty covers manufacturing defects and functional failures occurring under normal operating conditions as specified in the product datasheet. Failures resulting from incorrect wiring, overvoltage events, physical damage during installation, or operation outside the rated environmental parameters are not covered. SMARTNEXMSK provides pre-shipment functional testing on all PT-005J20 units to verify operational integrity before dispatch. Warranty claims are processed through sales@smartnexmsk.com with supporting documentation.

Q4: Can the PT-005J20 be used with non-Finejet generator control systems?
The PT-005J20 is optimized for Finejet series compatibility. Use with other generator control platforms (e.g., DSE, ComAp, Woodward) requires a detailed compatibility assessment of the terminal wiring, Modbus register map, and power supply requirements. Contact SMARTNEXMSK technical support at sales@smartnexmsk.com before deploying the PT-005J20 in a non-Finejet application to confirm suitability and avoid commissioning issues.
