PRESYS C0525 V70-P 0010-40489 Retrofit-Ready Process Module

PRESYS C0525 V70-P 0010-40489 Retrofit-Ready Process Control Module for TH220 Series Control Systems

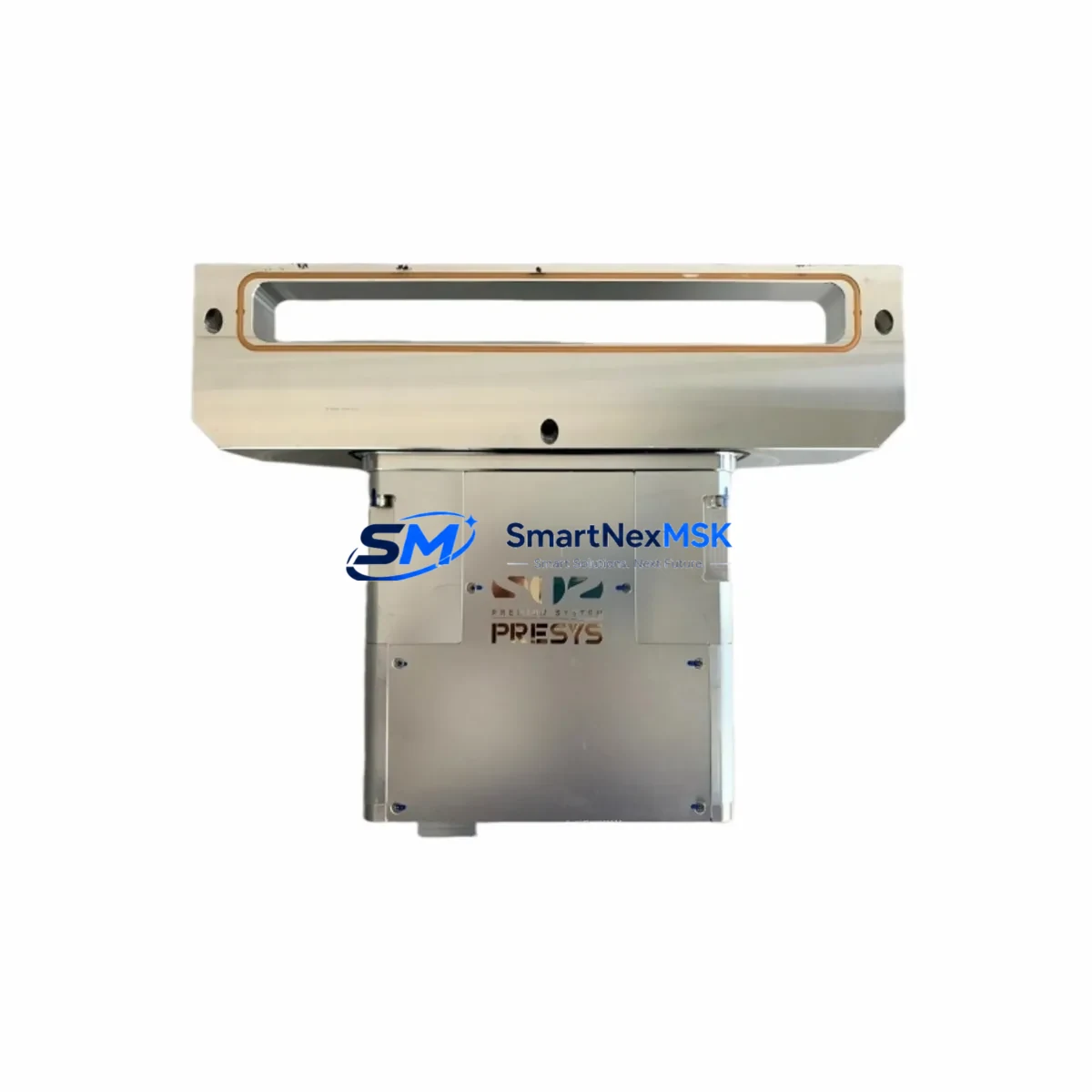

The PRESYS C0525 V70-P 0010-40489 is a retrofit-ready process control module engineered for seamless integration into legacy TH220 and TH-220 series distributed control systems. Whether you are replacing a failed unit, upgrading an aging control cabinet, or migrating from a discontinued platform, this module delivers verified compatibility with the original rack architecture, terminal wiring layout, and communication protocol stack — minimizing engineering rework and unplanned downtime on the plant floor.

Also referenced under part numbers V70-P-353-7-HAAZZBB-18, C3422, and 0021-04878, this module is sourced from verified supply channels and undergoes pre-shipment functional testing before dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the PRESYS C0525 V70-P 0010-40489 into an operating TH220 control system requires a structured pre-installation review. Begin by auditing the existing rack assembly: confirm that the TH220 backplane has an available slot of the correct type and that the rack’s TH220 power supply module can sustain the additional load without triggering an over-current fault. Many aging systems running continuous process loops have power budgets that were sized to original specifications — adding or swapping a module without recalculating the power margin is a common source of post-retrofit instability.

Next, cross-reference the field wiring. The TH220 platform typically uses dedicated field terminal assemblies that connect to the module via a marshalling cabinet or directly to the backplane terminal strip. Before removing the legacy unit, photograph and document every wire label, terminal number, and signal type. Analog input channels in particular must be verified for current loop (4–20 mA) versus voltage (0–10 V) configuration, as incorrect signal type settings in the replacement module’s parameter table will produce erroneous process values immediately after startup.

For systems that include a TH220 communication module or a dedicated Modbus RTU / PROFIBUS DP gateway linking the DCS to upstream SCADA or historian platforms, verify that the new module’s firmware version is recognized by the network master. In some TH220 installations, the TH220 controller CPU module maintains a hardware device table that must be updated when a module is replaced — failure to do so can result in the CPU flagging a configuration mismatch fault and halting the control loop.

I/O expansion scenarios are equally common in retrofit projects. If the modernization plan calls for adding new measurement points — for example, integrating additional temperature transmitters or flow meters into an existing loop — consider whether the current rack has physical slots available or whether a TH220 expansion rack and additional I/O modules are required. In multi-rack configurations, the inter-rack communication cable and termination resistors must also be inspected and replaced if degraded.

HMI integration is another critical checkpoint. If the plant uses a TH220-compatible HMI panel or a SCADA workstation with pre-built faceplates tied to specific module tag names and addresses, any change in module slot position or address assignment will require corresponding updates to the HMI graphics and alarm setpoint tables. Coordinate with the control room operator team before executing the swap to avoid false alarms or blind spots during the transition window.

Finally, if the system uses a TH220 programming cable or a dedicated engineering workstation for online configuration, ensure the engineering software version supports the firmware on the replacement module. Older versions of the configuration tool may not recognize updated module descriptors, which can prevent successful online download of the revised I/O configuration.

Downtime Control During System Migration

Minimizing production interruption during a TH220 module replacement requires a disciplined sequence of pre-work, execution, and verification steps. The goal is to reduce the window between removing the legacy PRESYS C0525 V70-P 0010-40489 predecessor unit and restoring full closed-loop control to the shortest possible interval — ideally under one planned maintenance shift.

Before the maintenance window: Export and archive the full I/O configuration from the existing system using the TH220 engineering workstation. Save the controller program, HMI tag database, and alarm configuration to a secure backup location. Prepare the replacement module by pre-configuring its address, signal type, and range parameters offline where the platform supports it. Stage all tools, wiring documentation, and the replacement unit at the cabinet before the shutdown begins.

During the swap: Place the affected control loop in manual mode at the DCS or HMI before de-energizing the slot. This preserves the last known output value to the field device (valve, actuator, or drive) and prevents a process upset caused by a sudden loss of control signal. Remove the legacy module, insert the PRESYS C0525 V70-P 0010-40489, and confirm physical seating on the backplane. Re-energize the rack and observe the module’s status indicators for a healthy initialization sequence.

After insertion: Perform a live signal check on each I/O channel before returning the loop to automatic mode. Verify that the process variable reading at the HMI matches the field instrument’s local indicator. Confirm that the communication link between the module and the TH220 CPU is active and that no configuration mismatch faults are present in the diagnostic log. Only after all channels are verified should the loop be transferred back to automatic control. Document the completed swap in the plant’s maintenance management system and retain the pre-shipment test certificate supplied with the module for audit purposes.

Retrofit Support FAQ

Q1: Is the PRESYS C0525 V70-P 0010-40489 a direct drop-in replacement for the original TH220 series module?
In the majority of TH220 installations, yes — the module occupies the same backplane slot, uses the same terminal wiring interface, and communicates over the same internal bus. However, customers should verify the firmware revision of their TH220 CPU module against the replacement unit’s compatibility matrix, as certain early TH220 hardware revisions may require a firmware update on the host controller before the new module is recognized correctly.

Q2: What commissioning steps are required after installation?
After physical installation, perform a channel-by-channel signal verification: inject a known reference signal at the field terminal and confirm the value displayed at the HMI or engineering workstation matches within the specified accuracy band. For analog output channels, verify the field device (valve positioner, variable speed drive, etc.) responds correctly to a manual output command issued from the DCS. Update the module address in the controller’s hardware configuration table if the slot position has changed, and perform a full save-and-download of the revised configuration.

Q3: Can this module be used in a system that has already migrated part of its I/O to a newer platform?
Yes. In hybrid migration scenarios where some racks have been upgraded while others remain on the original TH220 architecture, the C0525 V70-P 0010-40489 can continue to serve the legacy portion of the system. Ensure that the inter-rack communication protocol and the SCADA data aggregation layer can simultaneously handle both the legacy TH220 data format and any new protocol (e.g., OPC-UA or Modbus TCP) used by the upgraded sections.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and operational failures arising under normal industrial service conditions — correct supply voltage, within-spec ambient temperature, and proper installation per the TH220 system documentation. It does not cover damage from incorrect wiring, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the order reference number and a description of the fault symptom. We will arrange return shipping and either repair or replace the unit, with a target turnaround of 10 business days from receipt of the returned module.
