PROMAX GV898AES01 Maintenance-Ready Spare for GV-898 Automation

PROMAX GV898AES01 Maintenance-Ready Spare for GV-898 Automation

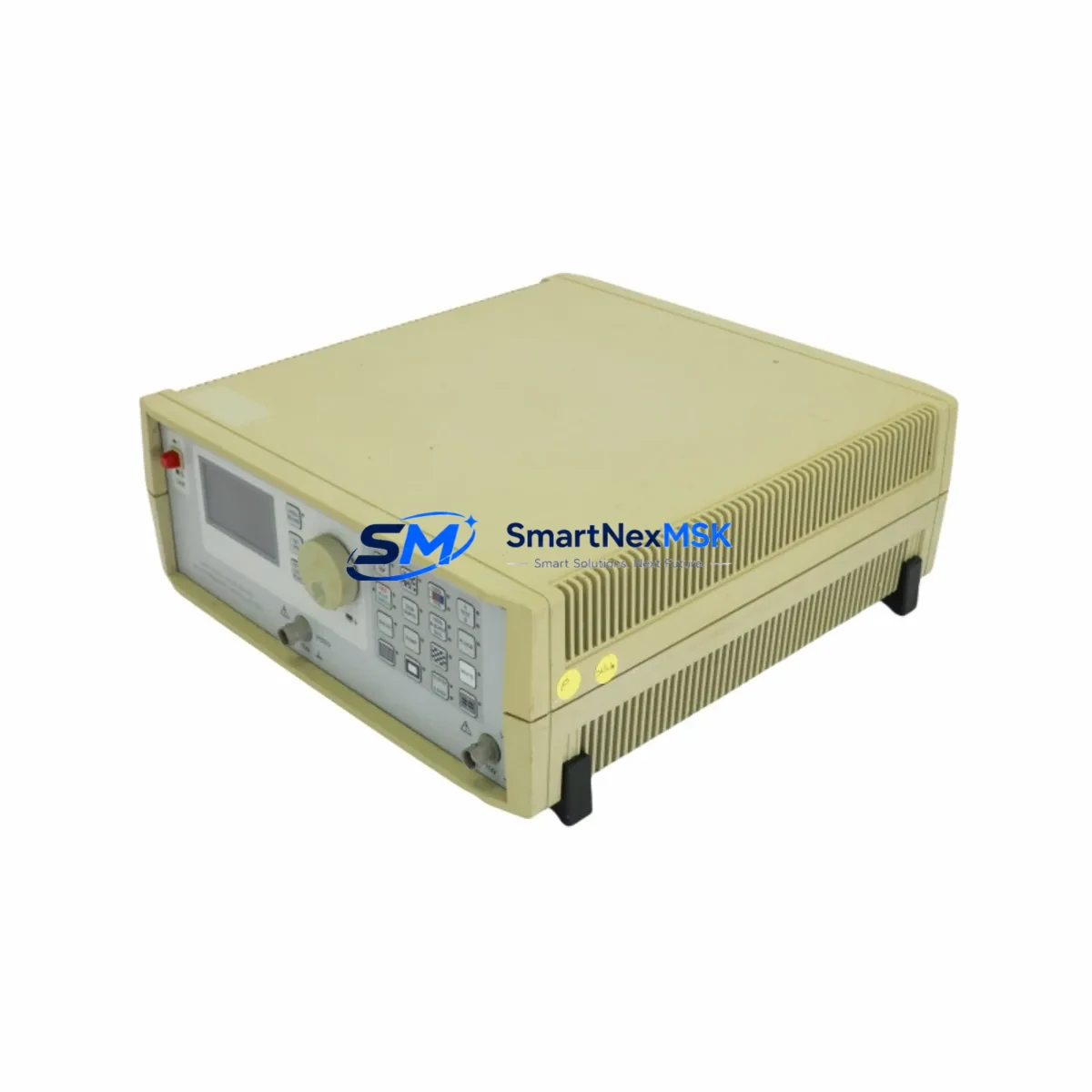

The PROMAX GV898AES01 is an original spare part engineered for the GV-898 series broadcast signal reference and pattern generation platform. Designed to restore full operational capability with minimal downtime, this SKU-verified replacement unit is the first choice for maintenance engineers and procurement teams managing broadcast AV control environments, industrial signal distribution racks, and AES/EBU reference systems. Whether you are executing a planned overhaul, responding to an unscheduled fault, or pre-positioning critical spares to protect against unplanned outages, the GV898AES01 delivers the compatibility, signal integrity, and documentation traceability that professional maintenance operations demand.

Sourced from PROMAX’s original production line and supplied with the official instruction manual (GV-898 / 0021-78523 / 0150-76871), every unit undergoes full functional testing prior to dispatch. A 12-month warranty covers manufacturing defects and operational failures under normal service conditions, providing procurement engineers with the assurance required for long-term spare parts planning and lifecycle cost management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the GV898AES01 in a GV-898 system, a thorough inspection of the surrounding signal chain is essential to prevent repeat failures and ensure stable operation after recommissioning. Maintenance engineers should treat this replacement as an opportunity to audit the entire reference distribution rack.

Begin by verifying the power supply module feeding the GV-898 chassis. A degraded PSU with marginal output voltage is a common root cause of premature board failure — check both the primary supply rail and any redundant power path. Next, inspect all BNC and XLR connectors on the AES/EBU signal input and output ports; oxidised or intermittently connected terminals introduce jitter and reference instability that can mimic a faulty GV898AES01 and lead to misdiagnosis.

Review the signal distribution amplifier (DA) downstream of the GV-898 output. If the DA has been in continuous service for more than five years, its output drivers may be approaching end-of-life and should be included in the spare parts budget. Similarly, the sync pulse generator (SPG) or house sync reference feeding the GV-898 input should be verified for lock stability and output level compliance — an unstable upstream reference will cause the GV898AES01 to perform erratically even after a successful replacement.

For systems integrated into a broader broadcast automation environment, check the router control card and any signal monitoring modules that rely on the GV-898 reference output. A loss of reference at this point can cascade into downstream frame synchronisers, up/down/cross converters, and embedder/de-embedder units — all of which should be inspected for alarm states during the maintenance window. Where the GV-898 is used alongside AES/EBU audio distribution infrastructure, verify the integrity of the audio reference distribution amplifier and any sample rate converters in the signal path, as faulty word clock or AES reference can cause audio dropout events that are difficult to diagnose without a known-good reference source.

Finally, inspect the rack PDU (power distribution unit), surge protection devices, and any UPS modules protecting the reference rack. These passive infrastructure components are frequently overlooked during corrective maintenance but are critical to long-term system reliability. Keeping a pre-tested GV898AES01 on the shelf eliminates diagnostic uncertainty and reduces mean time to recovery (MTTR) to under two hours for a prepared maintenance team.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the GV898AES01 is the failed component by substituting a known-good reference signal source and observing whether downstream alarms clear. Document the fault condition, alarm codes, and affected signal paths before removal to support root cause analysis.

Step 2 — Safe Isolation: Power down the GV-898 chassis following the procedure in the instruction manual (0021-78523). Disconnect all signal cables and label each connection to ensure correct reinstatement. Ground yourself using an ESD wrist strap before handling the module to prevent electrostatic damage to sensitive signal circuitry.

Step 3 — Physical Replacement: Remove the defective GV898AES01 module from the chassis. Install the replacement unit, ensuring all edge connectors are fully seated and any retention screws are torqued to specification. Reconnect all signal cables in the documented order, verifying cable integrity and connector seating at each port.

Step 4 — Power-Up and Verification: Restore power to the chassis and allow the unit to complete its initialisation sequence. Verify reference output levels using a waveform monitor or signal analyser. Confirm that all downstream equipment — including frame synchronisers, DAs, and SPG-dependent devices — has re-locked to the reference and that no alarms are active on the router control card or monitoring system.

Step 5 — Documentation and Stock Replenishment: Log the replacement in your CMMS with the date, fault description, and new serial number. Immediately raise a purchase order to replenish the spare GV898AES01 in your inventory. A single-unit spare policy for critical reference components is the minimum acceptable standard for broadcast and industrial AV operations. For multi-site facilities, a central buffer stock of two additional units is recommended to cover concurrent failures and transit lead times.

Spare Parts Support FAQ

Q1: Is the GV898AES01 a direct drop-in replacement for the original module across all GV-898 chassis variants?
A: Yes. The GV898AES01 is the original PROMAX part number for the GV-898 series and is compatible across all standard GV-898 chassis configurations. Reference the included instruction manual (0021-78523 / 0150-76871) to confirm the correct installation procedure for your specific chassis revision. If you are replacing a module from an early production unit, contact our technical team to verify hardware revision compatibility before installation.

Q2: What pre-shipment testing is performed, and is a test report available?
A: Every GV898AES01 unit undergoes a full functional test covering signal output integrity, power consumption within specification, and connector continuity before dispatch. A test report is available on request. Units are packed in anti-static packaging with physical protection to prevent transit damage, ensuring the unit arrives in the same condition it left our facility.

Q3: How should I structure GV898AES01 inventory for a multi-site broadcast operation?
A: For operations with three or more GV-898 systems across multiple sites, maintain a minimum of one GV898AES01 spare per site, with a central buffer stock of two additional units. A stockout event for a critical reference component can result in a complete loss of synchronisation across the facility. Long-term supply agreements are available to guarantee unit availability and price stability over a 12–24 month horizon.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
A: The 12-month warranty covers manufacturing defects and operational failures arising under normal operating conditions as defined in the GV-898 instruction manual. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference, a description of the fault, and photographic evidence of the defect. Replacement units are dispatched within 3–5 business days of claim approval.
