Raytek MI310LTSCB3 Spare for Marathon MR Automation

Raytek MI310LTSCB3 Spare for Marathon MR Automation: Spare Replacement & Industrial Downtime Risk Control

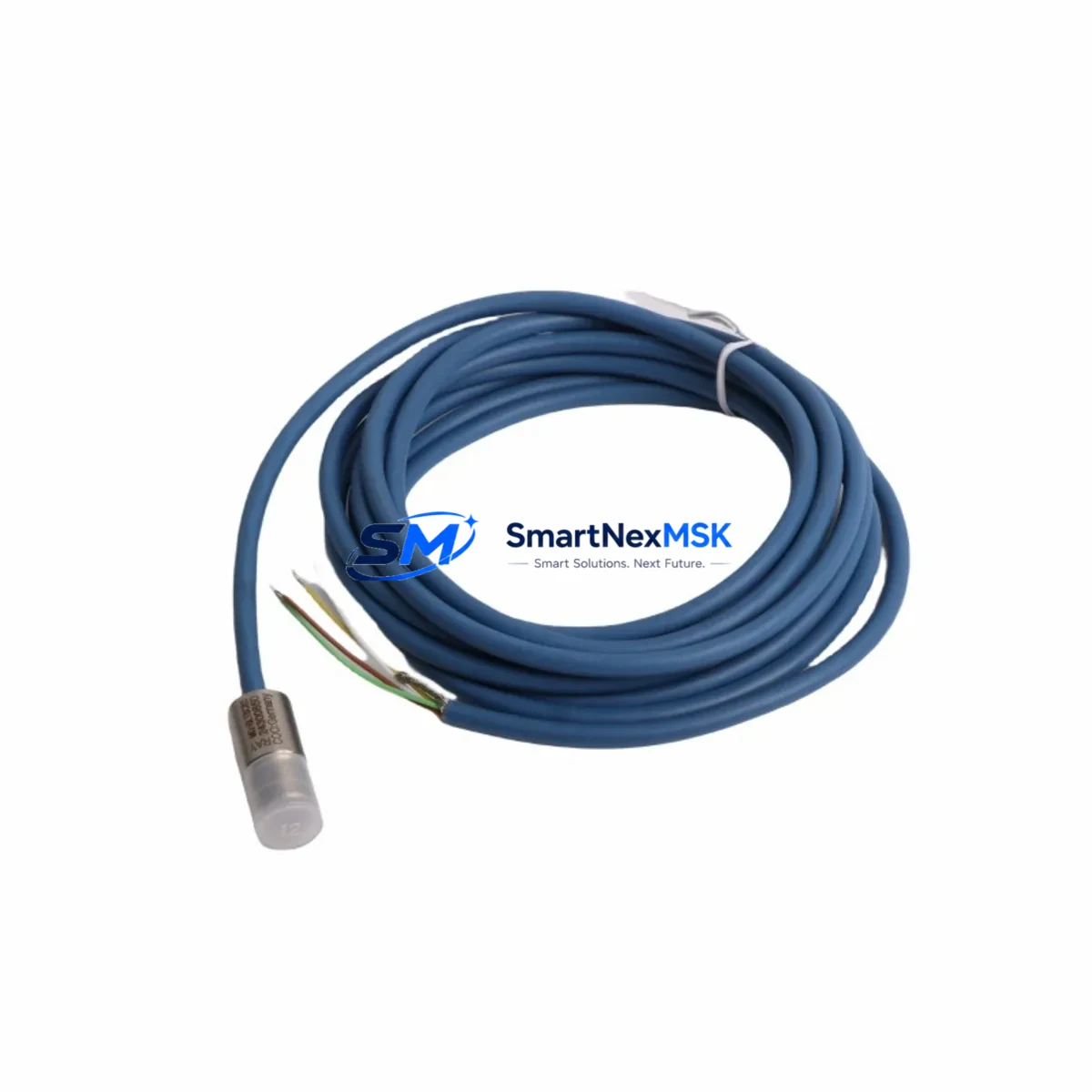

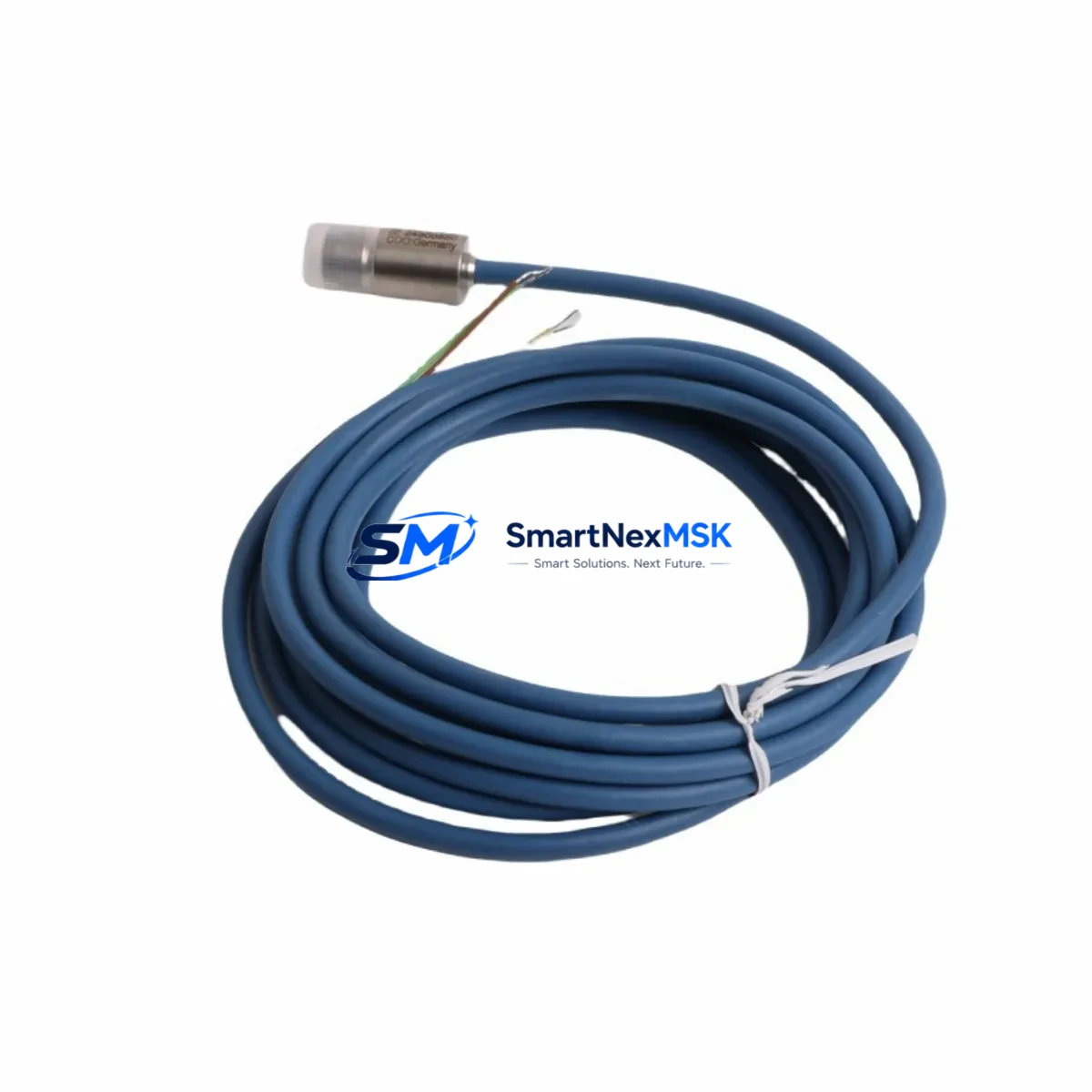

The Raytek MI310LTSCB3 is an original Marathon MR Series non-contact infrared pyrometer engineered for continuous temperature monitoring in demanding industrial automation environments. As a maintenance-ready spare, it enables maintenance engineers and procurement teams to execute rapid in-situ replacement with zero configuration drift, preserving process integrity and minimizing unplanned downtime in steel, glass, cement, and petrochemical control systems.

Whether you are managing a planned shutdown, responding to a sensor fault alarm, or building a strategic spare parts inventory for aging DCS or PLC-based control cabinets, the MI310LTSCB3 delivers the dimensional and electrical compatibility required for a direct drop-in swap. Its factory-calibrated output eliminates the need for field recalibration after installation, reducing mean time to repair (MTTR) and restoring loop integrity within minutes of replacement.

For procurement engineers, sourcing the MI310LTSCB3 as a stocked spare is a proven strategy for extending the operational life of Marathon MR Series installations beyond OEM support windows. With a 12-month warranty and pre-shipment functional testing, each unit is verified against original Raytek performance specifications before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MI310LTSCB3 in a live control cabinet or process line, a thorough inspection of the surrounding electrical and signal infrastructure is essential to prevent repeat failures and ensure loop stability. Maintenance engineers should begin by verifying the 24 VDC power supply module feeding the pyrometer circuit — voltage sag or ripple exceeding ±5% can cause erratic 4–20 mA output and false temperature readings. If the installation uses a DIN-rail mounted power supply such as a Siemens SITOP or Phoenix Contact QUINT series, confirm output voltage under load before reconnecting the new sensor.

The signal cable between the MI310LTSCB3 and the PLC or DCS analog input card should be inspected for insulation damage, shield continuity, and connector corrosion — particularly in high-temperature or high-vibration zones. Where the analog signal is conditioned before reaching the controller, check the signal isolator or signal conditioner (such as a Pepperl+Fuchs KFD2 or similar DIN-rail isolator) for drift or output clipping. A faulty isolator can mask a healthy pyrometer and lead to misdiagnosis.

At the PLC or DCS level, verify the analog input channel on the I/O module — for example, a Siemens S7-300 SM331 or equivalent — is reading within the expected engineering unit range after replacement. If the system uses a Profibus DP or Modbus RTU communication module to relay temperature data to the SCADA layer, confirm the communication module’s diagnostic LEDs show no bus errors following the swap. For installations with a Raytek Marathon MM or MI Series controller head paired to the pyrometer, inspect the controller’s terminal block connections and fuse holder for oxidation.

Relay output modules used for over-temperature alarms should be tested for correct trip setpoints after the new pyrometer is commissioned. Terminal blocks adjacent to the pyrometer wiring — particularly screw-type or spring-cage terminals — should be re-torqued to specification to prevent intermittent contact resistance. Where an HMI panel (such as a Siemens TP700 or similar) displays live temperature trends, verify the tag mapping and scaling parameters are consistent with the replacement unit’s output range to avoid display errors that could mislead operators.

For sites managing legacy Marathon MR installations approaching end-of-support, stocking one or two MI310LTSCB3 units alongside compatible cooling air purge accessories, replacement lens assemblies, and mounting brackets is a cost-effective strategy for extending system life by three to five years without a full instrumentation upgrade.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the pyrometer circuit at the local isolator or MCB. Confirm zero voltage at the sensor terminal block using a calibrated multimeter. Apply LOTO (Lockout/Tagout) per site procedure.

Step 2 — Documentation: Photograph existing wiring connections, cable routing, and mounting orientation before disassembly. Record the current 4–20 mA output value from the DCS/PLC historian as a baseline reference.

Step 3 — Removal: Disconnect the signal cable and power leads at the terminal block. Unscrew the MI310LTSCB3 from its mounting bracket. Inspect the mounting surface and cooling air purge fitting for debris or corrosion.

Step 4 — Installation: Mount the replacement MI310LTSCB3 to the existing bracket. Reconnect wiring per the original documentation, observing polarity for the 4–20 mA loop. Reconnect the cooling air purge line if applicable.

Step 5 — Commissioning: Re-energize the circuit. Verify the analog output at the PLC/DCS input channel corresponds to the process temperature. Compare against adjacent thermocouple or reference pyrometer readings to confirm calibration alignment. Update the maintenance log with the replacement date, unit serial number, and post-installation readings.

This workflow supports a target replacement time of under 45 minutes for a trained maintenance technician, minimizing process interruption and enabling rapid return to full production capacity.

Spare Parts Support FAQ

Q1: Is the MI310LTSCB3 a direct drop-in replacement for older Marathon MR Series pyrometers?
Yes. The MI310LTSCB3 maintains dimensional, electrical, and signal compatibility with the Marathon MR Series product family. No recalibration or wiring modification is required for standard installations. Confirm the output signal type (4–20 mA or RS-485) matches your existing loop configuration before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance deviations from Raytek factory specifications. Each unit undergoes pre-shipment functional testing. Warranty claims arising from incorrect installation, mechanical damage, or operation outside specified environmental limits are excluded.

Q3: How should the MI310LTSCB3 be stored as a long-term spare?
Store in original packaging in a dry, temperature-controlled environment (5°C to 40°C, <80% RH non-condensing). Avoid proximity to strong electromagnetic fields or corrosive atmospheres. Inspect the lens and connector annually if stored for more than 12 months. Rotate stock on a first-in, first-out basis to maintain readiness.

Q4: Can compatibility be verified before shipment for critical applications?
Yes. For critical process applications, contact our technical team with your existing installation details (model number, output type, mounting configuration, and process temperature range). We will confirm compatibility and, where required, arrange pre-shipment functional verification against your specified parameters prior to dispatch.
