REOVIB MFS268-8A-IP54 Spare for MFS268 Automation

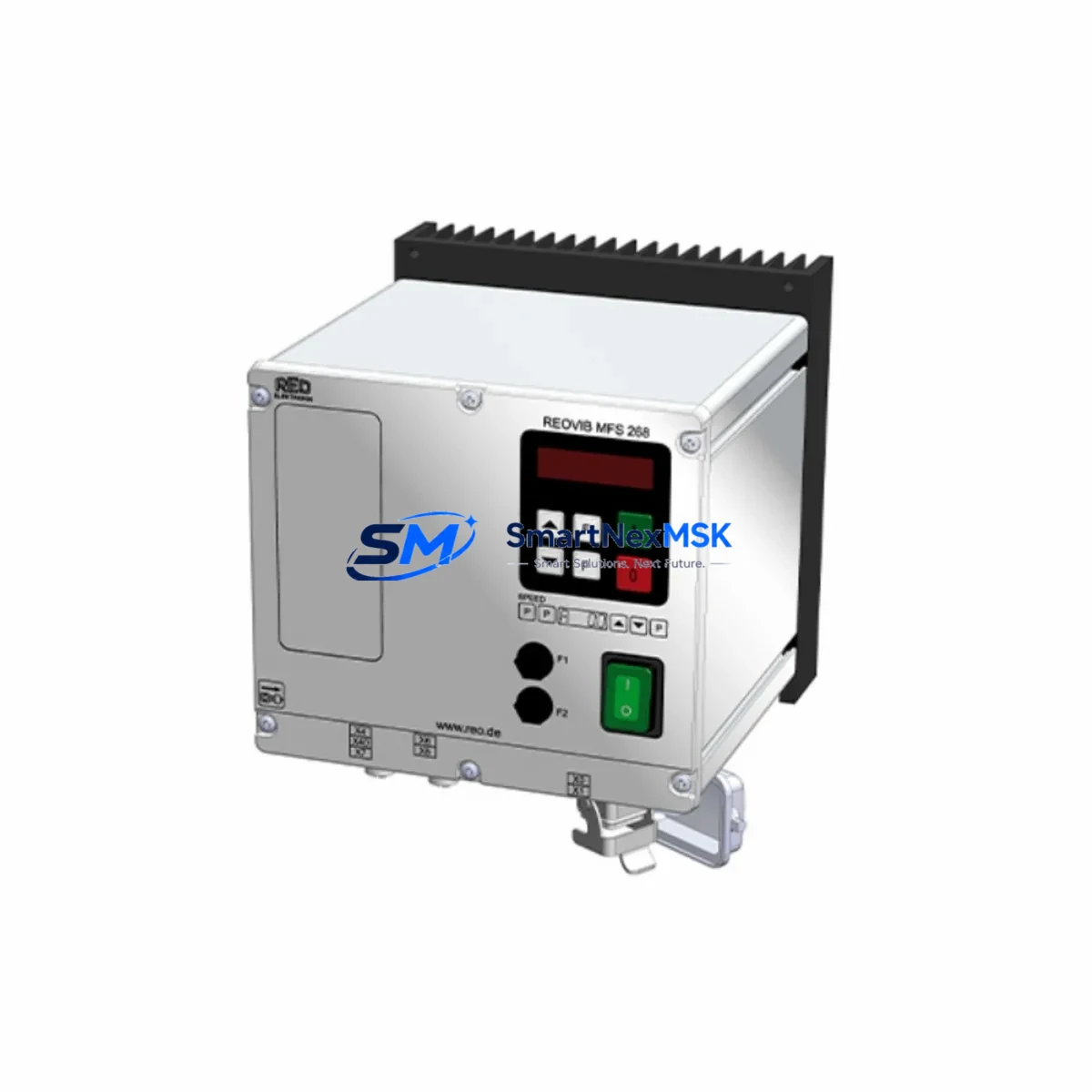

The REOVIB MFS268-8A-IP54 is an original amplitude controller engineered for continuous-duty vibratory feeder systems operating in demanding industrial environments. Rated at 8A output with IP54 ingress protection, this unit is a direct maintenance-ready replacement for aging or failed MFS268-series controllers installed across conveying lines, parts-feeding bowls, and bulk-material handling systems. Whether you are executing a planned shutdown, responding to an unscheduled line stoppage, or building a proactive spare-parts inventory, sourcing a verified original MFS268-8A-IP54 is the fastest path to restoring controlled vibration amplitude and resuming production.
Maintenance engineers working on REOVIB-equipped feeder lines understand that amplitude drift, erratic bowl speed, or complete loss of output almost always traces back to the controller rather than the mechanical drive. Replacing the MFS268-8A-IP54 with a tested original unit eliminates guesswork, avoids the compatibility risks of generic substitutes, and restores factory-calibrated amplitude response within a single maintenance window. Every unit shipped by SMARTNEXMSK is function-tested prior to dispatch and covered by a 12-month warranty against manufacturing defects.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | REOVIB-MFS-268-8A-IP54 |
| Brand | REOVIB (Germany) |
| Series | MFS268 |
| Output Current | 8 A |
| Protection Rating | IP54 (dust-protected, splash-proof) |
| Function | Amplitude controller for vibratory feeder drives |
| Compatibility | MFS268 series vibratory feeder controllers; direct drop-in replacement |
| Mounting | DIN-rail or panel-mount per MFS268 series standard |
| Application Environment | Industrial conveying, parts-feeding bowls, bulk-material handling, packaging lines |
| Condition | Original, new or tested-serviceable |
| Pre-shipment Test | Function-tested before dispatch |
| Warranty | 12 months from date of shipment |
| Origin | Germany (DE) |
| Lead Time | In-stock: ships within 1–3 business days |
Maintenance Planning for Continuous Operation
A vibratory feeder controller does not operate in isolation. When the MFS268-8A-IP54 is replaced during a corrective or preventive maintenance event, a disciplined maintenance engineer will simultaneously inspect the surrounding electrical circuit to prevent repeat failures and confirm system integrity before restart.
Power supply and protection: Verify the upstream power supply module is delivering stable voltage within the MFS268 input specification. A degraded or undersized power supply is a common root cause of controller failure. Check the associated fuse block or circuit breaker — blown fuses or nuisance trips indicate an upstream fault that must be resolved before the new controller is energized. Surge protection devices on the supply rail should also be inspected for signs of clamping events.
Wiring and terminal integrity: Inspect all terminal blocks connected to the MFS268-8A-IP54, including the output terminals driving the feeder coil. Loose or corroded terminals cause intermittent amplitude loss and accelerate controller wear. Replace any discolored or heat-damaged terminal blocks and re-torque all connections to specification. The feeder coil cable and its strain relief should be checked for insulation damage, particularly where the cable enters the control cabinet.
Feeder coil and electromagnetic drive: Before commissioning the replacement controller, measure the resistance and inductance of the vibratory feeder coil. An open or shorted coil will immediately stress the new MFS268-8A-IP54 output stage. If the coil shows abnormal readings, replace it concurrently to protect the new controller investment.
Signal and setpoint wiring: The MFS268 series accepts external amplitude setpoint signals — typically 0–10 V DC or 4–20 mA from a PLC analog output module. Verify the signal cable integrity and confirm the PLC analog output card is delivering the correct reference signal. A faulty signal isolator or a drifting analog output channel can cause the controller to run at incorrect amplitude even after replacement. If a signal isolator is installed in the loop, inspect it for output drift.
Control cabinet environment: IP54 protection makes the MFS268-8A-IP54 suitable for moderately dusty and splash-prone environments, but the control cabinet itself must be maintained. Check cabinet door seals, filter mats, and cooling fans. Excessive internal temperature shortens controller service life. A cabinet thermostat or temperature monitoring relay is a worthwhile addition if not already installed.
PLC and HMI integration: If the feeder is supervised by a PLC — common in automated assembly or packaging lines — confirm that the PLC program is sending the correct enable signal and setpoint to the MFS268-8A-IP54 after replacement. Review the HMI screen associated with the feeder station to verify that amplitude feedback, run/stop status, and fault indicators are displaying correctly. A communication module or remote I/O node serving the feeder station should also be checked for active faults.
Relay and interlock circuits: Many feeder installations include an output relay or safety relay that enables the controller only when upstream conveyor or machine conditions are met. Verify these interlock relays are functioning correctly and that their contacts are not worn or welded. A faulty interlock relay can prevent the replacement controller from starting or cause unexpected shutdowns.
Stocking a second MFS268-8A-IP54 as a cold spare — alongside a spare feeder coil cable assembly, a set of terminal blocks, and the relevant fuse ratings — is the most cost-effective insurance against extended downtime on a high-throughput feeder line.
Site Replacement Workflow
Step 1 — Isolate and de-energize: Follow your site LOTO procedure. Isolate the MFS268-8A-IP54 from the supply using the upstream isolator or circuit breaker. Confirm absence of voltage with a calibrated meter before opening the cabinet.
Step 2 — Document existing wiring: Photograph or sketch all terminal connections on the failed controller before removal. The MFS268 series uses a defined terminal layout; confirm your replacement unit matches the same terminal assignment. Note the amplitude setpoint value displayed on the HMI or recorded in the PLC for re-entry after replacement.
Step 3 — Remove the failed unit: Disconnect all terminals in sequence. If the unit is DIN-rail mounted, release the rail clip and slide the controller free. Inspect the mounting rail for corrosion or deformation and replace if necessary.
Step 4 — Install the replacement MFS268-8A-IP54: Mount the new unit, reconnect all terminals per your documentation, and verify torque. Confirm the feeder coil output terminals are secure and that the signal input wiring is correctly polarized.
Step 5 — Power-up and commission: Re-energize the circuit. Set the amplitude setpoint to the previously recorded value. Run the feeder at low amplitude first and observe bowl or conveyor behavior before returning to full production setpoint. Confirm the HMI displays correct status and that the PLC registers no faults.
Step 6 — Record and close out: Log the replacement in your CMMS with the new unit serial number, installation date, and warranty expiry. Update your spare-parts inventory to trigger reorder of a replacement cold spare.
Spare Parts Support FAQ
Q1: Is the REOVIB MFS268-8A-IP54 a direct drop-in replacement for my existing MFS268 controller?
Yes. The MFS268-8A-IP54 is a direct replacement within the MFS268 series. Confirm your existing unit carries the same output current rating (8A) and IP54 designation before installation. If your installed unit carries a different suffix, contact our technical team to verify cross-compatibility.
Q2: How is each unit tested before shipment?
Every MFS268-8A-IP54 dispatched by SMARTNEXMSK undergoes a function test verifying output stage operation, amplitude control response, and protection circuit integrity. A test record is available on request. Units are packed in anti-static, shock-protected packaging to prevent transit damage.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated specification. Our after-sales team provides technical support throughout the warranty period.
Q4: Can you support long-term or repeat supply of MFS268-series controllers?
Yes. SMARTNEXMSK maintains stock of MFS268-series amplitude controllers and related REOVIB spare parts to support ongoing maintenance programs. We can provide scheduled delivery agreements for customers managing multi-line feeder installations or legacy system life-extension programs. Contact our sales team to discuss volume pricing and supply continuity arrangements.
—
