RKC CB100 FD10-V*GB-NN/A/Y Maintenance-Ready Spare CB100

RKC CB100 FD10-V*GB-NN/A/Y Maintenance-Ready Spare for CB100 Series Automation

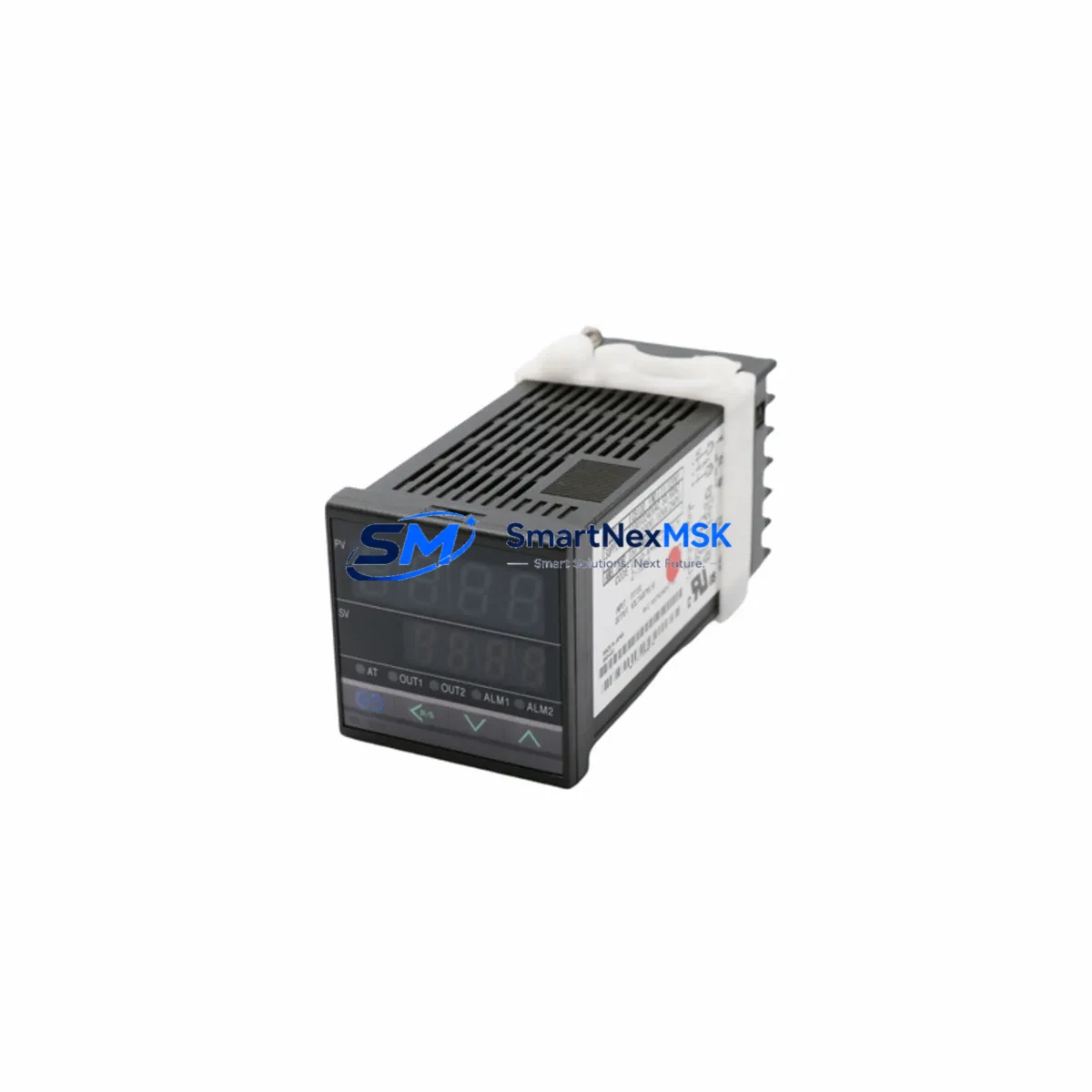

The RKC CB100 FD10-V*GB-NN/A/Y is an original PID temperature controller from RKC Instrument Inc., engineered for precision thermal regulation in industrial automation environments. Designed for the CB100 Series platform, this unit supports RS-485 serial communication and is widely deployed in plastic processing, food production, packaging lines, semiconductor fabrication, and general-purpose industrial heating and cooling control loops. For maintenance engineers managing aging control systems, sourcing a verified original spare of this model is critical to avoiding extended downtime and ensuring loop stability after replacement.

When a CB100 FD10-V*GB-NN/A/Y fails or shows signs of drift, erratic output, or communication loss, the replacement process must be handled systematically. This spare is tested prior to shipment, supplied with a 12-month warranty, and is available for fast dispatch to minimize production interruption. Whether you are executing a planned overhaul, responding to an emergency shutdown, or building a preventive maintenance stock, this unit is a direct fit for existing CB100 Series panel cutouts and wiring configurations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a CB100 FD10-V*GB-NN/A/Y is rarely an isolated task. Maintenance engineers performing a scheduled or emergency replacement should treat the event as an opportunity to inspect the surrounding control loop for latent faults that could cause a repeat failure or degrade system performance after the new unit is installed.

Start with the power supply module feeding the controller. A degraded 24 VDC rail or unstable AC input can stress the controller’s internal power circuit and shorten service life. Verify input voltage is within specification before energizing the replacement unit. Next, inspect the thermocouple or RTD sensor connected to the input terminals — a drifting or open sensor will cause the new controller to behave erratically and may be misdiagnosed as a controller fault. Check sensor continuity and compare readings against a calibrated reference.

Examine the solid-state relay (SSR) or magnetic contactor driven by the CB100’s control output. Voltage pulse output controllers like the FD10-V variant drive an external SSR, and a degraded SSR with high leakage current or slow switching response will affect temperature stability. If the SSR shows signs of overheating or carbon tracking, replace it alongside the controller.

For systems using RS-485 communication, verify the RS-485 network termination resistors and cable shielding. A poorly terminated bus can cause Modbus read errors that appear as controller faults. Check the communication module or gateway — such as an RKC SRZ or Z-TIO series communication adapter if used — for firmware compatibility with the replacement CB100 unit.

Inspect the terminal block wiring at the controller’s rear connector. Loose or corroded terminals on input, output, and power connections are a common root cause of intermittent faults. Re-torque all terminals to specification and apply contact enhancer where appropriate. If the panel uses DIN rail-mounted fuse holders or miniature circuit breakers protecting the controller circuit, verify fuse ratings and replace any discolored or suspect fuses.

For multi-zone systems, also check adjacent CB100 units on the same RS-485 loop for address conflicts or communication errors that may have been masked by the failed unit. Review the HMI or SCADA display for any historical alarm logs that could indicate upstream process issues — such as heater burnout, cooling valve failure, or process fluid contamination — that contributed to the controller failure.

Finally, if the system includes signal isolators between the sensor and controller input, verify isolator output accuracy. A miscalibrated isolator will introduce a fixed offset error that persists after controller replacement and is difficult to diagnose without a reference measurement.

Site Replacement Workflow

Step 1 — Isolation: De-energize the control panel and lock out / tag out (LOTO) the circuit. Confirm zero voltage at the controller terminals using a calibrated multimeter.

Step 2 — Documentation: Photograph or record all wiring connections, parameter settings (SV, PID constants, alarm setpoints, communication address), and the existing unit’s suffix code before removal. The CB100 FD10-V*GB-NN/A/Y suffix encodes output type, communication option, and alarm configuration — confirm the replacement unit matches exactly.

Step 3 — Removal: Disconnect all terminal wiring in sequence (power, input, output, communication). Release the panel mounting clips and extract the controller from the front of the panel cutout.

Step 4 — Installation: Insert the replacement CB100 FD10-V*GB-NN/A/Y into the 48 × 48 mm cutout and secure the mounting clips. Reconnect all wiring per the documented layout. Verify RS-485 address and communication parameters match the original unit before connecting the bus.

Step 5 — Commissioning: Restore power and verify the controller powers up without error codes. Re-enter all operating parameters. Run the process through a full temperature cycle and confirm PV tracking, alarm function, and RS-485 communication are operating correctly before returning the system to production.

This workflow minimizes downtime and ensures the replacement unit is fully validated before the system is handed back to operations.

Spare Parts Support FAQ

Q1: Is this CB100 FD10-V*GB-NN/A/Y a genuine original unit or a compatible substitute?
This is an original RKC Instrument Inc. CB100 FD10-V*GB-NN/A/Y unit sourced through verified supply channels. It is not a clone, compatible substitute, or remanufactured part. Each unit is inspected and function-tested prior to shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect wiring, overvoltage, physical impact, or installation outside the specified environmental ratings. Warranty claims are processed with return authorization and include replacement or repair at our discretion.

Q3: How do I confirm compatibility before ordering?
Compatibility is confirmed by matching the full model suffix: CB100 FD10-V*GB-NN/A/Y. The suffix defines the output type (V = voltage pulse), communication option (GB = RS-485), alarm configuration, and auxiliary options. If you are replacing an existing unit, photograph the nameplate label and compare suffix codes character by character. Contact us with your existing unit’s full model number if you need pre-order confirmation.

Q4: What is the typical lead time and how is the unit shipped?
In-stock units are dispatched within 1–3 business days. Express courier options (DHL, FedEx, UPS) are available for urgent maintenance requirements. Each unit is individually packaged with anti-static protection and includes a test report. For bulk spare parts orders or long-term supply agreements, contact our sales team for volume pricing and scheduled delivery arrangements.
