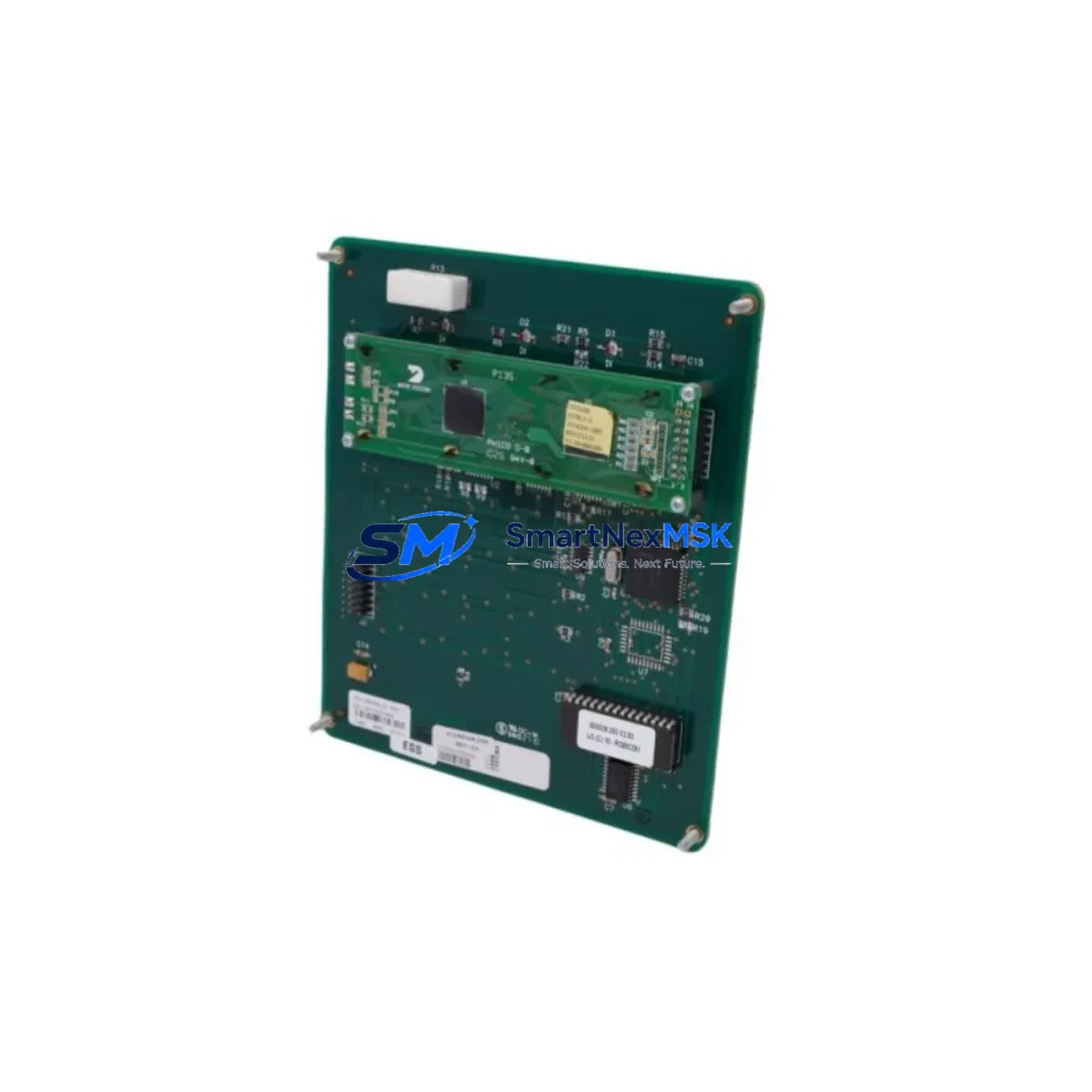

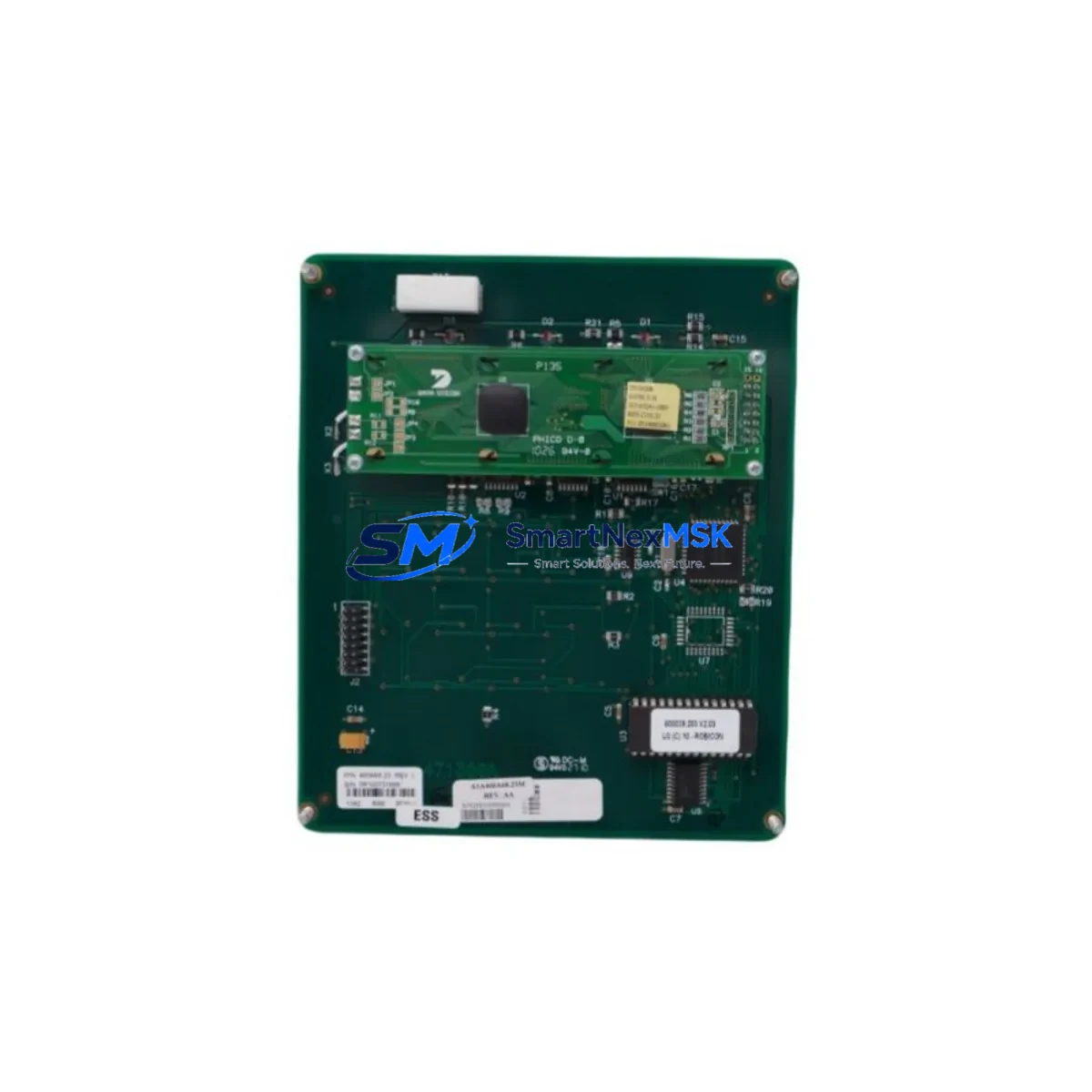

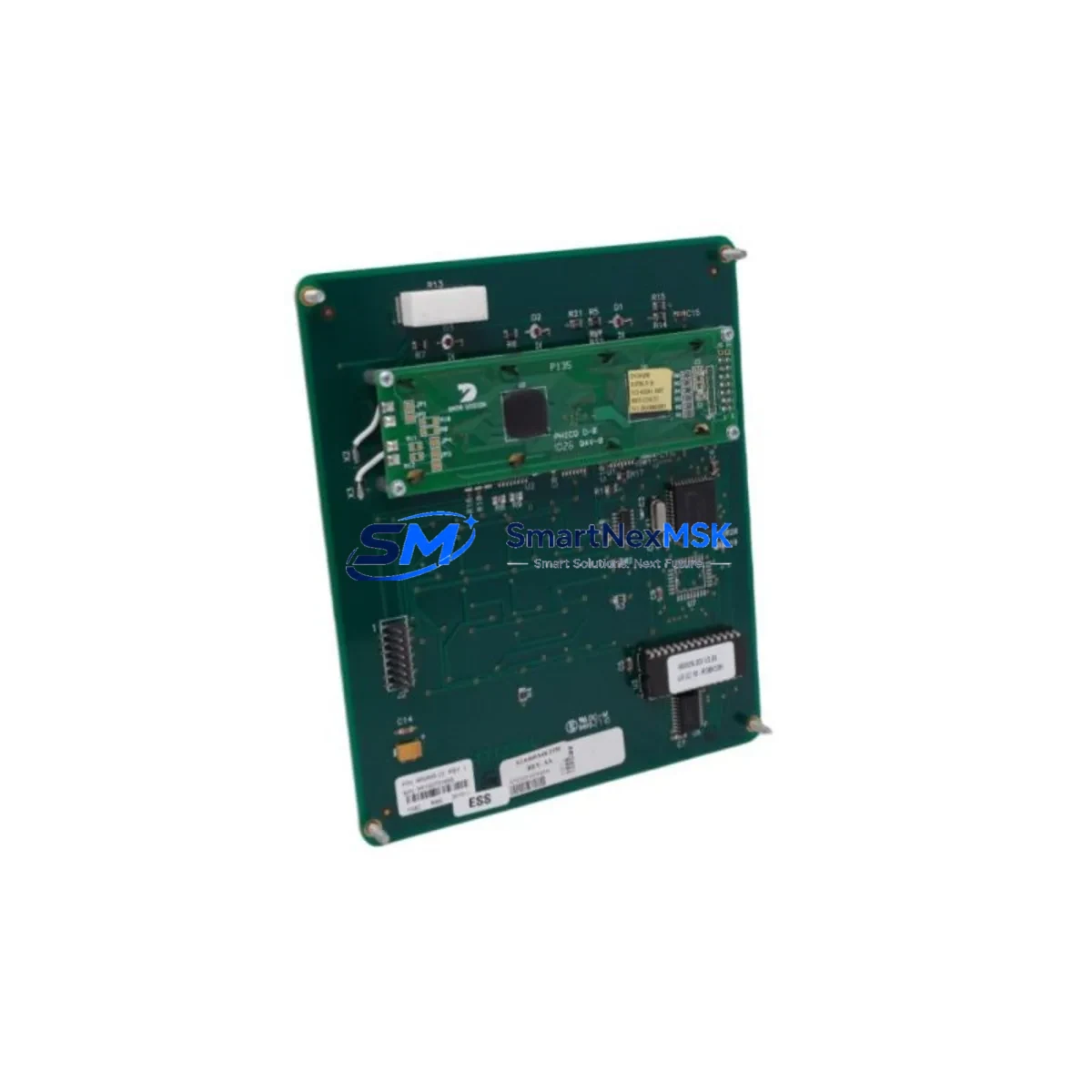

ROBICON A1A460A68.23M/460A68.10 Spare for Perfect Harmony Automation
Unplanned downtime in medium-voltage drive systems is one of the most costly events in industrial operations. The ROBICON A1A460A68.23M/460A68.10 operator panel is a critical human-machine interface component within the Perfect Harmony series of cell-based medium-voltage variable frequency drives. When this panel fails or becomes unresponsive, operators lose direct control over drive parameters, fault acknowledgment, and local speed reference — making immediate spare availability non-negotiable for any facility running Perfect Harmony drives in continuous-process or critical-load applications.
This listing provides a maintenance-ready, original-specification replacement for the A1A460A68.23M/460A68.10 operator panel. Each unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned turnaround, responding to an emergency fault, or building out your critical spare inventory, this panel ships ready for direct installation into compatible Perfect Harmony drive cabinets.
Spare Maintenance Table
| Part Number | A1A460A68.23M / 460A68.10 |
| Brand | ROBICON (Siemens Perfect Harmony) |
| Component Type | VFD Operator Panel / Local Control Interface |
| Compatible Series | Perfect Harmony Medium-Voltage VFD (GH150 / GH180 / W2L platform) |
| Voltage Class | Medium Voltage (2.3 kV – 6.6 kV drive systems) |
| Interface | Local keypad, parameter display, fault reset, speed reference input |
| Mounting | Front-panel mount, drive cabinet door integration |
| Origin | Germany |
| Application Environment | Industrial plant rooms, MV switchgear rooms, pump/fan/compressor drive cabinets |
| Maintenance Recommendation | Inspect display contrast, keypad response, and communication link to drive CPU annually; replace at first sign of display degradation or input lag |
| Warranty | 12 Months from date of shipment |
| Pre-shipment Testing | Functional verification performed before dispatch |
Maintenance Planning for Continuous Operation
For maintenance engineers managing Perfect Harmony drive systems, the operator panel is rarely the only component that warrants attention during a corrective or preventive maintenance event. When replacing the A1A460A68.23M/460A68.10, a thorough site inspection should extend to the surrounding electrical and control architecture to prevent repeat failures and ensure system stability after restart.
Begin with the 24 VDC auxiliary power supply feeding the operator panel and control board — a degraded power rail is a common root cause of intermittent panel lockups and display faults. Inspect the control board or main CPU module within the drive for firmware version compatibility with the replacement panel, particularly if the original panel suffered a communication fault rather than a physical failure. Check the fiber optic communication cables connecting the operator panel to the drive’s internal cell communication network; bent or contaminated fiber connectors are a frequent source of HMI communication errors in Perfect Harmony installations.
Review the condition of the cell bypass contactors and power cell modules within the drive cabinet — these are high-wear components in aging Perfect Harmony systems and should be logged during any panel replacement event. If the drive is installed in a pump or fan application, verify the status of the 4–20 mA analog input signal isolator providing the remote speed reference; a failed isolator can cause erratic speed behavior that is often misdiagnosed as an operator panel fault.
For facilities maintaining older Perfect Harmony installations, it is also advisable to inspect the input isolation transformer and its associated temperature sensors and cooling fans, as transformer thermal faults can trigger drive shutdowns that appear as panel or control faults. Ensure the terminal blocks and control wiring within the cabinet are secure and free of corrosion, and verify that any surge protection devices on the control circuit are intact. Procurement engineers should consider stocking the operator panel alongside the cell communication board and control power fuses as a minimum critical spare set for Perfect Harmony drive systems.
Site Replacement Workflow
Replacing the A1A460A68.23M/460A68.10 operator panel on a Perfect Harmony drive is a straightforward procedure when the correct spare is on hand, but preparation is essential to minimize cabinet downtime. Before beginning, confirm that the replacement panel’s hardware revision is compatible with the installed drive firmware — consult the drive’s nameplate and control board revision label. If the drive is running a legacy firmware version, the replacement panel should match the original panel’s hardware generation to avoid parameter menu incompatibilities.
Isolate the drive from the medium-voltage supply and follow your site’s lockout/tagout procedure before opening the cabinet. Discharge the DC bus and verify zero voltage before touching any internal components. Disconnect the panel’s ribbon cable or communication connector carefully — these connectors are susceptible to damage if removed at an angle. Install the replacement panel, reconnect all cables, and restore auxiliary power before applying MV supply. Perform a local parameter check to confirm that all drive settings are intact (settings are stored in the drive’s non-volatile memory, not the panel itself, so parameter data is not lost during panel replacement). Acknowledge any startup faults, verify local and remote control modes, and confirm speed reference tracking before returning the drive to service.
This workflow supports rapid restoration of drive operation, reduces mean time to repair, and avoids the extended lead times associated with OEM repair cycles — particularly critical for facilities where the Perfect Harmony drive is on a critical process line with no bypass capability.
Spare Parts Support FAQ
Q1: Is this operator panel compatible with all Perfect Harmony drive variants?
The A1A460A68.23M/460A68.10 is designed for specific hardware generations of the ROBICON Perfect Harmony medium-voltage VFD platform. Compatibility depends on the drive’s control board revision and firmware version. We recommend confirming your drive’s nameplate data and control board part number before ordering. Our technical team can assist with compatibility verification prior to shipment.
Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing. Warranty claims are supported with replacement or repair at no additional cost within the warranty period.
Q3: How quickly can this spare be shipped, and what is the typical lead time?
In-stock units are dispatched within 1–3 business days. Express shipping options are available for emergency downtime situations. Contact our sales team for current stock status and expedited shipping arrangements.
Q4: Can this panel be used to replace a failed panel without reprogramming the drive?
Yes. Drive parameters in Perfect Harmony systems are stored in the drive’s internal non-volatile memory, not in the operator panel. Replacing the panel does not erase drive settings. A parameter verification check is recommended after replacement to confirm all values are intact before returning the drive to automatic operation.
