S.C.E. M68-2000/5 ASSI Safety-Enhanced 5-Axis CNC Controller

S.C.E. M68-2000/5 ASSI Safety-Enhanced 5-Axis CNC Controller for Harsh Industrial Sites

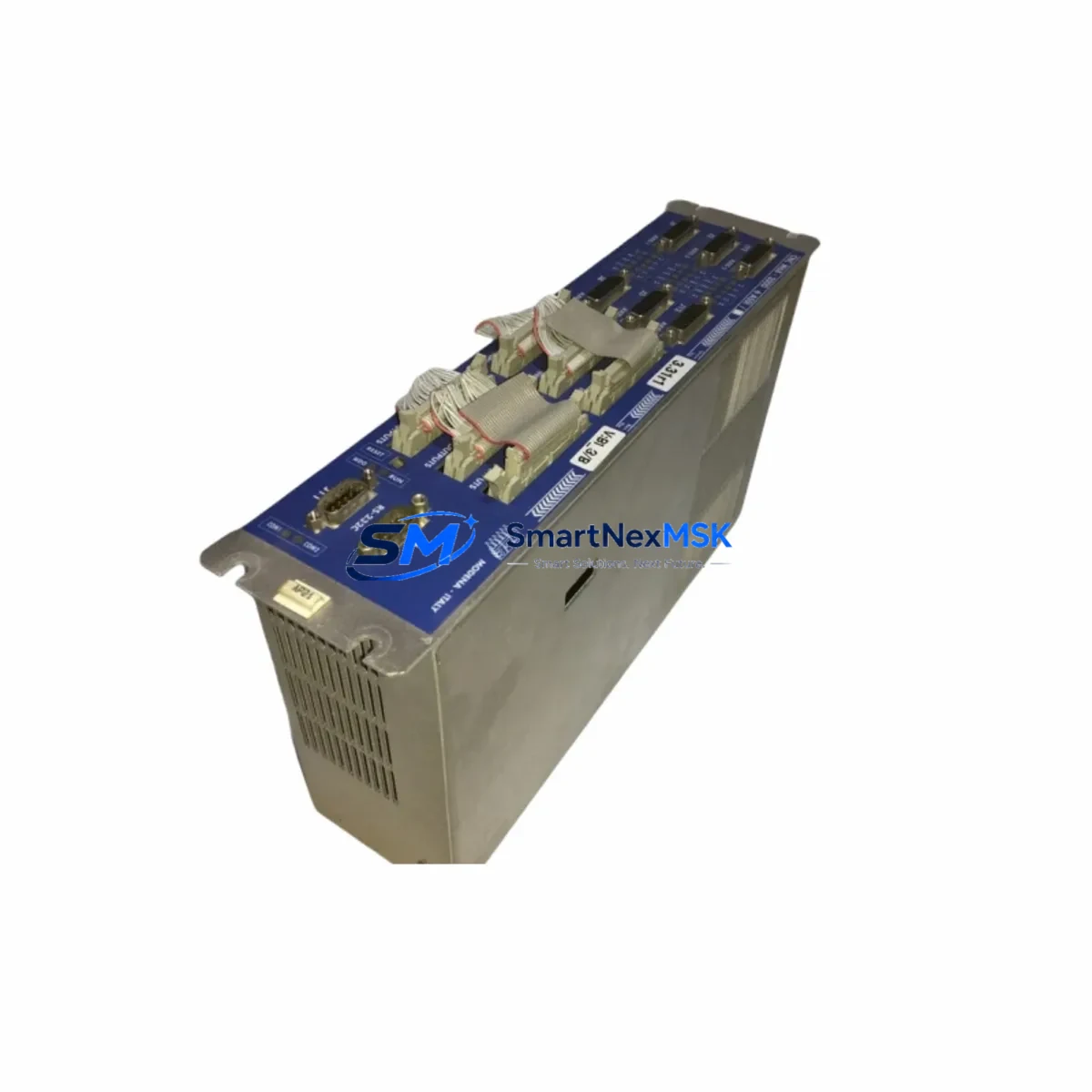

The S.C.E. M68-2000/5 ASSI is a ruggedized, safety-enhanced 5-axis CNC controller module engineered for continuous, high-demand industrial environments where control interruption is not an option. Designed within S.C.E.’s proven M68 Series platform, this unit delivers exceptional resistance to electrical noise, power fluctuations, and mechanical vibration — making it the preferred choice for critical machine tool control cabinets, automated production lines, and safety interlock circuits operating under the most demanding conditions.

In heavy industrial settings — from precision metalworking cells to high-throughput machining centers — the consequences of a controller fault extend far beyond downtime. Signal drift, module misoperation, surge-induced data corruption, and communication anomalies can cascade into safety incidents, scrap losses, and unplanned shutdowns. The M68-2000/5 ASSI addresses each of these failure vectors through robust hardware design, multi-axis synchronization integrity, and field-proven EMI immunity, ensuring that your CNC axes remain coordinated and responsive even under severe electrical interference.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable CNC control cabinet is only as strong as its weakest component. The S.C.E. M68-2000/5 ASSI is designed to operate as the central coordination node within a fully protected control architecture. In practice, this means it works in close integration with S.C.E. M68 Series servo drive amplifiers — which regulate axis torque and velocity with high precision — and M68-compatible I/O expansion modules that handle discrete sensor and actuator signals without introducing ground loops or noise into the controller’s logic circuits.

Power quality is a primary concern in any industrial cabinet housing high-current servo drives alongside sensitive digital controllers. The M68-2000/5 ASSI benefits significantly from the use of 24 VDC regulated panel power supplies with active power factor correction and built-in surge clamping. Pairing the controller with DIN-rail mounted surge protection devices (SPDs) on both the AC mains feed and the 24 VDC bus provides a layered defense against transient overvoltages caused by nearby motor switching, capacitor bank operations, or lightning-induced surges on facility power lines.

For communication integrity, the M68-2000/5 ASSI’s serial and fieldbus interfaces should be protected using signal line isolators or RS-485 repeaters with galvanic isolation, particularly in large machine tool installations where cable runs exceed 10 meters or pass near variable-frequency drives (VFDs). Integrating ferrite core EMI suppressors on encoder feedback cables and motor power leads further reduces high-frequency noise coupling that can cause axis position errors or spurious fault trips. Where the M68 platform communicates over a shared fieldbus backbone, deploying a dedicated M68 Series communication gateway module ensures protocol integrity and isolates the controller from network-level disturbances.

Safety interlock reliability is maintained through the use of dual-channel safety relay modules — wired in series with the M68-2000/5 ASSI’s axis enable signals — ensuring that any safety circuit interruption results in a controlled, coordinated axis inhibit rather than an abrupt power loss that could damage tooling or workpieces. For applications requiring Category 3 or PLd safety performance, safety-rated I/O modules with self-diagnostic capability should be incorporated into the interlock architecture alongside this controller. Additionally, M68 Series spindle drive units paired with the M68-2000/5 ASSI provide synchronized spindle-axis coordination with integrated over-speed and over-current protection, reducing the risk of catastrophic tool or workpiece failure during high-speed machining cycles.

Thermal management within the cabinet is equally critical. Deploying panel-mounted thermostat-controlled cooling fans or heat exchangers maintains the M68-2000/5 ASSI within its rated operating temperature range, preventing thermal derating of processing speed or premature component aging that could compromise long-term reliability in 24/7 production environments. Complementing this with cabinet-mounted temperature and humidity monitoring modules provides early warning of environmental excursions before they impact controller performance.

Critical Industrial Safety Applications

The S.C.E. M68-2000/5 ASSI has established a strong track record across a wide range of safety-critical and continuous-production industrial sectors:

Precision Metalworking and Machining Centers: In multi-axis CNC milling, turning, and grinding operations, the M68-2000/5 ASSI provides the axis synchronization accuracy and fault-response speed required to prevent tool crashes, workpiece damage, and spindle overload events. Its robust EMI immunity ensures stable operation even when large spindle motors and coolant pumps share the same electrical panel.

Petrochemical and Refinery Automation: In hazardous area control applications where CNC-driven valve actuators, positioning systems, or process equipment must operate reliably in the presence of flammable atmospheres and aggressive chemical environments, the M68-2000/5 ASSI’s surge-hardened design and safety interlock compatibility make it a dependable choice for critical positioning control loops.

Power Generation and Utilities: Turbine blade machining, generator component manufacturing, and precision maintenance tooling in power plants demand controllers that can maintain positional accuracy and safety interlock integrity despite the high electromagnetic interference levels generated by large rotating machinery and high-voltage switching equipment.

Mining and Mineral Processing: In underground and surface mining operations, CNC-controlled drilling rigs, rock cutting equipment, and ore processing machinery are exposed to extreme vibration, dust ingress, and wide temperature swings. The M68-2000/5 ASSI’s ruggedized construction and fault-tolerant axis control logic support continuous operation in these demanding conditions.

Metallurgy and Steel Production: Rolling mill positioning systems, continuous casting machine drives, and precision cutting equipment in steel plants require CNC controllers capable of withstanding intense electromagnetic fields from induction furnaces and large DC drives. The M68-2000/5 ASSI’s EMI-hardened architecture ensures reliable multi-axis coordination in these high-interference environments.

Port and Heavy Logistics Automation: Automated crane positioning, container handling gantry systems, and ship-loader drive control applications benefit from the M68-2000/5 ASSI’s ability to maintain precise multi-axis coordination under variable load conditions and in outdoor or semi-outdoor electrical enclosures subject to temperature cycling and humidity.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the S.C.E. M68-2000/5 ASSI?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance issues under normal industrial operating conditions. If the unit fails to perform to its rated specifications within the warranty period, we will repair or replace it at no charge. Warranty claims are processed promptly to minimize your production downtime.

Q2: What pre-shipment testing is performed on each unit?
Every S.C.E. M68-2000/5 ASSI undergoes a comprehensive functional verification process before dispatch. This includes power-on self-test, axis command response verification, communication interface integrity checks, and safety interlock signal testing. Units that do not pass all test criteria are quarantined and not shipped, ensuring that every controller you receive is fully operational upon arrival.

Q3: Is the M68-2000/5 ASSI compatible with existing S.C.E. M68 Series drives and I/O modules already installed in my machine?
Yes. The M68-2000/5 ASSI is fully compatible with the S.C.E. M68 Series ecosystem, including M68 servo drive amplifiers, M68 spindle drives, and M68-compatible I/O expansion modules. It is designed as a direct replacement or upgrade for existing M68 platform controllers, minimizing re-engineering effort and allowing you to leverage your existing wiring, parameter sets, and safety circuit architecture.

Q4: Can you guarantee long-term supply and replacement support for this model?
Yes. We maintain dedicated stock of the S.C.E. M68-2000/5 ASSI and key M68 Series components to support both immediate replacement needs and planned maintenance programs. Our sourcing network ensures continued availability even for legacy industrial equipment, and our technical team can advise on compatible alternatives if a specific variant reaches end-of-life status. We are committed to supporting your production continuity for the long term.
