SERVOLAND SMCM4-AI Safety-Enhanced DC Servo Drive

SERVOLAND SMCM4-AI Safety-Enhanced DC Servo Drive for Harsh Industrial Sites

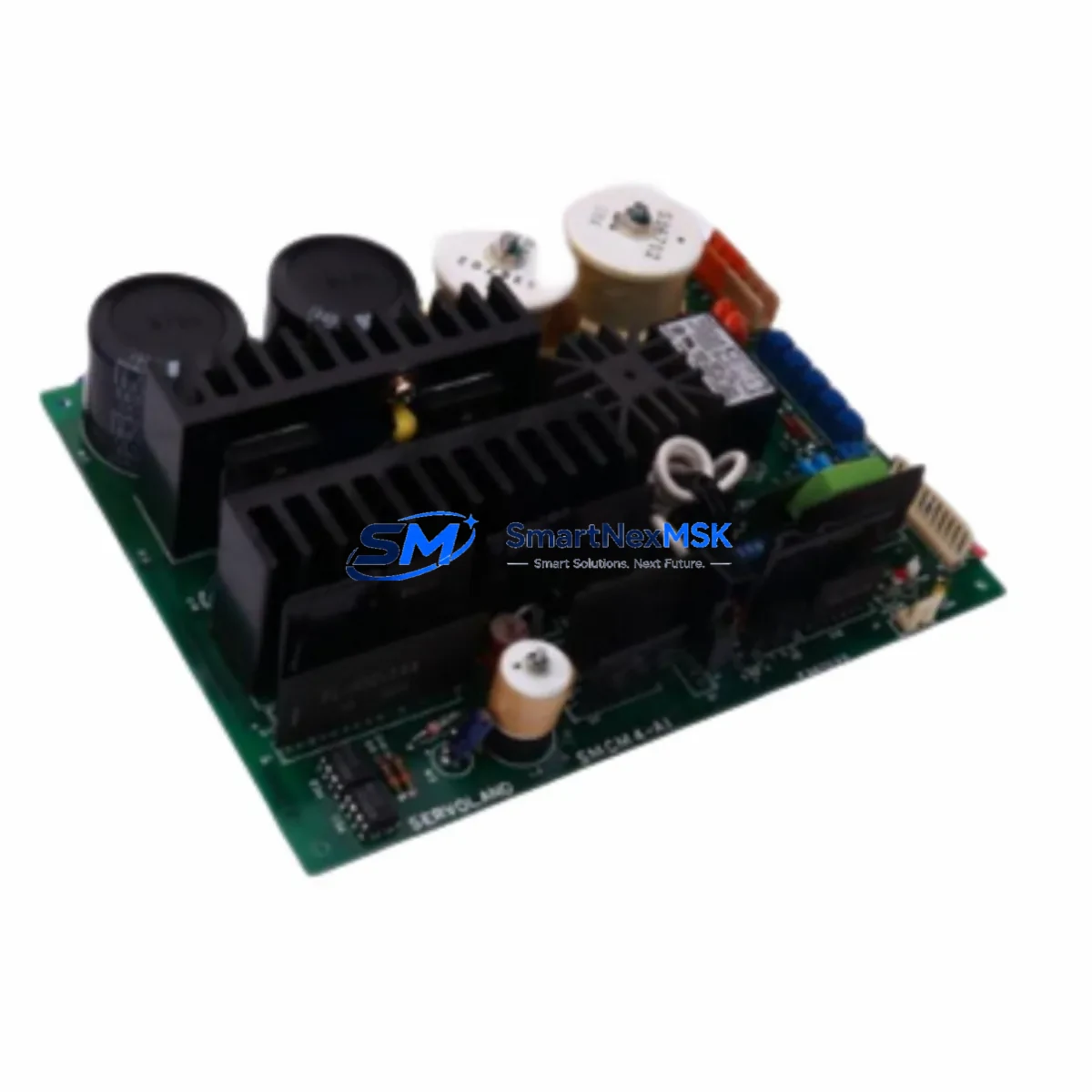

The SERVOLAND SMCM4-AI is a ruggedized DC servo drive engineered for mission-critical industrial automation environments where control loop integrity, signal fidelity, and continuous uptime are non-negotiable. Designed around an analog input (AI) architecture, the SMCM4-AI delivers precise closed-loop speed and torque regulation in high-load, high-interference production settings — from petrochemical processing lines and metallurgical rolling mills to port crane systems and continuous mining conveyors.

In demanding industrial control cabinets, servo drives are among the most safety-sensitive components. A single instance of signal drift, power surge, or communication fault can cascade into unplanned downtime, equipment damage, or — in safety-critical interlock circuits — a hazardous process condition. The SMCM4-AI addresses these risks through robust EMI shielding, wide-range DC bus tolerance, and stable analog reference tracking that resists noise-induced command errors even in environments with heavy VFD switching, arc welding interference, or high-voltage bus proximity.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the SMCM4-AI within a well-engineered control cabinet system is the foundation of long-term field reliability. In a typical heavy-industry control cabinet, the SMCM4-AI operates alongside a SERVOLAND SMCM4 series DC servo motor as the matched actuator, ensuring that drive parameters are factory-aligned with motor characteristics for optimal torque linearity and thermal stability. The analog command signal is typically sourced from a Siemens S7-1200 or S7-300 PLC analog output module (such as the SM 1232 AQ), which provides a clean, isolated ±10V reference with minimal ground loop risk.

To protect the SMCM4-AI from upstream power quality issues — a common cause of drive faults in industrial environments — it is strongly recommended to install a DC bus reactor or line filter ahead of the drive input. In facilities with frequent load switching or large motor starts on the same bus, an ABB or Schneider Electric surge protection device (SPD) at the cabinet entry point provides a critical first line of defense against transient overvoltages that can damage drive power stages.

Signal integrity is equally important. The analog reference wiring should use shielded twisted-pair cable, with the shield grounded at a single point to prevent circulating currents. Where the control cabinet is located near high-power switchgear or frequency converters — such as a Danfoss FC302 or ABB ACS880 VFD — additional ferrite cores on the analog signal cable further attenuate common-mode noise that could cause speed reference drift or erratic torque commands.

For safety interlock applications, the SMCM4-AI’s enable input can be wired through a Pilz PNOZ safety relay or a Schmersal safety module, ensuring that the drive is de-energized immediately upon an E-stop or guard door open event. This architecture is standard practice in machinery safety circuits compliant with ISO 13849 PLd requirements. The drive’s fault output signal can be monitored by the PLC’s digital input module — for example, a Siemens ET 200SP DI module — to trigger alarm annunciation and automatic process hold without operator intervention.

Power distribution within the cabinet should include a dedicated 24VDC SITOP or Phoenix Contact QUINT power supply for the drive’s control logic, isolated from the main DC bus, to prevent control circuit brownouts during motor acceleration transients. This separation is especially important in continuous production environments where the drive may cycle frequently under varying load conditions.

Critical Industrial Safety Applications

The SERVOLAND SMCM4-AI is deployed across a broad range of safety-sensitive industrial sectors where servo drive reliability directly impacts process safety and production continuity.

In petrochemical and refinery facilities, the SMCM4-AI controls precision metering pumps and valve actuators in hazardous area control loops. Its stable analog tracking ensures that flow rates remain within safe process limits, reducing the risk of overpressure or chemical release events caused by actuator runaway. The drive is installed in pressurized or purged control cabinets (Ex e / Ex p enclosures) with the drive itself located in the safe area, connected via long analog cable runs — a scenario where its EMI immunity is critical.

In power generation and substation auxiliary systems, the SMCM4-AI drives cooling fan motors and lubrication pump systems for large generators and transformers. Uninterrupted operation of these auxiliary drives is a reliability requirement, as their failure can trigger generator trips or transformer thermal protection. The drive’s over-temperature and under-voltage fault detection provides early warning before a critical failure occurs.

In underground mining and tunneling operations, the SMCM4-AI is used in conveyor belt tension control and ventilation fan speed regulation. These applications demand drives that can operate reliably in high-dust, high-humidity environments with significant electrical noise from blasting detonators and heavy haulage equipment. The drive’s ruggedized design and wide operating temperature range make it suitable for these extreme conditions.

In water and wastewater treatment plants, the SMCM4-AI controls dosing pump drives and sludge dewatering equipment. Precise speed control is essential for chemical dosing accuracy, where over- or under-dosing can compromise effluent quality and regulatory compliance. The drive’s closed-loop analog control provides the repeatability required for consistent treatment performance.

In metallurgical and steel rolling mills, the SMCM4-AI is integrated into tension control and coiler drive systems where high dynamic response and torque accuracy are essential for product quality and equipment protection. The drive’s ability to maintain stable control under rapid load changes — characteristic of rolling mill operations — reduces the risk of strip breaks, cobbles, and associated safety incidents.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the SMCM4-AI?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails due to a component or assembly defect within the warranty period, we provide repair or replacement at no charge. The warranty period begins from the date of shipment. We maintain replacement stock to ensure rapid turnaround for warranty claims, minimizing your downtime.

Q2: What pre-shipment testing is performed on each SMCM4-AI unit?
Every SMCM4-AI unit undergoes a 100% functional test before dispatch. This includes power-on verification, analog input response testing, closed-loop speed regulation check, fault detection circuit validation, and output stage load testing. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality documentation purposes.

Q3: Is the SMCM4-AI compatible with my existing SERVOLAND servo motor and PLC system?
The SMCM4-AI is designed for use with SERVOLAND SMCM4 series DC servo motors and is compatible with any PLC or controller that provides a standard analog output signal (±10V, 0–10V, or 4–20mA). It has been validated for use with Siemens S7 series, Mitsubishi Q/FX series, and Omron CJ/NJ series PLC analog output modules. If you are replacing an existing drive, please provide your motor nameplate data and we will confirm compatibility before shipment.

Q4: Can you guarantee long-term supply and spare parts availability for the SMCM4-AI?
Yes. We maintain dedicated stock of the SMCM4-AI and key SERVOLAND SMCM4 series components to support long-term maintenance and spare parts programs for industrial customers. For facilities with critical production dependencies on this drive, we recommend establishing a consignment stock arrangement. Our supply chain team can provide lead time commitments and buffer stock agreements to ensure your maintenance program is never interrupted by parts availability issues.
