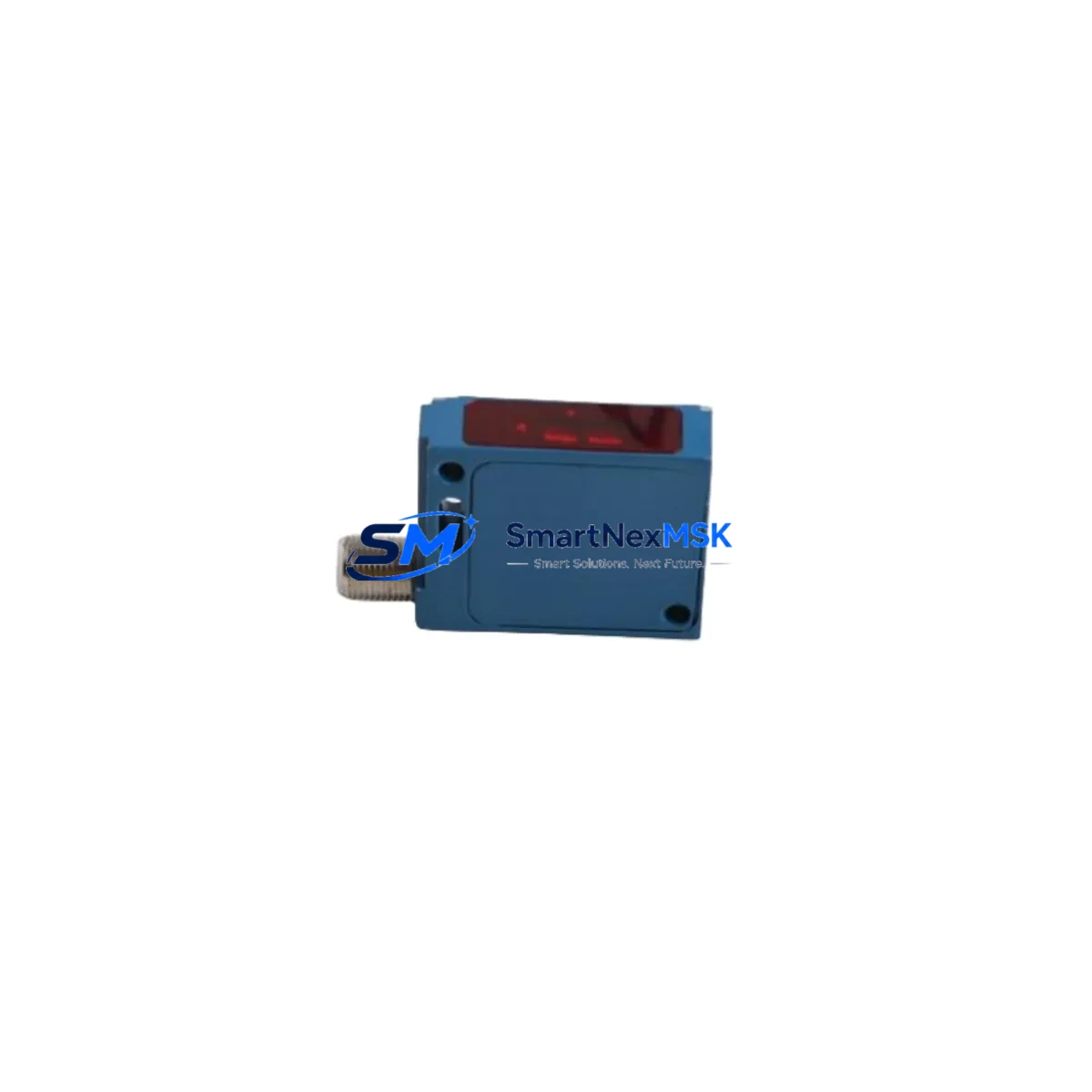

SICK WL11-2P2432P07 Safety-Enhanced Diffuse Photoelectric Sensor

SICK WL11-2P2432P07: Safety-Enhanced Diffuse Photoelectric Sensor for Harsh Industrial Sites

The SICK WL11-2P2432P07 is a high-performance diffuse-mode photoelectric sensor from SICK’s proven W11 Series, engineered for continuous, uninterrupted operation in demanding industrial environments. With a PNP switching output, robust housing, and wide operating voltage tolerance, this sensor is purpose-built for control engineers and safety system integrators who cannot afford detection failures in critical production loops.

In high-load manufacturing lines, packaging systems, conveyor control cabinets, and hazardous-area detection circuits, the WL11-2P2432P07 delivers consistent object detection without signal drift, false triggering, or output instability — even under strong ambient light interference, mechanical vibration, and temperature fluctuations common to heavy industrial sites. Its sealed enclosure and EMC-compliant design make it a dependable front-end sensing element for safety-relevant machine control architectures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the SICK WL11-2P2432P07 serves as the primary object-detection input to a PLC-based safety interlock or machine control loop. Its PNP output interfaces directly with standard digital input modules on platforms such as the Siemens S7-1200 or S7-300 series PLCs, eliminating the need for signal conversion and reducing wiring complexity in the cabinet.

To protect the sensor signal from electrical noise generated by variable frequency drives (VFDs), servo amplifiers, and high-current contactors sharing the same cabinet, engineers typically route the sensor cable through shielded conduit and terminate the shield at a single grounding point on the DIN rail-mounted terminal block. Pairing the WL11-2P2432P07 with a SICK IME08 inductive proximity sensor on adjacent detection zones creates a redundant sensing layer that prevents single-point detection failure in critical conveyor or press-control applications.

Power supply stability is equally critical. A SICK SVP600 or equivalent 24 V DC SITOP power supply with built-in output buffering ensures the sensor receives clean, regulated voltage even during momentary grid disturbances or motor start-up inrush events. Surge protection devices (SPDs) installed at the cabinet’s incoming power rail further shield the sensor circuit from transient overvoltages that could cause output latch-up or permanent damage to the sensor’s internal electronics.

For applications requiring safety-rated detection — such as light curtain bypass monitoring, guard door position sensing, or emergency stop confirmation — the WL11-2P2432P07 can be integrated alongside a SICK safety relay module (e.g., UE10 or UE48) to form a monitored safety circuit compliant with PLd/Cat.3 requirements under EN ISO 13849-1. Communication between the sensor’s host PLC and the plant SCADA system via PROFINET or PROFIBUS-DP fieldbus modules allows real-time diagnostic visibility of sensor status, enabling predictive maintenance before a detection fault causes an unplanned line stoppage.

Cable management within the cabinet should include M12 field-wireable connectors with IP67 sealing at the sensor end, and ferrite cores clamped on the cable near the cabinet entry point to suppress high-frequency conducted emissions. This combination of hardware selection, grounding discipline, and surge protection forms a complete cabinet-level protection strategy that maximizes the operational lifespan of the WL11-2P2432P07 in continuous-duty industrial environments.

Critical Industrial Safety Applications

The SICK WL11-2P2432P07 is deployed across a broad range of heavy industrial and process-critical environments where reliable object detection directly impacts personnel safety and production continuity:

Petrochemical & Refinery Plants: In hazardous-area control panels managing pump stations, valve actuators, and pipeline isolation systems, the WL11-2P2432P07 provides non-contact position confirmation of mechanical components, reducing the need for manual inspection in restricted zones. Its IP67 rating and wide temperature tolerance ensure stable operation in areas subject to chemical vapors, humidity, and thermal cycling.

Power Generation & Electrical Utilities: Turbine control rooms and switchgear protection systems use diffuse photoelectric sensors to monitor the position of mechanical interlocks, breaker arms, and access panels. The sensor’s fast switching frequency (up to 500 Hz) ensures that high-speed mechanical events are captured without missed pulses, which is essential for protective relay coordination and fault isolation logic.

Mining & Mineral Processing: On conveyor belt systems transporting ore, coal, or aggregate, the WL11-2P2432P07 detects belt misalignment, material overflow, and chute blockage conditions. Its robust housing withstands the high-vibration, dust-laden environment typical of underground and open-pit mining operations, where sensor failure can lead to belt damage, spillage, or conveyor fire risk.

Water & Wastewater Treatment: Pump control panels in water treatment facilities rely on photoelectric sensors to confirm valve positions, float levels, and screen filter status. The sensor’s sealed IP67 enclosure resists moisture ingress from washdown procedures and high-humidity environments, maintaining reliable switching output without corrosion-related signal degradation over multi-year service intervals.

Metallurgy & Steel Production: In rolling mill control systems and ladle transfer cars, the WL11-2P2432P07 operates in environments with intense radiated heat, metallic dust, and electromagnetic interference from large induction furnaces. Its EMC-hardened design and short-circuit-protected output prevent nuisance tripping and output damage that could interrupt a continuous casting sequence — a stoppage that carries significant safety and financial consequences.

Port & Logistics Automation: Automated crane control systems and container handling equipment use diffuse photoelectric sensors for load presence detection, anti-collision interlocking, and positioning confirmation. The sensor’s compact W11 form factor and M12 connector allow rapid field replacement during scheduled maintenance windows, minimizing crane downtime in 24/7 port operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the SICK WL11-2P2432P07?
All SICK WL11-2P2432P07 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority response, and replacement units are dispatched from in-stock inventory to minimize your site downtime. Warranty coverage begins from the date of shipment confirmation.

Q2: What pre-shipment testing and inspection is performed on each unit?
Every WL11-2P2432P07 unit undergoes outgoing quality inspection prior to dispatch, including functional switching output verification, supply voltage tolerance check, and visual inspection of the housing, lens, and M12 connector. Units sourced directly from authorized SICK distribution channels are accompanied by original manufacturer documentation. Batch traceability records are maintained for all shipments.

Q3: Is the WL11-2P2432P07 compatible with Siemens, Omron, and Mitsubishi PLC digital input modules?
Yes. The WL11-2P2432P07’s PNP NPN-compatible output (10–30 V DC operating range) interfaces directly with the 24 V DC digital input cards of all major PLC platforms, including Siemens S7 series, Omron CJ/CS series, Mitsubishi MELSEC Q/L series, and equivalent controllers. No signal conditioning or interposing relay is required for standard DI module connections. Confirm your input module’s sink/source configuration before wiring.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated buffer stock of the WL11-2P2432P07 and related W11 Series variants to support customers with planned maintenance schedules, annual spare parts procurement programs, and emergency breakdown replacement requirements. For high-volume or blanket-order requirements, contact our sales team to discuss reserved stock arrangements and lead-time commitments tailored to your plant’s maintenance cycle.
