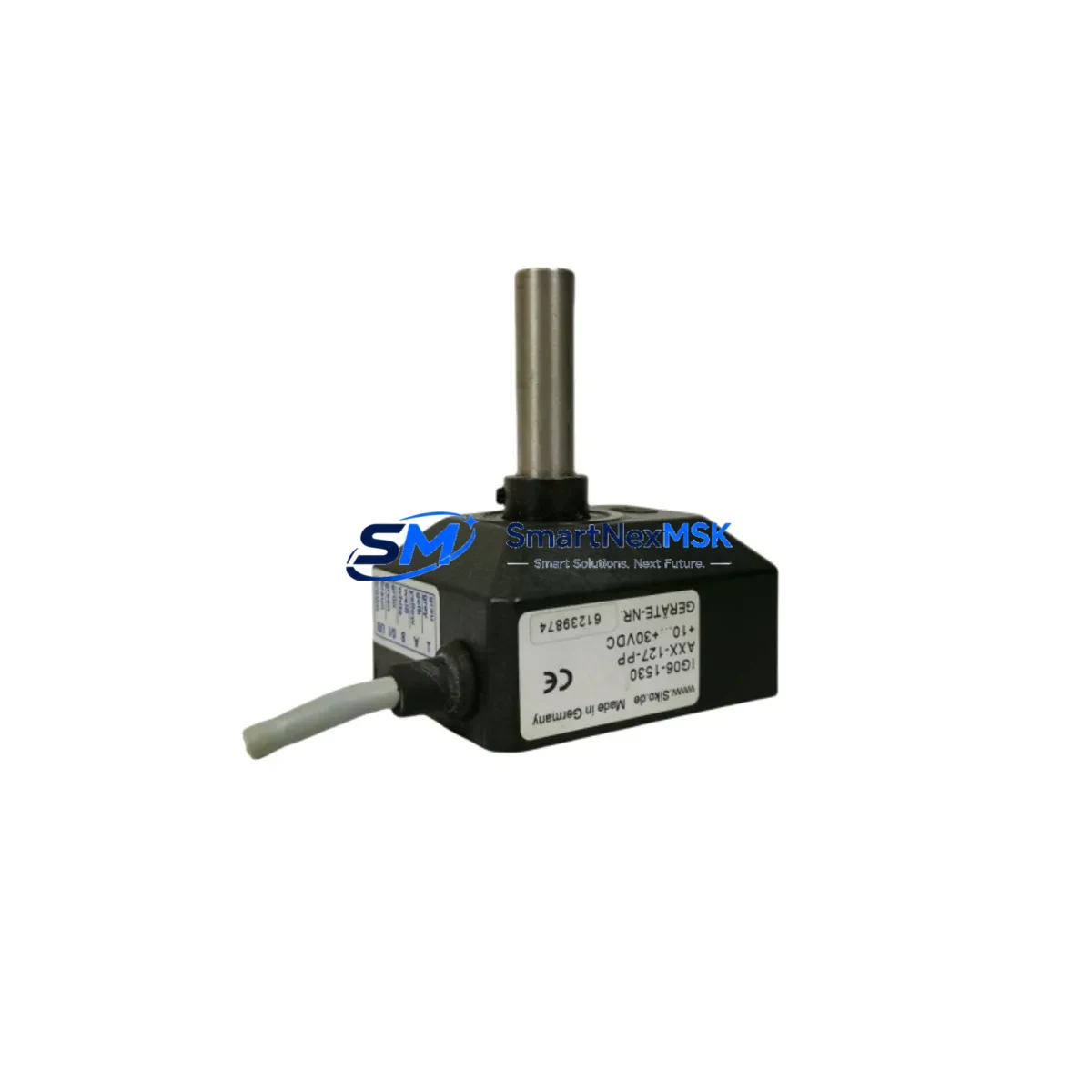

Siko AXX-127-PP IG06-1530 Safety-Enhanced Linear Position Sensor for Harsh Industrial Sites
The Siko AXX-127-PP IG06-1530 is a ruggedized absolute linear position sensor from Siko’s IG Series, engineered for continuous, reliable operation in the most demanding industrial environments. Designed to deliver precise, drift-free position feedback in high-load, high-interference, and safety-critical control loops, this sensor is a trusted component in control cabinets, interlock circuits, and automated production lines where measurement failure is not an option.
Built in Germany to Siko’s exacting quality standards, the AXX-127-PP IG06-1530 integrates seamlessly into PLC-based and DCS-based control architectures. Its absolute measurement principle eliminates reference-run requirements after power loss or emergency stop events — a critical safety advantage in continuous process industries where unplanned restarts carry significant risk. The sensor’s SSI or analog output interface ensures compatibility with a wide range of Siemens S7-300/S7-400/S7-1500 PLC input modules, Beckhoff EtherCAT terminals, and Rockwell ControlLogix analog input cards, making it a versatile choice for multi-vendor control cabinet configurations.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model | AXX-127-PP IG06-1530 |
| Brand / Series | Siko / IG Series |
| Measurement Type | Absolute Linear Position |
| Measurement Range | Up to 1530 mm (IG06-1530) |
| Output Interface | SSI / Analog (PP variant) |
| Supply Voltage | 10–30 V DC |
| Protection Rating | IP67 (dust-tight, water-resistant) |
| EMI / Interference Resistance | High — shielded cable, differential signal |
| Operating Temperature | -20°C to +70°C |
| Shock / Vibration Resistance | Suitable for heavy industrial environments |
| Measurement Principle | Absolute (no reference run required after power loss) |
| Safety Relevance | Suitable for safety interlock and critical position feedback loops |
| Origin | Germany (DE) |
| Warranty | 12 Months |
| Availability | In Stock — Ready to Ship |
Control Cabinet Protection Strategy
In a well-engineered industrial control cabinet, the Siko AXX-127-PP IG06-1530 serves as the position feedback backbone for servo drives, hydraulic cylinders, and linear actuators. Its absolute output eliminates the signal loss risk that plagues incremental encoders during power interruptions — a common cause of axis misalignment and machine damage in press lines and injection molding systems.
To build a complete, safety-hardened control loop around this sensor, integrators typically pair it with a Siemens 6ES7 321 digital input module for discrete safety interlocks, a Phoenix Contact QUINT-PS/24DC/24DC/10 DC-UPS power supply to buffer against voltage dips, and a Weidmüller surge protection terminal block at the cabinet entry point to absorb transient surges from nearby motor drives. For communication integrity, a Profibus DP repeater or PROFINET managed switch (such as the Siemens SCALANCE X208) ensures that position data reaches the PLC without packet loss even in electrically noisy environments.
In hydraulic press and heavy stamping applications, the AXX-127-PP IG06-1530 is often installed alongside a Rexroth HM20 pressure sensor and a Pilz PNOZ safety relay to form a complete force-position interlock that prevents tooling damage and protects operators. The sensor’s IP67 rating means it withstands coolant splash, hydraulic oil mist, and metal swarf — conditions that rapidly degrade standard encoders. A Murr Elektronik 7000-series M12 connector provides a secure, vibration-resistant field connection, while a Siko MSK5000 magnetic scale (where applicable) completes the measurement system for extended travel applications.
For cabinet-level power quality, pairing the sensor system with a Siemens SITOP PSU8200 power supply and a Phoenix Contact EMC filter on the 24 V DC rail further reduces the risk of signal drift caused by switching noise from variable frequency drives operating in the same enclosure.
Critical Industrial Safety Applications
The Siko AXX-127-PP IG06-1530 is deployed across a broad range of safety-critical and continuous-process industries:
Petrochemical & Refining: Used in valve actuator position feedback for emergency shutdown (ESD) systems, where absolute position confirmation is mandatory before process restart. The sensor’s resistance to hydrocarbon vapors and its sealed IP67 housing make it suitable for Zone 2 classified areas when installed with appropriate Ex-rated conduit fittings.
Power Generation: Installed on turbine governor actuators and boiler feed valve positioners, where loss of position feedback can trigger uncontrolled load swings. The absolute measurement principle ensures the control system always knows actuator position — even after a grid fault and emergency restart.
Mining & Mineral Processing: Applied to conveyor tensioning systems, crusher gap control, and longwall shearer positioning. The sensor’s robust mechanical design withstands the high vibration and dust loading typical of underground and open-cut mining environments.
Water & Wastewater Treatment: Used on sluice gate actuators and pump control systems where precise position feedback prevents overflow events and protects downstream infrastructure. The IP67 rating ensures reliable operation in wet, chemically aggressive pump stations.
Metallurgy & Steel: Deployed on rolling mill gap control and continuous casting mold oscillation systems, where position accuracy directly affects product quality and equipment safety. The sensor’s high EMI immunity is essential in environments dominated by large induction furnaces and high-current bus bars.
Port & Heavy Lifting: Integrated into crane spreader positioning and ship-loader boom control systems, where absolute position feedback prevents collision events and ensures safe load placement under variable wind and sea-state conditions.
Safety and Quality FAQ
Q1: What warranty does the Siko AXX-127-PP IG06-1530 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support to minimize your downtime.
Q2: What pre-shipment testing is performed on each unit?
Every Siko AXX-127-PP IG06-1530 unit undergoes functional output verification, insulation resistance check, and visual inspection before dispatch. Units are shipped in original or equivalent protective packaging to prevent transit damage.
Q3: Is the AXX-127-PP IG06-1530 compatible with my existing PLC or DCS platform?
The IG06-1530 with PP (SSI/analog) output is compatible with the analog and SSI input modules of major PLC and DCS platforms including Siemens SIMATIC S7, Beckhoff TwinCAT, Rockwell ControlLogix, ABB AC500, and Schneider Electric Modicon. Confirm your input module’s signal range and SSI clock frequency before installation.
Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains stock of Siko IG Series sensors and can support scheduled spare parts programs, emergency replacement orders, and multi-unit procurement for plant-wide standardization. Contact our team to discuss consignment stock or blanket order arrangements for critical spares.
