SIPOS 2SY5016-2SB00 Spare for SIPOS 2 Automation

SIPOS 2SY5016-2SB00 Maintenance-Ready Spare for SIPOS 2 Automation

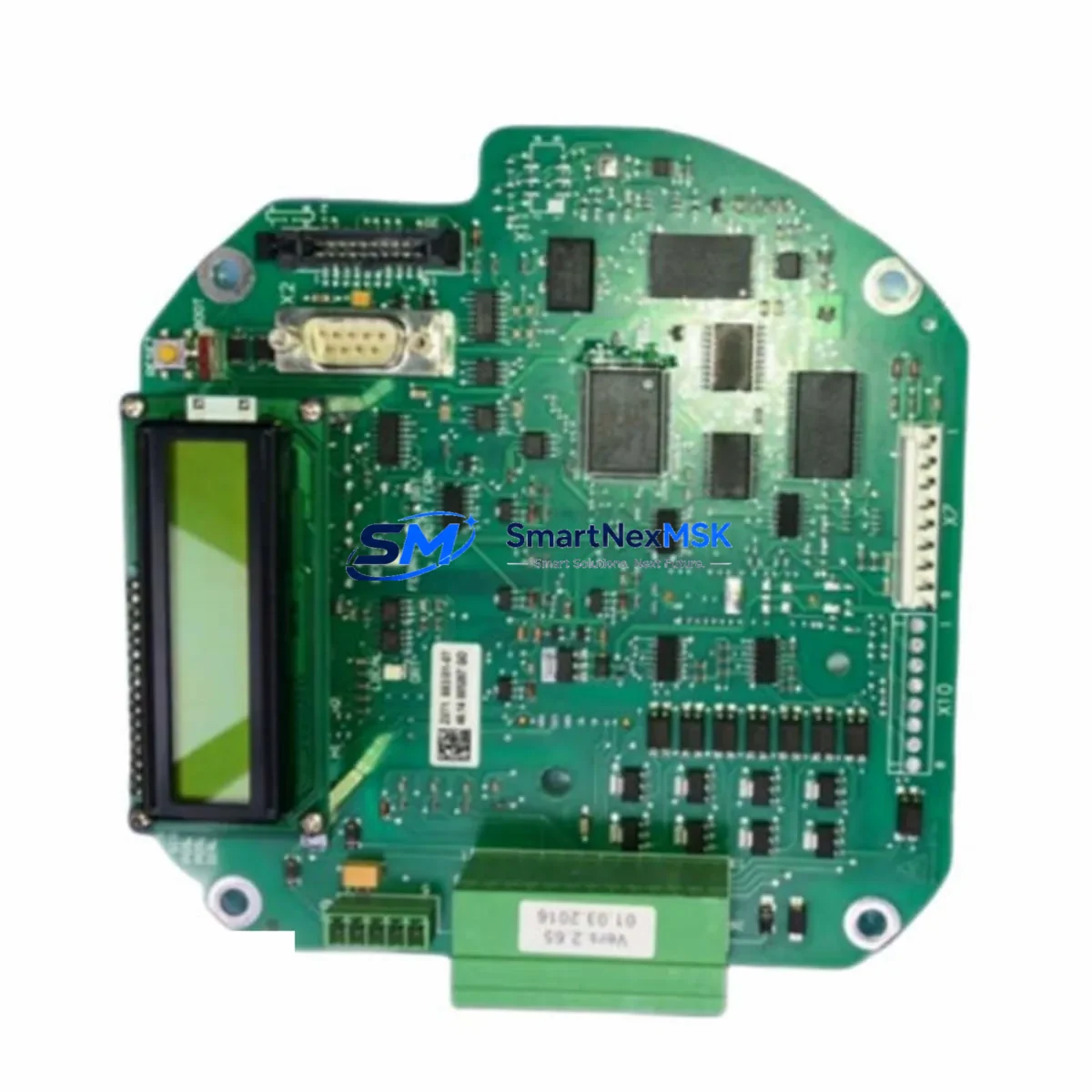

The SIPOS 2SY5016-2SB00 is an original-specification control module designed for SIPOS 2 series electric actuators — one of the most widely deployed actuator platforms in industrial process automation, power generation, water treatment, and petrochemical facilities. When this module fails or degrades, the actuator loses its ability to execute valve positioning commands, triggering immediate process disruption and unplanned downtime. Sourcing a verified, tested replacement is the fastest path to restoring full system operation.

At SMARTNEXMSK, every 2SY5016-2SB00 unit is inspected, functionally tested, and shipped with a 12-month warranty. We maintain dedicated stock of SIPOS 2 series spare parts to support both emergency breakdown recovery and planned preventive maintenance programs. Whether you are managing a single actuator or a fleet of hundreds across a distributed control system, our supply chain is structured to deliver quickly and reliably.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SIPOS 2SY5016-2SB00 control module is rarely an isolated task. Experienced maintenance engineers know that a failed control module is often accompanied by — or caused by — degradation in adjacent components within the same actuator cabinet or control loop. A thorough site inspection during the replacement window should include the following areas:

Power supply integrity is the first checkpoint. The SIPOS 2 actuator’s control electronics depend on a stable 24 VDC auxiliary supply. Inspect the dedicated power supply module (such as the SIPOS 2SY5016-series power board) for output voltage drift, ripple, or thermal stress marks. A marginal power supply will cause the replacement control module to fail prematurely.

I/O wiring and terminal blocks should be inspected for corrosion, loose crimps, and insulation breakdown. The actuator’s analog position feedback signal (typically 4–20 mA) passes through field wiring and terminal strips before reaching the DCS or PLC input card. Corroded terminals or damaged signal cables — including the actuator’s multi-core control cable — can introduce noise that mimics a module fault. Replace any suspect terminal blocks or cable sections during the same maintenance window.

Position feedback and limit switches are integral to the SIPOS 2 control loop. After installing the 2SY5016-2SB00, recalibrate the end-position limits and verify the analog feedback output matches the physical valve position. If the actuator uses a SIPOS 2 position transmitter module or a separate signal isolator between the actuator and the DCS analog input card, confirm that the isolator’s output range is correctly scaled.

Communication interfaces in networked installations — PROFIBUS DP, HART, or Modbus — should be verified after module replacement. Check the SIPOS 2 fieldbus interface module (e.g., PROFIBUS option card) for correct address settings and communication health. A module swap can reset fieldbus parameters to factory defaults, requiring recommissioning via the SIPOS PACTOR parameterization tool or a compatible handheld programmer.

Motor protection and fusing must not be overlooked. Inspect the actuator’s internal motor protection relay, thermal overload element, and any external fuses or MCBs in the MCC or local control panel. An upstream fuse that has been operating near its rating may have degraded and should be replaced as a precaution. Similarly, check the contactor or solid-state relay that drives the actuator motor — worn contacts are a common root cause of intermittent actuator faults that are incorrectly attributed to the control module.

HMI and local operator panel functionality should be confirmed after replacement. If the actuator is equipped with a SIPOS 2 local control unit (LCU) or an integrated display panel, verify that status indications, fault codes, and manual override functions operate correctly. This confirms that the new control module is communicating properly with the operator interface layer.

For facilities running aging SIPOS 2 installations, this replacement event is also an opportunity to audit the broader spare parts inventory. Stocking a SIPOS 2 motor board, a spare SIPOS 2 power supply module, and a set of SIPOS 2 control cable assemblies alongside the 2SY5016-2SB00 ensures that the next unplanned failure can be resolved within a single shift rather than waiting days for parts procurement.

Site Replacement Workflow

The following workflow is designed to minimize downtime and ensure a safe, compliant replacement of the SIPOS 2SY5016-2SB00 control module in the field:

Step 1 — Isolation and de-energization. Isolate the actuator from the process by placing the valve in a safe position (fully open or fully closed as required by the process safety plan). De-energize the actuator at the local isolator and lock out / tag out (LOTO) per site procedures. Confirm zero energy state before opening the actuator enclosure.

Step 2 — Documentation and parameter backup. Before removing the existing control module, record all current parameterization data using the SIPOS PACTOR software or the actuator’s local display. Note the torque limits, speed settings, end-position calibration values, and fieldbus address. This data is essential for recommissioning the replacement module to the same operating profile as the original.

Step 3 — Module removal and inspection. Remove the faulty 2SY5016-2SB00 module following the SIPOS 2 service manual procedure. Inspect the module connector, backplane, and surrounding components for signs of arcing, moisture ingress, or mechanical damage. If the backplane or connector shows damage, address this before installing the replacement — fitting a new module onto a damaged backplane risks immediate failure.

Step 4 — Installation of the replacement module. Install the new SIPOS 2SY5016-2SB00 spare module, ensuring correct seating and secure connector engagement. Restore all wiring connections per the original wiring diagram. Do not rely on memory — use the documented wiring schedule.

Step 5 — Parameterization and calibration. Restore the saved parameter set using SIPOS PACTOR or re-enter parameters manually via the local display. Run the actuator through a full open/close cycle in local mode to verify mechanical operation, torque performance, and position feedback accuracy before returning to remote/automatic control.

Step 6 — Functional verification and handover. Confirm remote control signals from the DCS or PLC are received and executed correctly. Verify that the 4–20 mA position feedback signal at the DCS input card matches the physical valve position. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

This structured approach eliminates the most common causes of repeat failures after module replacement and ensures the actuator is returned to service in a fully verified, calibrated state — reducing the risk of a second unplanned outage within the same maintenance cycle.

Spare Parts Support FAQ

Q1: Is the SIPOS 2SY5016-2SB00 a direct drop-in replacement for the original module?
Yes. The 2SY5016-2SB00 is an OEM-specification module for the SIPOS 2 electric actuator series. It is a direct functional replacement for the original part. However, after installation, parameterization must be restored to match the original actuator configuration — the module does not retain site-specific settings from the previous unit. Always back up parameters before removal.

Q2: What pre-shipment testing is performed on each unit?
Every 2SY5016-2SB00 unit supplied by SMARTNEXMSK undergoes functional testing prior to dispatch. This includes power-on verification, I/O signal integrity checks, and communication interface validation where applicable. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should we manage long-term spare parts inventory for SIPOS 2 actuators?
For facilities with multiple SIPOS 2 actuators, we recommend maintaining at least one 2SY5016-2SB00 control module as a capital spare, alongside a power supply module and a set of control cable assemblies. For critical valve positions — such as emergency shutdown (ESD) or main steam isolation valves — consider holding two spare modules. SMARTNEXMSK offers long-term supply agreements and reserved stock programs to support MRO procurement strategies and reduce lead-time risk for obsolete or long-lead components.

Q4: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers functional failures and manufacturing defects under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, moisture ingress beyond the module’s rated IP class, or unauthorized modification. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair with priority handling to minimize your downtime exposure. Contact our technical support team with the order reference and a description of the fault for rapid resolution.
