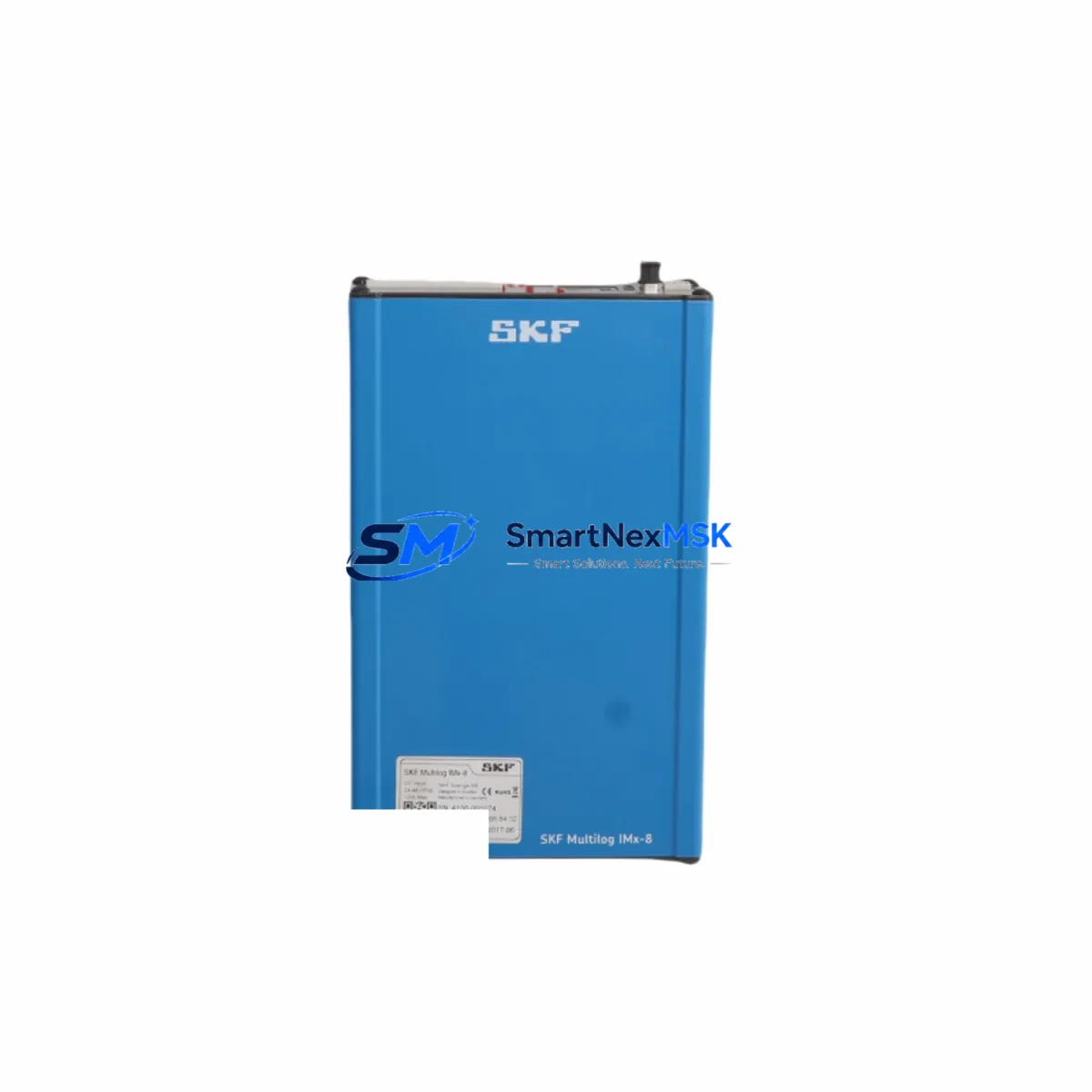

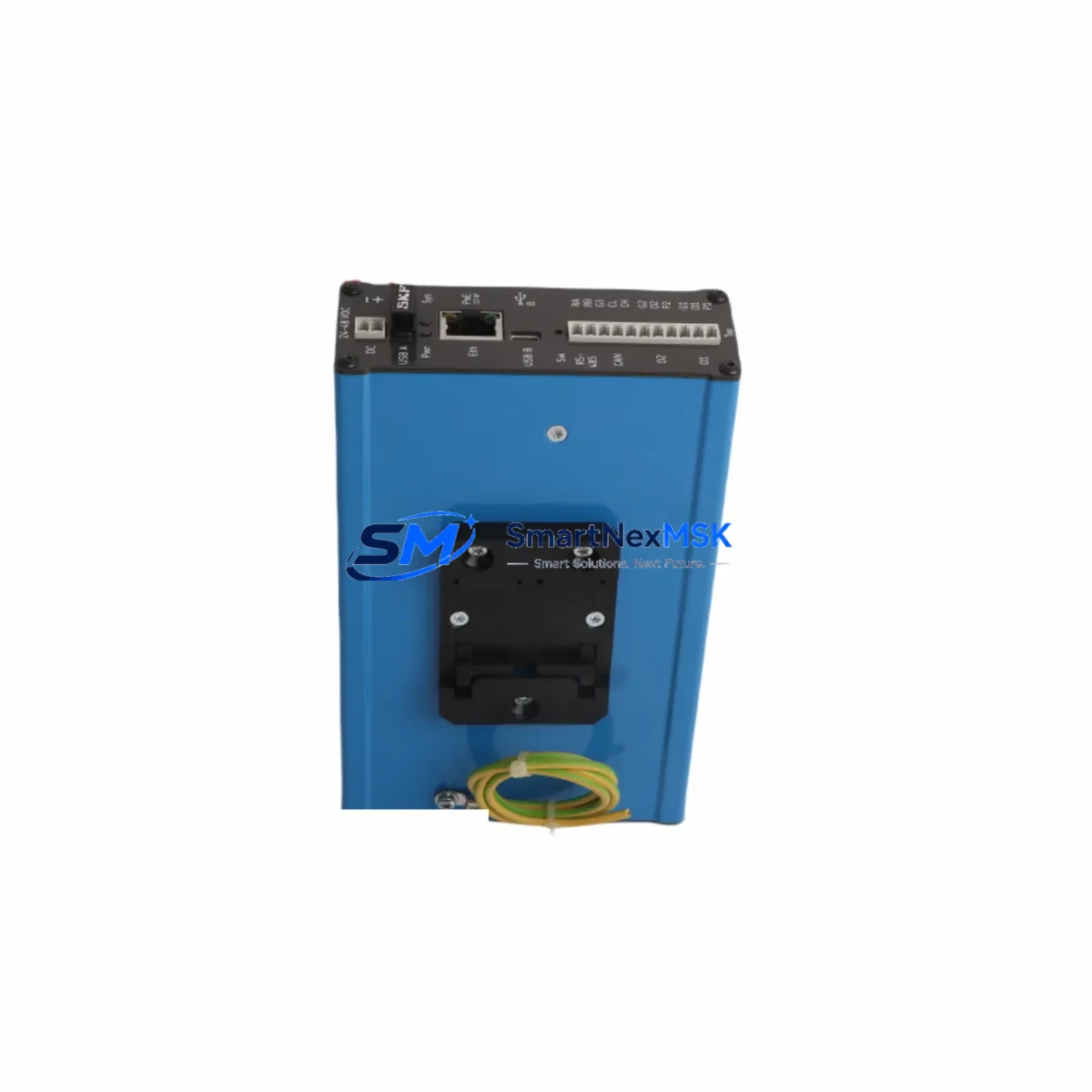

SKF CMON4108 Safety-Enhanced Condition Monitoring Module

SKF CMON4108 Safety-Enhanced Condition Monitoring Module: Reliable Control in Harsh Industrial Sites

In continuous production environments where unplanned downtime carries catastrophic safety and financial consequences, the SKF CMON4108 stands as a critical line of defense within your condition monitoring and predictive maintenance architecture. Engineered for demanding industrial applications — from petrochemical processing plants and coal mining operations to metallurgical smelters, port crane systems, and high-voltage power generation facilities — the CMON4108 delivers eight channels of simultaneous vibration and temperature acquisition with the signal integrity and environmental resilience that safety-critical control cabinets demand.

Unlike general-purpose data acquisition modules, the SKF CMON4108 is purpose-built for harsh-environment deployment. Its ruggedized housing and advanced EMI shielding architecture ensure that even in the presence of high-frequency variable frequency drives (VFDs), large motor switching transients, and ground loop interference common in heavy industrial control cabinets, measurement accuracy is preserved. Signal drift — one of the most insidious failure modes in rotating machinery monitoring — is actively suppressed through precision analog front-end conditioning, ensuring that alarm thresholds remain valid over extended operational cycles without recalibration.

The CMON4108 integrates seamlessly into SKF’s broader IMx series online monitoring ecosystem, including the SKF IMx-8 and SKF IMx-16 multi-channel monitoring units, enabling scalable deployment across large rotating asset fleets. When paired with SKF @ptitude Observer software, the module feeds real-time vibration spectra, RMS velocity, and bearing envelope data directly into centralized safety dashboards, enabling operators to detect incipient bearing failures, shaft misalignment, and rotor imbalance weeks before they escalate into forced shutdowns or safety incidents.

In control cabinet architectures where the CMON4108 operates alongside Siemens S7-300/S7-400 PLCs or ABB AC800M DCS controllers, its digital output signals can be hardwired into safety interlock logic — triggering controlled shutdowns or load shedding before mechanical failures propagate to adjacent systems. This integration capability is particularly valuable in critical interlock loops protecting compressors, turbines, and large centrifugal pumps where API 670 machinery protection standards apply.

Power supply stability is a foundational requirement for reliable condition monitoring. The CMON4108 is designed to operate within a wide DC input voltage range, tolerating the voltage sags and surges that occur during motor starts and load switching events on shared 24 VDC bus systems. When deployed alongside Phoenix Contact QUINT-PS or PULS CP10 DIN-rail power supplies with active buffering, the monitoring system maintains continuous data acquisition through brief power interruptions — eliminating false alarm events that could mask genuine fault conditions or trigger unnecessary safety shutdowns.

Communication reliability is equally critical. The CMON4108 supports industrial fieldbus and Ethernet-based communication protocols, enabling integration with Profibus DP networks and PROFINET IO architectures without introducing latency or packet loss that could delay safety-critical alarm propagation. In facilities where Moxa NPort serial device servers or Hirschmann EAGLE industrial firewalls segment the control network, the CMON4108’s communication stack maintains deterministic data delivery even under high network load conditions.

For surge and transient protection at the field wiring termination points, pairing the CMON4108 with Phoenix Contact TRABTECH surge protection devices on sensor cable entries is strongly recommended — particularly in outdoor installations, substations, or facilities with frequent lightning exposure. This protects both the module’s analog input circuitry and the connected accelerometers or proximity probes from damage caused by induced voltage spikes.

Replacement and spare parts availability is a non-negotiable requirement for safety-critical monitoring infrastructure. SMARTNEXMSK maintains verified stock of the SKF CMON4108 with pre-shipment functional testing on every unit, ensuring that emergency replacements reach site within the shortest possible lead time. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, backed by documented test records.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy built around the SKF CMON4108 begins with a layered approach to power quality, signal integrity, and communication reliability. At the power distribution level, Phoenix Contact QUINT-PS 24VDC/10A power supplies with integrated active buffering modules ensure that the CMON4108 and its associated sensor networks remain energized through the transient voltage dips that accompany large motor starts — events that routinely cause lesser monitoring modules to reset and lose historical trend data.

At the sensor interface level, SKF CMSS 2200 accelerometers and SKF CMSS 65 proximity probes provide the raw vibration and displacement signals that the CMON4108 processes. These sensors are designed to operate in the same harsh environments as the module itself — high temperature, high humidity, and high vibration — ensuring that the measurement chain from sensor to module maintains calibration integrity over multi-year service intervals.

For surge protection on field wiring, Phoenix Contact TRABTECH PT 2X2-BE/S-24DC-ST surge arresters installed at the cabinet entry points protect the CMON4108’s analog inputs from lightning-induced transients and switching surges. In facilities with long cable runs between rotating assets and the control room, this protection layer is essential for preventing premature module failure.

Communication network integrity is maintained through Hirschmann RS20 managed industrial Ethernet switches, which provide redundant ring topologies (MRP/RSTP) that eliminate single points of failure in the monitoring data network. When the CMON4108 operates within a Siemens S7-400H redundant PLC architecture, its alarm outputs can be mapped to both CPUs simultaneously — ensuring that a CPU switchover event does not create a monitoring blind spot during the transition.

For facilities operating ABB Freelance DCS or Emerson DeltaV distributed control systems, the CMON4108’s digital alarm outputs integrate directly into the DCS I/O marshalling cabinets via hardwired discrete signals, providing a communication-protocol-independent safety interlock path that remains active even during network maintenance windows.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In API 670-compliant machinery protection systems protecting centrifugal compressors, the SKF CMON4108 provides continuous vibration monitoring on both drive-end and non-drive-end bearings. Alarm and danger setpoints are hardwired into the Emergency Shutdown System (ESD), ensuring that bearing failure progression triggers a controlled compressor trip before catastrophic mechanical failure occurs.

Power Generation Facilities: Steam turbine and gas turbine generator sets require continuous shaft vibration and bearing temperature monitoring as a condition of safe operation. The CMON4108 feeds real-time data to the plant DCS, enabling operators to trend vibration levels over time and schedule maintenance during planned outages rather than responding to emergency failures.

Mining and Mineral Processing: In underground and surface mining operations, conveyor drive motors, crusher bearings, and slurry pump assemblies are subject to extreme mechanical loading and abrasive contamination. The CMON4108’s ruggedized design and wide operating temperature range make it suitable for deployment in the harsh electrical rooms adjacent to these assets, providing early warning of bearing degradation before it causes production stoppages.

Metallurgical and Steel Plants: Rolling mill drives, continuous casting machine drives, and blast furnace blower motors operate under high cyclic loading conditions that accelerate bearing wear. The CMON4108 enables condition-based maintenance scheduling, replacing fixed-interval bearing replacements with data-driven interventions that reduce both maintenance costs and unplanned downtime.

Water and Wastewater Treatment: Large centrifugal pumps and blower units in water treatment facilities must operate continuously with minimal maintenance intervention. The CMON4108 provides the early fault detection capability needed to maintain pump availability targets while avoiding the safety risks associated with pump seal failures and motor burnouts in unmanned remote pump stations.

Port and Material Handling: Ship-to-shore cranes, stacker-reclaimers, and conveyor systems in port terminals operate in corrosive marine environments with high vibration and shock loading. The CMON4108’s EMI resistance and wide temperature tolerance ensure reliable monitoring performance in these demanding outdoor and semi-outdoor installations.

Safety and Quality FAQ

Q: What warranty coverage does the SKF CMON4108 carry?
A: Every SKF CMON4108 supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority to minimize site downtime, and replacement units are dispatched from verified stock.

Q: What pre-shipment testing is performed on each unit?
A: Each CMON4108 undergoes functional verification testing prior to dispatch, confirming channel operability, communication interface integrity, and power supply performance. Test records are available upon request for quality assurance documentation purposes.

Q: Is the SKF CMON4108 compatible with existing SKF IMx monitoring systems and third-party PLCs?
A: Yes. The CMON4108 is designed for integration within the SKF IMx online monitoring ecosystem and supports standard industrial communication protocols compatible with Siemens, ABB, Emerson, and Honeywell control system architectures. Compatibility verification for specific system configurations is available upon request.

Q: Can long-term supply continuity be guaranteed for critical spare parts programs?
A: SMARTNEXMSK maintains ongoing stock of the SKF CMON4108 and related condition monitoring components to support critical spare parts programs for continuous production facilities. Customers with high-availability requirements are encouraged to contact our sales team to discuss consignment stock arrangements and priority supply agreements.
