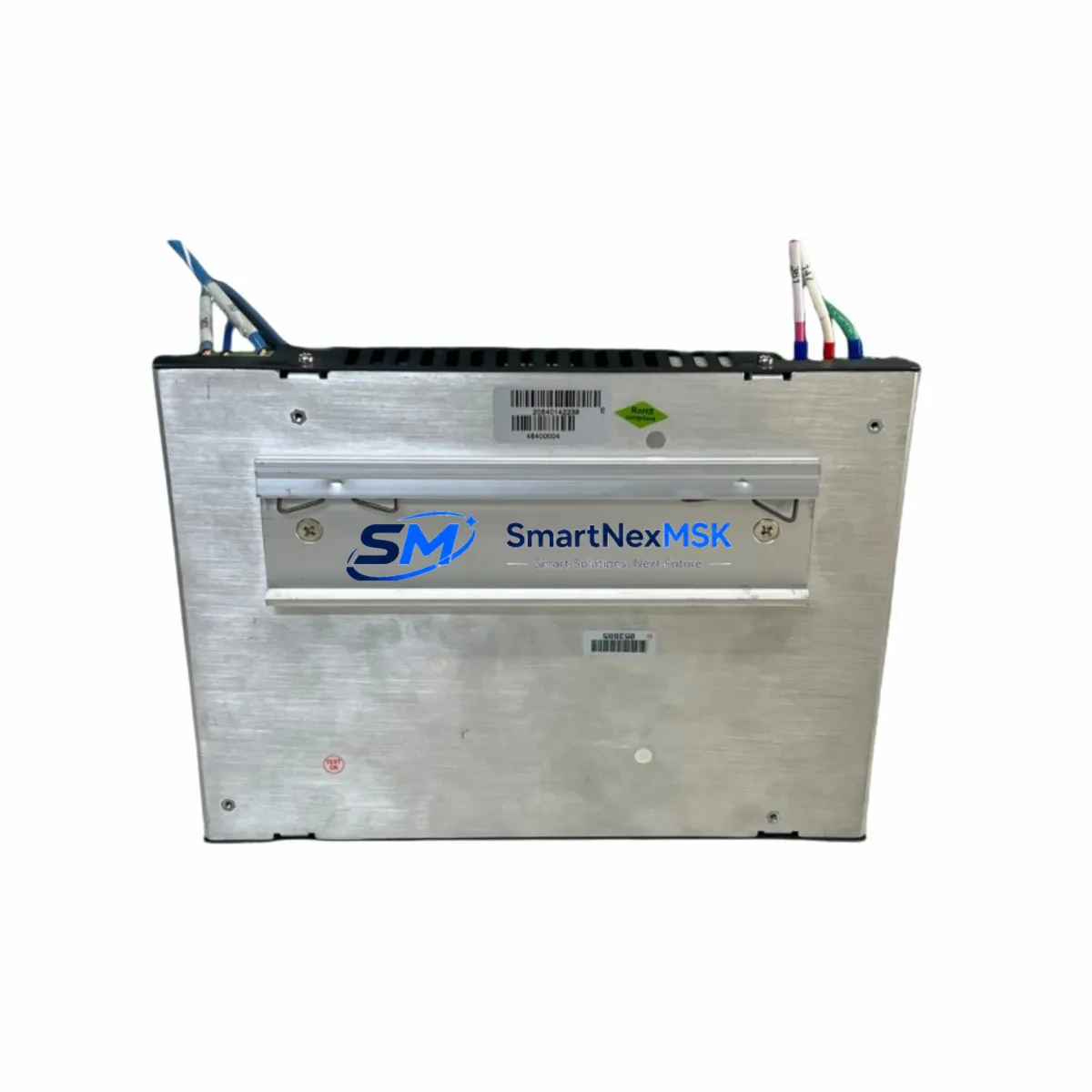

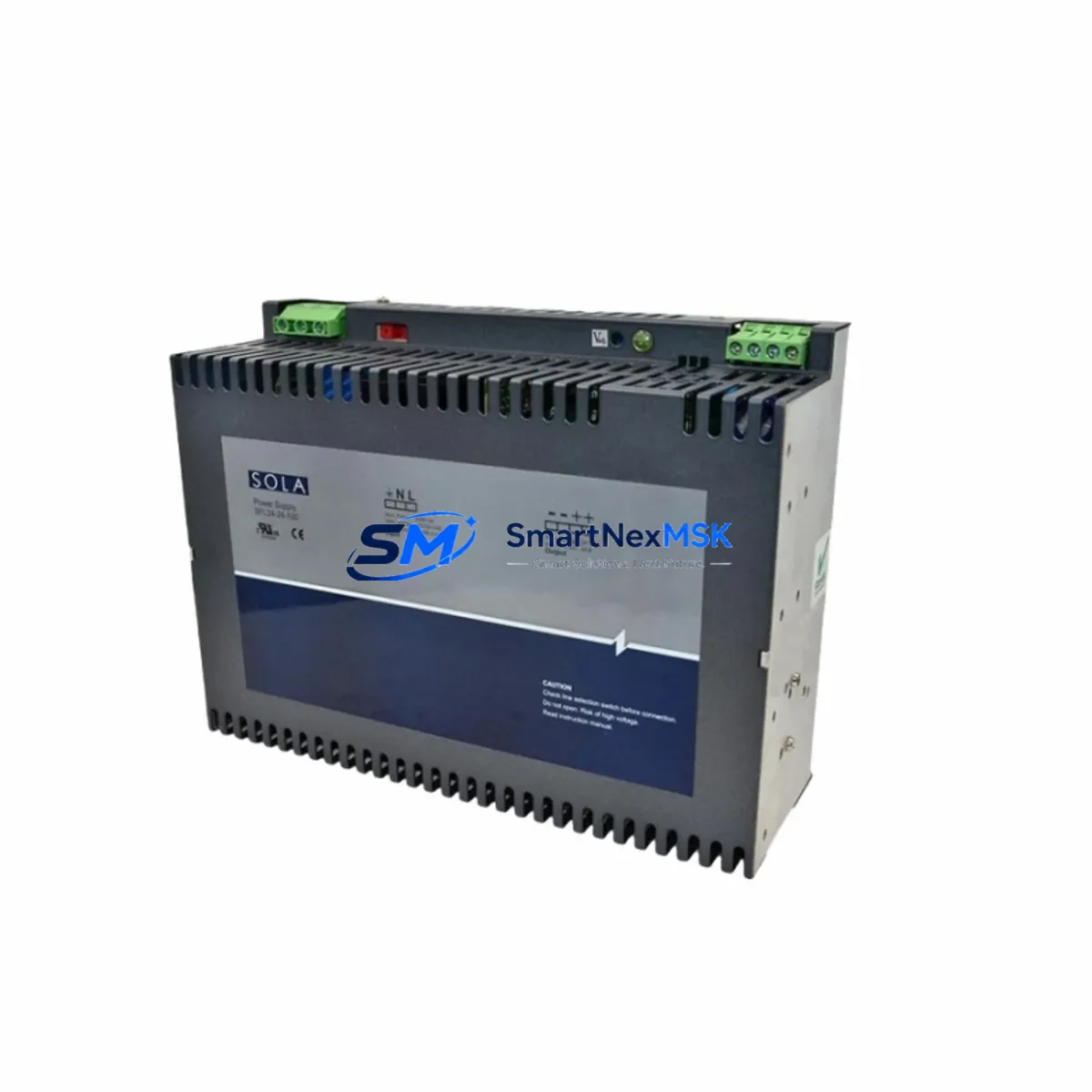

Sola SFL24-24-100RED Maintenance-Ready Spare for SFL Automation
The Sola SFL24-24-100RED is an original 24VDC, 100W DIN rail-mount power supply engineered for continuous-duty industrial automation environments. Designed as a direct replacement within the SFL Series power supply family, this unit supports rapid field substitution with no wiring modifications, making it a critical spare for maintenance engineers managing PLC-driven control panels, distributed I/O cabinets, and process automation systems. Every unit is tested prior to shipment and backed by a 12-month warranty, ensuring confidence in both planned maintenance cycles and emergency downtime recovery.
For facilities operating Sola/SolaHD-powered control systems, unplanned power supply failure is one of the leading causes of unscheduled downtime. Stocking the SFL24-24-100RED as an on-shelf spare eliminates the lead-time risk associated with sourcing during a live outage. Its compact DIN rail form factor and standardized terminal layout allow a trained technician to complete a swap in under 15 minutes, restoring system operation with minimal disruption to production schedules.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | SFL24-24-100RED |
| Brand | Sola / SolaHD |
| Series | SFL Series |
| Output Voltage | 24 VDC |
| Output Power | 100 W |
| Output Current | 4.2 A (nominal) |
| Input Voltage Range | 85–264 VAC, universal input |
| Mounting | DIN Rail (EN 60715 / TS 35) |
| Protection Class | IP20 (panel-mount enclosure) |
| Operating Temperature | -25°C to +70°C |
| Certifications | UL, CE, cUL (typical SFL Series) |
| Compatibility | Direct replacement for SFL Series; compatible with Allen-Bradley, Siemens, and Schneider 24VDC I/O bus rails |
| Installation | Snap-on DIN rail; screw-terminal wiring; no firmware configuration required |
| Application Environment | Industrial control panels, PLC power rails, DCS marshalling cabinets, MCC panels |
| Maintenance Recommendation | Inspect output voltage under load annually; replace at first sign of output ripple or thermal derating |
| Warranty | 12 Months — tested before shipment |
Maintenance Planning for Continuous Operation
When replacing the SFL24-24-100RED in a live control cabinet, a disciplined maintenance engineer will treat the power supply swap as an opportunity to audit the entire 24VDC distribution circuit. Begin by verifying the incoming AC feed through the panel’s circuit breaker or fused disconnect — a weakened upstream protection device can cause premature failure of the replacement unit. Check the terminal blocks and DIN rail bus connectors for signs of oxidation, loose torque, or thermal discoloration, as high-resistance connections are a common root cause of power supply stress.
Downstream of the SFL24-24-100RED, inspect all 24VDC I/O modules — particularly digital input cards and analog signal conditioners — for correct voltage at the field terminal. If the system uses a Sola SDN series or similar redundant power module alongside the SFL unit, verify that the load-sharing diode or ORing module is functioning correctly to prevent single-point failure. For systems with signal isolators or loop-powered transmitters, confirm that the 24VDC rail voltage is within the ±1% tolerance required for accurate 4–20 mA signal integrity.
In PLC-based architectures — such as those using Allen-Bradley MicroLogix or CompactLogix power supply modules, or Siemens S7-300/S7-400 PS307 units — the SFL24-24-100RED often powers the field-side I/O rather than the CPU backplane. Confirm that the PLC I/O chassis backplane and any remote I/O adapter modules are receiving stable voltage before re-energizing the system. Where 24VDC relay output modules or interposing relay panels are present, test coil actuation under load to rule out marginal voltage conditions.
For facilities with HMI panels powered from the same 24VDC rail, verify display startup and communication link restoration after the power supply replacement. If the cabinet includes a managed Ethernet switch or PROFINET/EtherNet/IP communication module, confirm that the switch powers up cleanly and that all device IP addresses are re-established before releasing the system to operations. Finally, check any installed surge protection devices (SPDs) on the 24VDC bus — a failed SPD can silently degrade power quality and shorten the life of the replacement supply.
Site Replacement Workflow
The SFL24-24-100RED is a direct form-fit-function replacement for earlier SFL Series units and is dimensionally compatible with standard 35mm DIN rail installations. To minimize downtime during a planned or emergency replacement:
- Isolate and de-energize the incoming AC supply to the power supply circuit. Verify zero voltage with a calibrated multimeter before proceeding.
- Document terminal wiring — photograph or sketch the AC input (L, N, PE) and DC output (+V, –V, PE) connections before disconnecting.
- Release the DIN rail latch on the failed unit and slide it off the rail. Install the SFL24-24-100RED by snapping it onto the rail and confirming mechanical engagement.
- Reconnect terminals per the documented wiring. Torque all screw terminals to the manufacturer’s specification (typically 0.5–0.6 Nm for 24VDC output terminals).
- Re-energize and verify: measure output voltage under no-load, then under full load. Confirm 24VDC ±1% at the output terminals and at the most distal field device on the distribution bus.
- Restore PLC/DCS communication and confirm all I/O points are reporting correctly in the SCADA or HMI before returning the system to automatic control.
This workflow is compatible with IEC 60204-1 electrical safety practices and supports ISO 55001 asset maintenance documentation requirements.
Spare Parts Support FAQ
Q1: Is the SFL24-24-100RED compatible with older SFL Series installations that use a different revision suffix?
A: Yes. The SFL24-24-100RED is designed as a drop-in replacement across the SFL Series product family. Minor revision changes within the series do not affect terminal layout, DIN rail dimensions, or output voltage/current ratings. If your existing installation uses an earlier revision, the SFL24-24-100RED will install and operate without modification.
Q2: What is your spare parts inventory strategy — can I order multiple units for a stocking program?
A: We support both single-unit emergency orders and multi-unit stocking purchases. For facilities managing multiple control panels or production lines, we recommend maintaining a minimum of one SFL24-24-100RED per critical panel as a shelf spare. Volume pricing and reserved-stock arrangements are available — contact our sales team to discuss your site’s requirements.
Q3: How is each unit tested before shipment?
A: Every SFL24-24-100RED unit undergoes functional output voltage verification under load prior to packaging. Units are inspected for physical integrity, terminal condition, and correct labeling. A test record is maintained for each shipment. The 12-month warranty covers defects in materials and workmanship from the date of delivery.
Q4: What is the expected lead time, and do you support urgent downtime recovery orders?
A: In-stock units ship within 1–2 business days under standard processing. For urgent downtime recovery situations, please contact us directly at sales@smartnexmsk.com or +86 18259474341 to arrange expedited dispatch. We understand that every hour of unplanned downtime has a direct cost impact, and we prioritize emergency spare orders accordingly.
