SORENSEN DCS50-20EM9C Spare for DCS50-20E Automation

SORENSEN DCS50-20EM9C Spare for DCS50-20E Automation: Spare Replacement & Industrial Downtime Risk Control

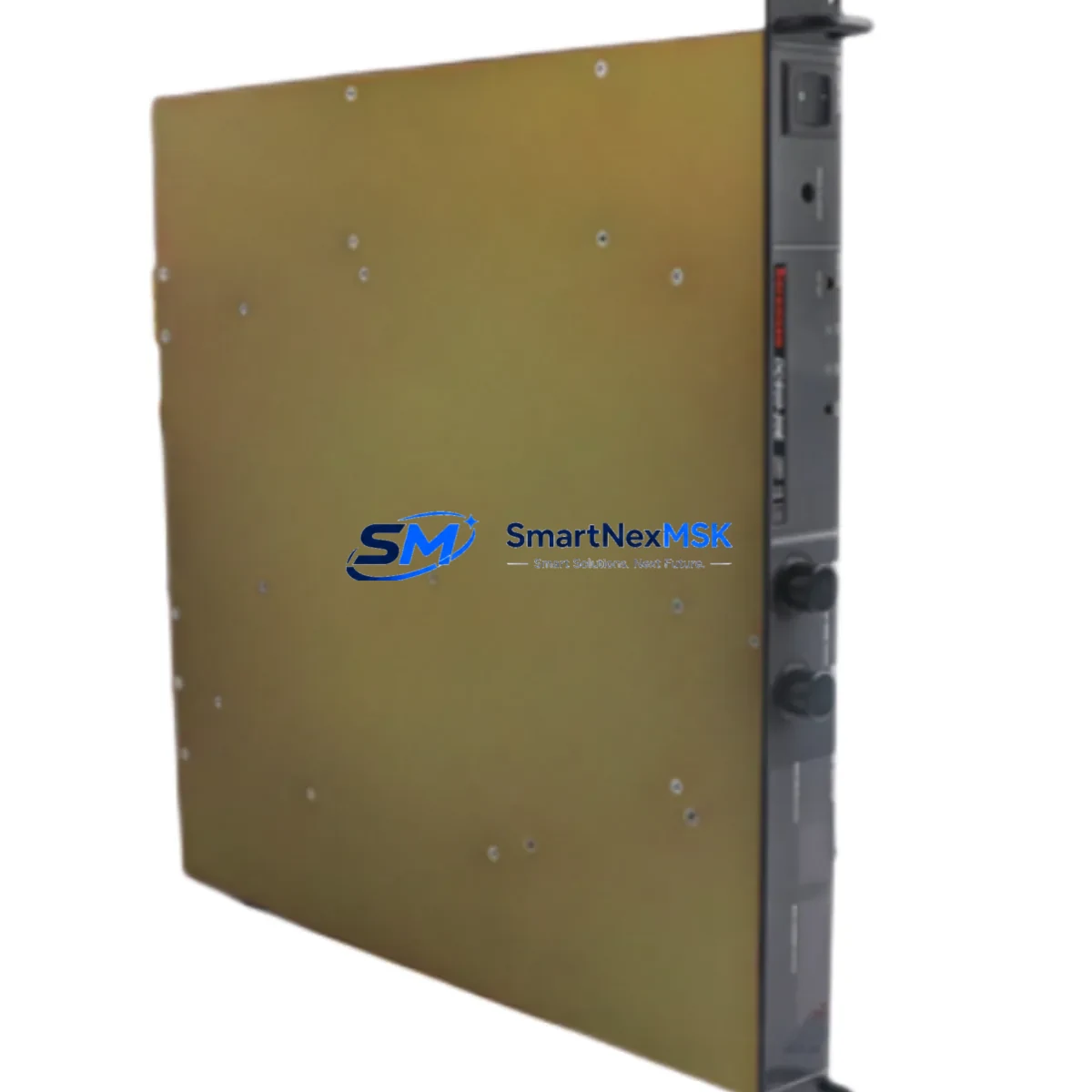

The SORENSEN DCS50-20EM9C is a precision programmable DC power supply belonging to the DCS50-20E series, rated at 0–50 V output, 20 A continuous current, and 1000 W total power capacity. Equipped with RS-485 serial communication, it supports remote voltage and current programming, making it a critical component in automated test benches, burn-in stations, electrochemical process lines, and industrial control cabinets. When this unit fails or reaches end-of-life, unplanned downtime can cascade across the entire production cell. Stocking a verified original spare — or sourcing a tested replacement unit — is the most effective strategy for maintaining continuous operation and protecting process uptime.

For maintenance engineers and procurement teams managing aging SORENSEN DCS-series infrastructure, the DCS50-20EM9C represents a well-understood, field-proven power platform. Its programmable output via front-panel controls or RS-485 bus allows integration into PLC-supervised test sequences and automated calibration routines. Replacement planning should begin well before the unit shows signs of degradation — output ripple increase, fan noise, or intermittent RS-485 communication loss are early indicators that warrant immediate spare deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DCS50-20EM9C in a live control cabinet or test rack, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system stability. Maintenance engineers should treat this replacement as an opportunity for a broader cabinet health check.

Begin by verifying the AC input feed: check the upstream circuit breaker rating and confirm the input fuse or MCB protecting the DCS50-20EM9C is correctly sized for 1000 W load. Inspect the AC power distribution block and terminal strips for signs of overheating, loose connections, or insulation degradation — these are common root causes of premature power supply failure. If the cabinet uses a DIN-rail mounted power filter or EMI suppressor on the AC line, verify its condition before energizing the new unit.

On the DC output side, inspect the output bus bars, load cables, and any inline fuses or current-limiting resistors connected to the load. For systems where the DCS50-20EM9C drives an electroplating bath, anodizing rectifier, or capacitor formation station, confirm that the load impedance is within the rated operating range before applying full output. A shunt resistor or precision current transducer in the output circuit should also be checked for calibration drift.

The RS-485 communication wiring deserves particular attention. Inspect the RS-485 bus cable for correct termination resistors (typically 120 Ω at each end), verify the daisy-chain topology is intact, and confirm the host controller — whether a Siemens S7-300/S7-1200 PLC, a Mitsubishi FX/Q-series module, or a PC-based SCADA system — can re-establish communication after the unit swap. If the system uses a USB-to-RS-485 converter or an isolated RS-485 signal isolator, inspect these components for firmware compatibility and physical integrity.

For cabinets housing multiple SORENSEN DCS-series units — such as a DCS33-33E or DCS80-13E alongside the DCS50-20EM9C — verify that the shared AC distribution and common ground bus are correctly configured. Grounding issues between parallel power supplies are a frequent source of output noise and RS-485 communication errors. Additionally, if the rack includes a SORENSEN SGA or SGI series programmable supply for a different voltage rail, confirm that the inter-supply isolation is maintained.

Procurement engineers should consider maintaining a minimum stock of one DCS50-20EM9C spare per production line, particularly in facilities running 24/7 operations. Given the typical 4–8 week lead time for new units from the OEM, a pre-tested spare on the shelf reduces mean time to repair (MTTR) from days to hours. Pairing the spare supply with a set of replacement output terminal covers, RS-485 connector plugs, and a spare fan assembly ensures a complete field replacement kit.

Site Replacement Workflow

Replacing the DCS50-20EM9C on-site follows a structured sequence to minimize downtime and avoid configuration loss. Before powering down the failed unit, document the current voltage and current setpoints, RS-485 address, baud rate, and any custom calibration offsets stored in the unit’s non-volatile memory — these settings are not automatically transferred to the replacement unit.

After de-energizing and locking out the AC input, disconnect the RS-485 bus cable and output load cables, labeling each connection for accurate reinstallation. Remove the failed unit from the rack and perform a visual inspection of the rack slot for debris, corrosion, or damaged guide rails before sliding in the replacement DCS50-20EM9C.

Reconnect the AC input, output load cables, and RS-485 bus in sequence. Before applying load, power up the unit and verify the front-panel display shows correct initialization. Re-enter the documented setpoints and RS-485 address, then confirm communication with the host controller using the system’s diagnostic software or a terminal emulator. Apply load gradually, monitoring output voltage and current against expected values before returning the system to full production.

This workflow is compatible with direct replacement of legacy DCS50-20E and DCS50-20EM variants. No hardware modifications are required when substituting the DCS50-20EM9C for earlier M-suffix models, provided the RS-485 communication protocol version matches the host controller’s driver configuration.

Spare Parts Support FAQ

Q1: What is the warranty coverage for this spare unit?
All DCS50-20EM9C units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing — including output voltage/current verification and RS-485 communication check — prior to dispatch. Warranty claims are supported with replacement or repair at no additional cost within the coverage period.

Q2: Is this unit compatible with older DCS50-20E and DCS50-20EM models?
Yes. The DCS50-20EM9C is a direct functional replacement for the DCS50-20E and DCS50-20EM variants. The M9C suffix denotes the RS-485 communication option. If your existing installation uses the base DCS50-20E (no communication interface), the RS-485 port on the M9C variant can be left unconnected without affecting DC output performance.

Q3: How quickly can this spare be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. Each shipment includes a test report, packing list, and certificate of conformance. Express international shipping is available for urgent maintenance requirements. Contact sales@smartnexmsk.com or call +86 18259474341 to confirm current stock availability and lead time.

Q4: What is the recommended inventory strategy for facilities running multiple DCS50-20E series supplies?
For facilities operating three or more DCS50-20E series units, we recommend maintaining at least one DCS50-20EM9C spare on-site at all times. For critical 24/7 production environments, a two-unit buffer stock is advisable. SMARTNEXMSK offers long-term supply agreements and reserved stock programs to support planned maintenance schedules and annual procurement budgets.
