SST SST-PB3-PCU Retrofit-Ready PROFIBUS DP ISA Interface

SST SST-PB3-PCU Retrofit-Ready PROFIBUS DP ISA Interface for Legacy Control Systems

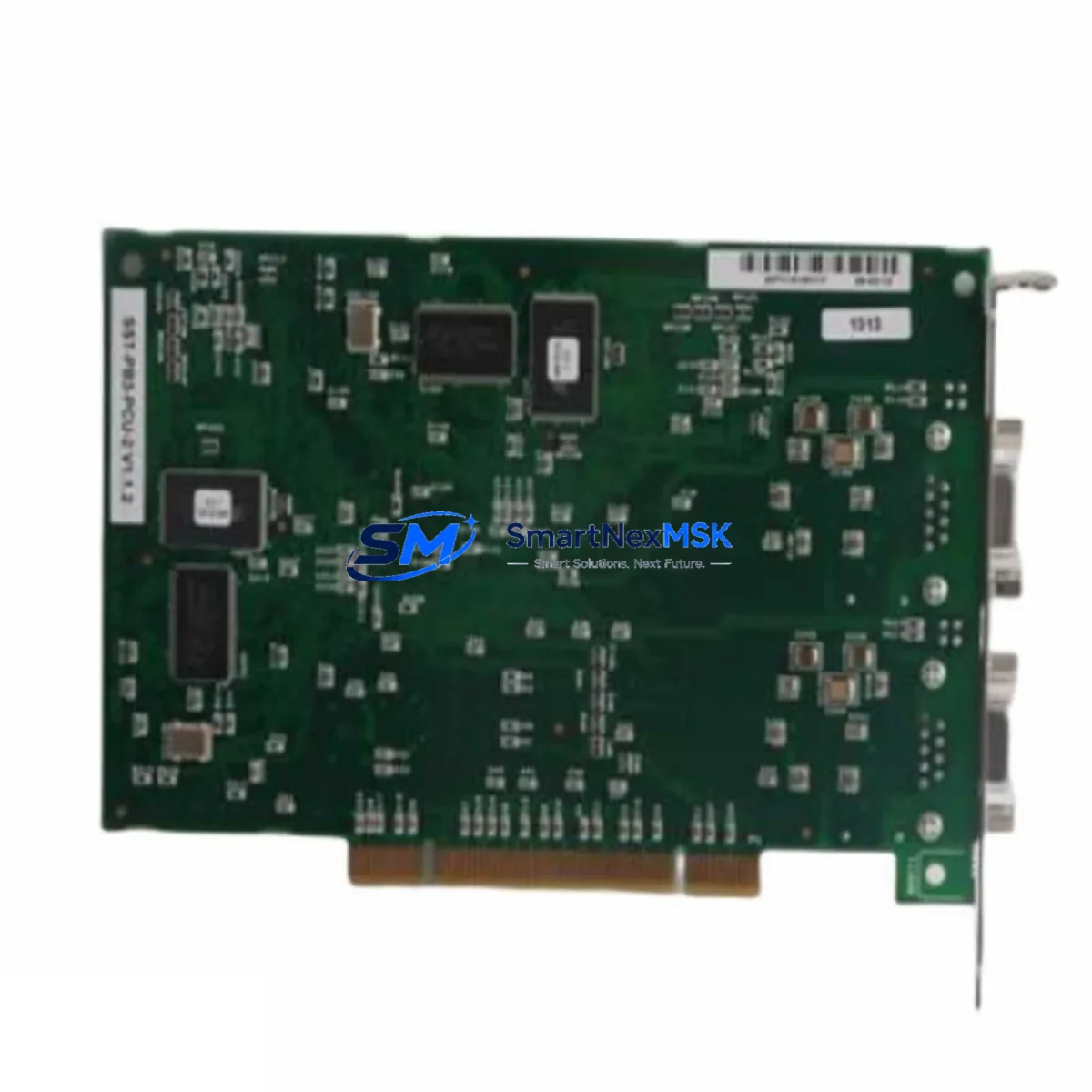

When a legacy automation platform reaches end-of-life and spare parts become scarce, every unplanned shutdown carries compounding risk. The SST SST-PB3-PCU is a PROFIBUS DP ISA-bus interface card engineered to serve as a direct retrofit replacement for discontinued fieldbus communication modules in older PC-based and rack-mounted industrial control systems. Whether you are modernizing a 1990s-era SCADA workstation, upgrading a DCS front-end processor, or restoring communication integrity in a critical production line, the SST-PB3-PCU provides a proven, field-validated migration path that minimizes engineering rework and keeps downtime within acceptable limits.

The SST-PB3-PCU occupies a standard ISA slot and presents a single PROFIBUS DP master or slave port capable of operating at baud rates from 9.6 kbps up to 12 Mbps. Its onboard microprocessor handles all PROFIBUS token-ring management and DP cycle timing independently of the host CPU, which means the host application — whether running on a legacy DOS-based HMI, a Windows NT SCADA platform, or a modern embedded controller with an ISA bridge — is relieved of real-time bus arbitration overhead. This architecture is directly compatible with the SST-PB3-VME-2 communication philosophy, making cross-platform migration documentation straightforward for sites that operate mixed VME and PC-based control cabinets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement card arrives on site. Engineers planning to swap out a failed or end-of-life PROFIBUS ISA card should start by auditing the host PC’s available ISA slots, confirming that the power supply can sustain the additional 1.5 W draw without encroaching on the headroom reserved for other ISA peripherals such as legacy serial communication cards or analog I/O boards. In many older control cabinets, the 5 V ISA rail is shared with DIN-rail-mounted power supplies feeding remote I/O racks, so a current audit is essential before insertion.

Next, document the existing PROFIBUS network topology: record the station addresses of every DP slave on the segment — including Siemens ET 200M remote I/O stations, Phoenix Contact Inline I/O couplers, and any third-party valve island controllers — along with their GSD files and configured cycle times. The SST-PB3-PCU uses the same SST PROFIBUS API (SST_PB.DLL / SST_PB.SO) as its predecessor, so existing application code that calls the SST driver layer typically requires no modification beyond recompilation against the updated header files. This is a significant advantage over migrations to entirely different vendor platforms, where full application rewrites are common.

Terminal wiring at the DB-9 PROFIBUS connector follows the standard EN 50170 pinout (Pin 3: B-line, Pin 8: A-line, Pin 5: DGND, Pin 6: VP +5 V for bus termination). If the existing cable uses a Siemens-style 9-pin connector with integrated termination resistors, it can be reconnected directly without re-termination. For segments running at 12 Mbps, verify that cable length does not exceed 100 m and that bus termination is active at both physical ends of the segment — a common oversight during rushed retrofits that causes intermittent communication faults after restart.

The SST-PB3-PCU is also frequently deployed alongside SST-PB3-VME-2 cards in mixed-architecture sites where a VME-based controller handles real-time process control while a PC-based supervisory station manages historian and HMI functions over the same PROFIBUS segment. In these configurations, the PCU card operates as a DP Master Class 2 (acyclic services) while the VME card holds Class 1 master rights, a topology that SST’s dual-master arbitration firmware supports natively. HMI screens built in Wonderware InTouch or Siemens WinCC connected via the SST OPC server require only a server address update — no tag remapping — when the physical card is replaced.

For sites running Rockwell Automation RSLinx or FactoryTalk as the OPC bridge, the SST-PB3-PCU appears as a standard SST PROFIBUS device in the RSLinx driver configuration tree. Update the card’s I/O base address in the driver properties to match the hardware jumper setting, then perform a full network scan to confirm all DP slave addresses are visible before releasing the system to production. Programming cables and configuration utilities from the original SST toolkit remain compatible, eliminating the need for new engineering software licenses.

Downtime Control During System Migration

Minimizing production interruption during a PROFIBUS card replacement requires a structured sequence. Begin with a controlled shutdown of the PROFIBUS master — not an emergency stop — so that all DP slaves can complete their current output cycle and park in a safe state. For processes with interlocked safety circuits, coordinate with the safety system engineer to confirm that the Safety Instrumented System (SIS) remains in a monitored, non-tripped state during the card swap; many sites use a bypass key switch on the SIS panel for this purpose.

Back up the existing PROFIBUS configuration project from the SST Configuration Utility before removing the old card. This export file contains all slave GSD assignments, address maps, and cycle time parameters and serves as the authoritative restore point if commissioning of the new SST-PB3-PCU encounters unexpected issues. Store the backup on a network share independent of the host PC to protect against simultaneous hardware failure.

Physical card replacement takes under five minutes: power down the host PC, seat the SST-PB3-PCU in the vacated ISA slot, confirm jumper settings match the documented I/O base address and IRQ, reconnect the PROFIBUS cable, and power up. On first boot, the SST driver will enumerate the card and log a successful initialization event in the Windows Event Viewer or Linux syslog. Run the SST PROFIBUS Diagnostic Utility to confirm bus token acquisition and verify that all previously configured DP slaves — including any Beckhoff BK3100 PROFIBUS couplers or Festo CPX valve terminals on the segment — are responding within their expected cycle windows before re-enabling automatic control.

For critical continuous processes such as chemical dosing, boiler combustion control, or conveyor synchronization, consider staging the migration during a scheduled maintenance window and keeping the original (failed) card on the bench as a reference for jumper configuration. SMARTNEXMSK maintains buffer stock of the SST-PB3-PCU to support emergency same-week dispatch, reducing the gap between fault detection and system restoration to the shortest possible interval.

Retrofit Support FAQ

Q1: Is the SST-PB3-PCU a direct drop-in replacement for the original SST-PB3-PCU, and does it require any firmware update?
Yes. The SST-PB3-PCU supplied by SMARTNEXMSK is functionally identical to the original SST Automation production unit. Firmware is pre-loaded and validated prior to shipment. No field firmware update is required for standard DP master/slave operation. If your application uses advanced acyclic (Class 2) services, confirm the firmware revision matches your SST driver version using the SST Diagnostic Utility after installation.

Q2: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every SST-PB3-PCU undergoes functional verification on a live PROFIBUS DP test bench before dispatch: bus initialization, token acquisition, cyclic data exchange with a reference DP slave, and baud-rate auto-detection across the full 9.6 kbps–12 Mbps range are all confirmed. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of receipt. It does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside the specified environmental range.

Q3: Can the SST-PB3-PCU coexist on the same PROFIBUS segment as Siemens S7 CP cards or other third-party DP masters?
Yes, provided the segment is configured for multi-master operation and each master is assigned a unique station address. The SST-PB3-PCU complies with the PROFIBUS DP standard (EN 50170) and has been validated for interoperability with Siemens CP 5611, CP 5613, and Hilscher CIFX PROFIBUS master cards on shared segments. Ensure that only one master holds Class 1 token rights for each slave to avoid cyclic data conflicts.

Q4: What is SMARTNEXMSK’s long-term supply commitment for the SST-PB3-PCU?
SMARTNEXMSK maintains dedicated buffer inventory of the SST-PB3-PCU to support ongoing spare-part and retrofit demand. Orders are typically processed and dispatched within 3–5 business days. For projects requiring multiple units or scheduled delivery across a maintenance program, contact our sales team to arrange a supply agreement with guaranteed allocation and priority fulfillment.
