STAHL 9182/20-51-11 Safety-Enhanced Temp Transmitter

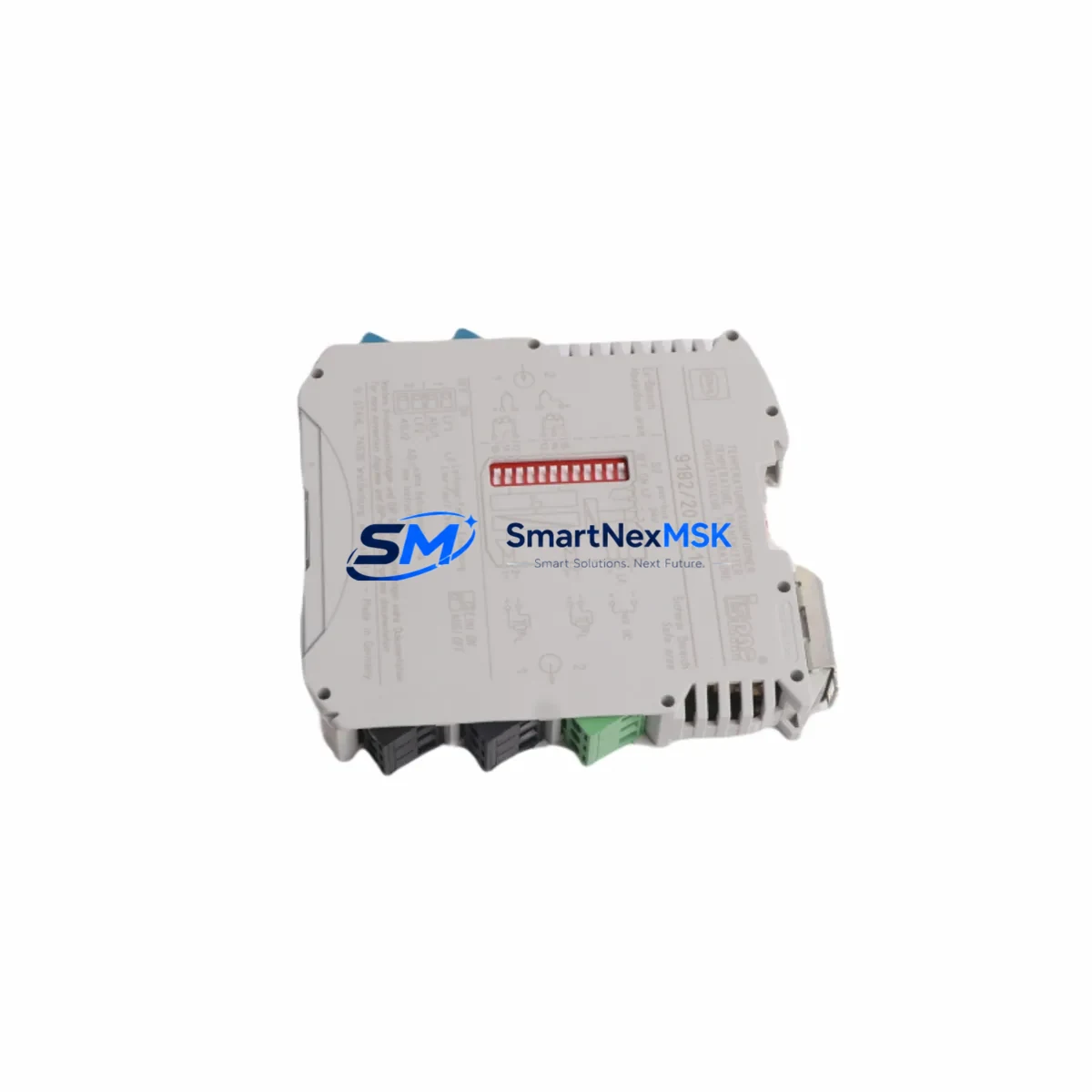

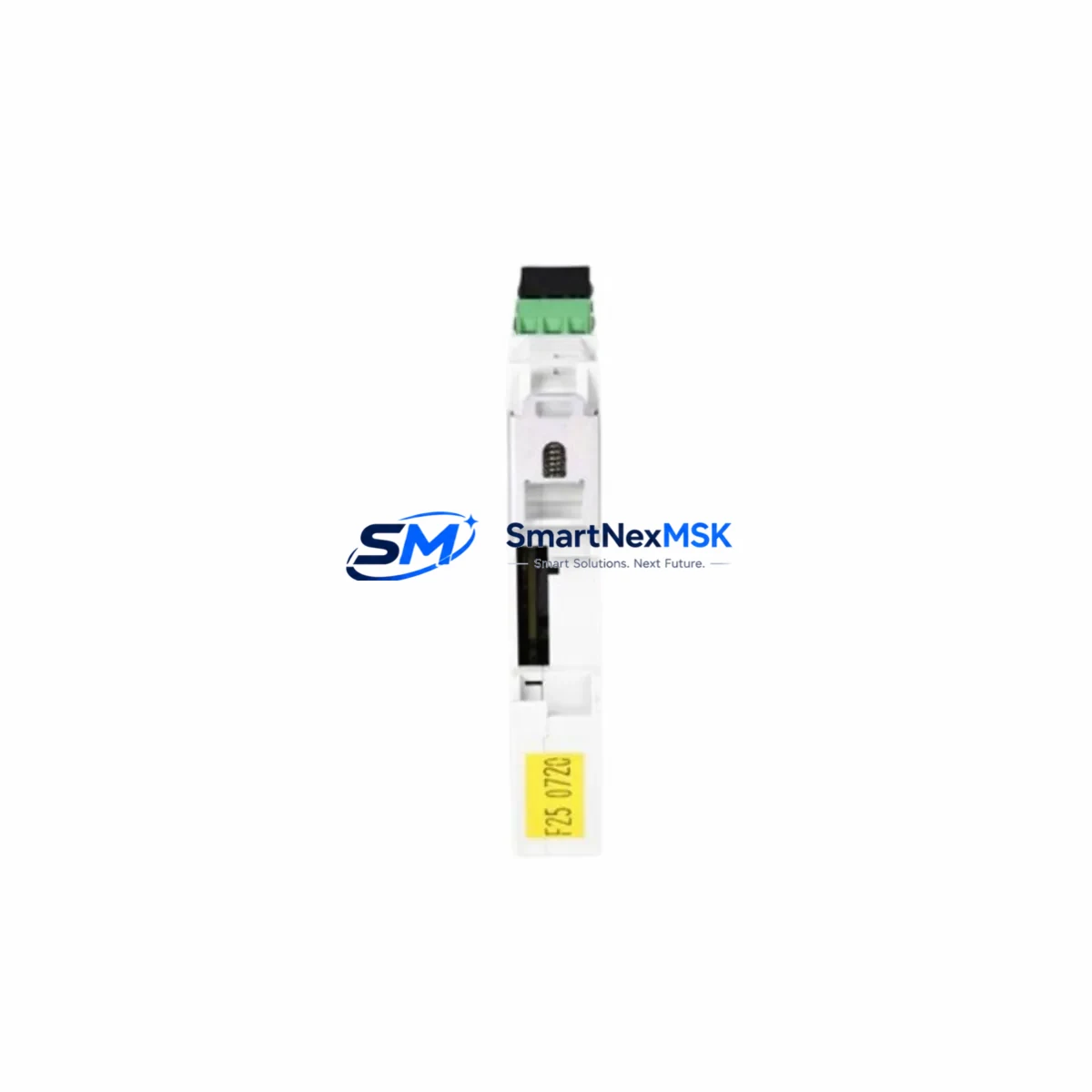

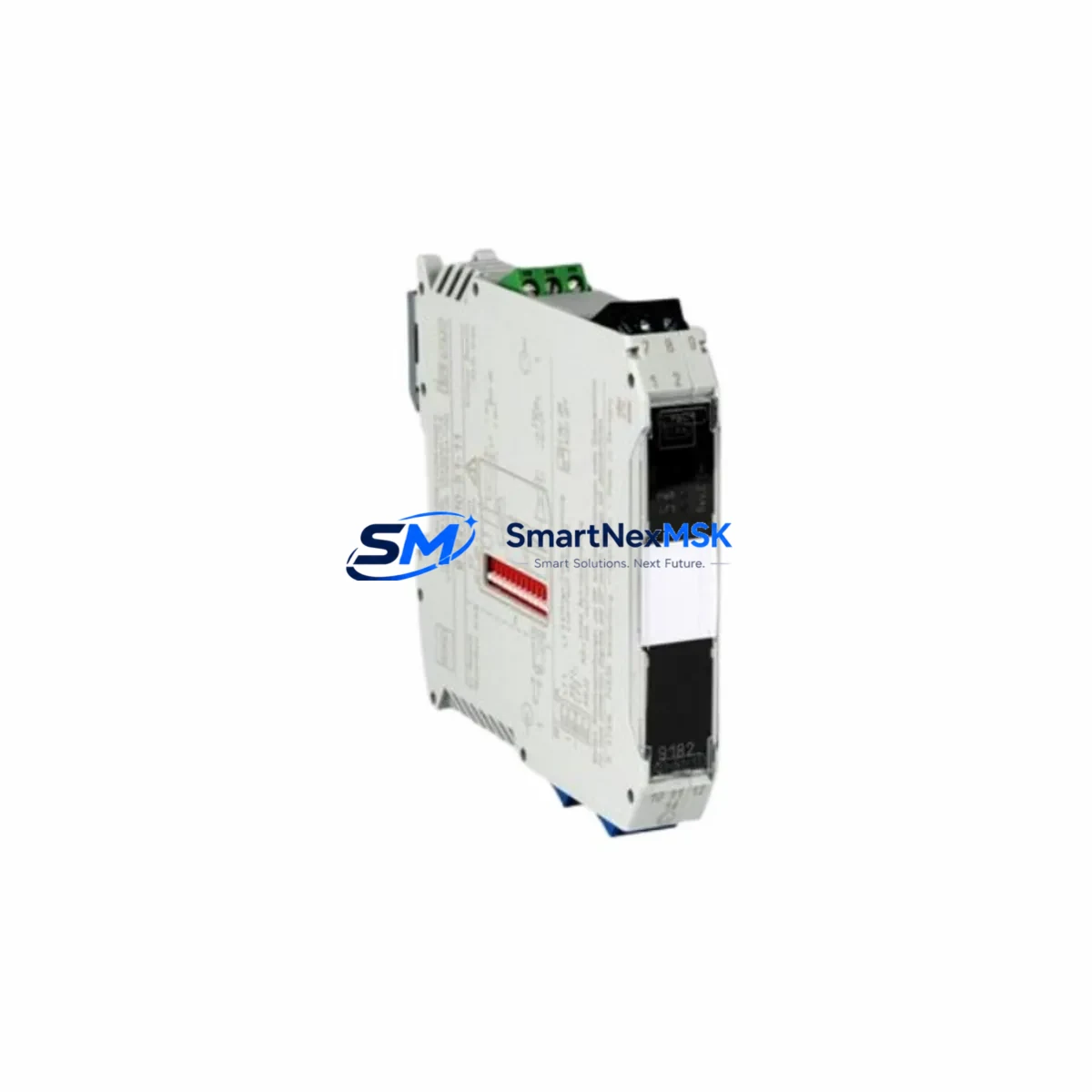

STAHL 9182/20-51-11 Safety-Enhanced Temperature Transmitter for Harsh Industrial Sites

The STAHL 9182/20-51-11 is a precision intrinsically safe temperature transmitter engineered for continuous, reliable operation in the most demanding industrial environments. Certified to ATEX and IECEx standards with Ex ia IIC classification, this transmitter is purpose-built for hazardous areas where signal integrity, control loop stability, and personnel safety are non-negotiable. Whether deployed in petrochemical processing, offshore platforms, power generation, or heavy metallurgical plants, the 9182/20-51-11 delivers consistent 4–20 mA output with exceptional resistance to electrical interference, surge events, and extreme ambient conditions.

At SMARTNEXMSK, every unit of the STAHL 9182/20-51-11 is sourced through verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent spare-part replacement and planned maintenance schedules alike, ensuring your critical control loops are never left exposed.

Safety Reliability Table

Control Cabinet Protection Strategy

In high-stakes industrial control cabinets serving hazardous zones, the STAHL 9182/20-51-11 functions as the front-line signal conditioning element between field-mounted temperature sensors and the process control system. Its galvanic isolation architecture eliminates ground loop interference that commonly corrupts 4–20 mA signals in large-scale plants where cable runs exceed 200 metres across electrically noisy environments.

For complete zone protection, the 9182/20-51-11 is frequently paired with the STAHL 9001 Series zener barriers or STAHL 9160 Series galvanic isolators, which provide additional intrinsic safety limiting for field-side circuits. On the power supply side, a STAHL 8546 Series redundant power supply unit ensures uninterrupted 24 V DC rail voltage to the transmitter loop, eliminating the risk of measurement dropout during mains fluctuations or switchgear operations.

Signal integrity from the 9182/20-51-11 feeds directly into Siemens S7-300 or S7-400 PLC analog input modules (such as the SM 331 or SM 334) or into ABB AC800M DCS controller analog input cards, where temperature values are processed within safety-rated PID control loops. In SIL-rated applications, the transmitter output is validated against redundant inputs from Endress+Hauser iTEMP TMT82 or Yokogawa YTA510 temperature transmitters to achieve voting logic and fault tolerance.

Surge protection at the cabinet entry point is handled by Phoenix Contact TRABTECH PT-IQ-2X1-24DC-ST surge protective devices, which clamp transient overvoltages before they can reach the 9182/20-51-11’s input terminals. Communication from the control cabinet to the SCADA layer is managed through Moxa NPort 5150A serial device servers or Hirschmann RS20 managed industrial Ethernet switches, maintaining data integrity across the plant network. Together, these components form a layered protection architecture that minimises the risk of nuisance trips, signal drift, and unplanned shutdowns in continuous production environments.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The STAHL 9182/20-51-11 is widely deployed in crude distillation units, catalytic crackers, and hydroprocessing reactors where Zone 1 and Zone 0 hazardous area classifications demand Ex ia certified instrumentation. Accurate temperature monitoring in these processes is directly linked to product quality, reaction safety, and prevention of runaway thermal events. The transmitter’s robust galvanic isolation prevents false readings caused by stray currents from large motor drives and high-voltage switchgear operating in adjacent areas.

Power Generation & Utilities: In coal-fired, gas turbine, and combined-cycle power plants, the 9182/20-51-11 monitors bearing temperatures, steam line temperatures, and cooling water circuits within the turbine hall and boiler areas. Its wide ambient temperature tolerance (–40 °C to +70 °C) ensures reliable operation in both outdoor substations and high-temperature boiler rooms without signal degradation or calibration drift.

Mining & Mineral Processing: Underground mining environments present extreme challenges including methane-rich atmospheres, high humidity, mechanical vibration, and frequent power surges from heavy extraction equipment. The Ex ia IIC certification of the 9182/20-51-11 makes it suitable for use in the most explosive-gas-hazardous underground zones, providing reliable temperature feedback from conveyor drive motors, crusher bearings, and ventilation systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise temperature monitoring for biological treatment processes, chemical dosing systems, and UV disinfection units. The 9182/20-51-11’s loop-powered 4–20 mA output integrates seamlessly with existing SCADA and PLC infrastructure, reducing retrofit complexity and enabling accurate process control without additional power supplies at the field level.

Metallurgy & Steel Production: In electric arc furnaces, continuous casting lines, and rolling mills, temperature measurement accuracy directly impacts product metallurgical properties and equipment longevity. The 9182/20-51-11’s high EMC immunity ensures stable signal transmission even in the presence of intense electromagnetic fields generated by large induction furnaces and high-current bus bars.

Port & Terminal Automation: Liquid bulk terminals handling flammable hydrocarbons, LNG, or chemical cargoes require ATEX-certified instrumentation throughout loading arms, storage tank farms, and pump stations. The STAHL 9182/20-51-11 provides the safety-rated temperature measurement backbone for tank gauging systems and overfill prevention interlocks in these critical infrastructure environments.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the STAHL 9182/20-51-11?
Every STAHL 9182/20-51-11 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides warranty claim support and, where required, expedited replacement units to minimise your plant downtime.

Q2: How is the unit tested before shipment?
Each unit undergoes a pre-shipment functional verification that includes output signal calibration check across the 4–20 mA range, input sensor simulation (RTD/thermocouple), and visual inspection for physical integrity. Units that do not meet factory specification are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the STAHL 9182/20-51-11 compatible with my existing DCS or PLC analog input cards?
Yes. The 9182/20-51-11 produces a standard 2-wire 4–20 mA loop-powered output that is universally compatible with analog input modules from Siemens, ABB, Honeywell, Emerson, Yokogawa, Rockwell Automation, and all major DCS and PLC platforms. No signal conditioning adapters are required for standard installations. For HART-enabled systems, please confirm the specific variant supports HART protocol before ordering.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for this model?
SMARTNEXMSK maintains dedicated stock of the STAHL 9182/20-51-11 and related 9182 Series variants to support both planned maintenance programmes and emergency spare-part requirements. We work with verified distribution channels to ensure continuity of supply even for products with extended lead times from the OEM. For large-quantity or framework contract requirements, contact our sales team to discuss reserved stock arrangements and priority fulfilment agreements.
