STAVOL MATSUNAGA STAVOL-FH1000-10A Spare for FH Automation

STAVOL MATSUNAGA STAVOL-FH1000-10A Spare for FH Series Automation

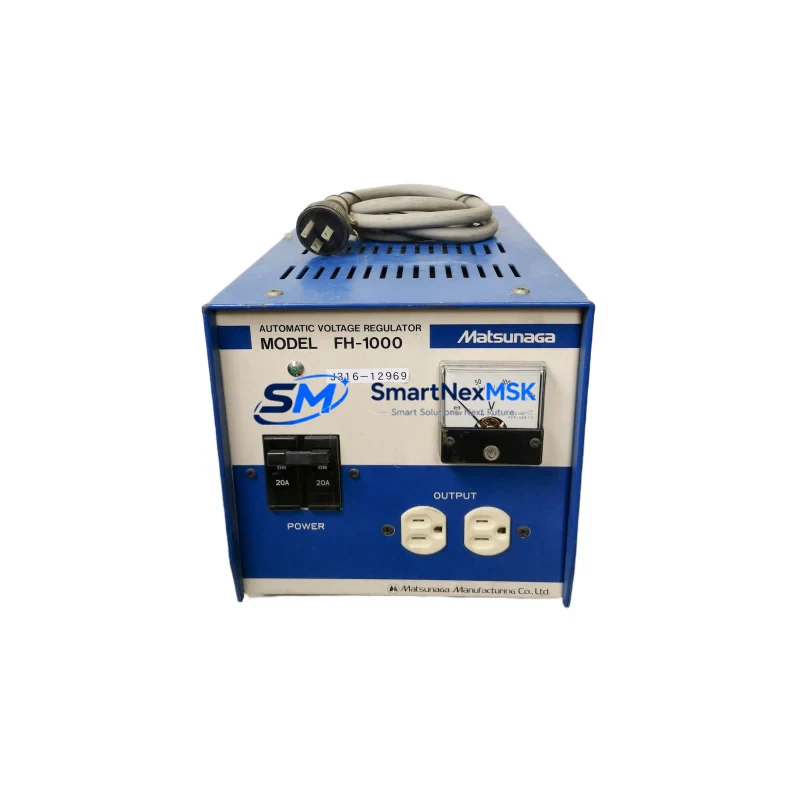

The STAVOL-FH1000-10A is a 10A servo-type Automatic Voltage Regulator (AVR) manufactured by STAVOL MATSUNAGA, designed for continuous voltage stabilization in industrial automation environments. As a maintenance-ready original spare, this unit is sourced to support planned maintenance cycles, emergency replacements, and long-term system reliability for FH Series control installations. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, the STAVOL-FH1000-10A delivers the electrical performance and dimensional compatibility required for fast, confident restoration of your power conditioning circuit.

Industrial maintenance engineers and procurement teams working with STAVOL FH Series AVR installations recognize that voltage regulator failure is one of the most disruptive single-point faults in a control cabinet. Unstable input voltage directly impacts PLC CPU modules, servo drives, and HMI panels downstream. Keeping a verified original spare of the STAVOL-FH1000-10A on the shelf eliminates the lead-time risk that turns a two-hour repair into a multi-day production stoppage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a STAVOL-FH1000-10A fails or approaches end-of-life, the replacement workflow should extend beyond the AVR unit itself. Maintenance engineers performing a controlled shutdown for AVR replacement should use the opportunity to inspect the entire power conditioning and distribution chain within the control cabinet.

Begin with the input power section: verify the upstream isolation transformer output, check the input fuse or circuit breaker rating against the 10A load, and inspect terminal blocks on the input wiring for signs of overheating or loose connections. A degraded AVR is often symptomatic of sustained overvoltage or undervoltage at the input — conditions that may have also stressed the input EMI filter or surge protection device (SPD) installed ahead of the AVR.

On the output side, trace the stabilized voltage feed to the downstream loads. In a typical FH Series installation, the AVR output supplies power to a 24VDC switching power supply module (such as a DIN-rail SMPS), which in turn feeds the PLC CPU rack, I/O modules, and relay output cards. Inspect the SMPS for output voltage drift and capacitor bulge. Check the PLC power supply module — in Mitsubishi MELSEC, Omron CJ/CS, or Siemens S7 series installations, the power module is a common co-failure component when input voltage has been unstable.

Inspect all relay output modules and intermediate relay bases in the cabinet. Voltage fluctuation accelerates contact wear on relay coils rated for the stabilized output. Similarly, review the terminal strip (terminal block) assemblies — particularly the power distribution terminals — for discoloration or resistance increase caused by micro-arcing during voltage instability events.

If the control system includes a communication module (Profibus DP, Modbus RTU, or Ethernet/IP adapter), verify that the module’s power supply rail is within specification after AVR replacement, as communication faults are frequently misdiagnosed when the root cause is a marginal supply voltage. For systems with signal isolators or 4–20mA loop isolators on analog I/O channels, confirm that the isolated supply voltage is stable post-replacement.

Finally, if the installation includes an HMI panel (touch screen or operator panel) powered from the same AVR output, perform a display and communication test after restoration to confirm no firmware corruption or display driver fault occurred during the voltage instability period. Document the replacement in the equipment maintenance log and update the spare parts inventory to replenish the consumed STAVOL-FH1000-10A unit.

Site Replacement Workflow

Step 1 — Isolation: De-energize the control cabinet at the main isolator. Lock out / tag out (LOTO) per site safety procedure. Confirm zero voltage at AVR input terminals with a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring connections, input/output voltage tap settings, and mechanical mounting before removal. Note the carbon brush position if accessible.

Step 3 — Removal: Disconnect input and output wiring at the terminal block. Remove mounting hardware. Extract the faulty STAVOL-FH1000-10A unit from the cabinet.

Step 4 — Verification: Confirm the replacement unit SKU is STAVOL-FH1000-10A. Verify the input voltage tap matches the site supply (e.g., 220V input tap for a 220V supply). Check output voltage tap matches the required stabilized output.

Step 5 — Installation: Mount the replacement unit. Reconnect input and output wiring per the documented configuration. Torque terminal screws to specification.

Step 6 — Commissioning: Energize under no-load first. Measure output voltage with a multimeter. Confirm regulation within ±1% of nominal. Apply load progressively and re-verify output stability.

Step 7 — System Restoration: Restore all downstream loads. Confirm PLC, HMI, and I/O systems return to normal operation. Clear any fault codes generated during the outage. Update maintenance records.

This workflow minimizes downtime and ensures the replacement STAVOL-FH1000-10A is correctly commissioned before full production load is restored. Typical site replacement time for a trained maintenance technician is 45–90 minutes, excluding system recommissioning.

Spare Parts Support FAQ

Q1: Is the STAVOL-FH1000-10A a direct drop-in replacement for my existing FH Series AVR?
A: Yes, the STAVOL-FH1000-10A is the original manufacturer part number for the 10A / 1kVA model in the FH Series. It is a direct mechanical and electrical replacement for units of the same SKU. Before installation, verify that the input voltage tap and output voltage tap on the replacement unit match your site configuration, as FH Series units may be factory-set for different voltage ranges.

Q2: What is the recommended spare parts stocking strategy for STAVOL AVR units?
A: For facilities with multiple FH Series AVR installations, a minimum stock of one STAVOL-FH1000-10A per five installed units is recommended. Given that servo AVR units have a typical service life of 8–12 years with proper maintenance, stocking one spare per control cabinet is a cost-effective strategy that eliminates emergency procurement lead times. Carbon brush kits and variac cleaning supplies should also be included in the preventive maintenance kit.

Q3: How is the STAVOL-FH1000-10A tested before shipment?
A: Each unit undergoes a pre-shipment inspection that includes input/output voltage regulation testing under rated load, servo motor response verification, carbon brush contact check, and output stability measurement. Units that do not meet the original STAVOL MATSUNAGA specification are not shipped. A 12-month warranty covers manufacturing defects and verified performance failures under normal operating conditions.

Q4: Can the STAVOL-FH1000-10A be used to replace older or discontinued STAVOL models?
A: The STAVOL-FH1000-10A is compatible with FH Series installations of the same capacity and voltage rating. For cross-series compatibility (e.g., replacing an older SVC or TND series unit), electrical and mechanical parameters must be verified individually. Contact our technical team with your existing unit’s nameplate data for a compatibility assessment before ordering.
