SUNTEX EC-430 Retrofit-Ready Conductivity Monitor EC Series

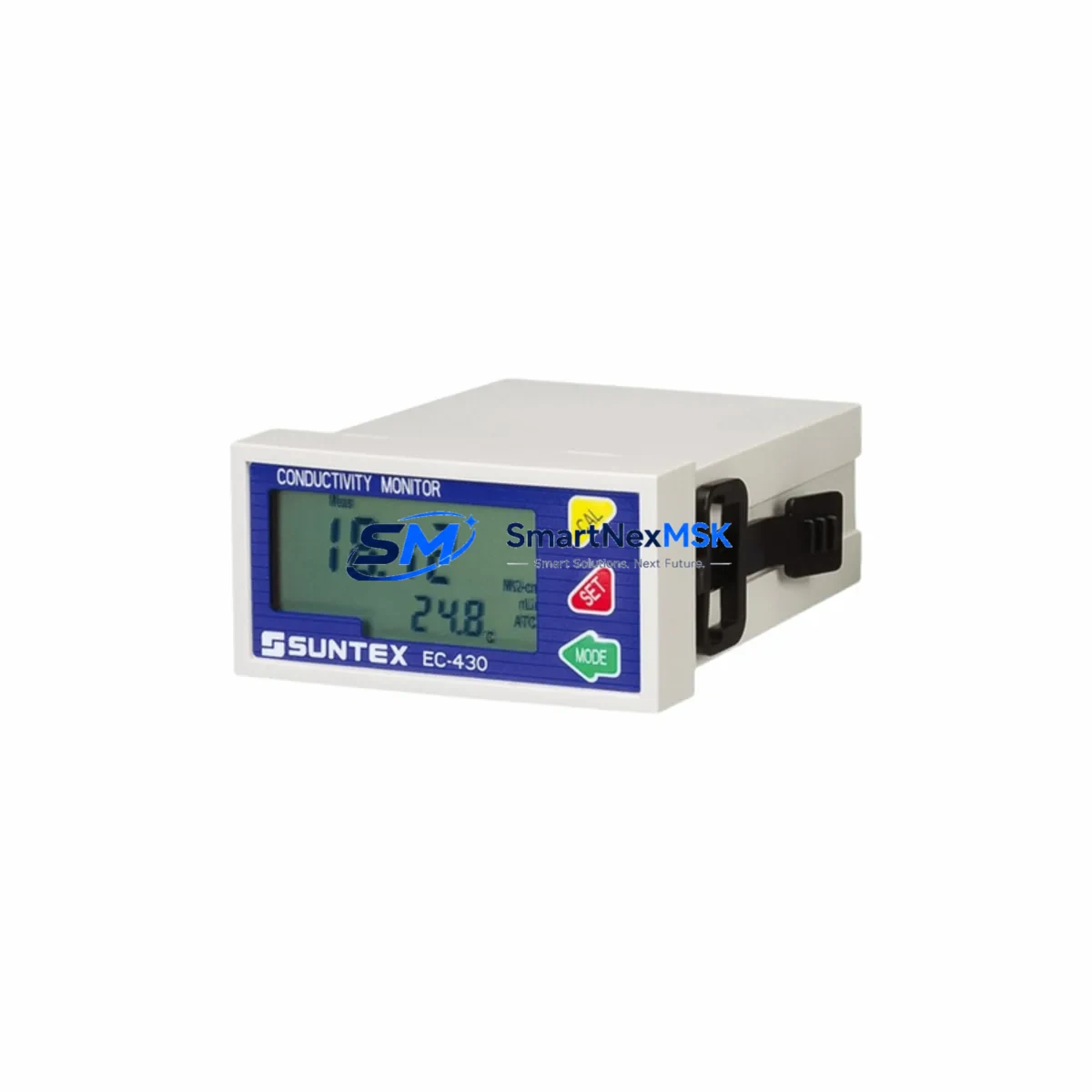

SUNTEX EC-430 Retrofit-Ready Conductivity Monitor for EC Series Control Systems

The SUNTEX EC-430 is a precision online conductivity monitor engineered for seamless integration into existing EC Series process control architectures. Whether you are replacing an end-of-life EC-410, decommissioning a legacy EC-420, or upgrading a multi-loop water treatment control cabinet, the EC-430 delivers a verified drop-in retrofit path with minimal engineering overhead. Its backward-compatible terminal layout, dual analog output channels, and support for RS-485 Modbus RTU communication make it the preferred replacement unit for industrial water quality monitoring, semiconductor rinse water control, boiler feedwater management, and chemical dosing systems.

Procurement teams and maintenance engineers working on aging SUNTEX EC Series installations will find the EC-430 particularly valuable when the original controller has reached end-of-production status and spare parts are no longer available through standard distribution channels. SMARTNEXMSK maintains verified stock of the EC-430 and ships with a 12-month warranty covering manufacturing defects and functional performance under rated operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful EC-430 retrofit begins well before the unit arrives on site. Engineers should start by auditing the existing control cabinet wiring diagram to confirm terminal assignments for the sensor input, analog output loop, relay contacts, and RS-485 bus. In most EC-410 and EC-420 installations, the sensor cable terminates at a BNC connector on the front panel, which is physically identical on the EC-430, eliminating the need to re-terminate the electrode cable or recalibrate the cell constant at the instrument level.

For sites running a SUNTEX SC-4300 or SC-5300 multi-parameter controller as the upstream SCADA node, the EC-430’s Modbus RTU register map must be loaded into the controller’s polling table before the old unit is removed. This prevents a communication timeout alarm from propagating to the DCS during the swap window. If the existing installation used a SUNTEX EC-420 with RS-232 output feeding a serial-to-Ethernet converter, the converter should be replaced with a dedicated RS-485 to Ethernet gateway to take full advantage of the EC-430’s native Modbus capability and reduce latency in the data acquisition loop.

Power supply verification is a critical pre-installation step. The EC-430 accepts both AC 100–240 V and DC 24 V, which means it can be powered directly from a 24 VDC rail in a modern control cabinet without an intermediate transformer. Sites that previously relied on a dedicated AC transformer for the EC-410 can simplify their panel layout by connecting the EC-430 to the existing 24 VDC bus shared with other instruments such as the SUNTEX pH-430 online pH monitor or the SUNTEX DO-430 dissolved oxygen transmitter, provided the bus has sufficient current headroom.

Relay output wiring should be verified against the new unit’s default configuration. The EC-430 ships with Relay 1 assigned to the high-conductivity alarm and Relay 2 unassigned. If the legacy EC-420 used both relays for dosing pump control, the technician must re-enter the setpoint values and hysteresis bands during commissioning. These parameters are stored in non-volatile memory and will survive a power cycle, but they must be documented in the site’s instrument calibration record before the system is returned to service.

For installations where the EC-430 is being integrated into a larger water treatment automation system alongside a SUNTEX CL-430 residual chlorine analyzer or a SUNTEX TU-430 turbidity monitor, it is advisable to assign each instrument a unique Modbus device address before installation and to verify address conflicts on the RS-485 bus using a portable Modbus scanner. Address conflicts are one of the most common causes of intermittent communication faults in multi-instrument RS-485 networks and can be difficult to diagnose after the panel is closed.

If the site uses a third-party PLC or DCS — such as a Siemens S7-1200, Allen-Bradley Micro820, or Mitsubishi FX5U — as the Modbus master, the integrator should request the EC-430 Modbus register map from SMARTNEXMSK at the time of order to allow PLC program modifications to be completed and tested in simulation before the physical swap. This approach eliminates the need for on-site programming during the maintenance window and significantly reduces the risk of extended downtime.

Downtime Control During System Migration

Minimizing process interruption during an EC-430 installation requires a structured hot-swap protocol. The recommended approach is to pre-configure the EC-430 on the bench — entering the cell constant, temperature compensation mode, analog output scaling, relay setpoints, and Modbus address — before the maintenance window begins. A bench calibration using a certified conductivity standard traceable to NIST or equivalent national metrology institute should be completed and recorded in the calibration certificate that ships with the unit.

During the swap, the process should be placed in manual control mode at the DCS or SCADA level to prevent the conductivity signal loss from triggering an automatic shutdown or dosing pump runaway. The old unit’s terminal connections should be photographed and labeled before removal. The EC-430 can typically be mechanically installed and electrically connected within 15 to 20 minutes by a qualified instrument technician familiar with the EC Series panel cutout dimensions.

Once the EC-430 is powered and communicating, the first verification step is to confirm that the analog output reads correctly at the DCS input card. A loop calibrator connected in series with the 4–20 mA output can be used to verify signal integrity without requiring a process fluid sample. The Modbus communication link should then be tested by issuing a read command to the holding register for the primary conductivity value and confirming that the response matches the local display reading.

Original PLC or DCS program logic does not need to be modified if the EC-430 is replacing an EC-420 in a Modbus-enabled installation, provided the register addresses and scaling factors are preserved. For EC-410 replacements where no digital communication existed, the integrator will need to add a Modbus read block to the PLC program and map the conductivity value to the appropriate process variable tag. SMARTNEXMSK’s technical support team can provide a sample function block for Siemens TIA Portal, Rockwell Studio 5000, or Mitsubishi GX Works3 upon request.

All pre-shipment units undergo a 48-hour burn-in test and a full functional verification of analog outputs, relay contacts, and Modbus communication before dispatch. A test report is included with each shipment. The 12-month warranty covers all manufacturing defects and functional failures under rated operating conditions and is supported by SMARTNEXMSK’s global logistics network for rapid replacement dispatch.

Retrofit Support FAQ

Q1: Is the EC-430 a direct drop-in replacement for the EC-410 and EC-420?
Yes. The EC-430 uses the same 92 × 92 mm panel cutout, identical BNC electrode connector, and the same 5.08 mm terminal block pitch as both legacy models. No mechanical modifications to the panel are required. Relay setpoints and analog output scaling must be re-entered during commissioning, as these parameters are not transferable from the old unit.

Q2: Can the EC-430 communicate with my existing SCADA system via Modbus?
Yes. The EC-430 supports RS-485 Modbus RTU with a configurable device address (1–247) and baud rate (1200–19200 bps). It is compatible with any Modbus master including Siemens, Allen-Bradley, Mitsubishi, Schneider, and third-party SCADA platforms. The full register map is available from SMARTNEXMSK upon request at the time of order.

Q3: What pre-shipment testing is performed on each EC-430 unit?
Every EC-430 undergoes a 48-hour burn-in test, analog output calibration verification across the full 4–20 mA range, relay contact continuity check, and Modbus communication functional test before dispatch. A test report and calibration certificate are included with each shipment. The unit is covered by a 12-month warranty from the date of shipment.

Q4: What information should I provide when ordering to ensure compatibility?
Please provide the model number of the unit being replaced (e.g., EC-410 or EC-420), the existing electrode cell constant and connector type, the power supply voltage available at the panel, the communication protocol in use, and the Modbus master platform if applicable. SMARTNEXMSK’s technical team will confirm compatibility and provide wiring guidance before shipment.
