TACHIBANA TECTRON TVME1606A-01 Safety VME Bus Control Module

TACHIBANA TECTRON TVME1606A-01 Safety VME Bus Control Module: Reliable Control for Harsh Industrial Sites

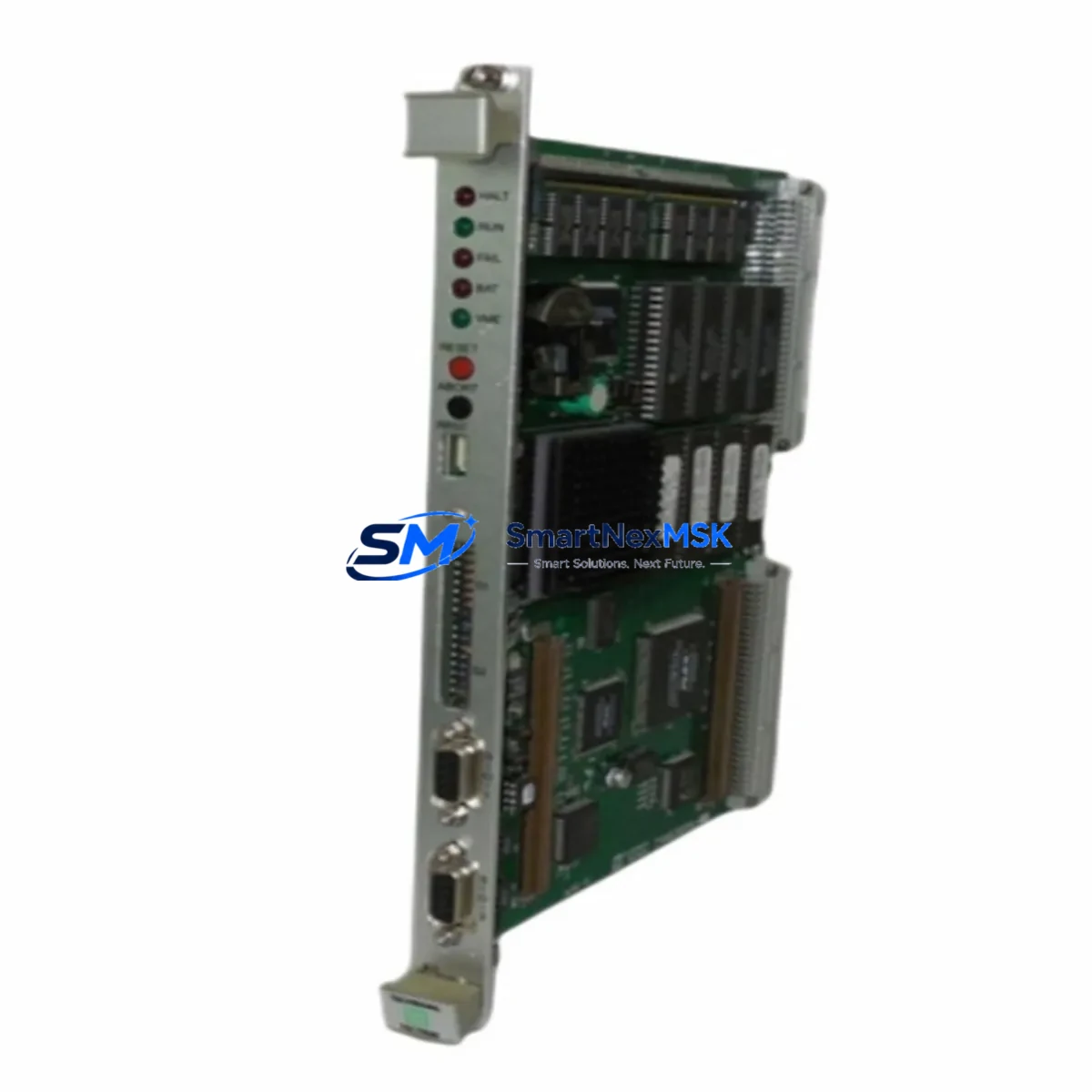

The TACHIBANA TECTRON TVME1606A-01 REV.B is a ruggedized VME bus control module engineered for mission-critical industrial automation environments where control continuity, signal integrity, and system safety are non-negotiable. Designed to operate reliably under high electrical noise, wide temperature swings, mechanical vibration, and continuous-duty production cycles, this module serves as a dependable backbone in safety-critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgical, and port logistics facilities.

In demanding industrial sites, a single point of control failure can cascade into unplanned downtime, process hazards, or safety interlock failures. The TVME1606A-01 REV.B addresses these risks through its hardened VME bus architecture, which provides stable, deterministic communication between the CPU module and I/O subsystems — eliminating the signal drift and bus contention that plague standard commercial-grade controllers in high-interference environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the TVME1606A-01 REV.B does not operate in isolation — it functions as the central coordination node within a layered protection architecture. To maximize system safety and uptime, it is typically deployed alongside a suite of complementary components.

On the power supply side, a dedicated VME backplane power supply unit with active surge suppression ensures that voltage transients from motor starts, arc flash events, or grid switching do not propagate to the control bus. Pairing the module with a 24VDC DIN-rail power supply for field I/O circuits further isolates the logic layer from field-side disturbances. In facilities with unstable grid power — common in mining and port environments — an industrial UPS module provides ride-through capability during momentary outages, preventing the TVME1606A-01 REV.B from experiencing uncontrolled shutdowns that could corrupt process state.

For I/O expansion and signal conditioning, the module integrates with VME digital I/O boards and analog input modules that handle 4–20mA process signals from field transmitters. These I/O modules benefit from signal isolators and surge protection terminal blocks installed at the cabinet entry point, which clamp transient voltages before they can reach the VME backplane. In high-vibration environments such as compressor stations or rolling mills, vibration-dampening DIN-rail mounting systems protect the physical integrity of the entire assembly.

Communication reliability is maintained through VME-to-serial gateway modules or fieldbus interface cards (PROFIBUS, Modbus RTU) that connect the TVME1606A-01 REV.B to distributed field devices, remote I/O stations, and SCADA systems. Optical isolation on these communication interfaces prevents ground loop currents — a frequent cause of communication anomalies in large industrial plants — from disrupting data integrity. For safety interlock applications, the module is often paired with a safety relay module or emergency stop monitoring unit that provides hardwired redundancy for critical shutdown circuits, ensuring that a software fault in the control layer cannot prevent a physical safety response.

Thermal management within the cabinet is addressed through forced-air cooling fans with filter mats or heat exchanger units, maintaining the TVME1606A-01 REV.B within its rated operating temperature even in high-ambient-temperature environments such as steel plant control rooms or outdoor substations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where hydrocarbon handling demands zero-tolerance for control interruptions, the TVME1606A-01 REV.B provides stable VME bus control for burner management systems, emergency shutdown (ESD) logic, and compressor anti-surge control. Its resistance to airborne chemical contaminants and high-humidity conditions makes it suitable for both indoor control rooms and pressurized enclosures near process units.

Power Generation & Substation Automation: Turbine governor control, excitation system management, and protection relay coordination all demand deterministic, low-latency control response. The TVME1606A-01 REV.B’s stable bus arbitration and EMI-hardened design ensure reliable operation in the high-magnetic-field environments typical of generator halls and high-voltage switchgear rooms.

Mining & Mineral Processing: Conveyor interlocking, crusher control, and ventilation safety systems in underground and open-pit mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature variation. The ruggedized construction of the TVME1606A-01 REV.B supports long-term reliable operation in these conditions without requiring frequent recalibration or replacement.

Water & Wastewater Treatment: Pump station control, chemical dosing automation, and SCADA-integrated monitoring systems rely on consistent module performance across multi-year operational cycles. The TVME1606A-01 REV.B supports these applications with stable I/O communication and resistance to the high-humidity, corrosive-atmosphere conditions common in water treatment facilities.

Metallurgy & Steel Production: Rolling mill automation, furnace temperature control, and ladle handling systems operate under extreme thermal loads and electromagnetic interference from high-current induction equipment. The TVME1606A-01 REV.B’s hardened design maintains control loop integrity in these environments, reducing the risk of module misoperation that could result in product defects or equipment damage.

Port & Heavy Logistics Automation: Crane control systems, automated stacking equipment, and conveyor management in port terminals require control modules that can withstand salt-air corrosion, vibration from heavy machinery, and the electrical noise generated by large variable-frequency drives. The TVME1606A-01 REV.B is a proven replacement and upgrade option for aging VME-based control systems in these facilities.

Safety and Quality FAQ

Q: What does the 12-month warranty cover?
A: The warranty covers all defects in materials and workmanship for 12 months from the date of shipment. If the TVME1606A-01 REV.B fails under normal operating conditions within this period, we will repair or replace the unit at no charge. The warranty applies to the module itself and does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q: What pre-shipment testing is performed on each unit?
A: Every TVME1606A-01 REV.B undergoes a full functional test before dispatch. This includes VME bus communication verification, power-on self-test validation, I/O channel integrity checks, and visual inspection for physical defects. Test records are available upon request for quality-critical procurement processes.

Q: Is this module compatible with existing TACHIBANA TECTRON VME systems?
A: Yes. The TVME1606A-01 REV.B is designed to be backward-compatible with standard VMEbus (IEEE 1014) backplanes and is a direct replacement for earlier TVME1606A-01 revisions. It is compatible with standard 6U VME chassis from major manufacturers. For specific system integration questions, contact our technical team with your chassis model and backplane configuration details.

Q: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
A: We maintain dedicated inventory of the TVME1606A-01 REV.B to support customers with multi-year maintenance contracts and planned spare parts programs. For facilities requiring guaranteed availability over a 2–5 year horizon, we recommend discussing a reserved stock arrangement with our sales team to ensure continuity of supply without lead-time risk.
