TECHNO DRIVE KR-505M Safety-Enhanced Microstepping Driver

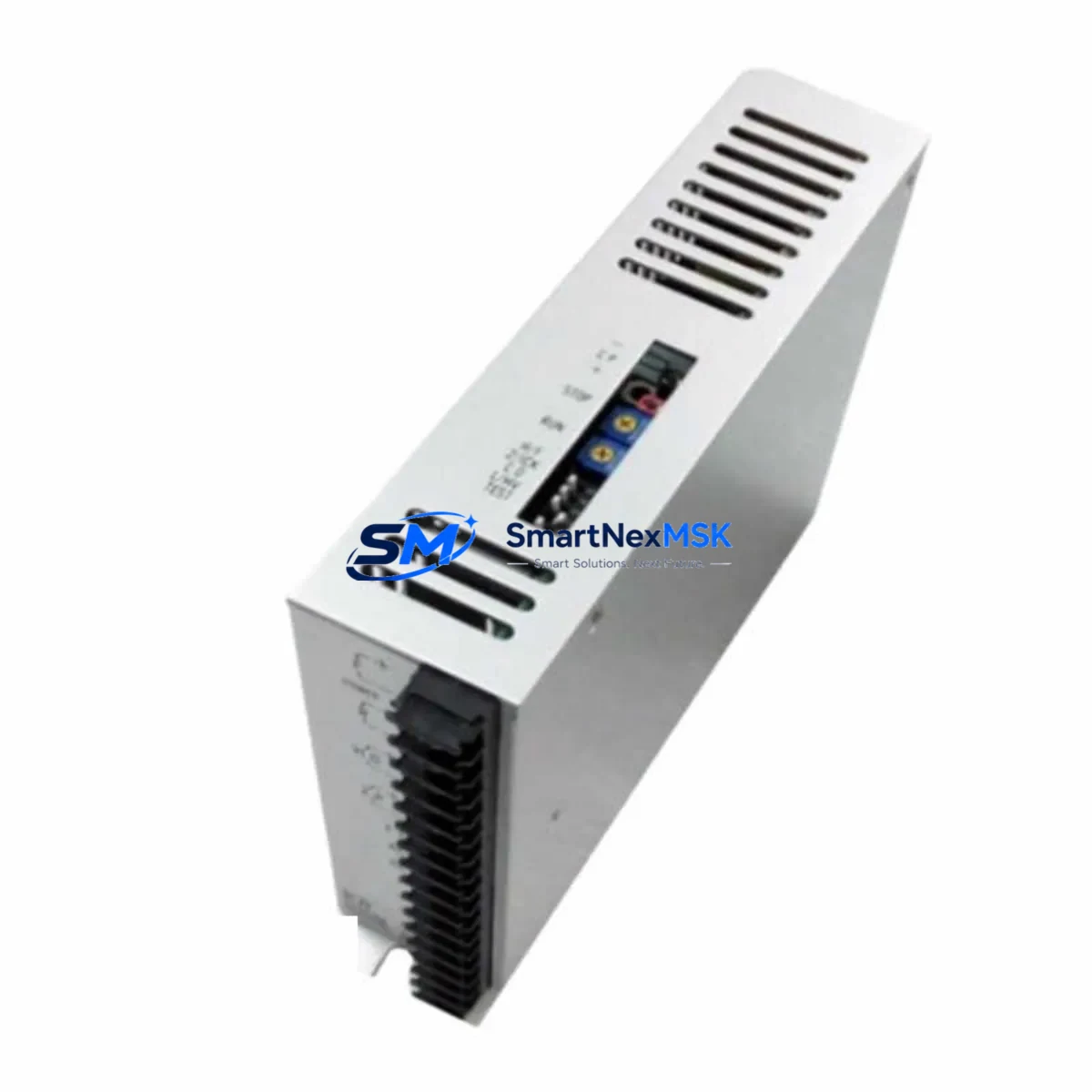

TECHNO DRIVE KR-505M Safety-Enhanced Microstepping Driver for Harsh Industrial Sites

In high-demand industrial environments — from petrochemical processing lines and continuous steel rolling mills to port crane control systems and underground mining conveyors — motion control reliability is not optional. The TECHNO DRIVE KR-505M is a ruggedized two-phase bipolar microstepping driver engineered to deliver stable, interference-resistant stepper motor control under the most demanding field conditions. Designed for the KR Series platform, this driver module addresses the core failure modes that cause unplanned downtime: signal drift, power fluctuation, EMI-induced misstepping, and thermal runaway in enclosed control cabinets.

Whether deployed in a critical interlock loop, a continuous-production conveyor drive, or a precision valve actuator in a hazardous-area marshalling cabinet, the KR-505M provides the hardware-level protection and signal integrity that industrial safety demands. Its optocoupler-isolated control inputs, built-in overcurrent shutdown, TVS surge clamping, and automatic thermal current reduction work together to prevent the cascade failures that lead to unplanned stops, equipment damage, and personnel risk.

Safety Reliability Table

Control Cabinet Protection Strategy

The KR-505M is engineered to operate as a reliable node within a fully protected industrial control cabinet. In practice, it is deployed alongside a coordinated set of protective and control components that together eliminate the most common causes of motion-system failure in continuous production environments.

On the power supply side, the KR-505M is typically paired with a MEAN WELL SDR-120-48 DIN-rail switching power supply, which provides a stable DC bus voltage even during grid fluctuations common in heavy industrial facilities. To guard against upstream surges — particularly in plants with large inductive loads such as welding machines or variable-frequency drives — a Phoenix Contact TRABTECH surge protection device is installed at the cabinet entry point, preventing transient spikes from reaching the driver’s DC input and triggering nuisance shutdowns or permanent damage.

Signal integrity is maintained through Weidmüller optocoupler signal isolators on the PUL/DIR lines, ensuring that high-frequency noise from adjacent servo drives or frequency inverters does not corrupt the step-pulse train. In applications where the KR-505M is commanded by a Siemens S7-1200 PLC or a Mitsubishi FX5U controller, the isolated digital outputs of these controllers connect directly to the driver’s differential inputs, maintaining signal fidelity across long cable runs in electrically noisy environments.

For multi-axis systems, the KR-505M is often installed in the same cabinet as the TECHNO DRIVE KR-808M high-current driver handling larger NEMA 34 motors, with both units sharing a common DC bus protected by a Schaffner FN2070 EMC line filter. This filter suppresses conducted emissions that could otherwise interfere with nearby Moxa NPort serial device servers or Advantech ADAM-6050 remote I/O modules used for field-level data acquisition and process monitoring.

In safety-critical interlock circuits — such as emergency stop loops in chemical dosing systems or conveyor jam-detection circuits — the KR-505M’s ENA (enable) input is wired through a Pilz PNOZ safety relay, ensuring that the motor is de-energized immediately upon any safety event, without relying on software-level commands that could be delayed by communication latency or controller fault states.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous-area control rooms and safe-area marshalling cabinets, the KR-505M drives precision valve actuators and metering pump motors where step-loss or unexpected motion reversal could trigger process upsets. Its optocoupler-isolated inputs and hardware overcurrent protection ensure that a single-point electrical fault does not cascade into a process safety event, protecting both personnel and production continuity.

Power Generation and Substation Auxiliary Systems: Stepper-driven positioning systems for tap changers, cooling louver actuators, and fuel feed mechanisms in power plants demand zero-drift motion control. The KR-505M’s wide input voltage tolerance (DC 20–50V) accommodates the voltage variations common in substation auxiliary DC systems without requiring additional regulation stages, reducing cabinet complexity and potential failure points.

Mining and Tunneling Operations: Underground conveyor belt tensioning systems and rock drill feed mechanisms operate in environments with extreme vibration, coal dust, and high humidity. The KR-505M’s robust thermal management and vibration-resistant construction allow it to maintain accurate positioning control in these conditions, reducing the risk of belt misalignment or drill feed runaway that could endanger personnel and halt production.

Water and Wastewater Treatment: Chemical dosing pumps, sluice gate actuators, and filter backwash valve drives in water treatment plants require precise, repeatable motion. The KR-505M’s microstepping resolution (up to 1/128 step) enables smooth, low-vibration operation that extends mechanical seal life and reduces maintenance intervals in these continuously operating, safety-critical facilities.

Metallurgy and Steel Rolling Mills: In continuous casting and hot rolling lines, the KR-505M controls guide roller positioning and cooling water valve actuators. Its ability to operate reliably in the presence of strong electromagnetic fields generated by large induction furnaces and thyristor drives makes it a preferred choice for motion control in these electrically hostile environments where signal drift can cause costly product defects.

Port and Heavy Logistics Equipment: Automated stacking cranes, reach stackers, and conveyor sorting systems in port terminals rely on stepper-driven positioning for container alignment and load transfer. The KR-505M’s surge protection and thermal shutdown features prevent driver failure during the high-duty-cycle operation typical of 24/7 port logistics, where unplanned downtime directly impacts throughput and revenue.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the product datasheet. If a unit fails within the warranty period, contact sales@smartnexmsk.com with the order reference and a description of the fault. We will arrange replacement or repair at no charge, including return shipping for confirmed warranty cases.

Q2: What pre-shipment testing is performed on the KR-505M before delivery?
Every KR-505M unit undergoes functional verification prior to shipment, including full-load current output testing, microstep resolution verification across all DIP switch settings, optocoupler isolation integrity check, and thermal cycling to confirm protection circuit operation. Units that do not pass all test criteria are not shipped.

Q3: Is the KR-505M compatible with third-party PLCs and motion controllers?
Yes. The KR-505M accepts standard differential or single-ended PUL/DIR/ENA signals compatible with the digital outputs of Siemens, Mitsubishi, Omron, Delta, and Beckhoff controllers, as well as dedicated motion control cards from Leadshine and Advantech. Signal voltage levels of 5V and 24V are both supported via the onboard optocoupler input stage, requiring no additional interface hardware in most installations.

Q4: Can long-term supply continuity be guaranteed for ongoing production line maintenance?
The KR-505M is a stocked product maintained in our Xiamen warehouse with buffer inventory to support ongoing spare-parts programs. For production facilities requiring guaranteed supply continuity, we offer blanket order arrangements with reserved stock allocation. Contact our sales team to discuss volume and lead-time commitments tailored to your maintenance schedule.
