TEL E2B119-12/86MC Safety-Enhanced PCB Control for Harsh Sites

TEL E2B119-12/86MC Safety-Enhanced PCB Control for Harsh Industrial Sites

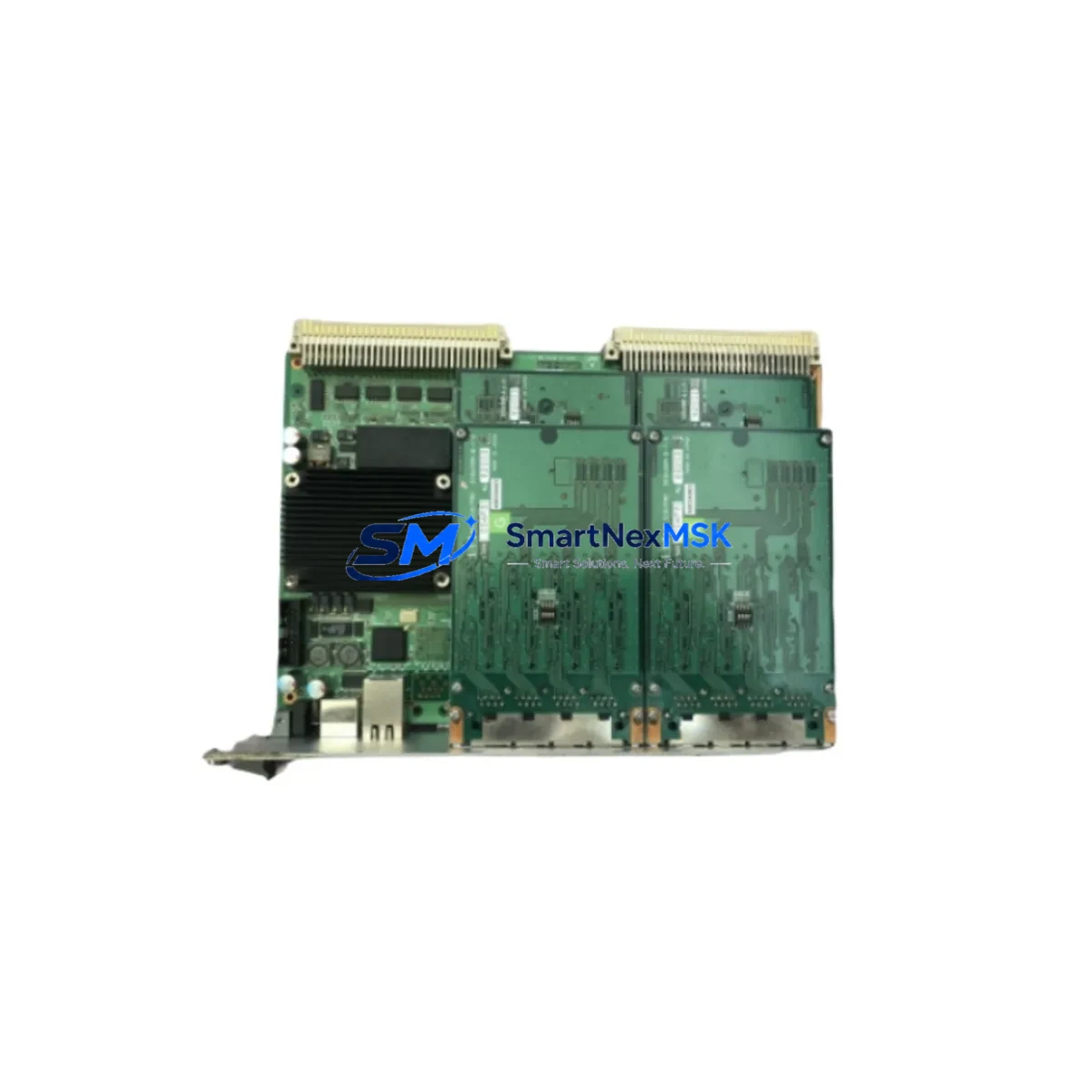

The TEL E2B119-12/86MC (P/N: E281-005036-12) is a ruggedized PCB control board engineered for continuous, fault-tolerant operation in high-demand industrial environments. Designed to meet the exacting standards of semiconductor fabrication equipment and heavy industrial control systems, this module delivers stable signal processing, robust power conditioning, and reliable interlock logic even under sustained electrical stress, mechanical vibration, and thermal cycling. For facilities where unplanned downtime carries significant safety and financial consequences, the E2B119-12/86MC represents a proven, field-tested solution for maintaining control loop integrity.

Built on a multi-layer PCB substrate with conformal coating, the board resists moisture ingress, conductive dust, and corrosive atmospheres — conditions routinely encountered in petrochemical plants, metallurgical furnaces, port crane control cabinets, and water treatment SCADA panels. Its onboard signal conditioning circuitry suppresses common-mode noise and differential interference, protecting downstream I/O modules and communication interfaces from the transient spikes that frequently cause nuisance trips or latent damage in high-power switching environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the TEL E2B119-12/86MC does not operate in isolation — it functions as a critical node within a layered protection architecture. On the power supply side, it works in conjunction with 24 VDC regulated power supplies and DIN-rail mounted surge protective devices (SPDs) to absorb voltage transients generated by large motor starters, variable frequency drives (VFDs), and solenoid valve switching. When paired with a TEL power distribution board or equivalent backplane power module, the E2B119-12/86MC benefits from clean, regulated rail voltages that prevent logic errors caused by supply ripple.

For communication integrity, the board interfaces with fieldbus communication cards — including PROFIBUS DP adapters, DeviceNet scanners, and RS-422/RS-485 serial interface modules — ensuring that process data reaches the host controller without corruption. In safety interlock circuits, the E2B119-12/86MC works alongside safety relay modules and emergency stop (E-stop) monitoring units to enforce de-energize-to-trip logic, a fundamental requirement in SIL-rated control loops. Redundant I/O modules installed in parallel slots provide hot-standby capability, so a single board failure does not interrupt the safety function.

Signal conditioning is further supported by analog input isolators and digital filter modules that sit upstream of the E2B119-12/86MC, blocking ground loop currents and common-mode voltages that would otherwise introduce measurement drift in precision process control loops. Downstream, the board drives output relay cards and solid-state relay (SSR) driver modules that switch field devices — pumps, actuators, and dampers — with the precise timing required for safe sequencing. The complete assembly, when housed in a properly grounded IP54 or IP65 enclosure with cable management and shielded wiring, forms a control cabinet capable of continuous operation in Class I, Division 2 or Zone 2 classified areas.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units such as distillation columns, reactor feed systems, and compressor trains, the TEL E2B119-12/86MC supports the interlock logic that prevents over-pressure, over-temperature, and runaway reaction conditions. Its resistance to hydrocarbon vapor atmospheres and its stable operation across wide ambient temperature swings make it a reliable choice for both the control room marshalling cabinet and field junction boxes in hazardous areas.

Electric Power Generation & Substation Control: Turbine governor control panels and protection relay panels demand PCB-level components that maintain signal fidelity during high-voltage switching transients. The E2B119-12/86MC’s onboard EMI suppression and surge clamping protect the control logic from the fast-rising voltage spikes associated with circuit breaker operation and transformer energization.

Mining & Mineral Processing: Conveyor drive control systems, crusher sequencing panels, and ventilation safety interlocks in underground mining operations subject control electronics to severe vibration, coal dust, and humidity. The conformal-coated construction of the E2B119-12/86MC provides a meaningful barrier against these contaminants, reducing the frequency of board-level failures that force production halts.

Water & Wastewater Treatment: SCADA-integrated pump station control panels and chemical dosing systems rely on stable analog signal processing to maintain safe effluent quality. The E2B119-12/86MC’s low-drift signal conditioning supports accurate 4–20 mA loop measurements, reducing the risk of under- or over-dosing events that carry regulatory and public safety implications.

Metallurgy & Steel Production: Electric arc furnace (EAF) control systems and rolling mill drive panels generate some of the most severe electromagnetic interference found in any industrial environment. The E2B119-12/86MC’s robust filtering architecture allows it to maintain reliable operation in these high-noise conditions, supporting the precise current and temperature control required for product quality and furnace safety.

Port & Heavy Lifting Equipment: Crane control systems and ship-to-shore loader panels require control boards that tolerate salt-laden air, wide temperature excursions, and the mechanical shock of heavy load handling. The E2B119-12/86MC’s ruggedized construction addresses these demands, supporting safe load management and anti-collision interlock functions.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the TEL E2B119-12/86MC?
Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your downtime exposure.

Q2: How is each board tested before shipment?
All TEL E2B119-12/86MC boards undergo a 100% functional outgoing inspection prior to dispatch. Testing covers power rail integrity, signal I/O continuity, logic function verification, and visual inspection for solder joint quality and component condition. A test record is retained for traceability.

Q3: Is the E2B119-12/86MC compatible with existing TEL equipment and third-party control systems?
The E2B119-12/86MC is a direct form-fit-function replacement for the original TEL assembly. It is compatible with TEL semiconductor processing equipment that uses the E281-005036-12 board assembly. For integration into third-party control cabinets, the board’s standard backplane connector and signal levels are consistent with TEL’s published interface specifications. Consult your system documentation or contact our technical team for application-specific compatibility confirmation.

Q4: Can long-term supply continuity be guaranteed for critical maintenance programs?
Yes. We maintain dedicated safety stock of the TEL E2B119-12/86MC to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. For facilities operating under a critical spares policy, we offer reserved inventory arrangements and advance purchase agreements to ensure supply availability throughout your equipment’s service life.
