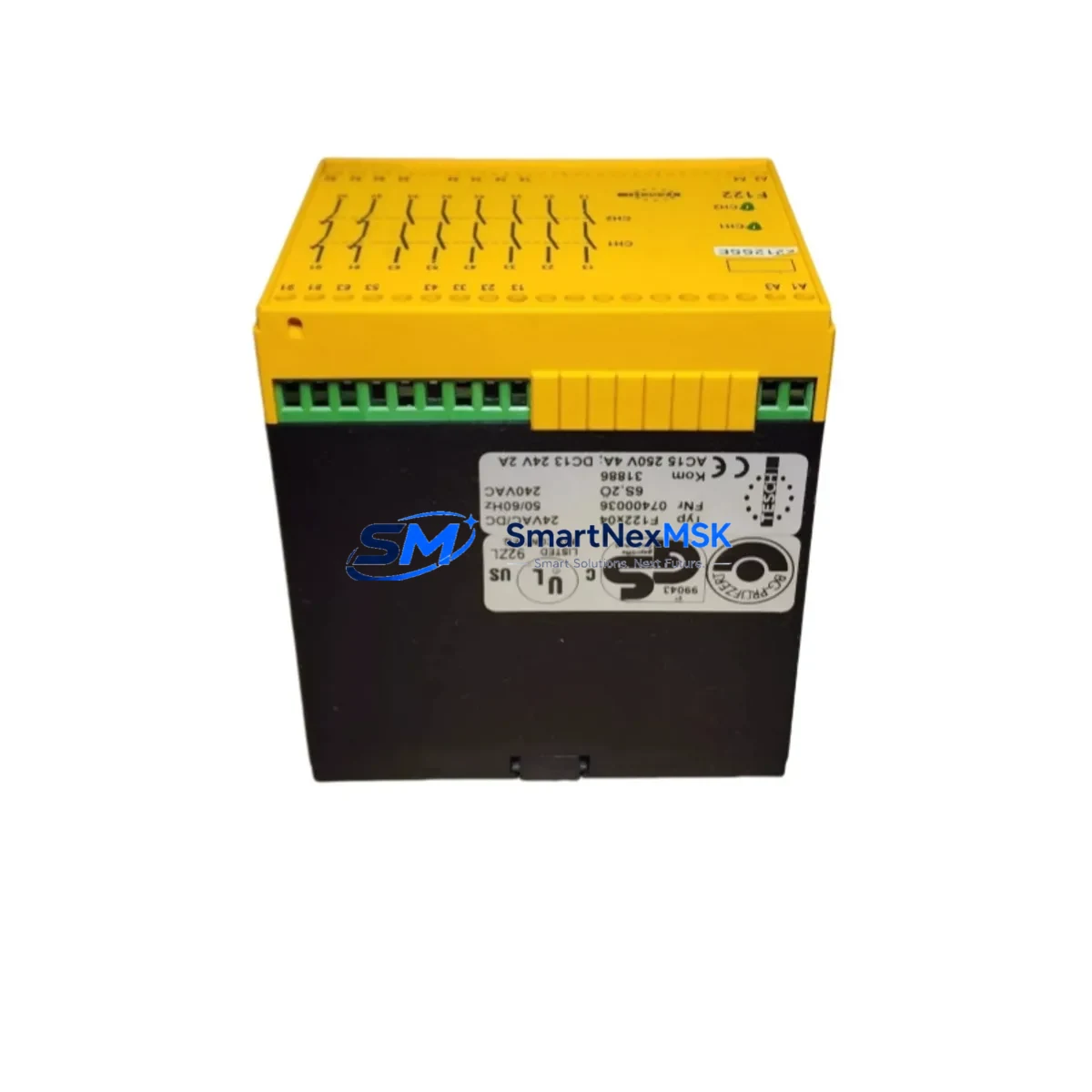

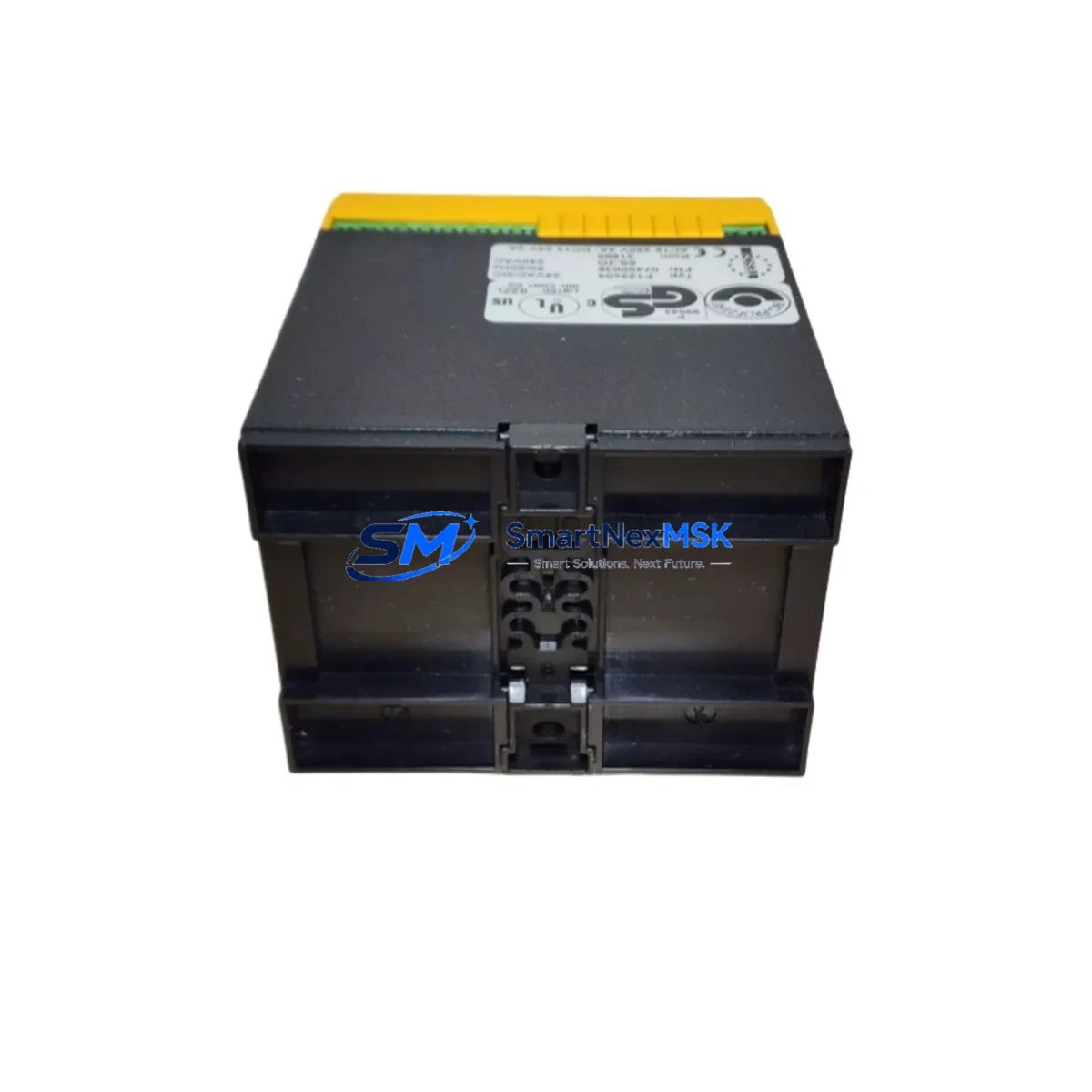

TESCH F12304 Safety-Enhanced Relay Module for Harsh Industrial Sites

TESCH F12304 Safety-Enhanced Relay Module for Harsh Industrial Sites

The TESCH F12304 is a ruggedized dual-channel safety relay module engineered for continuous, fault-tolerant operation in the most demanding industrial control environments. Designed to meet the stringent requirements of IEC 62061 and EN ISO 13849-1 (Category 4, PLe), the F12304 delivers deterministic safety switching for emergency-stop circuits, safety gate monitoring, light curtain interfaces, and two-hand control interlocks — precisely where control-loop integrity is non-negotiable.

In high-load production lines, petrochemical processing units, power generation switchgear rooms, and heavy metallurgical control cabinets, a single relay misoperation can cascade into unplanned downtime, equipment damage, or personnel injury. The TESCH F12304 eliminates this risk through redundant internal relay paths, cross-circuit monitoring, and automatic or manual reset logic — ensuring that every safety demand is answered with a verified, repeatable response. Its wide operating temperature range and reinforced terminal block design make it equally reliable in sub-zero cold storage automation and high-ambient-temperature furnace control panels.

Signal drift and electromagnetic interference are persistent threats in variable-frequency drive environments, arc furnace bays, and high-current bus zones. The F12304’s input circuitry is hardened against common-mode noise and transient surges, maintaining clean switching thresholds even when installed adjacent to SIEMENS SINAMICS G120 drives, ABB ACS880 inverters, or Schneider Electric Altivar Process VFDs. This makes it a preferred choice for integrators building safety-rated control cabinets where power electronics and safety logic share the same enclosure.

For facilities operating under IEC 61511 functional safety management — including offshore platforms, LNG terminals, water treatment SCADA systems, and continuous chemical reactors — the F12304 integrates cleanly into safety instrumented systems (SIS) alongside HIMA HIMatrix F30 safety controllers, Pilz PNOZmulti 2 configurable safety systems, and Phoenix Contact PSR-SCP safety relays. Its standardized 22.5 mm DIN-rail footprint and screw-clamp terminals simplify panel layout and reduce wiring errors during commissioning.

Power supply stability is a foundational requirement for safety relay performance. The F12304 is rated for 24 V DC operation and tolerates supply voltage fluctuations common in industrial environments where PULS PIANO 24 V DIN-rail power supplies or PHOENIX CONTACT QUINT POWER units feed mixed control and safety loads. When paired with a WAGO 787-series buffer module or a MEAN WELL DRP-240 redundant PSU, the F12304 maintains its safety output state through brief supply interruptions — a critical feature in continuous-process industries where nuisance trips carry significant economic penalties.

Communication transparency is equally important. In plants using PROFINET or EtherNet/IP safety networks, the F12304’s discrete output contacts interface directly with Siemens ET 200SP fail-safe I/O modules, Rockwell Allen-Bradley 1734-IB8S Point Guard I/O, or Beckhoff EL1904 TwinSAFE input terminals — enabling the safety PLC to log relay state, monitor response time, and generate maintenance alerts without additional signal conditioning hardware.

Replacement and spare-parts continuity are critical for facilities with long asset lifecycles. The TESCH F12304 is a direct form-fit-function replacement for legacy TESCH TS-F12304 variants and is cross-compatible with standard 35 mm DIN-rail mounting systems used across the TESCH F-series safety relay family, including the F12302 (single-channel) and F12306 (three-channel expansion) models. Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification — including contact resistance measurement, insulation testing, and reset-logic validation — before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust safety cabinet architecture built around the TESCH F12304 typically integrates multiple layers of protection. At the power entry point, a PHOENIX CONTACT QUINT-FUSE or WAGO 787-1664 buffer capacitor module conditions the 24 V DC rail before it reaches the safety relay. Upstream, a PILZ PNOZmulti 2 configurable safety controller — or a Siemens SIMATIC S7-1500F fail-safe CPU — processes the safety logic and issues the demand signal to the F12304’s input terminals.

On the field side, SICK deTec4 Core safety light curtains, SCHMERSAL AZM 200 solenoid interlocks, and BERNSTEIN SRF-M safety rope-pull switches feed dual-channel signals into the F12304, maintaining the required Category 4 architecture throughout the loop. The F12304’s forced-guided output contacts then control the power contactors — typically a SIEMENS 3RT2 or ABB AF-series contactor — that de-energize the hazardous drive or actuator.

For communication back to the control system, a Beckhoff EL1904 TwinSAFE digital input terminal or a Rockwell 1734-IB8S Point Guard module reads the F12304’s auxiliary NC contact, enabling the safety PLC to log every trip event with timestamp and duration. This data feeds into the plant’s functional safety management system, supporting IEC 61511 proof-test scheduling and MTTR tracking without additional instrumentation.

Surge and transient protection at the cabinet boundary — using DEHN DEHNguard or PHOENIX CONTACT TRABTECH surge protective devices on the 24 V DC bus — further extends the F12304’s service life in environments with frequent lightning events or large motor starts on shared power infrastructure.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hydrocarbon processing units, the TESCH F12304 monitors emergency shutdown (ESD) pushbuttons and pressure-relief valve position switches within SIL 2 safety instrumented functions. Its cross-circuit monitoring detects wiring faults before they can mask a genuine safety demand — a requirement under IEC 61511 for SIF proof testing.

Electric Power Generation: Turbine control panels and generator protection switchgear use the F12304 to interlock access doors on high-voltage enclosures. The module’s fast ≤ 20 ms response time ensures that the turbine trip relay receives a de-energize command well within the process safety time defined in the HAZOP study.

Mining & Mineral Processing: Conveyor belt emergency-stop systems in underground coal mines and open-pit copper concentrators rely on dual-channel rope-pull switches wired to the F12304. The module’s wide temperature tolerance and vibration-resistant terminal blocks maintain reliable operation in the high-dust, high-vibration conditions typical of crusher and screen drives.

Water & Wastewater Treatment: SCADA-controlled pump stations and UV disinfection systems use the F12304 to interlock maintenance access hatches on rotating equipment. Its compact 22.5 mm width allows dense panel layouts in space-constrained kiosk enclosures common in distributed water infrastructure.

Metallurgy & Steel: In continuous casting lines and rolling mill control cabinets, the F12304 provides E-stop monitoring for operator pull-cord stations along the mill pass line. Its hardened EMC performance ensures stable switching even in the intense electromagnetic environment generated by large DC thyristor drives and induction heating systems.

Port & Logistics Automation: Ship-to-shore crane control systems and automated stacking crane (ASC) safety circuits use the F12304 to monitor anti-collision limit switches and overload protection relays. The module’s manual reset option enforces deliberate operator acknowledgment before crane motion resumes after a safety trip — a key requirement in ILO port safety guidelines.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the TESCH F12304?
Every TESCH F12304 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Each F12304 undergoes a three-stage pre-delivery inspection: (1) contact resistance measurement on all NO and NC outputs, (2) insulation resistance testing between input and output circuits, and (3) functional reset-logic verification — both automatic and manual reset modes are cycled and confirmed before the unit is packed for dispatch.

Q3: Is the TESCH F12304 compatible with my existing safety PLC and field devices?
Yes. The F12304’s 24 V DC input and forced-guided relay outputs are compatible with all major safety PLC platforms including Siemens SIMATIC S7-1500F, Rockwell GuardLogix, Pilz PNOZmulti 2, and Beckhoff TwinSAFE. Its standard DIN-rail footprint and screw-clamp terminals accept 0.2–2.5 mm² conductors, fitting the wiring standards used across European and Asian industrial installations.

Q4: Can SMARTNEXMSK guarantee long-term supply of the F12304 for ongoing maintenance?
SMARTNEXMSK maintains dedicated stock of the TESCH F12304 and key F-series variants to support facilities with multi-year maintenance contracts and scheduled proof-test replacement programs. For projects requiring guaranteed supply over 12–36 months, contact our sales team to discuss a blanket order or consignment stock arrangement.
