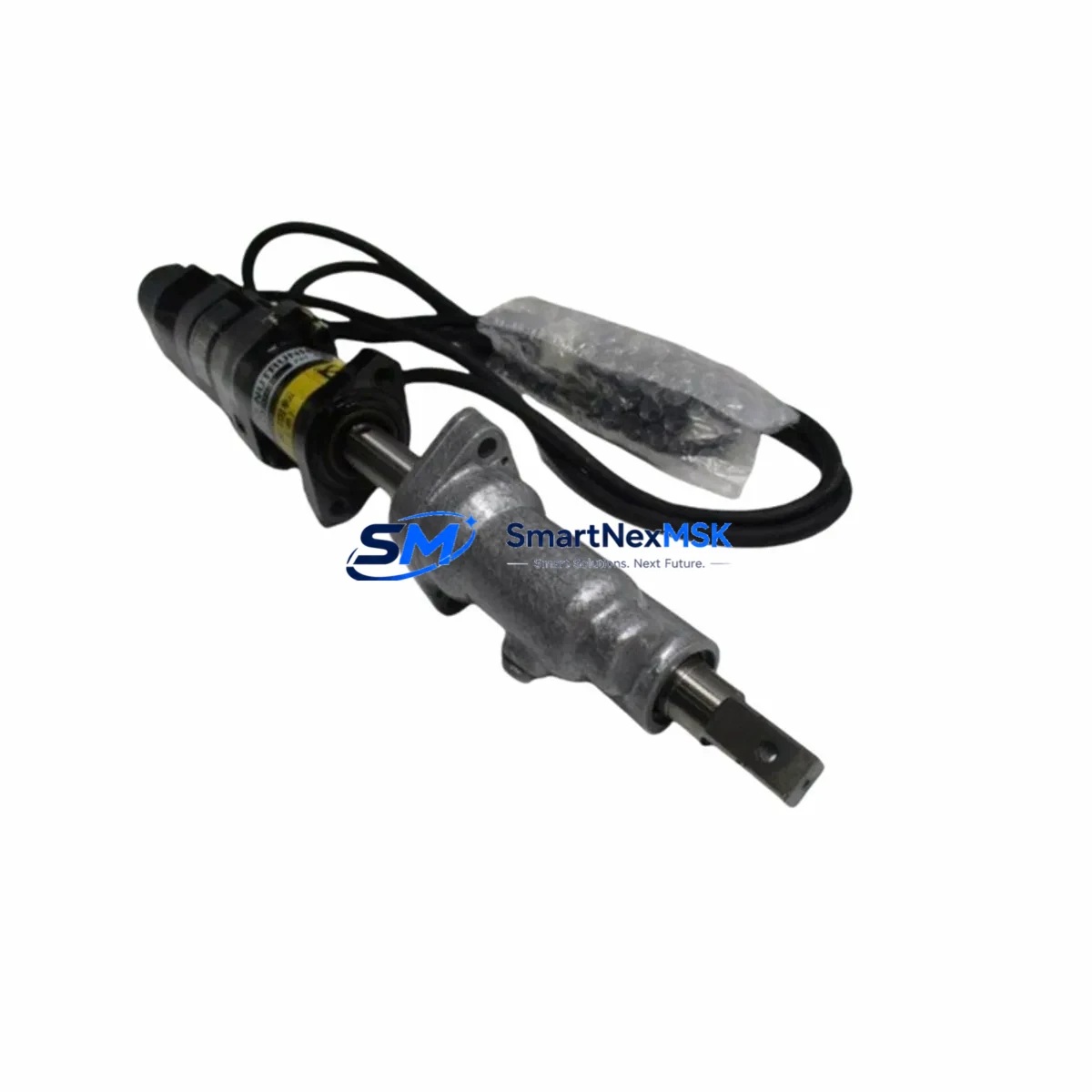

TORQUE TS4617N1920E203 Safety-Enhanced AC Servo Nutrunner

TORQUE TS4617N1920E203 Safety-Enhanced AC Servo Nutrunner for Harsh Industrial Sites

The TORQUE TS4617N1920E203 is a precision AC servo nutrunner engineered for safety-critical fastening operations in demanding industrial environments. As part of TORQUE’s proven TS Series, this unit delivers closed-loop torque and angle control with real-time feedback, ensuring every joint is tightened to exact specification — eliminating under-torque and over-torque failures that can compromise structural integrity, trigger safety shutdowns, or cause costly field incidents in continuous production lines.

In high-load assembly stations, heavy-duty manufacturing cells, and critical infrastructure maintenance environments, fastening accuracy is not merely a quality metric — it is a safety imperative. The TS4617N1920E203 addresses this directly through its servo-driven closed-loop architecture, which continuously monitors torque output and angular displacement, compensating in real time for tool wear, joint compliance variation, and power fluctuation. This makes it particularly well-suited for applications where fastening failures could trigger safety interlock systems, halt production, or create hazardous conditions for field personnel.

The ruggedized housing of the TS4617N1920E203 is designed to withstand the mechanical shock, vibration, and contamination typical of heavy industrial sites — including automotive body-in-white lines, steel structure assembly, pressure vessel manufacturing, and power generation equipment maintenance. Its sealed construction resists dust ingress and coolant splash, maintaining reliable operation even in environments where standard pneumatic or electric tools would degrade rapidly.

Safety Reliability Table

Control Cabinet Protection Strategy

The TS4617N1920E203 operates as part of a broader fastening and control system architecture. In a properly configured control cabinet, it is paired with a TORQUE TS Series servo controller (such as the TS-CON series), which manages torque curves, angle windows, and result classification (OK/NOK). The servo controller communicates fastening results to the line PLC — typically a Siemens S7-1500 or Mitsubishi MELSEC iQ-R series — via PROFINET or CC-Link IE, enabling real-time quality traceability and interlock logic.

Power stability is critical for servo nutrunner accuracy. The control cabinet should incorporate a Schneider Electric Acti9 or Compact NSX series circuit breaker for branch protection, along with a Phoenix Contact QUINT series DIN-rail power supply to ensure clean, regulated DC power to the controller logic circuits. Surge protection devices — such as the Phoenix Contact TRABTECH VAL-MS series — should be installed at the cabinet entry point to guard against transient voltage spikes that could corrupt torque calibration data or damage servo drive electronics.

For communication integrity in electrically noisy environments, shielded cables and Belden 3107A or equivalent industrial Ethernet cable are recommended between the servo controller and the plant network switch. Where the nutrunner is deployed in a robotic cell or automated assembly station, a SICK or Keyence safety light curtain and an OMRON G9SP safety controller can be integrated into the interlock circuit, ensuring the tool cannot be energized when personnel are within the hazard zone. An ABB PSR series soft starter or servo drive with controlled ramp-up can further reduce mechanical shock on the joint and extend tool life in high-cycle applications.

For applications requiring torque result archiving and SPC analysis, the TS4617N1920E203 system integrates with TORQUE’s TQS quality management software or third-party MES platforms via OPC-UA, providing a complete audit trail for safety-critical fastening joints.

Critical Industrial Safety Applications

Petrochemical & Refinery: Flange and pressure vessel fastening in refineries demands absolute torque accuracy. The TS4617N1920E203’s closed-loop control ensures bolted joints on high-pressure pipelines and heat exchangers meet ASME PCC-1 torque specifications, reducing the risk of fugitive emissions and catastrophic joint failure.

Power Generation: In thermal and hydroelectric power plants, turbine casing bolts, generator terminal connections, and transformer bushing fasteners require precise, repeatable torque application. The TS Series servo architecture eliminates human error and provides documented fastening records for regulatory compliance and maintenance audits.

Mining & Mineral Processing: Conveyor drive assemblies, crusher frame bolts, and pump casing fasteners in mining operations are subject to extreme vibration and shock loading. The TS4617N1920E203’s ruggedized construction and over-torque protection prevent fastener damage and joint loosening in these high-vibration environments.

Water & Wastewater Treatment: Pump station valve actuator mounting, filter press frame assembly, and pipeline flange fastening in water treatment facilities benefit from the tool’s angle monitoring capability, which detects cross-threaded or damaged fasteners before they cause leaks or structural failures.

Steel & Metallurgy: Rolling mill roll change operations, ladle turret fastening, and continuous caster segment assembly require high-torque, high-reliability tools. The TS4617N1920E203 delivers consistent clamping force across large-diameter fasteners, supporting safe and efficient maintenance turnarounds.

Port & Heavy Lifting Equipment: Crane boom pin fastening, spreader beam assembly, and gantry rail joint bolting in port environments demand tools that perform reliably in outdoor, high-humidity, and salt-air conditions. The TS Series IP-rated housing and corrosion-resistant finish support long-term deployment in these challenging sites.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the TS4617N1920E203?
All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement units or repair service, minimizing downtime impact on your production line.

Q2: What pre-shipment testing is performed on each unit?
Every TS4617N1920E203 undergoes functional verification prior to dispatch, including torque output confirmation, encoder signal integrity check, and mechanical rotation test. Units are shipped with inspection documentation to support incoming quality control at your facility.

Q3: Is the TS4617N1920E203 compatible with existing TORQUE TS Series controllers and fixtures?
Yes. The TS4617N1920E203 is designed for use within the TORQUE TS Series ecosystem and is mechanically and electrically compatible with standard TS Series servo controllers, reaction fixtures, and torque transducers. For integration with third-party PLC or MES systems, fieldbus adapter modules are available.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the TS4617N1920E203 and key TS Series components to support ongoing production and maintenance requirements. For customers with critical sparing strategies, we offer reserved stock arrangements and priority fulfillment to ensure continuity of supply for safety-critical fastening applications.
