TOX 0610520IF120245B Retrofit Power Module IF Series

TOX 0610520IF120245B Retrofit-Ready Power Module for IF Series Control Systems

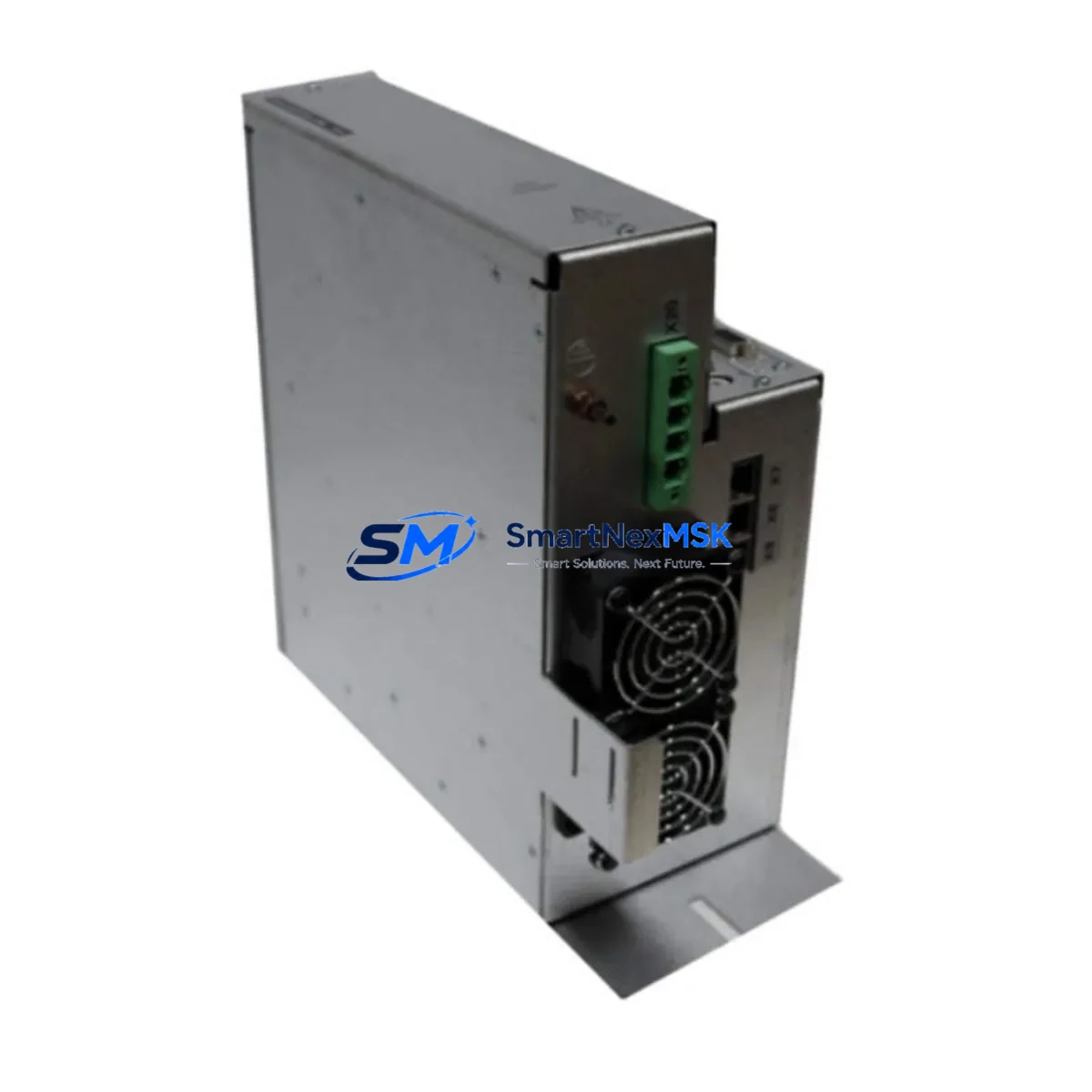

The TOX PRESSOTECHNIK 0610520IF120245B is a retrofit-ready power module engineered for seamless integration into existing IF Series press control systems. Whether you are replacing a failed unit on an aging production line, upgrading a legacy control cabinet, or executing a planned system modernization, this module delivers the electrical stability and form-factor compatibility required for a smooth, low-risk transition. With verified compatibility across the IF Series control platform and a 12-month warranty backed by in-stock availability, the 0610520IF120245B is the preferred choice for maintenance engineers and system integrators managing critical press automation infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 0610520IF120245B into a running production environment requires a structured pre-installation audit. Begin by documenting the existing power budget of the control cabinet: total load drawn by all installed IF Series I/O modules, the IF Series digital input/output expansion cards, and any co-mounted communication modules such as the TOX IF Series PROFIBUS-DP gateway or DeviceNet interface card. The 0610520IF120245B must not be loaded beyond its rated output current; if the existing rack is near capacity, a supplementary power module may be required in an adjacent slot.

Terminal wiring is a critical checkpoint. The IF Series backplane uses a standardized connector layout, but field-wired cabinets often include custom terminal blocks, cable ferrules, and labeling conventions that must be preserved during module swap. Before removal of the failed unit, photograph all wiring connections, record terminal numbers, and verify continuity of the protective earth conductor. The replacement module’s terminal pitch and screw torque specification must match the original to avoid loose connections under vibration — a common failure mode in press environments.

Backplane slot assignment and module addressing must be confirmed in the TOX programming environment before powering up. In IF Series systems, the controller card — typically the IF Series CPU or master controller module — enumerates connected modules at startup. If the power module occupies a slot that was previously mapped to a different module type, the controller may generate a configuration mismatch fault. Use the TOX configuration software to verify the slot map, clear any stored fault codes, and re-download the rack configuration if necessary.

For cabinets that also house third-party components — such as a Siemens SIMATIC ET 200 distributed I/O node, a Beckhoff EtherCAT terminal block, or a Phoenix Contact QUINT power supply providing auxiliary 24 VDC — ensure that the ground reference and common bus voltage are consistent across all power domains. Cross-referencing the IF Series system manual against the cabinet wiring diagram will identify any potential ground loop or voltage offset issues before commissioning.

HMI screens connected to the IF Series controller via RS-232, RS-485, or Ethernet/IP should be tested after module replacement to confirm that all process variables, alarm setpoints, and force monitoring parameters are displayed correctly. In older installations, the HMI program may reference module-specific status bits that are affected by a power cycle; a full HMI screen walkthrough is recommended as part of the post-installation checklist.

Downtime Control During System Migration

Minimizing unplanned downtime during a power module replacement on an active press line requires preparation that begins well before the maintenance window. The recommended approach is to pre-stage the 0610520IF120245B alongside a complete set of spare terminal connectors, DIN rail clips, and a backup copy of the current PLC program — exported from the TOX programming software and stored on a USB drive or engineering laptop.

Before de-energizing the cabinet, perform a controlled shutdown of the press cycle: complete the current stroke, release hydraulic pressure, and confirm that all actuators are in the home position. This protects both the mechanical tooling and the integrity of the program logic stored in the IF Series CPU’s non-volatile memory. Once the cabinet is de-energized and locked out per LOTO procedure, the module swap can typically be completed in under 30 minutes for a trained technician familiar with the IF Series backplane.

On power-up, monitor the 24 VDC bus voltage with a calibrated multimeter before enabling the controller. Confirm that all module status LEDs on the IF Series rack indicate normal operation — green for power, no fault indicators on I/O or communication modules. Re-enable the controller, perform a dry-cycle test without load, and verify that all press force parameters, stroke limits, and safety interlock signals are functioning as expected before returning the line to production.

For facilities operating multiple press stations sharing a common control network, consider scheduling the replacement during a planned shift changeover to further reduce production impact. The 0610520IF120245B ships pre-tested and ready for installation, eliminating the need for bench burn-in and reducing total migration time.

Retrofit Support FAQ

Q1: Is the 0610520IF120245B a direct replacement for my existing IF Series power module?
Yes. The 0610520IF120245B is designed as a form-fit-function replacement for legacy power modules in the TOX PRESSOTECHNIK IF Series platform. It uses the same backplane connector, DIN rail footprint, and 24 VDC output standard. Verify your existing module’s part number prefix (0610520-series) to confirm compatibility before ordering.

Q2: Do I need to re-program the controller after replacing the power module?
In most cases, no. The power module is a passive supply component and does not store program logic. However, if the replacement triggers a rack configuration mismatch in the IF Series CPU, you may need to re-confirm the slot map in the TOX configuration software and perform a controlled restart. Always maintain a current backup of your PLC program before any hardware change.

Q3: What wiring checks are required before installation?
Confirm input voltage range (AC mains), output terminal polarity (24 VDC / 0 VDC), protective earth continuity, and cable ferrule condition. Ensure terminal screw torque meets the IF Series specification. If the cabinet uses a shared 24 VDC bus with other devices — such as distributed I/O nodes or safety relays — verify that the total load does not exceed the module’s rated output current.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under rated operating conditions from the date of shipment. Units damaged by incorrect wiring, overvoltage, or installation outside the specified environmental range are not covered. All units are functionally tested prior to dispatch. For warranty claims, contact sales@smartnexmsk.com with your order reference and a description of the fault.
