TREK TREK-684-1-L-CE Safety-Enhanced ESC HV Supply

TREK TREK-684-1-L-CE Safety-Enhanced ESC HV Power Supply for Harsh Industrial Sites

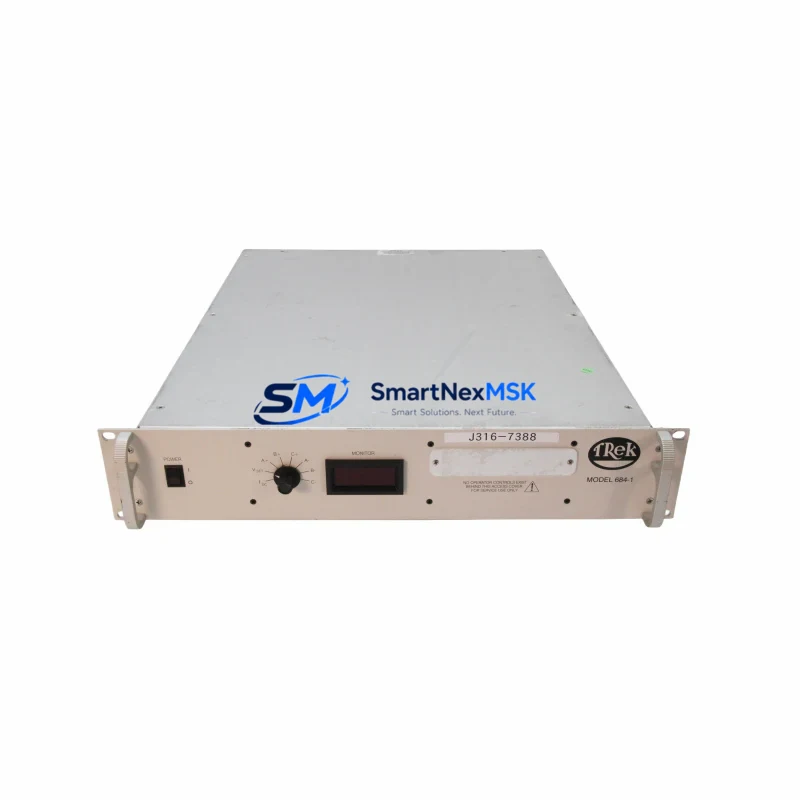

The TREK 684-1-L-CE is a ruggedized, CE-certified bipolar high-voltage DC electrostatic chuck (ESC) power supply engineered for continuous, uninterrupted operation in demanding semiconductor fabrication, precision manufacturing, and critical industrial process environments. Built on the proven TREK SH60 platform, this module delivers stable, tightly regulated bipolar DC output with exceptional immunity to electrical noise, power line transients, and mechanical vibration — making it the preferred choice for engineers who cannot afford control interruptions in high-stakes production lines.

In high-load, high-interference environments such as plasma etch chambers, CVD reactors, ion implant systems, and precision wafer-handling stages, the TREK 684-1-L-CE provides the voltage stability and response speed necessary to maintain reliable electrostatic clamping force. Signal drift, power fluctuations, and module mis-operation are primary causes of wafer damage, process yield loss, and unplanned downtime. The 684-1-L-CE addresses each of these failure modes through its precision feedback control architecture, low-ripple output design, and robust CE-compliant EMC shielding.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the TREK 684-1-L-CE within a well-engineered control cabinet architecture is essential for maximizing system uptime and personnel safety. In a typical semiconductor or precision industrial control enclosure, the 684-1-L-CE operates alongside a suite of complementary protection and conditioning components. A high-quality AC line filter — such as a Schaffner FN2410 or equivalent — should be installed at the cabinet power entry point to suppress conducted EMI before it reaches the HV supply input. Upstream, a Siemens SITOP PSU8200 or equivalent DIN-rail 24 V DC power supply provides clean auxiliary power for control logic and interlocks, isolating the HV module from low-voltage control noise.

For surge and transient protection, a Phoenix Contact TRABTECH surge protection device (SPD) rated for the supply voltage should be installed on both the AC input and the DC signal lines feeding the 684-1-L-CE. In systems where the ESC chuck is part of a safety interlock loop, a Pilz PNOZ safety relay or equivalent IEC 62061-compliant safety relay module should monitor the HV enable signal, ensuring that the high-voltage output is de-energized whenever a guard door is open or an E-stop is triggered.

Communication between the 684-1-L-CE and the host process controller — typically a Siemens S7-1500 PLC or an Allen-Bradley ControlLogix module — is handled via analog ±10 V command and monitor signals. Shielded, twisted-pair signal cables with proper grounding at a single point prevent ground loops and signal drift. Where digital communication is preferred, an Anybus X-gateway or equivalent protocol converter can bridge the analog output to PROFINET or EtherNet/IP for integration into a plant-wide DCS or SCADA system such as a Honeywell Experion PKS or ABB System 800xA.

For applications requiring redundant HV supply capability, a second TREK 684-1-L-CE unit can be configured in a hot-standby arrangement, with automatic switchover managed by a Murrelektronik redundancy module. This architecture eliminates single-point-of-failure risk in critical chuck clamping circuits where an unexpected HV loss would result in wafer drop, process abort, or chamber contamination. Proper cabinet thermal management — using a Rittal TopTherm fan-and-filter unit or equivalent — ensures the 684-1-L-CE operates within its 0–50°C ambient specification even in high-density rack configurations.

Critical Industrial Safety Applications

The TREK 684-1-L-CE is deployed across a broad range of high-consequence industrial and semiconductor applications where electrostatic chuck reliability is directly linked to process safety and production continuity.

In semiconductor wafer fabrication — including plasma etch, physical vapor deposition (PVD), and chemical vapor deposition (CVD) — the 684-1-L-CE maintains precise bipolar clamping voltage to hold wafers flat against the chuck surface throughout the process cycle. Any voltage instability or dropout during plasma processing can result in wafer movement, non-uniform etch profiles, particle contamination, or catastrophic wafer breakage inside the chamber. The 684-1-L-CE’s sub-millisecond transient response and hardware OVP prevent these failure modes.

In flat panel display (FPD) manufacturing and advanced packaging facilities, large-format glass substrates and thin wafers require exceptionally stable clamping force. The 684-1-L-CE’s low-ripple bipolar output ensures uniform electrostatic pressure across the entire chuck surface, preventing substrate warpage and edge lift-off that can cause alignment errors in lithography steps.

In ion implantation systems used in power device and compound semiconductor manufacturing, the ESC must maintain clamping integrity under high-energy beam bombardment and significant thermal cycling. The 684-1-L-CE’s robust thermal design and stable feedback loop sustain reliable chuck performance across the full implant dose range without requiring operator intervention.

For precision industrial automation applications — including laser processing, electron beam welding, and precision metrology stages — the 684-1-L-CE provides the stable, low-noise HV bias required for consistent workpiece holding force, directly contributing to dimensional accuracy and process repeatability in safety-critical manufacturing environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the TREK 684-1-L-CE?
The 12-month warranty covers all functional defects in materials and workmanship under normal operating conditions. If the unit fails to meet its specified output voltage, current, stability, or protection parameters within the warranty period, we will repair or replace it at no charge. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each TREK 684-1-L-CE unit?
Every TREK 684-1-L-CE unit undergoes a full functional verification before dispatch, including HV output accuracy testing across the full bipolar voltage range, ripple and noise measurement, overvoltage protection trigger verification, and input power compatibility check. A test record is available upon request for traceability in regulated manufacturing environments.

Q3: Is the TREK 684-1-L-CE compatible with my existing ESC chuck system and process controller?
The 684-1-L-CE is designed as a direct functional replacement for TREK SH60 platform ESC power supplies and is compatible with electrostatic chuck systems used in Lam Research, Applied Materials, and equivalent OEM platforms. The standard ±10 V analog command interface ensures compatibility with most industrial process controllers and PLC analog output modules. For specific compatibility questions, contact our technical team with your chuck model and controller specifications.

Q4: Can you guarantee long-term supply and spare parts availability for the TREK 684-1-L-CE?
Yes. We maintain dedicated inventory of the TREK 684-1-L-CE and key TREK SH60 series components to support ongoing production and planned maintenance programs. For facilities running continuous production schedules, we recommend establishing a consignment stock or blanket order arrangement to ensure spare unit availability without lead-time risk. Our team can provide supply continuity commitments tailored to your maintenance cycle requirements.
