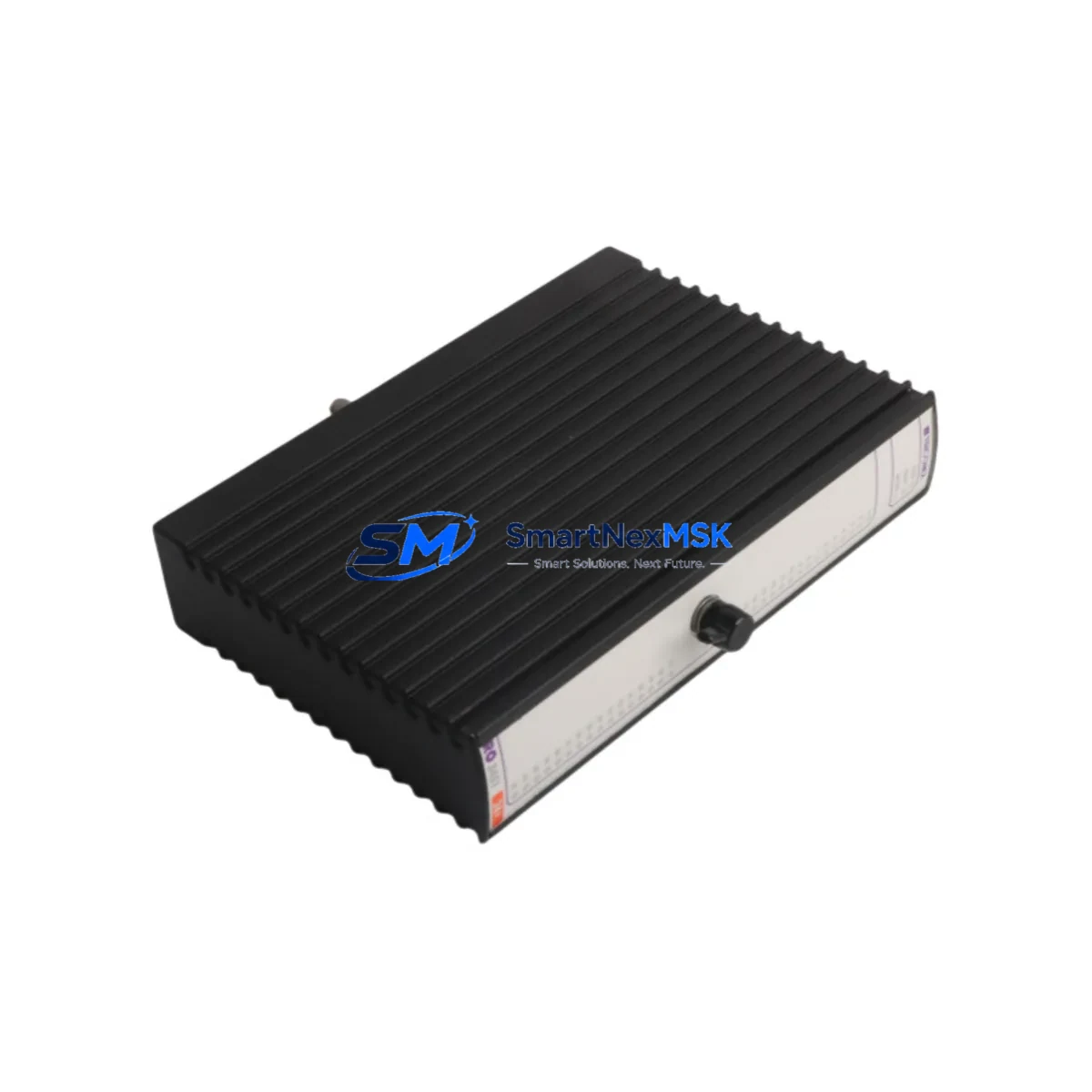

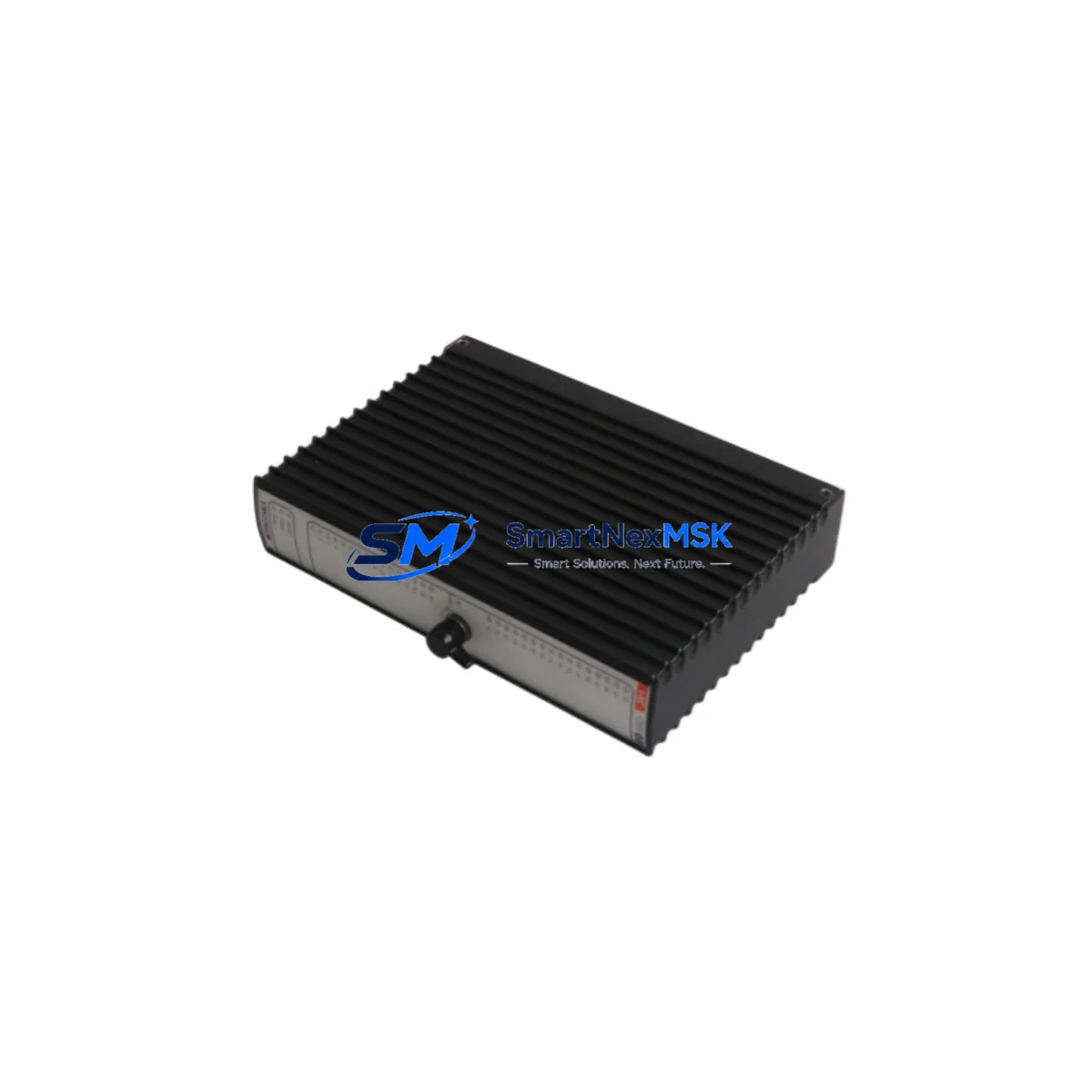

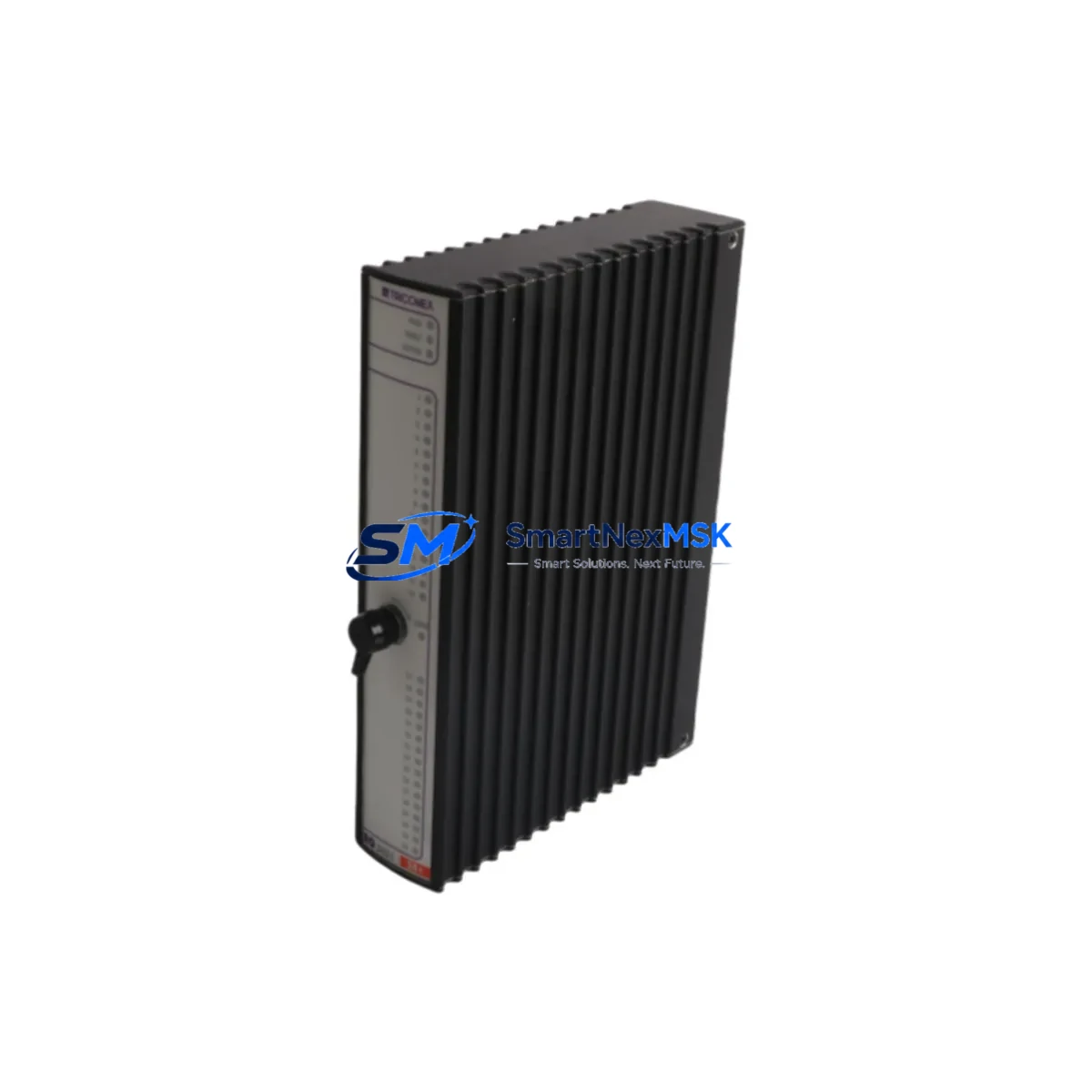

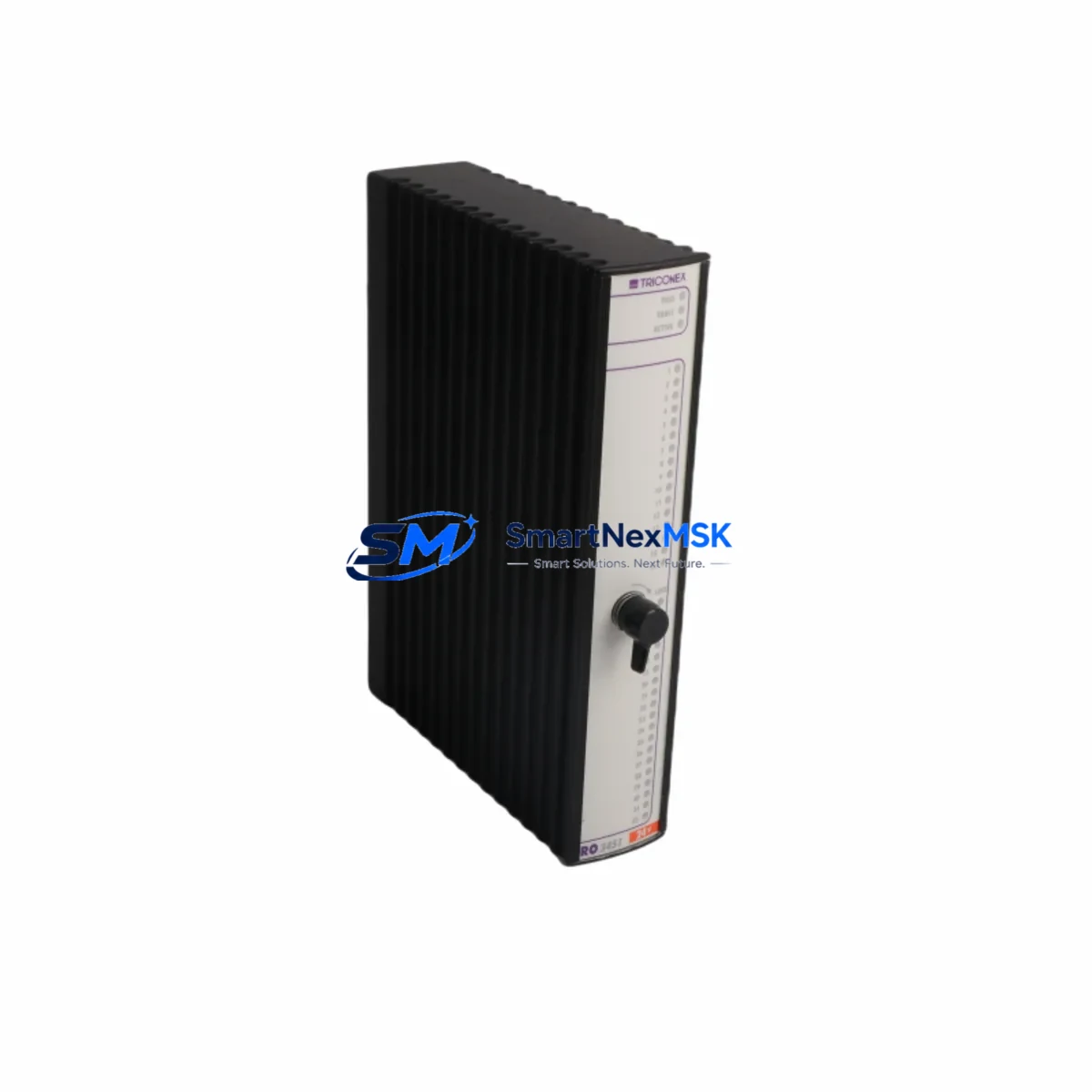

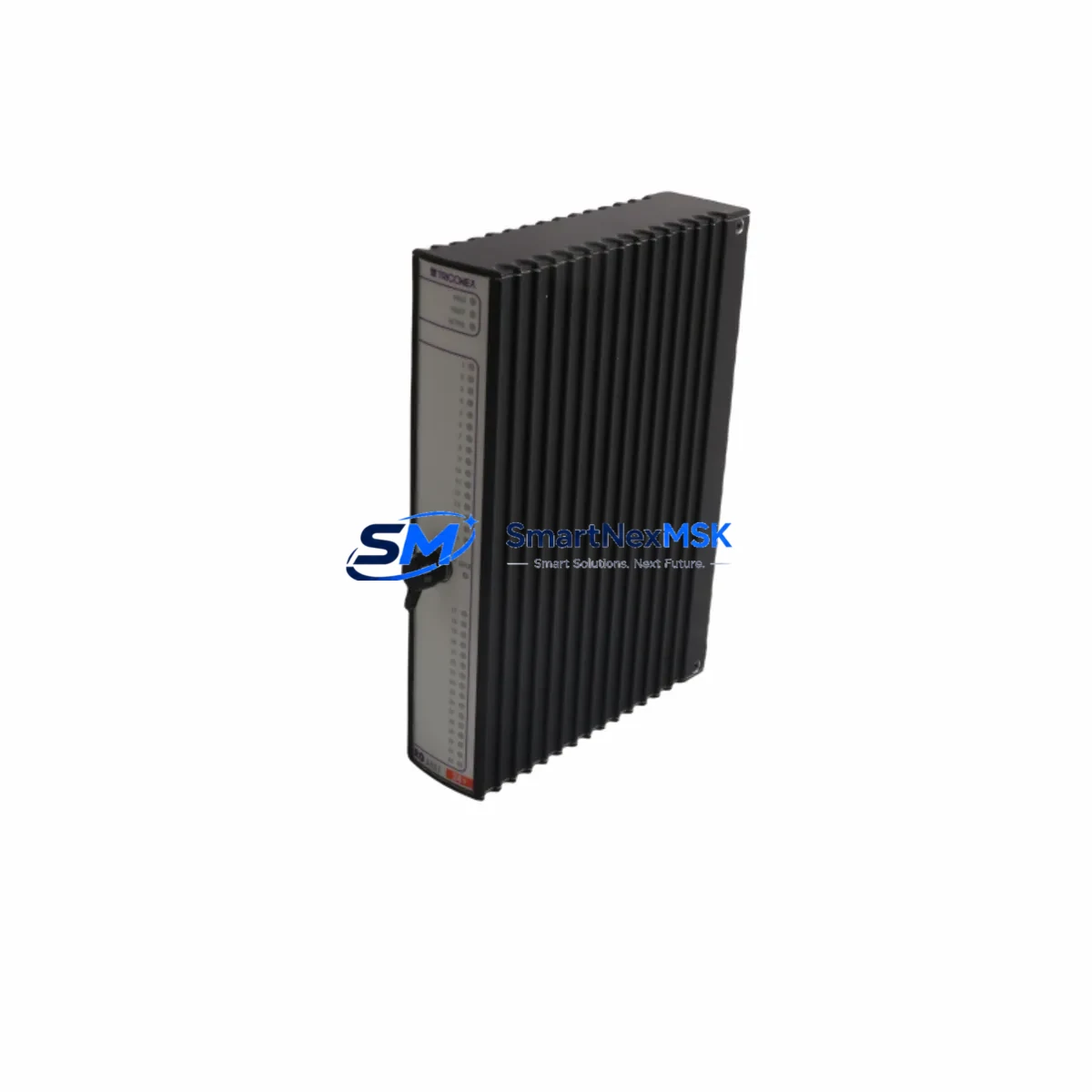

Triconex 3451 Safety-Enhanced Relay Output Module

Triconex 3451 Safety-Enhanced Relay Output Module: Reliable Control for Harsh Industrial Sites

The Triconex 3451 is a 16-channel relay output module engineered for deployment within Tricon Triple Modular Redundant (TMR) safety systems operating under IEC 61511 SIL 2 and SIL 3 requirements. Designed to perform reliably in high-load, high-interference, and continuous-production environments, the Triconex 3451 delivers deterministic output switching that is critical to maintaining the integrity of safety instrumented functions (SIFs) across petrochemical, power generation, mining, water treatment, metallurgical, and port automation facilities.

In modern industrial control cabinets, relay output modules are among the most mechanically and electrically stressed components. The Triconex 3451 addresses this challenge through robust contact isolation, internal diagnostics, and tight integration with the Tricon TMR architecture — ensuring that even under sustained electrical noise, voltage transients, or partial module degradation, the safety loop remains uninterrupted. Its triple-redundant voting logic means that a single channel fault does not propagate to a spurious trip or a dangerous undetected failure, directly reducing the risk of unplanned shutdowns and process safety incidents.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Triconex 3451 within a safety-rated control cabinet requires a holistic approach to protection across power, communication, and I/O layers. In a typical Tricon TMR enclosure, the 3451 relay output module works in concert with the Triconex 3703E analog input module and the Triconex 3805E digital input module to form a complete SIL-rated I/O subsystem. The main chassis is powered through the Triconex 8312 power supply module, which provides regulated, redundant DC power with built-in overvoltage and undervoltage protection — preventing the voltage fluctuations that can cause relay contact chatter or premature coil failure in lesser-rated modules.

Communication integrity between the Tricon main processor and the 3451 output module is managed through the Triconex 4351B communication module, which supports high-speed, fault-tolerant data exchange across the TMR backplane. In installations where the safety system interfaces with a distributed control system (DCS) or SCADA layer, the Triconex 4119A Tricon Communication Module (TCM) provides Modbus TCP and OPC DA connectivity without compromising the safety network’s determinism or isolation.

For field-side surge protection — particularly in outdoor substations, petrochemical plants, or mining headframes where lightning-induced transients and ground potential differences are common — the 3451 is typically paired with DIN-rail-mounted surge protective devices (SPDs) rated to IEC 61643-11 Class II, installed at the cabinet’s field terminal blocks. This layered protection strategy ensures that even a direct surge event on a field cable does not propagate back to the relay output module’s contact circuitry.

In critical interlock loops — such as emergency shutdown (ESD) valves, high-integrity pressure protection systems (HIPPS), or burner management system (BMS) final elements — the Triconex 3451 is often used alongside the Triconex 3625 digital output module for mixed relay/solid-state output architectures, providing both the galvanic isolation of relay contacts and the high-speed switching capability of solid-state outputs within the same chassis. The Triconex 3700A analog output module may also be present in the same cabinet for modulating control loops, ensuring that the 3451 handles only discrete, high-consequence switching actions.

Proper grounding of the Tricon chassis, use of shielded field cables, and installation of the Triconex 9662-110 termination panel further reduce common-mode noise and signal drift — two of the most frequent causes of nuisance trips and spurious relay operations in high-interference industrial environments.

Critical Industrial Safety Applications

The Triconex 3451 relay output module is deployed across the most demanding sectors of heavy industry, where control interruption carries consequences measured in human safety, environmental liability, and multi-million-dollar production losses.

In petrochemical and refinery facilities, the 3451 drives ESD valve solenoids, deluge system initiation relays, and compressor shutdown contactors within SIL 2/3-rated safety instrumented systems. Its high contact rating and optical isolation ensure that a fault in one output channel cannot cascade into adjacent channels or corrupt the TMR voting logic.

In power generation plants — including coal-fired, gas turbine, and nuclear auxiliary systems — the module is used in turbine overspeed protection, generator protection relays, and boiler safety interlock circuits. The continuous self-diagnostic capability of the Tricon TMR platform, combined with the 3451’s channel-level fault reporting, allows maintenance teams to identify and replace degraded modules during planned outages rather than responding to unplanned trips.

In underground and open-cut mining operations, the 3451 controls conveyor belt emergency stops, ventilation fan interlocks, and hoisting system safety relays in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. Its IEC 60068-2-6 vibration compliance and sealed relay contacts make it well-suited for these conditions.

In water and wastewater treatment plants, the module manages pump station emergency shutdowns, chlorination system interlocks, and high-level overflow prevention relays — applications where a missed output command can result in environmental discharge incidents or public health emergencies.

In metallurgical and steel-making facilities, the 3451 is integrated into furnace safety systems, ladle transfer interlock circuits, and fume extraction emergency controls, where the combination of high ambient temperatures, electromagnetic interference from large induction furnaces, and continuous 24/7 operation demands the highest levels of module reliability and diagnostic transparency.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Triconex 3451?
Every Triconex 3451 unit supplied by SMARTNEXMSK carries a 12-month full functional warranty from the date of shipment. This covers relay contact failure, backplane interface faults, diagnostic reporting errors, and any other functional defects identified under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your site’s exposure to extended module absence.

Q2: What pre-shipment testing is performed on each unit?
Each Triconex 3451 undergoes a comprehensive pre-shipment inspection that includes power-on functional verification, relay contact continuity and isolation testing across all 16 channels, backplane connector integrity check, and visual inspection for physical damage or component degradation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request.

Q3: Is the Triconex 3451 compatible with all Tricon chassis versions?
The Triconex 3451 is compatible with Tricon main chassis and expansion chassis running firmware versions 9.x and 10.x. It is designed to slot into any standard Tricon I/O slot and is recognized automatically by the Tricon system software. For installations running older firmware versions or non-standard chassis configurations, our technical team can advise on compatibility and any required firmware alignment prior to shipment.

Q4: Can SMARTNEXMSK support long-term and emergency replacement supply?
Yes. SMARTNEXMSK maintains dedicated inventory of the Triconex 3451 and related Tricon TMR modules to support both planned maintenance schedules and emergency breakdown replacements. For critical sites operating under strict spare parts management programs, we can discuss consignment stock arrangements, priority allocation agreements, and multi-unit procurement to ensure your facility is never exposed to extended lead times for this safety-critical component.
