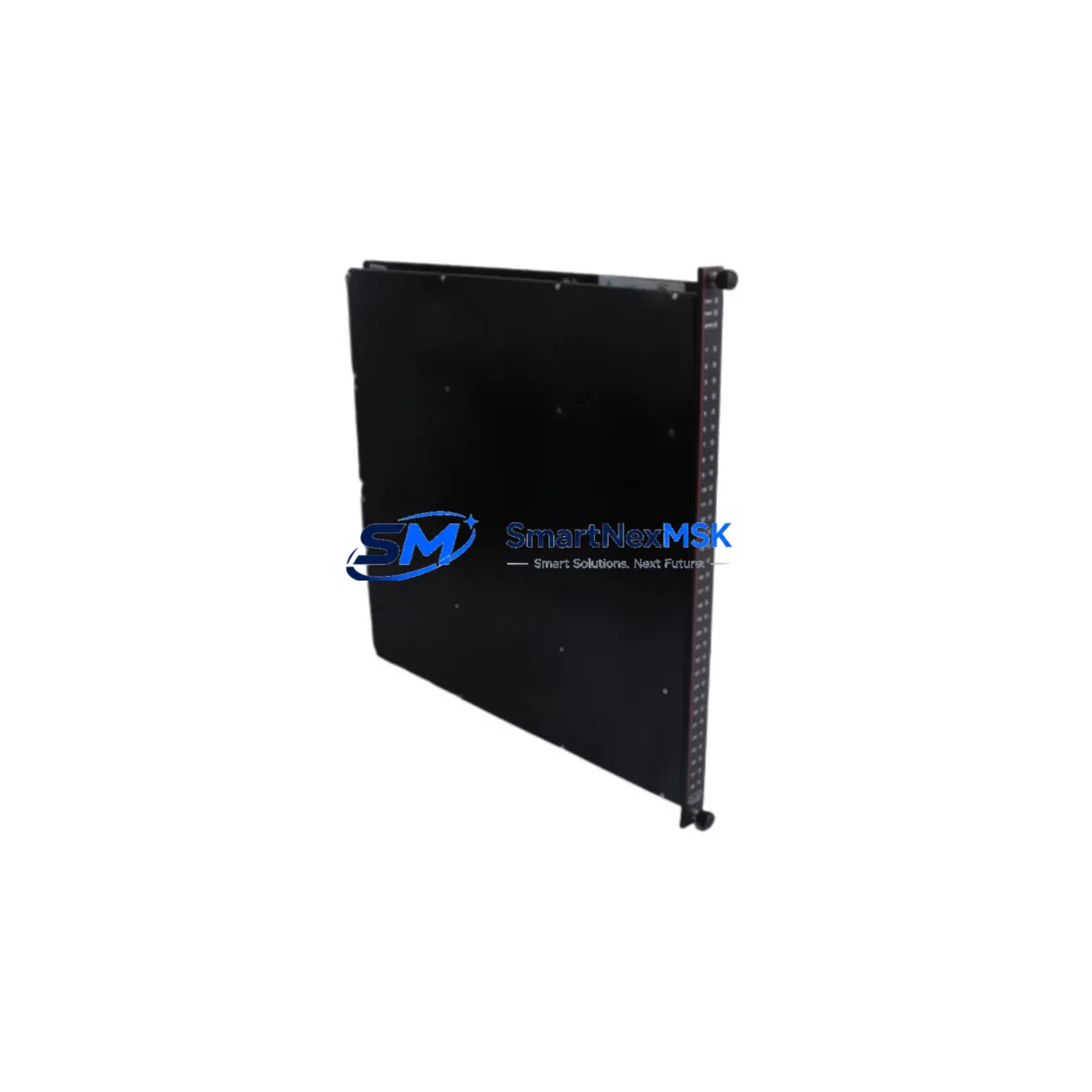

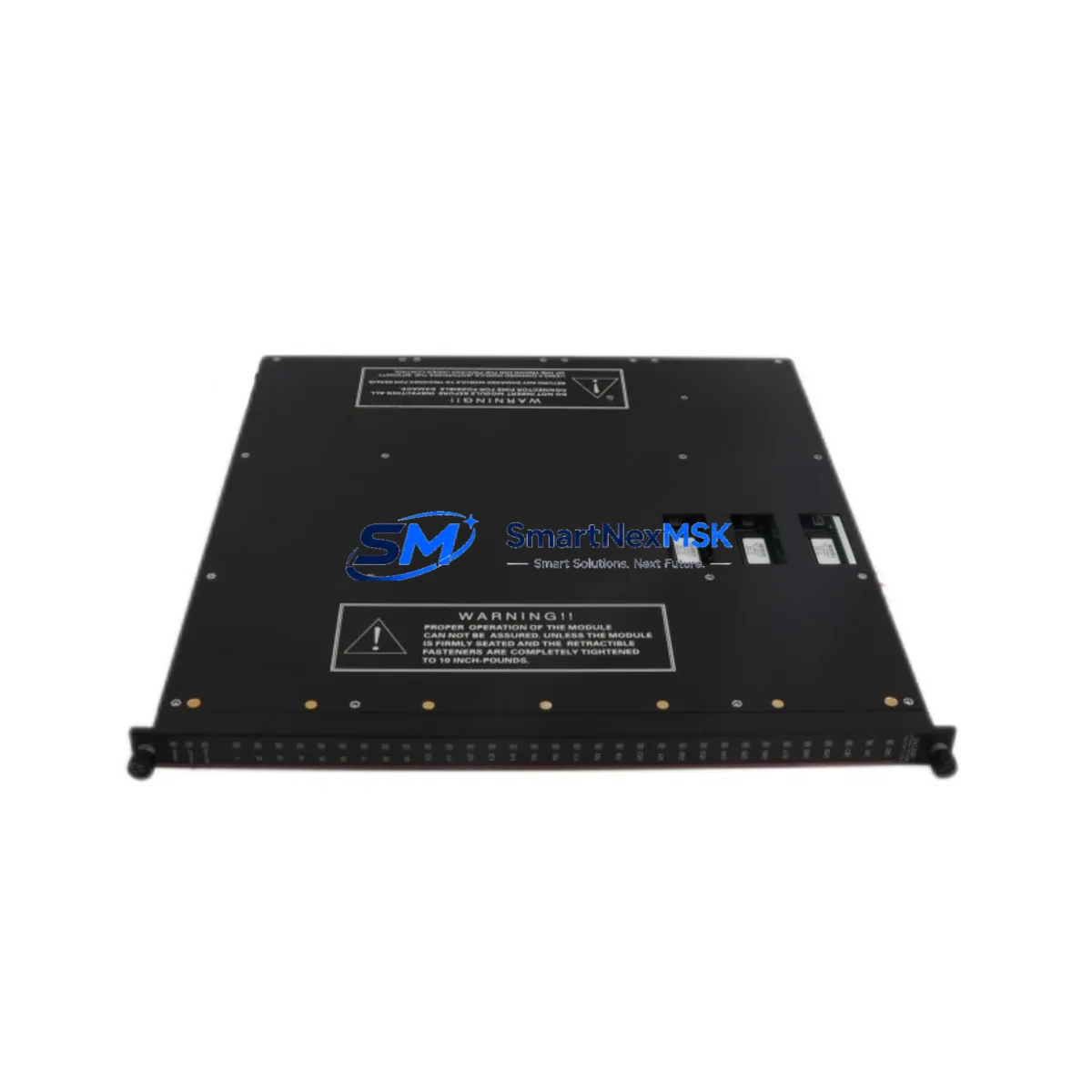

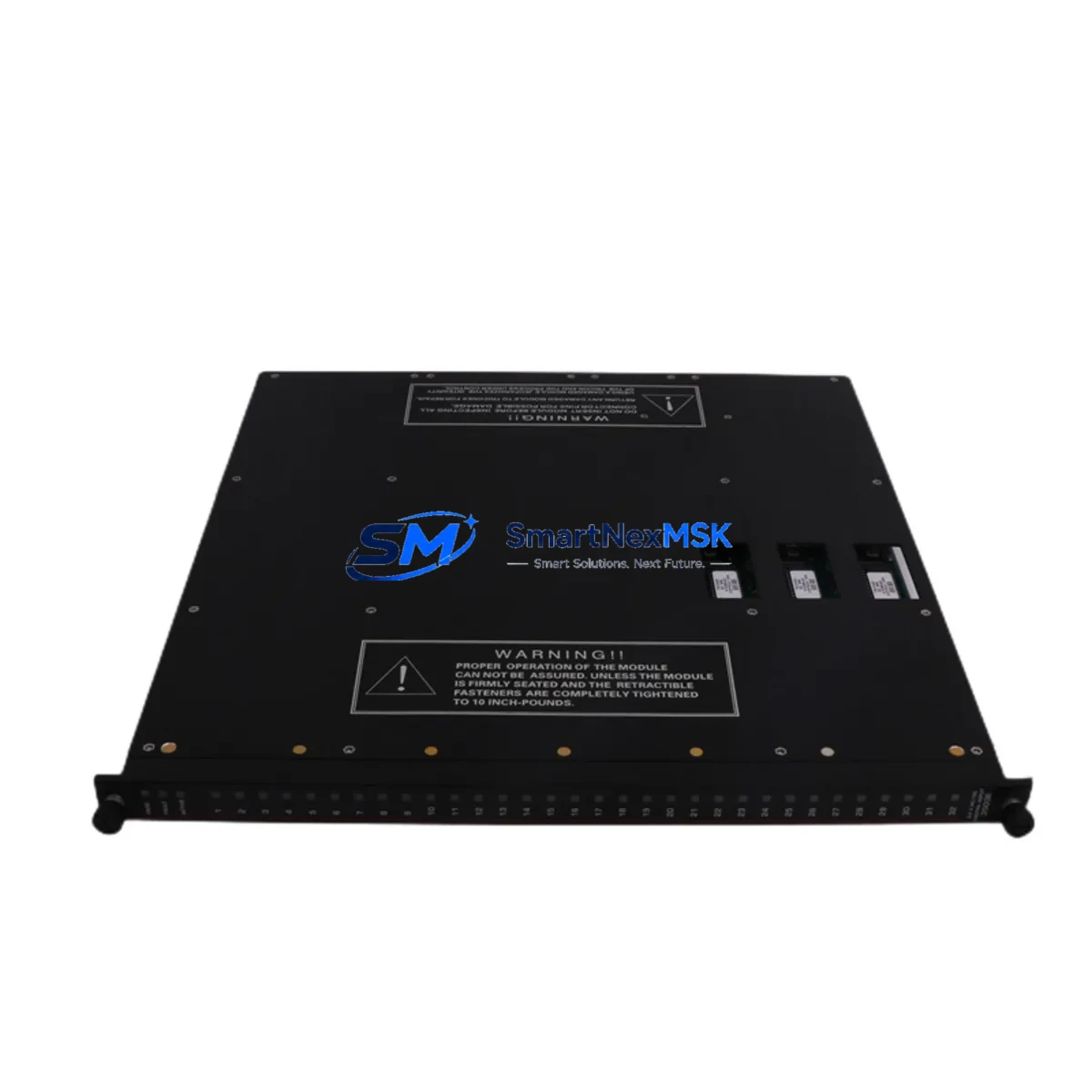

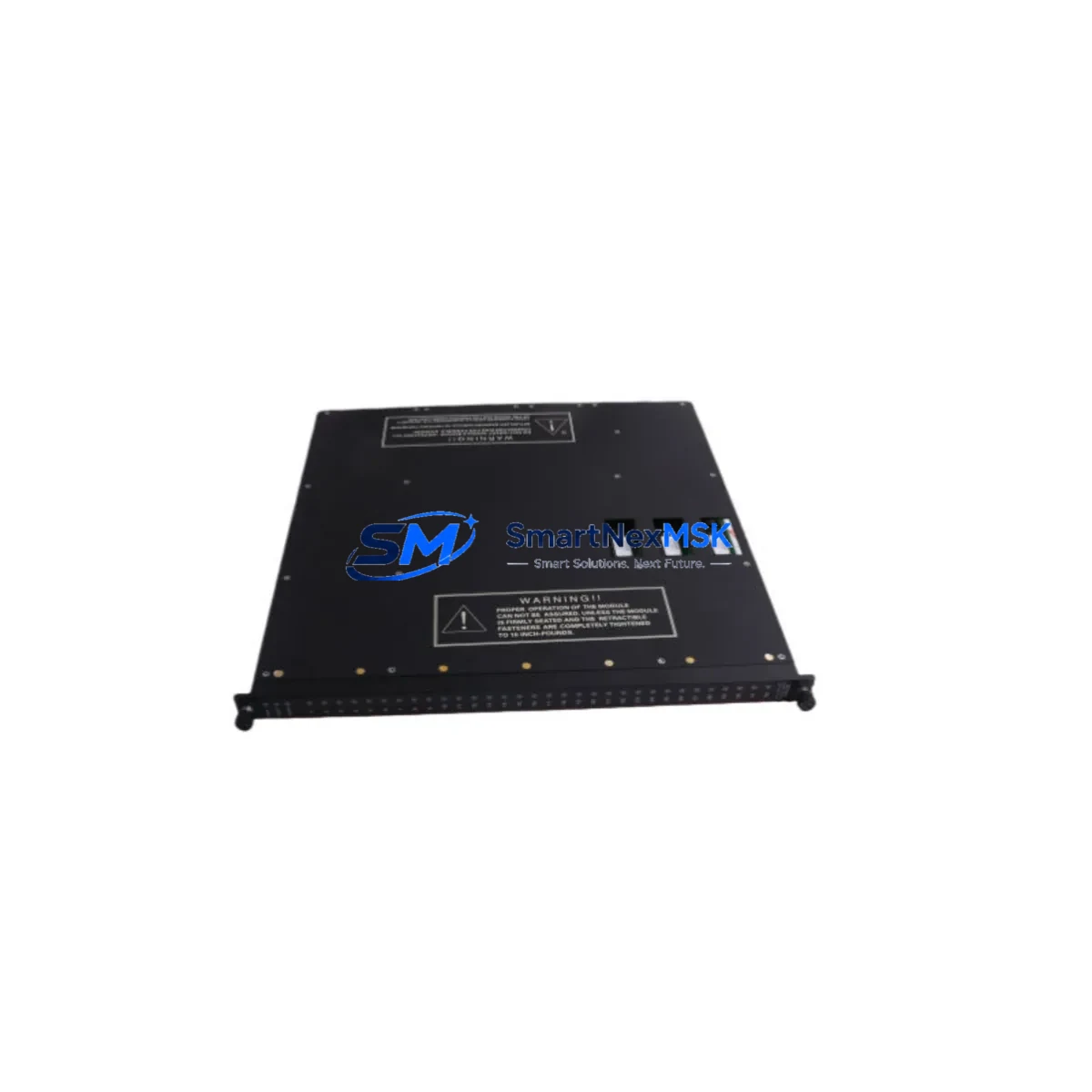

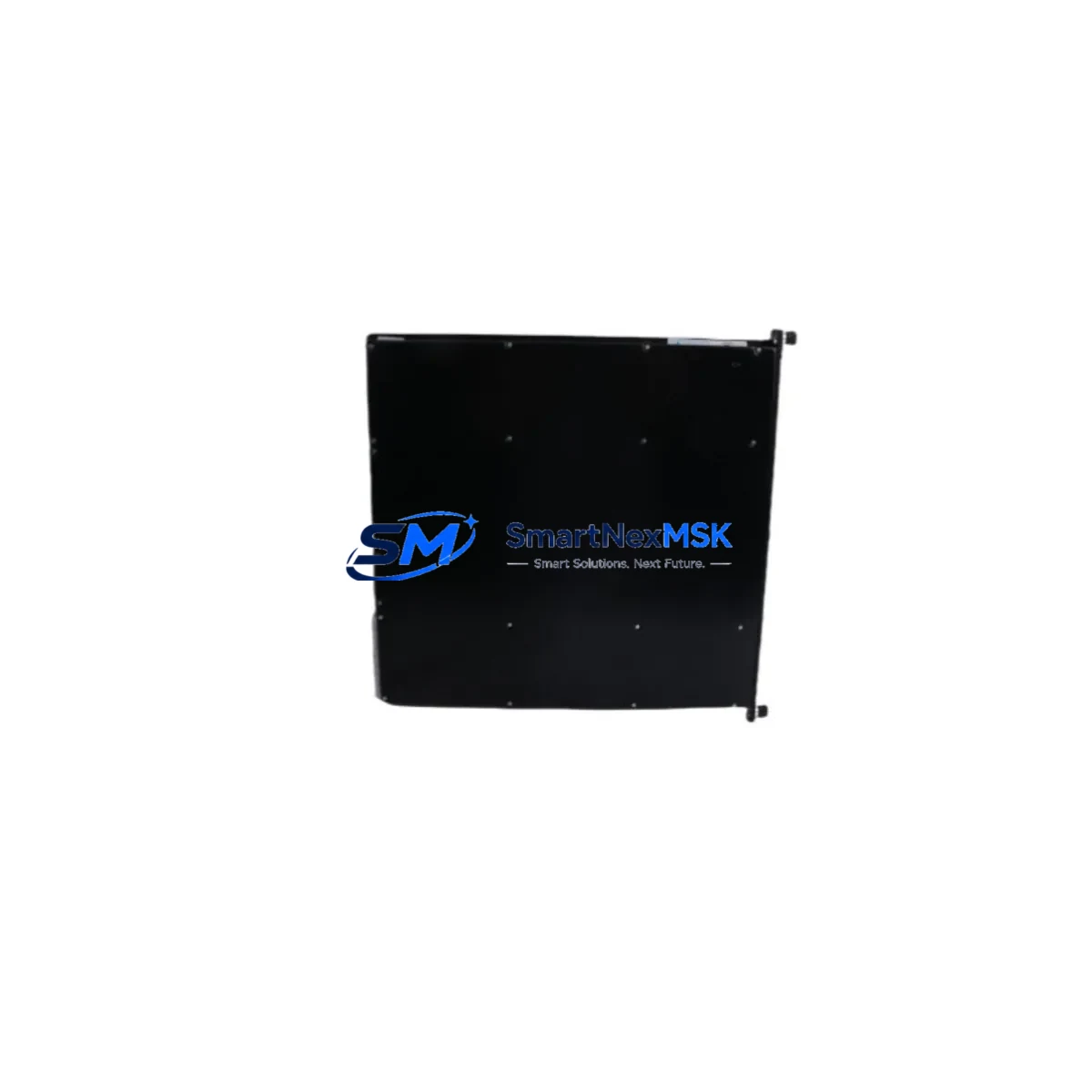

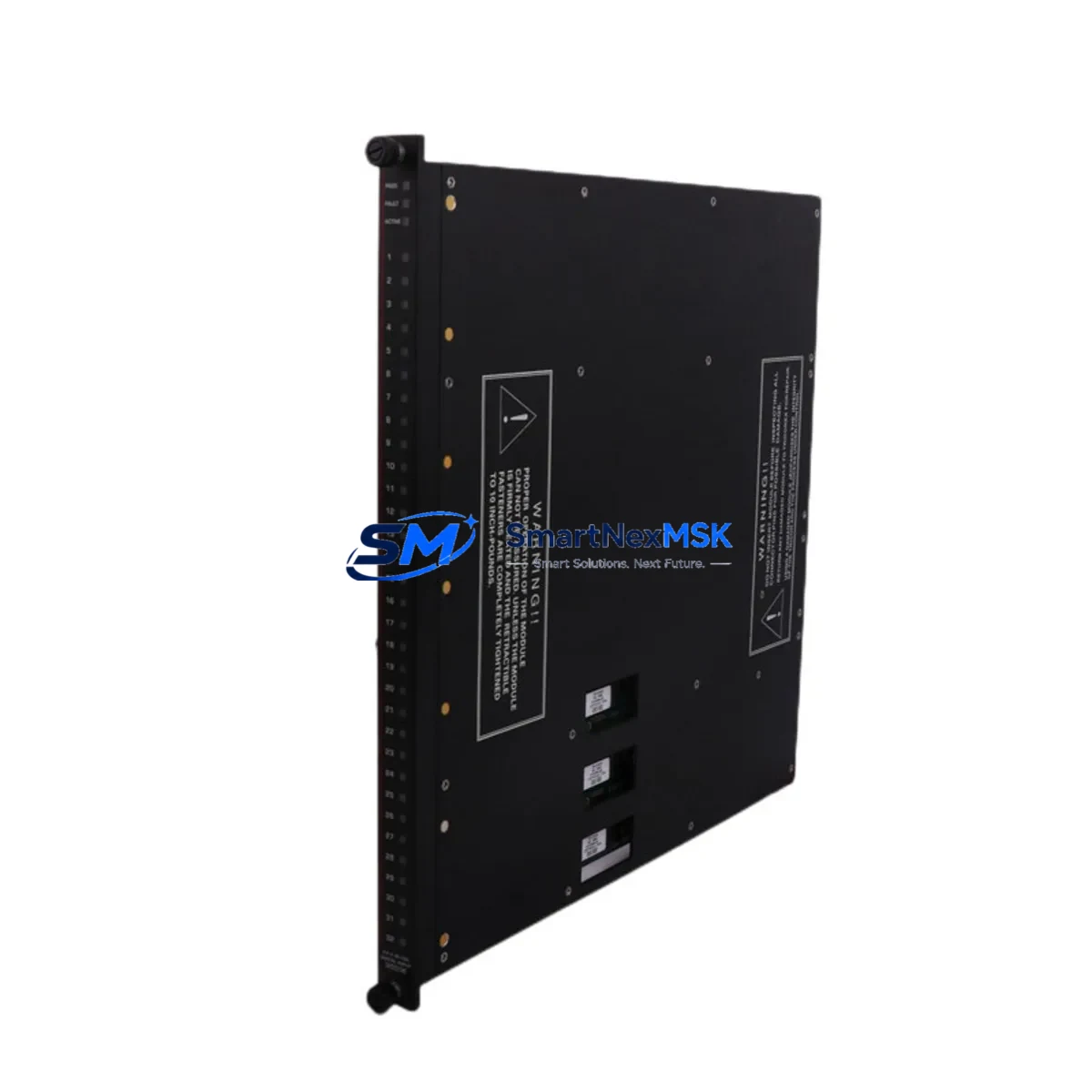

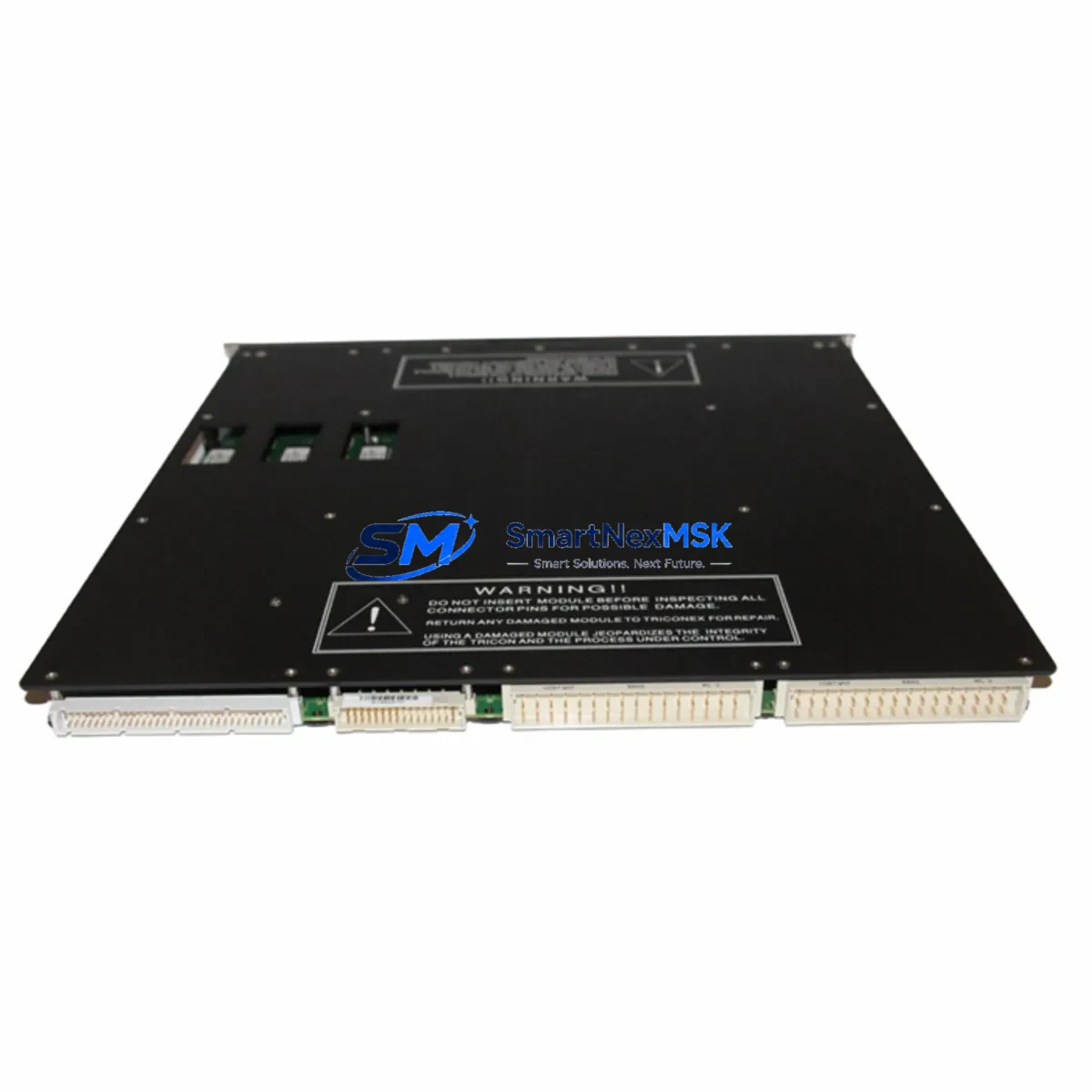

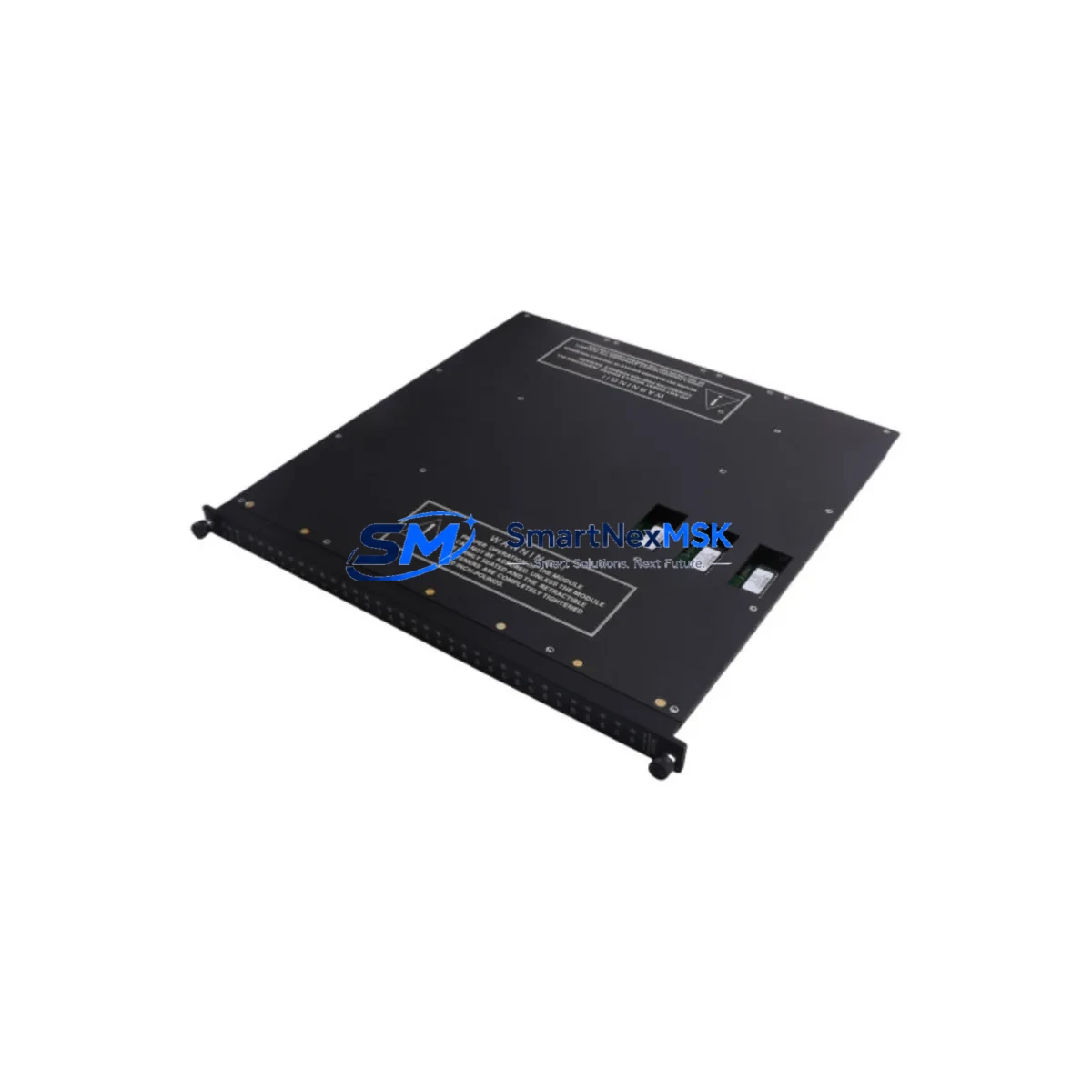

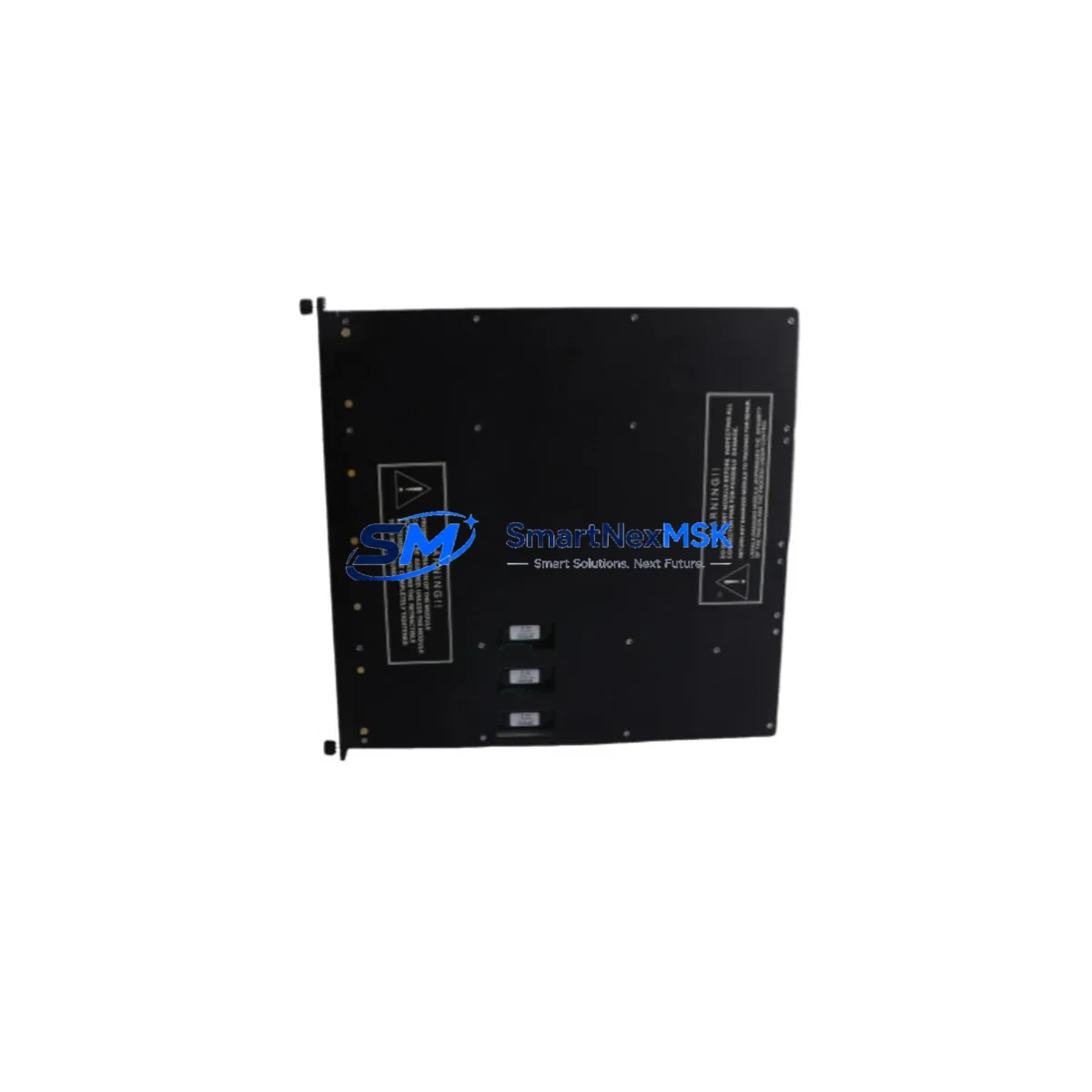

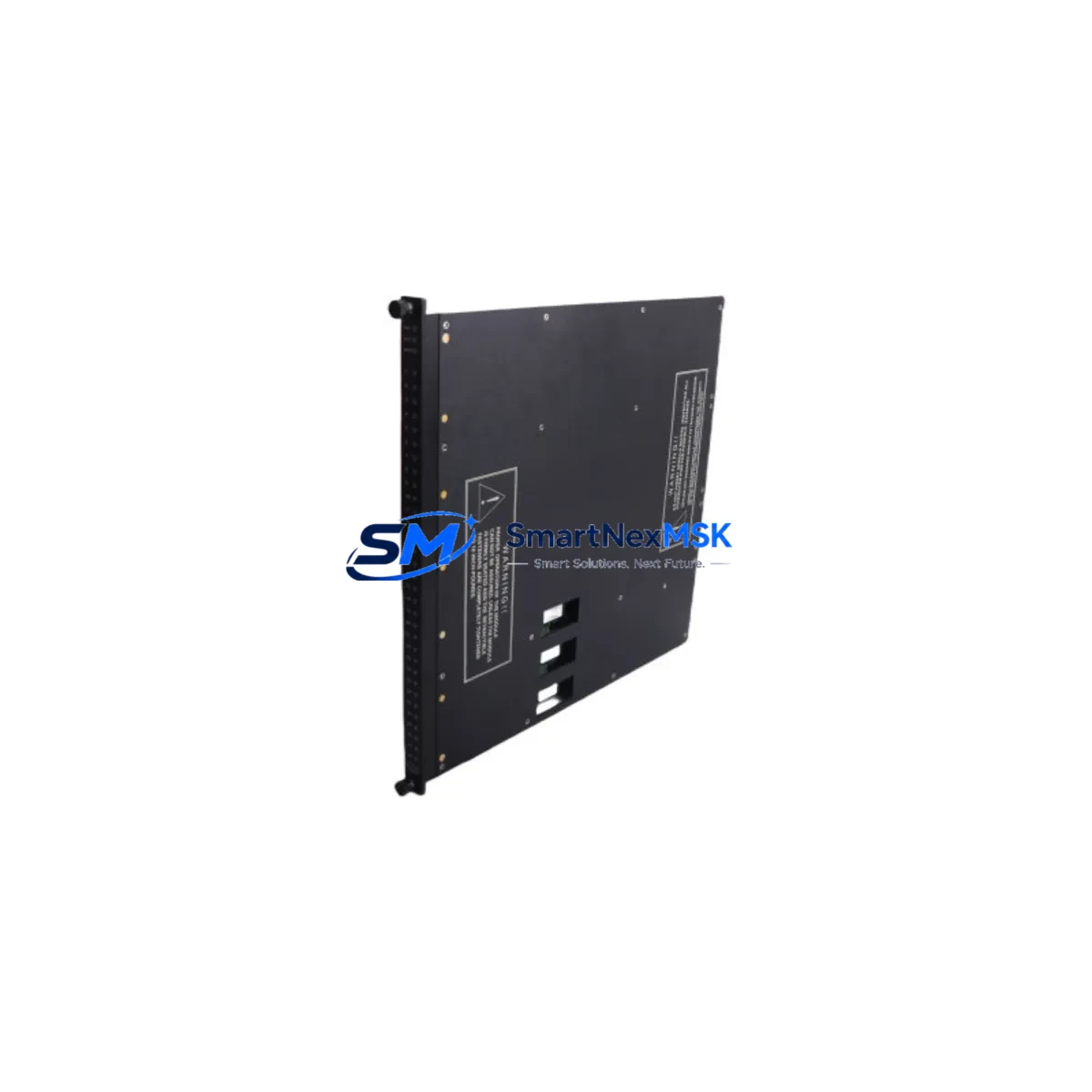

Triconex 3503E Safety-Enhanced Digital Input Module

Triconex 3503E Safety-Enhanced Digital Input Module: Reliable Control in Harsh Industrial Sites

The Triconex 3503E is a 24-channel digital input module engineered for deployment within Tricon Triple Modular Redundant (TMR) Safety Instrumented Systems (SIS). Designed to meet the most demanding requirements of IEC 61511 and IEC 61508 functional safety standards, the 3503E delivers continuous, fault-tolerant signal acquisition in environments where control interruption is simply not an option. Whether installed in a petrochemical emergency shutdown panel, a power generation interlock cabinet, or a mining conveyor safety loop, this module provides the signal integrity and diagnostic coverage that critical processes depend on.

At the core of the Triconex 3503E’s value proposition is its TMR architecture. Three independent processing paths simultaneously evaluate each digital input channel. Any single-channel fault — whether caused by electrical noise, surge transients, or component degradation — is automatically detected and voted out without triggering a spurious trip or masking a genuine process hazard. This architecture directly reduces the risk of both dangerous undetected failures and nuisance shutdowns, two of the most costly failure modes in continuous industrial production.

In high-load, high-interference environments such as heavy metallurgical plants, offshore platforms, and large-scale water treatment facilities, signal drift and electromagnetic interference (EMI) are persistent threats to control loop integrity. The 3503E’s input circuitry incorporates hardware filtering and galvanic isolation on each channel, suppressing common-mode noise and protecting against voltage surges that would compromise lesser modules. This makes it a dependable front-end component in safety loops where field devices — including solenoid valves, pressure switches, and flame detectors — must report their status with absolute fidelity to the Tricon Main Chassis.

The module integrates seamlessly within the Tricon system backplane alongside complementary components such as the Triconex 3700A Enhanced Intelligent Relay Output Module, the Triconex 3805E Analog Input Module, and the Triconex 3625 Digital Output Module. In a fully configured Tricon safety cabinet, the 3503E typically works in concert with the Triconex 3008 Main Processor Module, which executes the safety application logic and coordinates the TMR voting across all I/O modules. Power integrity for the entire chassis is maintained by the Triconex 8312 Power Supply Module, which provides regulated, redundant DC power to prevent voltage fluctuation from propagating into the I/O layer.

For communication-intensive architectures where the Tricon system interfaces with a DCS or SCADA platform, the Triconex 4351B Enhanced Hiway Interface Module or the Triconex 4119A ACM Module handles protocol translation and network isolation, ensuring that upstream communication anomalies do not affect the deterministic execution of the safety program. The 3503E’s channel-level diagnostics feed directly into the system’s fault log, enabling maintenance teams to identify degraded field wiring or failing field devices before they escalate into safety events.

Replacement and spare-part management for the 3503E is straightforward. The module is hot-swappable within a powered Tricon chassis, allowing field engineers to replace a faulted unit without interrupting the safety function — a critical capability in continuous production environments where planned shutdowns are scheduled months in advance. SMARTNEXMSK maintains verified stock of the 3503E and conducts pre-shipment functional testing on every unit, including channel-by-channel input verification and backplane communication checks, to ensure that replacement modules arrive ready for immediate installation.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Tricon safety cabinet is only as reliable as its weakest component. The 3503E is typically deployed as part of a layered protection strategy that begins at the field device level and extends through the entire control architecture. In a typical critical interlock cabinet, the 3503E receives discrete signals from field instruments — pressure switches, level switches, gas detectors, and emergency stop buttons — and passes validated status data to the Triconex 3008 Main Processor for safety logic execution.

To protect against power-related disruptions, the cabinet relies on the Triconex 8312 Power Supply Module to deliver stable, filtered DC power across all chassis slots. Upstream, an industrial-grade UPS or DC bus conditioner prevents mains voltage fluctuations from reaching the Tricon backplane. On the output side, the Triconex 3625 Digital Output Module drives final control elements such as solenoid valves and motor contactors, completing the safety loop from sensor to actuator.

For analog process variables that complement the 3503E’s discrete inputs — such as pressure transmitter 4–20 mA signals used in high-integrity pressure protection systems (HIPPS) — the Triconex 3805E Analog Input Module provides the same TMR-grade signal fidelity. Communication between the Tricon system and the plant DCS is managed through the Triconex 4351B Hiway Interface Module, which isolates the safety network from the process control network and prevents communication faults from propagating into the SIS execution layer.

Surge and transient protection at the cabinet terminal strip level is further reinforced by DIN-rail mounted surge protection devices (SPDs) on all field wiring entries, preventing lightning-induced or switching transients from reaching the 3503E’s input terminals. This multi-layer approach — from field wiring protection through redundant power supply to TMR voting logic — ensures that the safety function remains available even under the most adverse site conditions.

Critical Industrial Safety Applications

The Triconex 3503E is deployed across a wide range of high-consequence industrial sectors where safety instrumented functions (SIFs) must achieve SIL 2 or SIL 3 integrity levels.

In petrochemical and refinery applications, the 3503E monitors discrete inputs from high-pressure shutdown valves, flame and gas detectors, and emergency depressurization systems. Its TMR architecture ensures that a single input channel failure does not compromise the emergency shutdown (ESD) function, maintaining process safety during continuous operation.

In power generation facilities — including thermal, nuclear, and combined-cycle plants — the module is used in turbine protection systems and boiler safety interlocks, where spurious trips carry significant economic penalties and missed trips carry catastrophic risk. The 3503E’s high diagnostic coverage and fault-tolerant design directly address both failure modes.

In mining and mineral processing operations, the module is installed in conveyor emergency stop circuits, crusher protection systems, and ventilation safety interlocks, where harsh vibration, dust, and wide temperature swings demand a module with proven environmental robustness.

In water and wastewater treatment plants, the 3503E supports pump protection interlocks, chemical dosing safety loops, and overflow prevention systems, ensuring that critical infrastructure remains protected against both equipment failure and process upsets.

In metallurgical and steel production environments, the module is used in furnace safety interlocks, cooling water protection systems, and crane overload protection circuits, where high ambient temperatures and strong electromagnetic fields from large motors and arc furnaces create a particularly challenging operating environment for electronic control equipment.

Safety and Quality FAQ

Q1: What warranty coverage does the Triconex 3503E carry?
Every Triconex 3503E shipped by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure. If a module fails to perform to OEM specification within the warranty period, we will replace or repair it at no additional cost. Warranty claims are processed promptly to minimize any impact on your plant’s spare-parts availability.

Q2: What pre-shipment testing is performed on each unit?
Each 3503E undergoes a full functional test prior to shipment, including channel-by-channel digital input verification, backplane communication integrity checks, and visual inspection for physical damage. Test records are available upon request. This process ensures that every module arrives at your site ready for immediate installation and commissioning.

Q3: Is the 3503E compatible with all Tricon chassis configurations?
The Triconex 3503E is designed for use within the Triconex Tricon TMR system platform and is compatible with standard Tricon Main Chassis configurations. It is recommended to verify chassis revision and firmware compatibility with your system documentation or contact our technical team before installation in mixed-revision cabinets. We can assist with compatibility verification as part of our pre-sale support process.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains ongoing inventory of the Triconex 3503E and related Tricon I/O modules to support both planned maintenance programs and emergency replacement requirements. We understand that unplanned module failures in safety-critical systems require rapid response, and we prioritize expedited shipping for emergency orders. Our supply chain is structured to support customers with long-term procurement agreements and single-unit emergency purchases alike.
