TRICONEX 3603E Retrofit-Ready Digital Output for Tricon TMR

TRICONEX 3603E Retrofit-Ready Digital Output for Tricon TMR: Compatible Modernization & Smooth System Upgrade

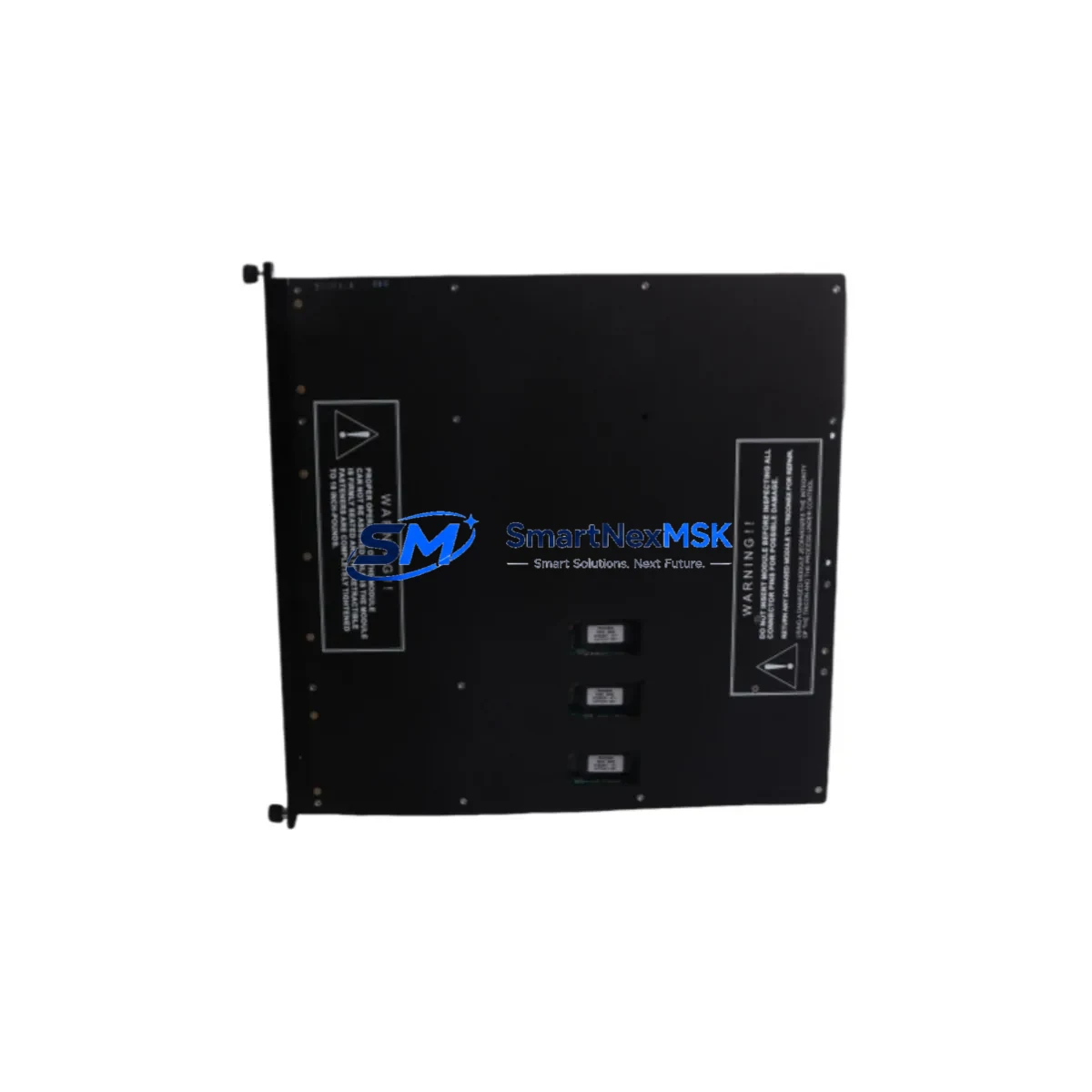

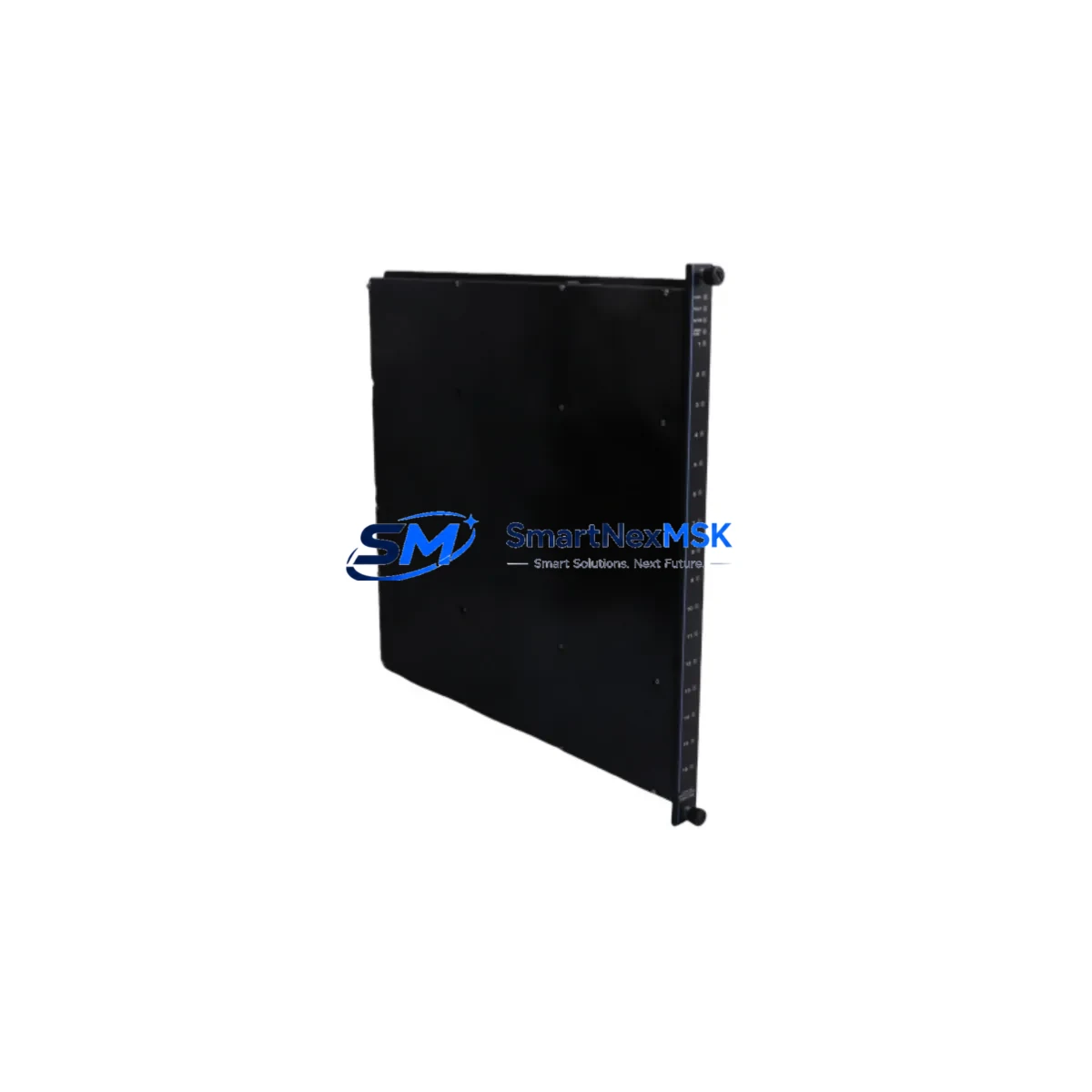

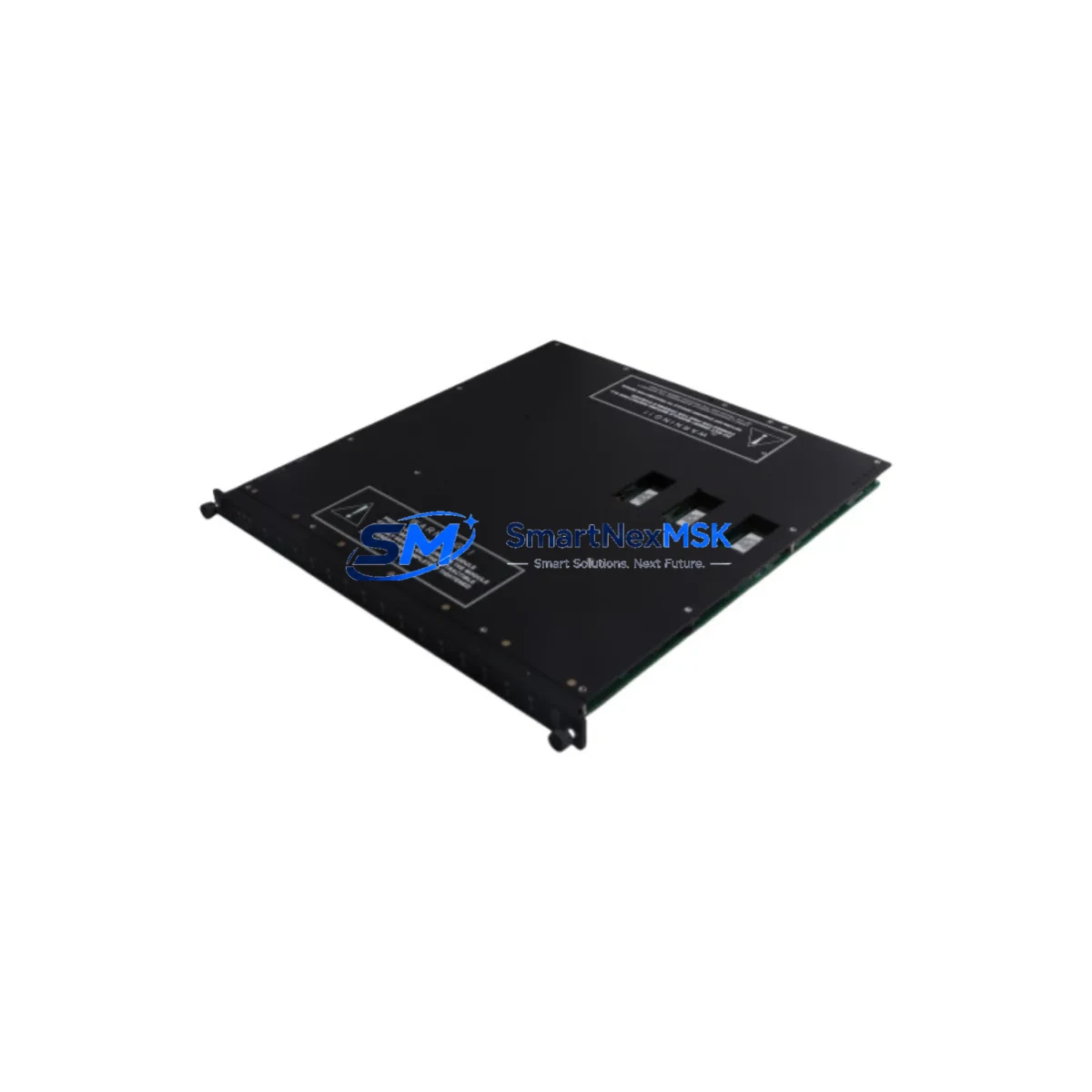

The TRICONEX 3603E is a 32-channel, SIL 3-rated digital output module engineered for the Tricon Triple Modular Redundant (TMR) safety control platform. As legacy Tricon systems approach end-of-life or face obsolescence challenges, the 3603E has become a critical retrofit component for facilities seeking to extend operational life, replace discontinued output modules, and maintain SIL 3 integrity without a full system overhaul. Whether you are managing a refinery DCS migration, upgrading a turbine control cabinet, or restoring a safety instrumented system (SIS) after a module failure, the 3603E delivers the compatibility and reliability your retrofit project demands.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TRICONEX 3603E into an existing Tricon TMR system requires careful pre-installation planning across several dimensions. Before removing the legacy output module, engineers should document the current I/O channel assignments within TriStation 1131 and verify that the replacement 3603E firmware revision is compatible with the installed Tricon Main Processor — typically a 3008 or 3006 MP module. Mismatched firmware between the MP and I/O modules is one of the most common causes of post-replacement diagnostic faults.

Terminal wiring on the 3603E follows the standard Tricon field termination assembly (FTA) pinout. If the existing FTA — such as a 3703E or 3721 termination panel — is in good condition, it can be reused without rewiring, significantly reducing retrofit labor time. Confirm that the FTA model matches the 3603E output type (sourcing vs. sinking) before proceeding. For projects involving cabinet upgrades or control room consolidation, the 3603E is often deployed alongside the TRICONEX 3805E analog input module, the 3703E digital input module, and the 3625 pulse input module to build a complete I/O refresh within the same Tricon chassis.

Power budget verification is essential. The Tricon chassis power supply — commonly the 8312 or 8310 power module — must have sufficient margin to support the 3603E’s load current across all 32 output channels at maximum activation. In high-density output applications, engineers should calculate worst-case simultaneous energization current and compare it against the power supply’s rated output capacity. If the existing power module is already near its limit, a parallel 8312 power module should be added before the 3603E is commissioned.

For facilities migrating from older Tricon systems to a Tricon CX or Triconex Safety Manager (TSM) architecture, the 3603E serves as a transitional module that maintains backward compatibility while the broader migration is staged. During this period, the TRICONEX 4351B communication module or the 4119A TriBus extender may be required to bridge legacy chassis segments with newer network infrastructure. Communication protocol continuity — particularly for Modbus RTU or TriStation peer-to-peer links — must be validated at the network layer before the new module is brought online.

All replacement modules supplied by SMARTNEXMSK are pre-tested against functional output specifications prior to shipment. Each 3603E unit undergoes bench verification of channel isolation, output switching response, and diagnostic self-test routines. Units are shipped with anti-static packaging, serialized test records, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. In-stock inventory ensures lead times are minimized, supporting urgent maintenance windows and unplanned outages.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a digital output module in a live SIL 3 environment. The TRICONEX 3603E supports hot-swap replacement in most Tricon TMR configurations, allowing the module to be removed and reinserted while the chassis remains energized and the remaining two legs of the TMR architecture maintain process control. Before initiating the swap, the control system engineer should place the affected output channels in a safe state — typically de-energized or held at last value — using the TriStation 1131 force function or the system’s defined safe-state logic.

Original program logic does not need to be modified for a like-for-like 3603E replacement. The Tricon MP will automatically recognize the new module upon insertion and re-synchronize the TMR voting logic within seconds. However, if the replacement involves a revision upgrade (e.g., from 3603C to 3603E), the engineer should review the TRICONEX module revision history document and confirm that no I/O behavior changes affect the existing ladder logic or function block diagrams in TriStation 1131.

HMI screens connected via OPC or Modbus to the Tricon system will continue to display process values without interruption during a hot-swap, provided the communication link to the Tricon MP is maintained. After module insertion, a full channel-by-channel output verification should be performed using the TriStation 1131 online diagnostics panel, confirming that all 32 channels report healthy status and that field device responses match expected logic states. Sequence of Events (SOE) logging should be reviewed post-swap to confirm no spurious events were generated during the transition.

Retrofit Support FAQ

Q1: Is the TRICONEX 3603E a direct drop-in replacement for the 3603, 3603A, 3603B, 3603C, and 3603D?
A: Yes. The 3603E is the current production revision and is backward compatible with all earlier 3603-series revisions in the same Tricon TMR chassis slot. No wiring changes are required when reusing an existing 3703E or compatible FTA. Confirm firmware compatibility with your installed MP revision using the TRICONEX compatibility matrix before commissioning.

Q2: What commissioning steps are required after installing the 3603E?
A: After hot-swap insertion, verify module recognition in TriStation 1131 online mode, confirm TMR synchronization status on all three legs, perform a forced output test on each channel, and review SOE logs for any transition events. No program download is required for a like-for-like revision replacement.

Q3: How do I verify wiring compatibility between the 3603E and my existing field termination assembly?
A: Cross-reference your existing FTA model number against the TRICONEX 3603E installation and operations manual. The 3703E and 3721 FTAs are the most common compatible termination panels. Verify output type (sourcing/sinking) and confirm terminal numbering matches your existing field wiring documentation before energizing.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact sales@smartnexmsk.com with your order number and a description of the fault. SMARTNEXMSK will arrange inspection and replacement. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical impact.
