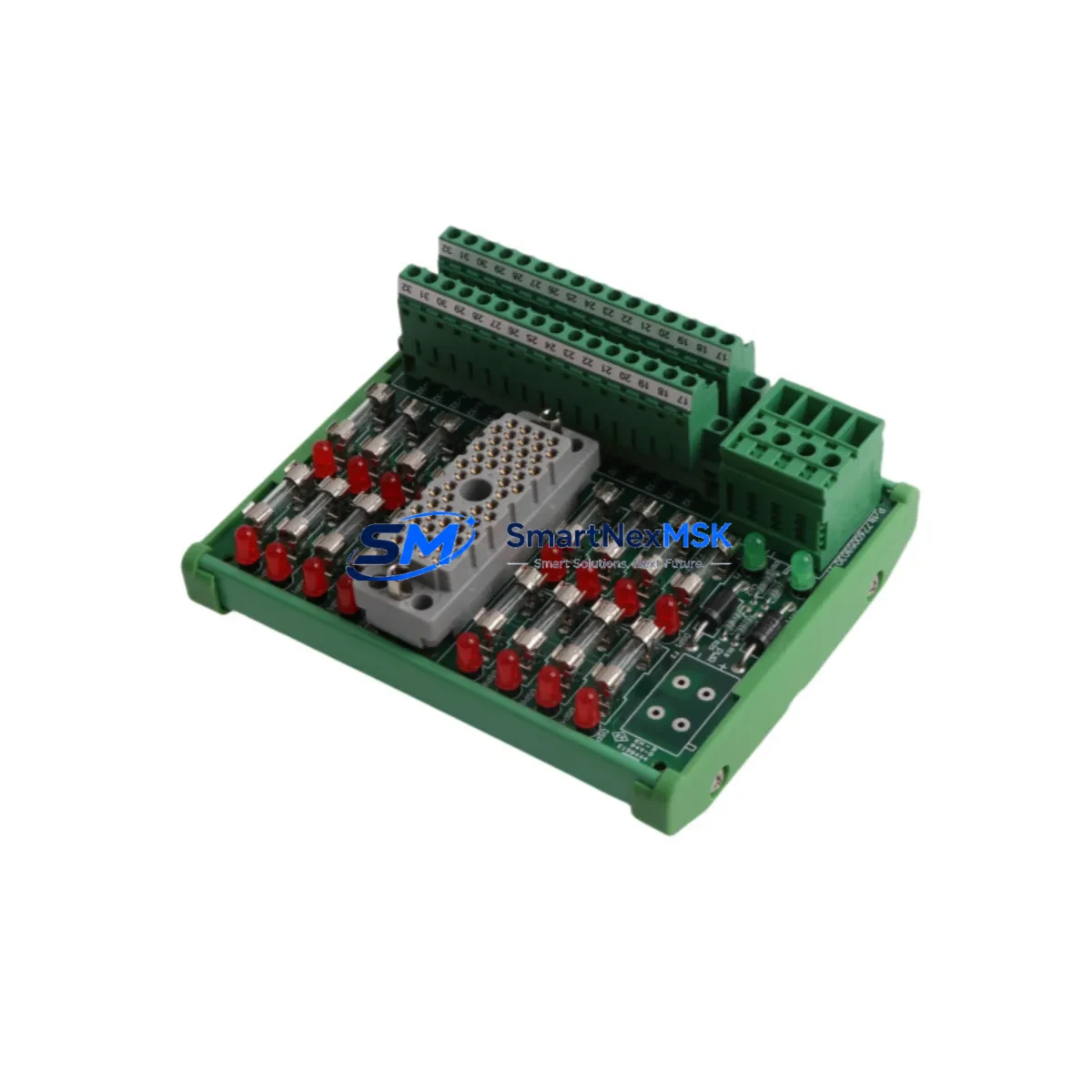

Triconex 9563-810 Safety-Enhanced TMR Controller Module

Triconex 9563-810 Safety-Enhanced TMR Controller Module: Reliable Control for Harsh Industrial Sites

The Triconex 9563-810 is a Triple Modular Redundant (TMR) Safety Controller Module engineered for mission-critical industrial environments where control interruption is not an option. Designed to meet IEC 61508 SIL 3 requirements, this module delivers continuous fault-tolerant operation across petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processes, port logistics, and continuous manufacturing lines. Its ruggedized architecture ensures stable performance under extreme temperature ranges, high electromagnetic interference, voltage fluctuations, and mechanical vibration — conditions that routinely challenge conventional PLC hardware.

At the core of the 9563-810’s safety philosophy is its triple-redundant voting logic. Three independent processing channels simultaneously execute control algorithms and cross-check outputs. If any single channel detects a discrepancy — whether caused by signal drift, memory corruption, or transient surge — the remaining two channels maintain correct output without interruption. This 2-out-of-3 (2oo3) voting architecture eliminates single points of failure and dramatically reduces the probability of dangerous undetected faults, making it the preferred choice for safety instrumented systems (SIS) and emergency shutdown (ESD) loops.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Triconex 9563-810 within a safety control cabinet demands a holistic protection strategy that addresses power integrity, signal fidelity, and communication continuity. The module operates within the Tricon TMR main chassis (9100-series backplane), which provides the structural and electrical foundation for all I/O and communication modules. Reliable DC power delivery is ensured through redundant Triconex 8312 Power Supply Modules, which maintain regulated voltage even during upstream grid disturbances — a critical safeguard against module reset or spurious trip events.

On the I/O side, the 9563-810 interfaces with Triconex Digital Input Modules (2351, 2353) and Digital Output Modules (3501, 3503) to monitor field sensors and actuate final control elements such as solenoid valves and motor starters. For analog process variables — pressure, temperature, flow — Triconex Analog Input Modules (4351, 4353) provide high-resolution, isolated signal conditioning that prevents ground loops and common-mode noise from corrupting safety-critical measurements.

Communication integrity is maintained through the Triconex Communication Module (TCM), which bridges the TMR controller to DCS networks, SCADA systems, and historian platforms via Modbus TCP or OPC-DA. In installations where the safety network must remain isolated from the process control network, a dedicated Triconex Enhanced Intelligent Communication Module (EICM) provides the necessary protocol gateway with hardware-enforced data diode functionality. Surge protection on all field wiring terminals — using DIN-rail mounted Phoenix Contact TRABTECH surge arresters — prevents transient overvoltages from propagating into the module’s input circuitry, preserving both hardware integrity and signal accuracy.

Critical Industrial Safety Applications

The Triconex 9563-810 is deployed across the most demanding industrial sectors where process safety and continuous availability are non-negotiable:

Petrochemical & Refining: In hydrocarbon processing units, the 9563-810 governs emergency shutdown (ESD) systems for high-pressure reactors, compressor trains, and fired heaters. Its SIL 3 rating satisfies the functional safety requirements of IEC 61511, ensuring that safety instrumented functions (SIFs) achieve the required risk reduction factor without spurious trips that cause costly unplanned shutdowns.

Power Generation: Thermal and combined-cycle power plants rely on TMR controllers for turbine overspeed protection, boiler safety interlocks, and generator protection relays. The 9563-810’s fault-tolerant architecture ensures that a single module failure does not compromise the safety function, maintaining grid stability and personnel protection simultaneously.

Mining & Mineral Processing: Underground and surface mining operations deploy the 9563-810 in conveyor safety systems, ventilation control, and hoisting equipment interlocks. Its wide operating temperature range and vibration resistance make it suitable for the harsh mechanical and environmental conditions typical of mining infrastructure.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use TMR safety controllers to manage chlorination dosing interlocks, pump protection, and overflow prevention systems. The module’s high availability ensures continuous water quality monitoring without interruption to treatment processes.

Metallurgy & Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the 9563-810 provides reliable control of hydraulic press interlocks, cooling water safety systems, and fume extraction emergency stops — environments characterized by extreme heat, electromagnetic noise, and mechanical shock.

Port & Terminal Logistics: LNG and petroleum terminals deploy Triconex TMR systems for tank overfill protection, loading arm emergency release, and fire and gas detection integration, where a single control failure could result in catastrophic environmental and safety consequences.

Safety and Quality FAQ

Q1: What warranty coverage does the Triconex 9563-810 come with?
Every 9563-810 module shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: What pre-shipment testing is performed on each module?
Each unit undergoes a comprehensive outgoing quality inspection that includes power-on functional verification, I/O channel continuity testing, communication port validation, and visual inspection for physical damage or component degradation. Modules are shipped in ESD-safe anti-static packaging with desiccant to prevent moisture ingress during transit.

Q3: Is the 9563-810 compatible with existing Tricon TMR systems and TriStation 1131 programming software?
Yes. The 9563-810 is fully compatible with the Tricon TMR chassis family and is programmed and configured using TriStation 1131 software. It supports standard Triconex I/O modules and communication modules without requiring hardware modifications, making it a direct drop-in replacement for installed base systems.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of Triconex TMR modules including the 9563-810 to support long-term spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. We provide supply continuity commitments for critical safety system components, with expedited shipping options available for urgent field replacement scenarios.
