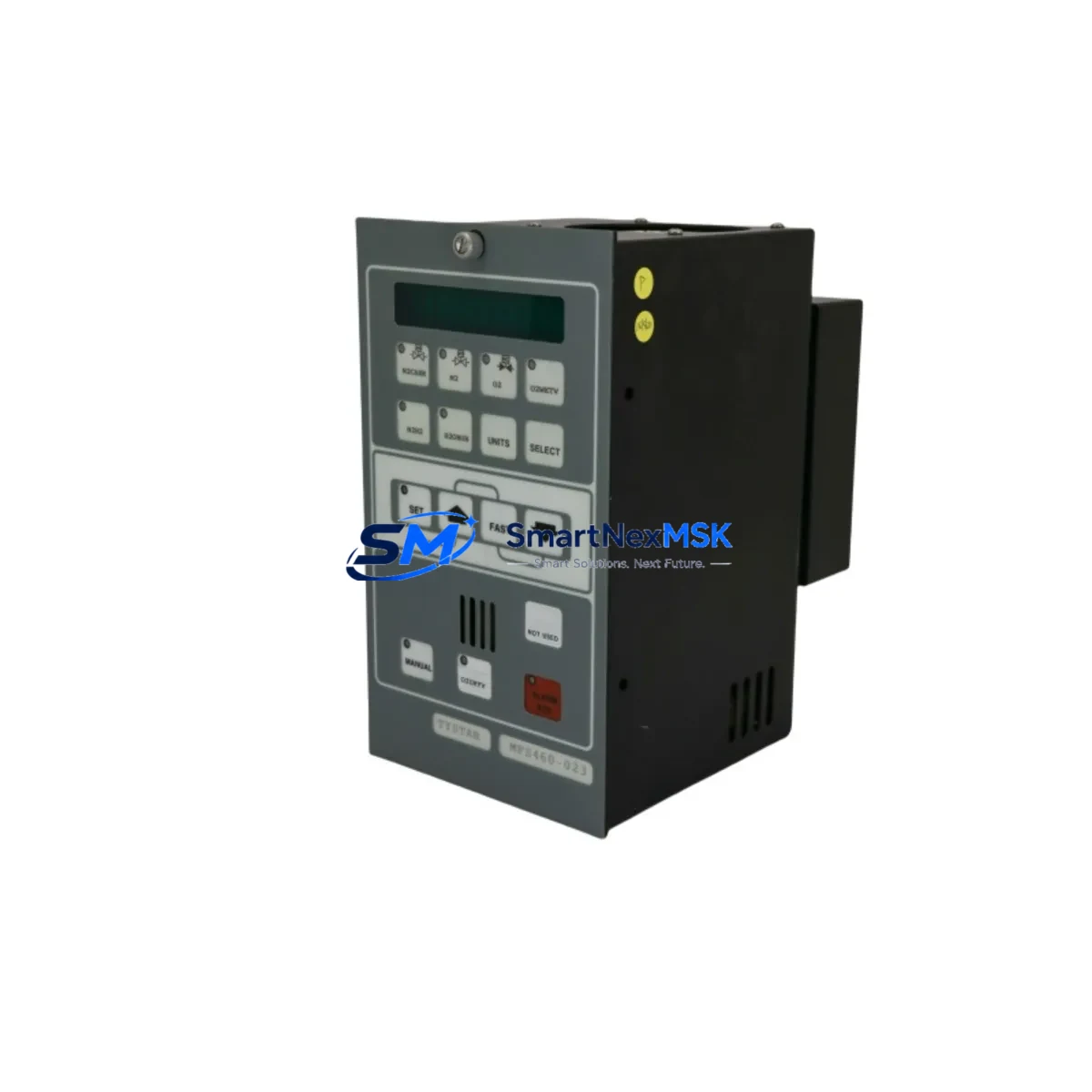

TYSTAR MFS460-023 Retrofit-Ready Mass Flow Controller for CVD460 Control Systems
The TYSTAR MFS460-023 (full SKU: MFS460-023 CVD460-197 BD TYB 121-1/COM 1D81-000009216) is an industrial-grade mass flow controller engineered as a direct retrofit solution for legacy CVD460 series process control systems. Designed for semiconductor fabrication, chemical vapor deposition (CVD), and precision gas delivery applications, this unit delivers a seamless upgrade path for facilities managing aging automation infrastructure without requiring full system redesign or extended production shutdowns.
Whether you are replacing a discontinued OEM unit, upgrading a legacy control cabinet, or migrating from an obsolete communication architecture, the MFS460-023 is built to minimize integration friction and protect your existing process logic investment.
Upgrade Compatibility Table
| Parameter | Legacy CVD460 OEM Unit | TYSTAR MFS460-023 | Retrofit Notes |
|---|---|---|---|
| Form Factor / Mounting | Standard CVD460 footprint | Drop-in compatible | No bracket modification required |
| Communication Interface | RS-232 / Analog 0–5V or 4–20mA | RS-232 + Analog I/O | Direct terminal-to-terminal wiring match |
| Power Supply | ±15 VDC or 24 VDC | ±15 VDC / 24 VDC selectable | Verify PSU rail capacity before swap |
| Signal Compatibility | 0–5V setpoint / readback | 0–5V / 4–20mA configurable | Match DIP switch to existing signal type |
| Backplane / Rack Interface | CVD460 rack slot | Compatible with CVD460-197 backplane | Confirm slot address assignment |
| Module Address Setting | Hardware DIP / jumper | DIP switch configurable | Set address before installation |
| Program / Recipe Compatibility | OEM process recipes | Fully compatible signal range | No recipe rewrite required in most cases |
| HMI Screen Mapping | CVD460 SCADA / HMI tags | Same I/O tag structure | Verify tag names in HMI project file |
| Calibration | Factory-calibrated for process gas | Pre-calibrated, field-adjustable | Confirm gas type and full-scale range |
| Warranty | OEM (typically expired) | 12-Month Warranty | Covered from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the MFS460-023 into a running CVD process line begins well before the physical swap. Engineers should start by auditing the existing CVD460-197 backplane for available slot capacity and confirming that the rack’s internal bus can support the replacement module’s address range. In multi-zone furnace systems, it is common to find the MFC paired with a TYSTAR temperature controller or a dedicated process gas panel controller sharing the same control cabinet — both of which must remain undisturbed during the MFC swap.
Terminal wiring is a critical checkpoint. The MFS460-023 uses a standard 15-pin D-sub or screw-terminal interface consistent with the CVD460 series. Before disconnecting the legacy unit, photograph and document all wire labels, paying particular attention to the setpoint input, flow readback output, valve drive signal, and purge interlock lines. If the existing system uses a 4–20mA analog I/O card in the PLC rack — such as a legacy analog output module from the same control platform — confirm the signal range matches the MFC’s configured input mode.
For facilities running a distributed I/O architecture, where the MFC communicates via RS-232 to a serial communication module or a multi-drop RS-232 hub, verify the baud rate, parity, and stop-bit settings on the MFS460-023 match the host controller’s port configuration. In older CVD systems, these parameters are often stored in the recipe management software or a dedicated process controller HMI rather than in the PLC program itself — a detail that is frequently overlooked during rushed maintenance windows.
If the control system includes a programmable logic controller (PLC) with ladder logic referencing the MFC’s flow readback as a process variable, confirm that the analog input scaling in the PLC program (typically in engineering units per volt or per milliamp) matches the MFS460-023’s full-scale output. No program rewrite should be necessary if the signal range is preserved, but a forced I/O test during commissioning is strongly recommended. Similarly, any HMI faceplate or SCADA trend displaying the MFC channel should be verified against live readback values before returning the process line to production.
Power supply capacity is another area requiring pre-swap verification. The MFS460-023 draws from the ±15 VDC rails shared with other instruments in the control cabinet. If the cabinet also houses a pressure controller, a valve positioner, or additional analog signal conditioners, calculate the total rail load to ensure the existing linear power supply or switching PSU module has sufficient headroom. Overloaded supply rails are a leading cause of intermittent MFC faults in retrofitted systems.
Downtime Control During System Migration
Minimizing production downtime during an MFC replacement requires a structured hot-swap protocol. Begin by placing the process zone in a safe hold state — typically by commanding a zero-flow setpoint through the recipe management system or manually via the HMI — rather than performing an emergency shutdown. This preserves the thermal profile of the furnace and avoids the lengthy ramp-up cycle that follows a cold restart.
With the zone in hold, isolate the gas line upstream of the MFC using the manual shutoff valve, then vent the line to a safe exhaust point before breaking any fittings. The MFS460-023’s pre-tested and pre-calibrated condition means that once installed and powered, it should reach stable flow control within minutes of the setpoint being restored — provided the address, signal range, and communication parameters were configured correctly before installation.
Keep the legacy unit on the bench and powered if possible during the first production run with the replacement. This allows a rapid swap-back if an unexpected process deviation occurs, without the delay of reconfiguring a cold spare. Once the first full process cycle completes within specification, the legacy unit can be retired or returned to inventory as a secondary spare.
All MFS460-023 units shipped by TYSTAR ELECTRONIC undergo a full functional test — including flow linearity check, valve response test, and communication handshake verification — prior to dispatch. Units are shipped from Xiamen within 24 hours of order confirmation and are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.
Retrofit Support FAQ
Q1: Is the MFS460-023 a direct drop-in replacement for the original CVD460 MFC without any wiring changes?
In the majority of CVD460 installations, yes. The MFS460-023 is designed to match the terminal pinout and signal levels of the original CVD460-series MFC. However, we recommend verifying the valve drive polarity and the analog signal mode (0–5V vs. 4–20mA) against your specific system wiring diagram before installation, as some early CVD460 variants used non-standard signal configurations.
Q2: What commissioning steps are required after installing the MFS460-023?
After physical installation and power-up, confirm the module address via DIP switch matches the address expected by the host controller. Perform a zero-flow calibration check, then command a known setpoint (e.g., 50% of full scale) and verify the readback matches within ±1% FS. Check the RS-232 communication link by confirming the host controller receives a valid flow reading. Finally, run one complete process recipe in manual mode before returning to automatic control.
Q3: Can the MFS460-023 be used with a different gas species than the original calibration?
The MFS460-023 is factory-calibrated for the gas species specified at the time of order. If you need to use it with a different gas, a conversion factor (K-factor) can be applied via the host controller or the MFC’s internal parameter settings, provided the gas is within the compatible viscosity and density range. Contact our technical team with your target gas species and flow range for confirmation before proceeding.
Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers all defects in materials and workmanship under normal operating conditions, including valve failure, sensor drift beyond specification, and communication interface faults. It does not cover damage caused by incorrect installation, overpressure, incompatible gases, or unauthorized modification. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number and a description of the fault. A replacement or repair will be arranged within 5 business days of fault confirmation.
