V-TEX V040907 Safety-Enhanced Slit Valve for Harsh Industrial Sites

V-TEX V040907 Safety-Enhanced Slit Valve for Harsh Industrial Sites

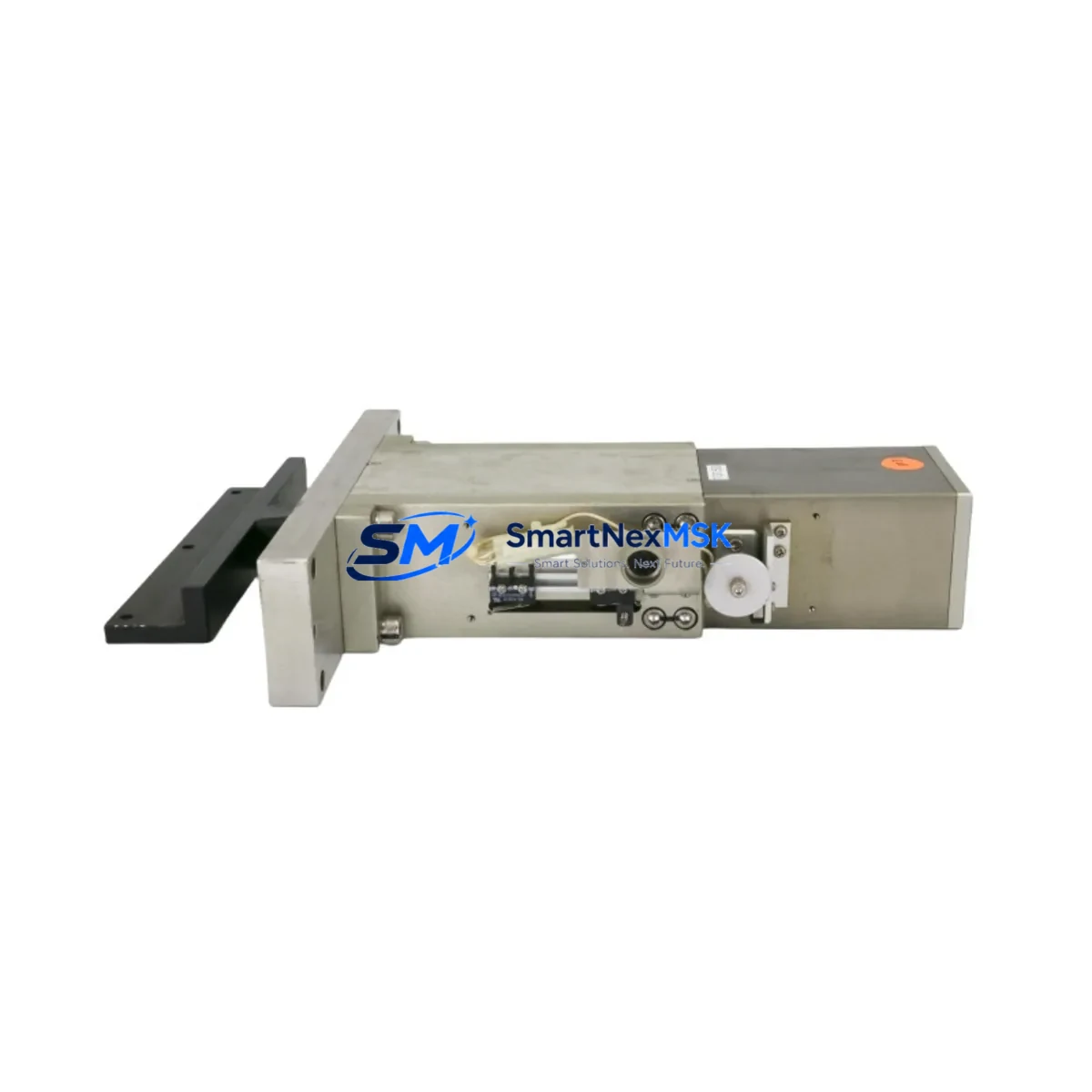

The V-TEX V040907 (cross-reference: 2L80-000082-11 / 715-011204-001 / 0021-22627) is a precision-engineered ruggedized slit valve designed for vacuum isolation and process chamber access control in the most demanding semiconductor fabrication, industrial automation, and continuous-process manufacturing environments. Built to V-TEX’s exacting standards for the Rollcam door platform, this module delivers consistent, repeatable sealing performance under high-cycle, high-vacuum, and thermally stressed conditions — where control interruption or valve misoperation can trigger costly process excursions, equipment damage, or safety incidents.

In critical process environments — CVD chambers, etch tools, PVD clusters, and load-lock transfer modules — the slit valve is the last line of defense between atmospheric contamination and ultra-clean vacuum space. The V040907 addresses this responsibility with a robust actuator assembly, a chemically resistant elastomer seal, and a low-particle door mechanism that minimizes contamination risk during wafer transfer. Its ruggedized construction ensures reliable operation even when exposed to process by-products, corrosive gases, thermal cycling, and mechanical vibration — conditions that routinely degrade lesser components.

Vacuum system integrity depends on the coordinated performance of multiple components. In a typical process tool, the V040907 slit valve works in concert with the V-TEX Rollcam actuator assembly and compatible pneumatic solenoid valve banks that govern open/close sequencing. Upstream, turbomolecular pump controllers and dry scroll roughing pumps maintain the base pressure that the slit valve must reliably isolate. Downstream interlocks — often managed by a PLC-based safety relay module or a programmable safety controller (PSC) — monitor valve position feedback signals to confirm full open or full closed status before permitting wafer transfer or process gas introduction. Any signal drift or actuator hesitation in this chain can trigger an interlock fault, halting production.

The V040907’s position sensor interface is compatible with standard 24 VDC discrete I/O modules used in Siemens S7, Allen-Bradley ControlLogix, and Omron NX/NJ series PLCs, enabling direct integration into existing safety-rated control architectures without signal conditioning adapters. For facilities running EtherNet/IP or PROFIBUS DP fieldbus networks, the valve’s actuator status can be mapped through existing remote I/O gateway modules, preserving communication architecture integrity. Surge protection on the solenoid drive lines — typically provided by 24 VDC DIN-rail surge arresters — is strongly recommended to prevent valve misoperation caused by transient voltage spikes common in high-power RF etch environments.

Seal integrity is the primary safety parameter for this valve. The V040907 uses a precision-molded elastomer door seal compatible with standard O-ring replacement kits available for the Rollcam platform. Preventive maintenance intervals should align with chamber wet-clean cycles. Facilities maintaining a spare parts inventory of door seals, actuator rebuild kits, and position sensor assemblies can execute in-situ replacements within a single maintenance window, minimizing mean time to repair (MTTR) and protecting production uptime commitments.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the V-TEX V040907 within a well-engineered control cabinet ecosystem is essential to maximizing its operational safety contribution. The valve’s solenoid coil should be driven through a Pilz PNOZ safety relay or equivalent dual-channel safety relay that monitors both the command signal and the position feedback in a monitored start/stop configuration — this prevents undetected valve failures from propagating into the process interlock chain. Power to the solenoid bank should be sourced from a dedicated 24 VDC SITOP PSU8200 power supply or equivalent DIN-rail unit with output current monitoring, ensuring that a solenoid coil short does not collapse the entire I/O bus voltage.

Wiring runs between the control cabinet and the valve actuator should be routed through shielded twisted-pair cable with shield grounded at the cabinet end only, reducing susceptibility to RF interference from plasma generators and high-frequency power supplies common in semiconductor tools. At the cabinet entry point, Phoenix Contact TERMITRAB surge protection terminal blocks provide transient suppression on both the solenoid drive and sensor feedback lines. For facilities using Siemens ET 200SP remote I/O stations or Allen-Bradley Point I/O modules mounted near the process tool, the valve’s discrete signals can be terminated locally, reducing cable run length and improving signal integrity.

Valve position status should be mapped to the facility’s SCADA or DCS historian — such as an Emerson DeltaV or Honeywell Experion system — to enable trend analysis of open/close cycle counts and actuation timing. Degrading actuation speed is an early indicator of seal wear or pneumatic supply pressure drop, allowing predictive maintenance before an in-process failure occurs. Pairing the V040907 with a pneumatic pressure switch on the actuator supply line adds a further layer of protection, triggering an alarm if supply pressure falls below the minimum required for reliable valve seating.

Critical Industrial Safety Applications

The V-TEX V040907 slit valve is deployed across a broad range of high-stakes industrial and semiconductor manufacturing environments where vacuum integrity and process isolation are non-negotiable safety requirements.

Semiconductor Fabrication (CVD / Etch / PVD): In 200 mm and 300 mm wafer fabs, the V040907 controls access between load-lock chambers and process modules. A valve failure during wafer transfer exposes the process chamber to atmospheric contamination, requiring costly pump-down cycles and potentially scrapping in-process wafers. The valve’s ruggedized Rollcam mechanism maintains reliable sealing through tens of thousands of open/close cycles per year.

Flat Panel Display (FPD) Manufacturing: Large-area glass substrate handling systems use slit valves at every chamber interface. The V040907’s low-particle door design is critical in these environments, where particulate contamination directly impacts display yield and panel quality.

Solar Cell and Thin-Film Deposition: Continuous roll-to-roll and batch deposition systems for photovoltaic manufacturing rely on slit valves to maintain differential pressure between deposition zones. The V040907 provides the cycle-life durability required for high-throughput production without frequent maintenance interventions.

Research and Analytical Instrumentation: Synchrotron beamlines, electron microscopy sample preparation systems, and surface analysis instruments use slit valves to isolate ultra-high vacuum regions during sample exchange. The V040907’s low outgassing seal materials support the stringent vacuum cleanliness requirements of these applications.

Industrial Vacuum Coating and Metallizing: Batch and inline vacuum coating systems for optical, decorative, and functional coatings use slit valves at load/unload stations. The V040907’s robust construction withstands the thermal cycling and mechanical stress of high-throughput coating operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the V-TEX V040907?
All V040907 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers defects in materials and workmanship under normal operating conditions. Warranty support includes technical troubleshooting, replacement unit dispatch, and root-cause analysis documentation upon request.

Q2: What pre-shipment testing is performed on each unit?
Every V040907 undergoes a comprehensive outgoing inspection protocol including full mechanical actuation cycling, pneumatic leak testing of the actuator assembly, seal integrity verification, and position sensor output confirmation. Units that do not meet V-TEX OEM performance specifications are rejected and not shipped. A test report is available upon request.

Q3: Is the V040907 compatible with my existing tool and control system?
The V040907 is a direct OEM-equivalent replacement for systems originally equipped with V-TEX Rollcam door slit valves. It is compatible with standard 24 VDC solenoid drive circuits and discrete position sensor interfaces used in Siemens, Allen-Bradley, Omron, and Mitsubishi PLC platforms. Cross-reference SKUs 2L80-000082-11, 715-011204-001, and 0021-22627 confirm fitment for specific tool configurations. Contact our technical team with your tool model and OEM part number for fitment confirmation.

Q4: Can SMARTNEXMSK support long-term and repeat supply requirements?
Yes. SMARTNEXMSK maintains strategic inventory of V-TEX slit valve assemblies and related spare parts to support both immediate replacement needs and planned maintenance programs. We can provide volume pricing, scheduled delivery agreements, and consignment stock arrangements for facilities with high annual consumption. Our supply chain team actively sources and qualifies refurbished units to ensure continuity of supply for legacy and current-generation process tools.
