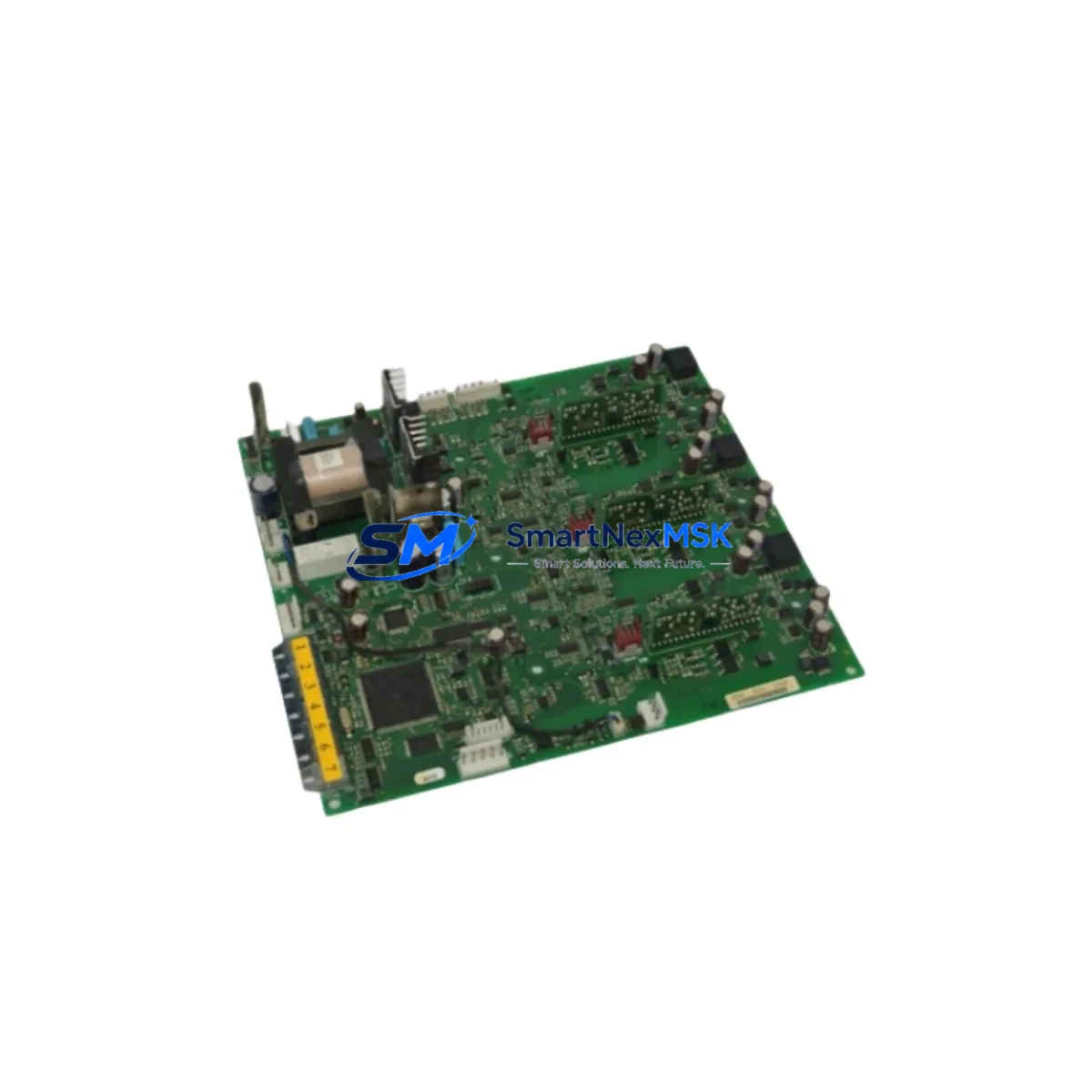

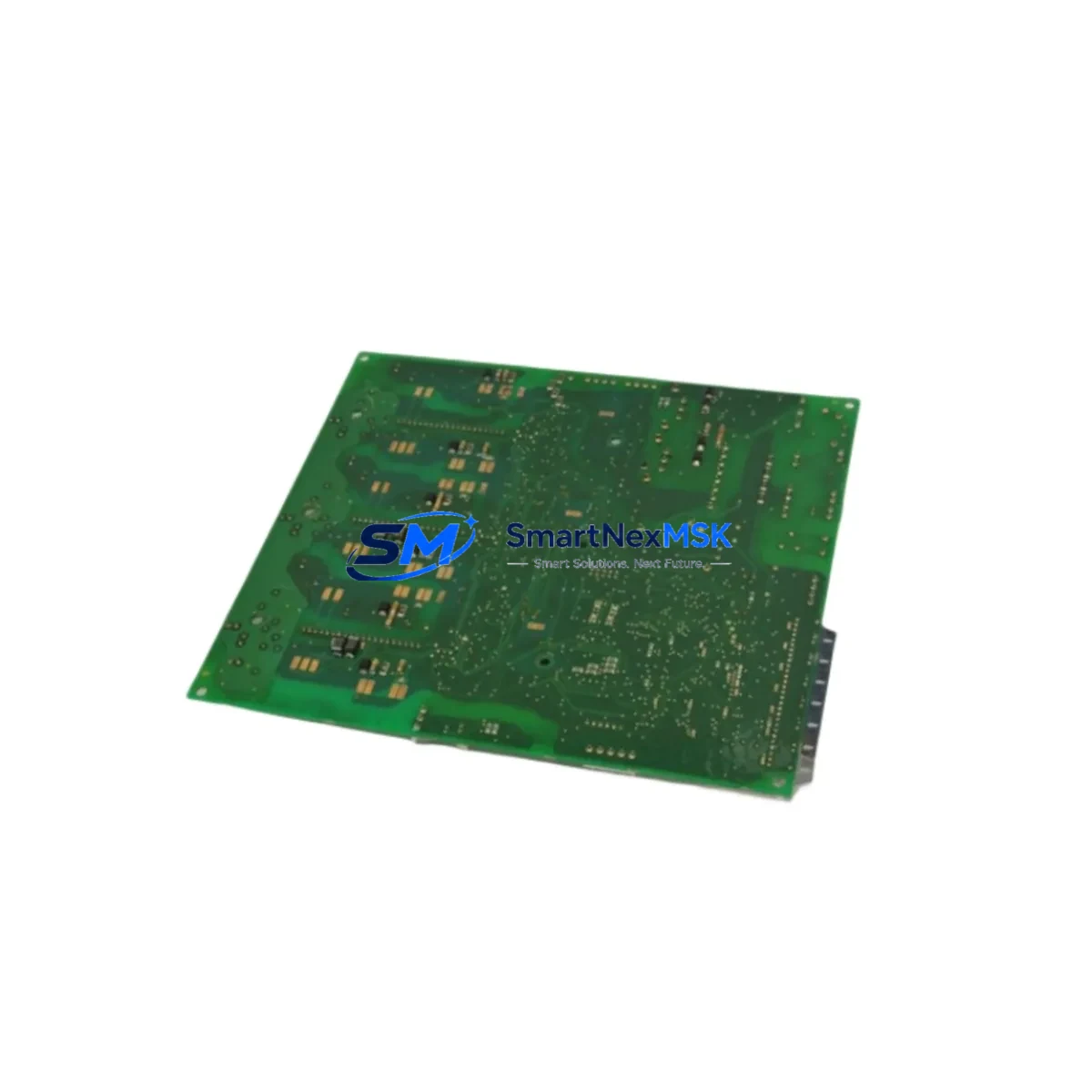

VACON PC00225I Retrofit-Ready Power Supply Board for NX/NXP Series Control Systems
The VACON PC00225I is an internal power supply board engineered for seamless retrofit integration into VACON NX and NXP series variable frequency drives. As legacy drive platforms approach end-of-life and OEM spare parts become increasingly scarce, the PC00225I provides a verified drop-in replacement path that preserves existing control logic, terminal wiring, and fieldbus communication without requiring a full drive replacement. Whether you are managing a planned upgrade cycle or responding to an unplanned failure on a critical production line, the PC00225I is stocked and ready for immediate dispatch with a 12-month warranty.
Industrial facilities running VACON NX-series drives — including frame sizes NX0003 through NX0300 — frequently encounter power supply board failures as the primary cause of drive shutdown. The PC00225I addresses this directly by restoring regulated DC rail voltages to the control board, gate driver circuits, and I/O interface modules without disturbing the existing parameter set stored in the VACON NXP control panel or OPTC7 control board. This means your PID loops, ramp profiles, and motor nameplate data remain intact through the swap.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Drive Series | VACON NX, VACON NXP (all frame sizes) |
| Replaces OEM Part | PC00225I (direct replacement, no modification required) |
| Mounting Interface | Standard NX/NXP backplane connector — no bracket adaptation needed |
| Communication Compatibility | PROFIBUS-DP (OPTE3), PROFINET (OPTE9), Modbus RTU, DeviceNet — all fieldbus option boards remain compatible |
| Control Board Compatibility | OPTC7, OPTC7+ control boards; parameter memory unaffected during swap |
| Installation Requirement | Drive must be fully de-energized; DC bus discharge verification required before access |
| Commissioning After Swap | Power-on self-test only; no parameter re-entry required if OPTC7 memory is intact |
| Retrofit Recommendation | Inspect IGBT gate driver board (OPTI7) and DC bus capacitors concurrently |
| Debugging Focus | Verify 24 VDC auxiliary rail, ±15 VDC analog supply, and 5 VDC logic rail post-installation |
| Warranty | 12 months from date of shipment, covering manufacturing defects |
Retrofit Planning for Existing Automation Systems
A successful PC00225I retrofit begins well before the board arrives on site. Engineers responsible for the control cabinet should first audit the full drive assembly to identify any co-dependent components that may have been stressed by the power supply failure. In VACON NX installations, the OPTI7 gate driver board shares the same internal DC bus and is frequently damaged in parallel with the power supply board — replacing the PC00225I without inspecting the OPTI7 risks a repeat failure within weeks of restart.
Terminal wiring on the VACON NX control terminal block (X1) does not need to be disturbed during a power supply board swap, as the PC00225I is an internal component accessed from the drive’s front panel after removing the cable duct cover. However, if the retrofit is part of a broader control cabinet upgrade — for example, migrating from a standalone NX drive to a networked NXP system with PROFIBUS-DP via the OPTE3 option board — the terminal layout and DIP switch settings on the OPTE3 must be verified against the new network node address before the drive is brought online.
For facilities running multiple NX-series drives on a shared Modbus RTU network, the VACON OPTC7 control board stores the drive’s RS-485 node address in non-volatile memory. After installing the PC00225I, confirm that the OPTC7 is still correctly addressed and that the baud rate matches the master PLC — typically a Siemens S7-300, Allen-Bradley CompactLogix, or Schneider Modicon M340 acting as the network master. If the HMI panel — such as a VACON NXP keypad or a third-party Weintek or Proface touchscreen — was configured to poll drive parameters over Modbus, verify that the polling addresses remain valid after the board swap.
In systems where the NX drive controls a pump, fan, or compressor with a 4–20 mA analog reference signal from a DCS output card, the analog input scaling on the OPTC7 should be re-verified after power-up. The PC00225I restores the ±15 VDC analog supply rail, but any drift in the analog input calibration caused by the original failure should be corrected using the VACON NX parameter group G2.1 before returning the drive to automatic mode. If the system includes an OPTE9 PROFINET option board, confirm that the IP address assignment and GSD file version in the PLC project still match the restored drive configuration.
Facilities planning a phased migration from VACON NX to VACON NXP should note that the NXP platform uses the same PC00225I power supply board, making this component a common spare across both generations. Stocking a single PC00225I covers both platforms, reducing spare parts inventory complexity. The VACON NXP also supports the OPTBF brake chopper option and OPTE5 EtherCAT board, which are not available on the base NX platform — these can be added during the retrofit window without additional downtime.
Downtime Control During System Migration
Minimizing production downtime during a PC00225I swap requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, upload the full parameter set from the VACON OPTC7 control board using the VACON Loader PC tool or the NXP keypad’s parameter copy function. Store this backup on a USB drive and in the plant’s CMMS system. This ensures that even if the OPTC7 memory is corrupted during the failure event, the drive can be fully recommissioned from the backup without manual parameter re-entry.
During the outage, follow the VACON NX installation manual’s lockout/tagout procedure: isolate the main supply, wait for the DC bus voltage indicator to confirm full discharge (typically 5–10 minutes for larger frame sizes), then remove the front cover and cable duct to access the power supply board. The PC00225I is secured with standard M4 fasteners and connects via a keyed ribbon connector — the swap itself typically takes under 20 minutes for a trained technician.
After installation, perform a controlled power-up with the motor disconnected if possible, verifying all DC rail voltages before reconnecting the load. If the drive is part of a coordinated multi-drive system — for example, a winder or conveyor line where multiple NX drives are synchronized via a master-follower Modbus link — bring the repaired drive online in manual mode first, confirm speed reference tracking, then transfer to automatic network control. This staged restart approach protects the original program logic in the master PLC and prevents process upsets caused by a drive that is not yet confirmed stable.
Retrofit Support FAQ
Q: Is the PC00225I a direct drop-in replacement for all VACON NX and NXP frame sizes?
A: Yes. The PC00225I is the standard internal power supply board used across the VACON NX and NXP series. It is compatible with all frame sizes from NX0003 through NX0300 and does not require any mechanical modification or firmware update for installation.
Q: Will my drive parameters be lost when I replace the power supply board?
A: No. Drive parameters are stored in the VACON OPTC7 control board’s non-volatile memory, which is independent of the PC00225I power supply board. As long as the OPTC7 is undamaged, all parameters — including motor data, PID settings, and network addresses — are preserved through the swap. We recommend backing up parameters before any maintenance as a precaution.
Q: What commissioning steps are required after installing the PC00225I?
A: After installation, power up the drive and verify the 24 VDC auxiliary rail, ±15 VDC analog supply, and 5 VDC logic rail using a multimeter at the test points specified in the VACON NX hardware manual. Confirm that the keypad or HMI displays the correct drive status and that all fieldbus communication (Modbus RTU, PROFIBUS-DP, or PROFINET) is re-established with the master PLC. No parameter re-entry is required if the OPTC7 memory is intact.
Q: What does the 12-month warranty cover, and how is it processed?
A: The PC00225I carries a 12-month warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Warranty claims are processed by contacting our technical support team with the order number and a description of the fault. We offer advance replacement shipping to minimize your downtime — a replacement unit is dispatched before the faulty board is returned, subject to verification.
