VARIAN MKS CDN500-38 E15006731 Safety Control Box

VARIAN MKS CDN500-38 E15006731 Safety Control Box for Harsh Industrial Sites

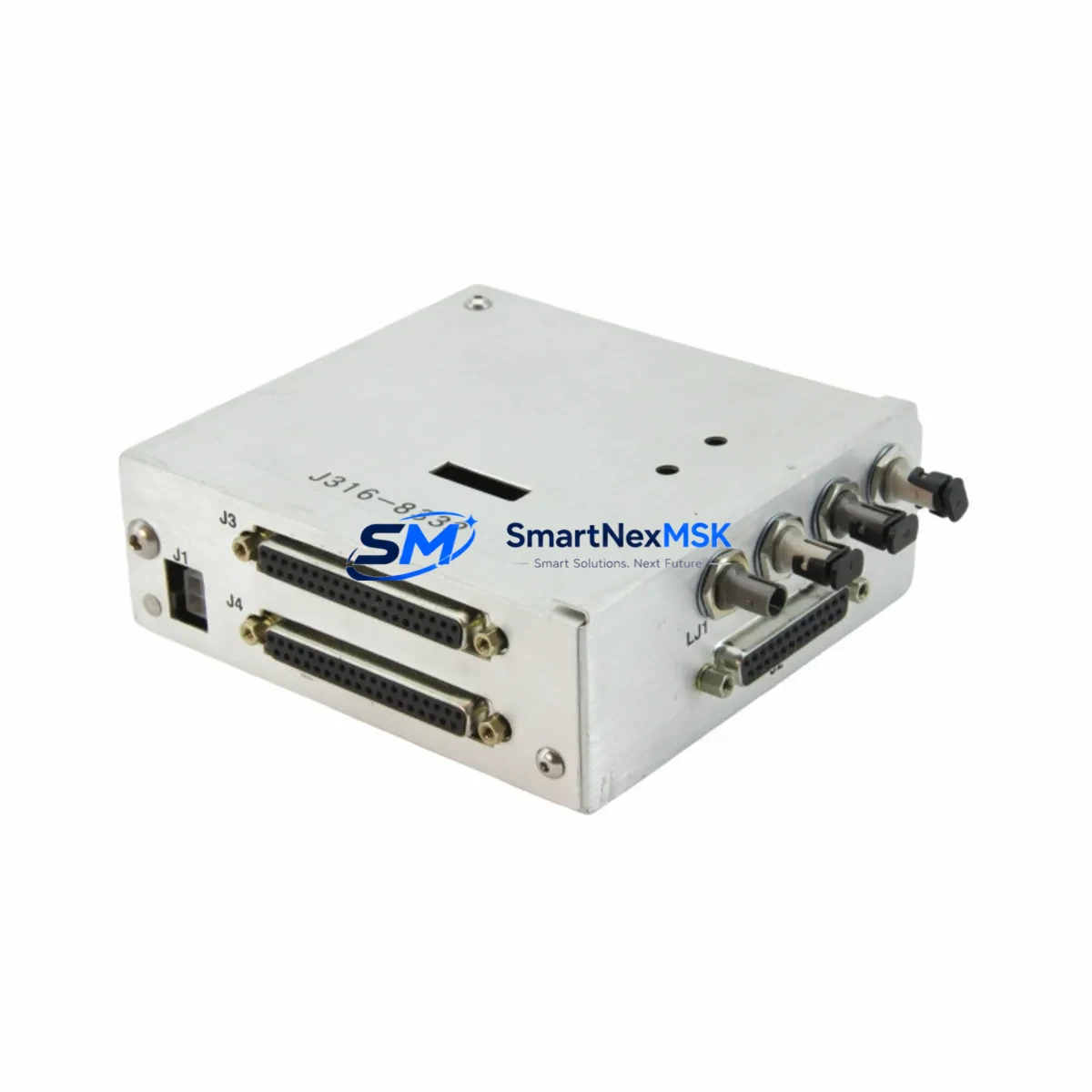

The VARIAN MKS CDN500-38 (E15006731) is a ruggedized control box assembly engineered for continuous, safety-critical operation in demanding industrial and semiconductor vacuum environments. Cross-referenced as E15010090, E11344270, 0090-B2971, MKS-CDN500-38, and 0190-17964, this module is purpose-built to maintain stable control loop integrity under high-load, high-interference, and thermally stressed conditions — precisely where control interruptions carry the greatest operational and safety risk.

In semiconductor fabrication, chemical vapor deposition (CVD), physical vapor deposition (PVD), and ion implantation processes, the CDN500-38 serves as the backbone of the vacuum system’s control architecture. Its internal signal conditioning circuitry suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) that are endemic to high-power RF generator environments, preventing signal drift that could cause erroneous valve actuation or pump sequencing errors. The module’s robust enclosure and conformal-coated PCB assemblies resist particulate contamination, process gas corrosion, and humidity ingress — failure modes that routinely compromise standard control hardware in cleanroom periphery and sub-fab utility areas.

Within a typical vacuum system control cabinet, the CDN500-38 works in close coordination with MKS 651C pressure controllers and MKS 600 series throttle valve actuators to maintain precise chamber pressure setpoints. Upstream, it interfaces with VARIAN Turbo-V turbomolecular pump controllers and Agilent TPS-compact dry scroll pump systems to manage staged pump-down sequences safely. On the power distribution side, the module is typically paired with Phoenix Contact QUINT-PS power supplies and Weidmüller W-Series surge protection devices to guard against voltage transients and power surges that could corrupt control logic or damage output drivers. For process interlock and safety relay functions, it operates alongside Pilz PNOZ safety relays and Omron G9SX safety controllers, ensuring that any fault condition — overpressure, pump failure, or cooling loss — triggers a controlled, safe shutdown rather than an uncontrolled process abort. Communication integrity with the host process control system is maintained through MKS Type 937B multi-sensor vacuum gauge controllers and Ethernet/IP or RS-232 interface modules that provide real-time diagnostics and remote fault logging.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable vacuum control cabinet built around the CDN500-38 demands a layered protection philosophy. At the power entry point, Phoenix Contact QUINT-PS 24VDC power supplies with integrated SFB (Selective Fuse Breaking) technology ensure that a downstream short circuit does not collapse the entire cabinet bus — a critical safeguard when the CDN500-38 must remain powered to execute a safe pump-down sequence during an emergency stop event. Transient voltage suppression is handled by Weidmüller VPU AC surge arresters installed at the cabinet’s incoming power rail, protecting sensitive control electronics from lightning-induced surges and switching transients common in heavy industrial facilities.

For safety interlock integrity, the CDN500-38 is typically integrated with Pilz PNOZmulti 2 configurable safety controllers that monitor E-stop circuits, gate interlocks, and vacuum interlock permissives simultaneously. Redundant pressure monitoring is achieved through MKS 925 Micro Pirani vacuum transducers and MKS 390 HA Baratron capacitance manometers, whose analog outputs feed directly into the CDN500-38’s signal conditioning inputs. On the communication backbone, Moxa NPort 5150A serial device servers bridge the module’s RS-232 diagnostic port to the facility’s Ethernet-based SCADA network, enabling remote fault monitoring without interrupting the control loop. Thermal management within the cabinet is supported by Rittal SK 3105 cabinet cooling units, maintaining the CDN500-38 and co-located electronics within their rated thermal envelope even during peak summer ambient conditions in non-air-conditioned sub-fab areas.

Critical Industrial Safety Applications

The CDN500-38 (E15006731) is deployed across a broad spectrum of safety-critical industrial environments. In semiconductor fabrication, it governs the pressure control and interlock sequencing of etch, deposition, and ion implant chambers where an uncontrolled pressure excursion can destroy wafers, damage chamber hardware, or expose personnel to toxic process gases. In petrochemical and refinery operations, equivalent ruggedized control box assemblies manage valve positioner feedback loops in hydrocarbon-rich atmospheres where control signal drift can lead to overpressure events in reactor vessels. Power generation facilities — including coal, gas, and nuclear plants — rely on similar control architectures to manage turbine lube oil systems and generator cooling circuits, where a control module failure during peak load can trigger forced outages with significant financial and grid-stability consequences.

In mining and mineral processing, the module’s resistance to vibration, dust ingress, and wide temperature swings makes it suitable for conveyor drive control panels and crusher automation systems operating in remote, harsh-environment installations. Water and wastewater treatment facilities use comparable control box assemblies in their SCADA-integrated pump station panels, where continuous, unattended operation and resistance to humidity and chemical vapors are non-negotiable. Metallurgical and steel mill environments subject control hardware to intense electromagnetic fields from arc furnaces and induction heaters — conditions under which the CDN500-38’s shielded architecture maintains signal fidelity where unshielded alternatives fail. Port and terminal automation systems, including ship-to-shore crane drives and automated stacking crane control panels, benefit from the module’s ability to sustain reliable operation through the vibration, salt-air corrosion, and wide ambient temperature ranges characteristic of coastal industrial sites.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the CDN500-38 E15006731?
All CDN500-38 units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair turnaround designed to minimize your production downtime.

Q2: What outgoing tests are performed before shipment?
Every unit undergoes a comprehensive pre-shipment inspection including visual inspection, power-on functional verification, signal I/O testing, and a burn-in cycle to screen for latent component failures. A test report is available upon request for quality documentation purposes.

Q3: Is the E15006731 compatible with my existing VARIAN or MKS vacuum system?
The CDN500-38 is designed for direct form-fit-function replacement within VARIAN and MKS CDN500-series vacuum system architectures. Cross-reference part numbers E15010090, E11344270, 0090-B2971, MKS-CDN500-38, and 0190-17964 are all fulfilled by this unit. If you require compatibility confirmation for a specific system configuration, contact our technical team with your system model and we will verify prior to shipment.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains dedicated inventory of CDN500-series control modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. We offer expedited shipping for critical production situations and can discuss consignment or reserved-stock arrangements for high-volume or long-term supply agreements.
