VERIFLO 0050-36242 Maintenance-Ready Spare for 944 Automation

VERIFLO 0050-36242 Maintenance-Ready Spare for 944 Automation

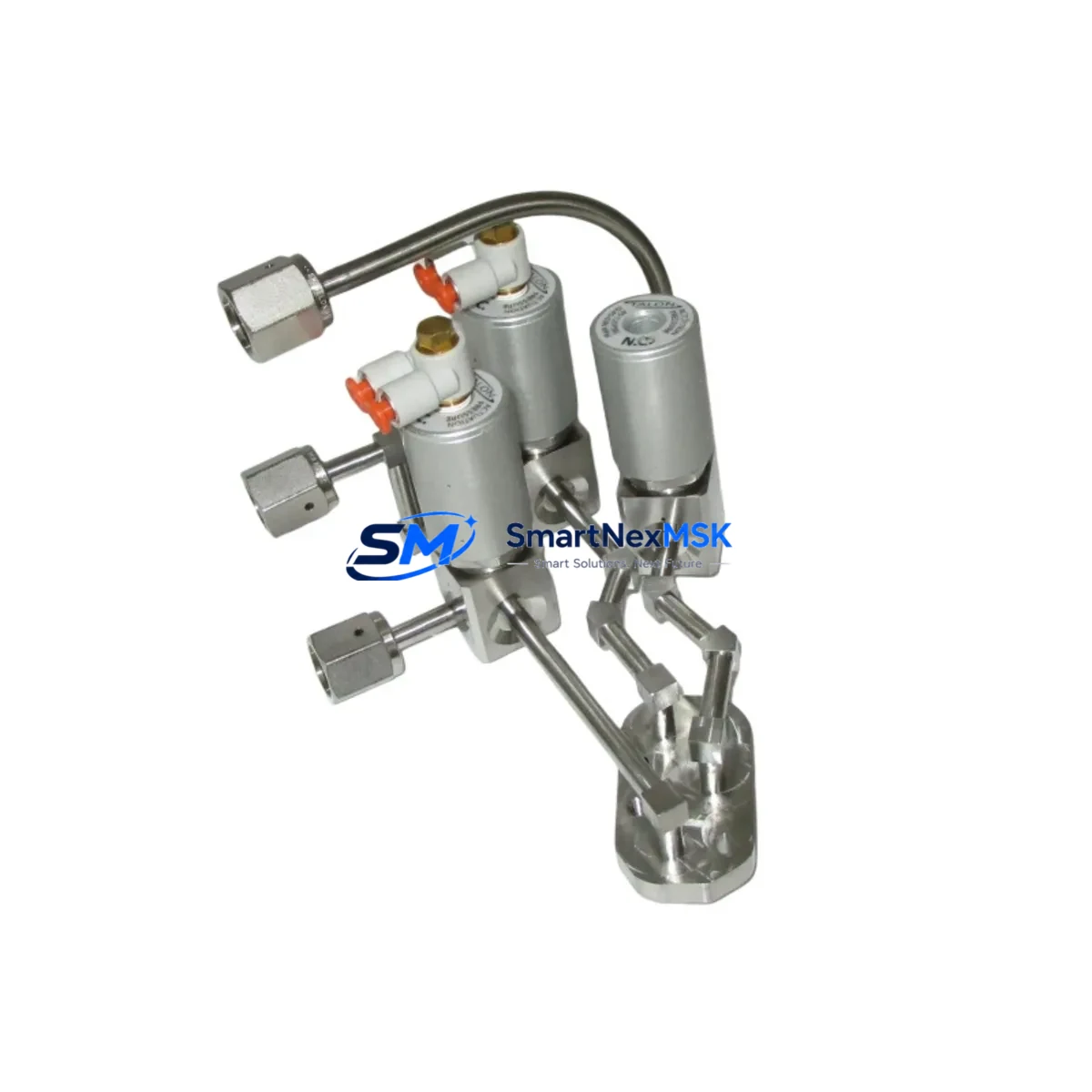

The VERIFLO 0050-36242 is an original high-purity gas manifold engineered for the 944 Series automation platform, widely deployed in semiconductor fabrication, specialty gas distribution, and precision process control systems. Cross-referenced as 615-00325-000 and 0200-01271, this unit is a direct maintenance-ready replacement for aging or failed manifold assemblies in active production environments. For maintenance engineers managing scheduled turnarounds or responding to unplanned shutdowns, having a verified spare of the 0050-36242 on the shelf is a critical element of any robust spare parts strategy.

Downtime in gas distribution systems cascades rapidly across upstream and downstream process equipment. A failed or leaking manifold in a 944 Series panel can halt an entire process line within minutes. The VERIFLO 0050-36242 is designed for rapid drop-in replacement — preserving original port geometry, valve actuation torque, and seal compatibility — so that site engineers can restore gas flow and resume production with minimal reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the VERIFLO 0050-36242 during a planned or emergency maintenance event, a thorough inspection of the surrounding gas panel components is strongly recommended. Maintenance engineers should treat manifold replacement as an opportunity to audit the full gas delivery circuit.

Begin by verifying the integrity of the inlet isolation valve and outlet check valve upstream and downstream of the manifold. In 944 Series panels, these valves share the same service interval and often exhibit similar wear patterns. Inspect the high-purity stainless tubing and VCR fittings for micro-leaks, surface oxidation, or particulate contamination — any of which can compromise process purity after manifold replacement.

The pressure regulator mounted adjacent to the manifold should be bench-tested for setpoint drift, especially in systems that have operated continuously for more than 18 months. Similarly, the inline particulate filter or sintered element should be replaced as a matter of course during any manifold service, as contamination from a degraded manifold seal can migrate upstream into the filter housing.

For systems integrated with a PLC or DCS controller, verify that the pressure transducer and flow transmitter signals remain within calibrated range after manifold reinstallation. Signal drift in these instruments is a common secondary fault following a manifold failure event. If the panel includes a mass flow controller (MFC), confirm zero-point calibration before returning the line to service.

In control cabinet environments, also inspect the solenoid valve coils and pneumatic actuator supply lines that interface with the manifold’s vent valve. Coil insulation degradation and actuator seal wear are frequently overlooked during manifold-focused maintenance. The terminal block wiring and signal isolation modules serving the manifold’s position feedback or interlock circuit should be checked for loose terminations and insulation resistance. Finally, review the panel fuse ratings for the solenoid supply circuit — an undersized fuse is a common root cause of intermittent manifold actuation failures that are misdiagnosed as mechanical faults.

Site Replacement Workflow

The VERIFLO 0050-36242 is engineered as a direct replacement for legacy 944 Series manifold assemblies, including units cross-referenced as 615-00325-000 and 0200-01271. The replacement workflow is designed to minimize system downtime and eliminate the need for line re-engineering.

Step 1 — Isolation: Close the upstream isolation valve and vent the manifold to atmosphere through the vent port. Confirm zero pressure with a calibrated gauge before breaking any connections.

Step 2 — Removal: Disconnect VCR or compression fittings at inlet, outlet, and vent. Remove the manifold from its mounting bracket. Inspect the mounting surface and bracket hardware for corrosion or fatigue.

Step 3 — Inspection & Cleaning: Inspect the replacement unit’s port faces and sealing surfaces. Verify part number and cross-reference against the system BOM. Do not remove protective end caps until immediately before installation.

Step 4 — Installation: Install the 0050-36242 using new VCR gaskets or compression ferrules. Torque all fittings to the manufacturer’s specification. Reconnect actuator supply lines and solenoid wiring if applicable.

Step 5 — Leak Test & Commissioning: Pressurize the manifold to operating pressure using an inert gas (N₂ or He). Perform a bubble or mass spectrometer leak test at all joints. Confirm valve actuation and interlock function before returning to process gas service.

This workflow supports system compatibility, reduces mean time to repair (MTTR), and ensures the replacement unit performs to the original design specification without requiring process re-qualification.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the VERIFLO 0050-36242?
The 0050-36242 should be stored in its original sealed packaging in a clean, dry environment away from UV exposure and corrosive atmospheres. Under these conditions, shelf life exceeds 5 years. Inspect seals and port caps before installation if the unit has been stored for more than 2 years.

Q2: How do I confirm compatibility with my existing 944 Series gas panel before ordering?
Cross-reference the part number against your panel BOM using the alternate references 615-00325-000 and 0200-01271. If your panel uses VCR-face-seal connections and a 3-valve manifold configuration, the 0050-36242 is a direct fit. Contact our technical team with your panel drawing or system tag number for confirmation before ordering.

Q3: What pre-shipment testing is performed on each unit?
Every VERIFLO 0050-36242 unit is tested for seat leakage, body leakage, and valve actuation torque prior to shipment. A test certificate is available upon request. Units are shipped with protective end caps and individually bagged to prevent contamination in transit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, incompatible process media, or operation outside the rated pressure and temperature envelope. Warranty claims are processed with return authorization; replacement units are dispatched within 5 business days of claim approval.
