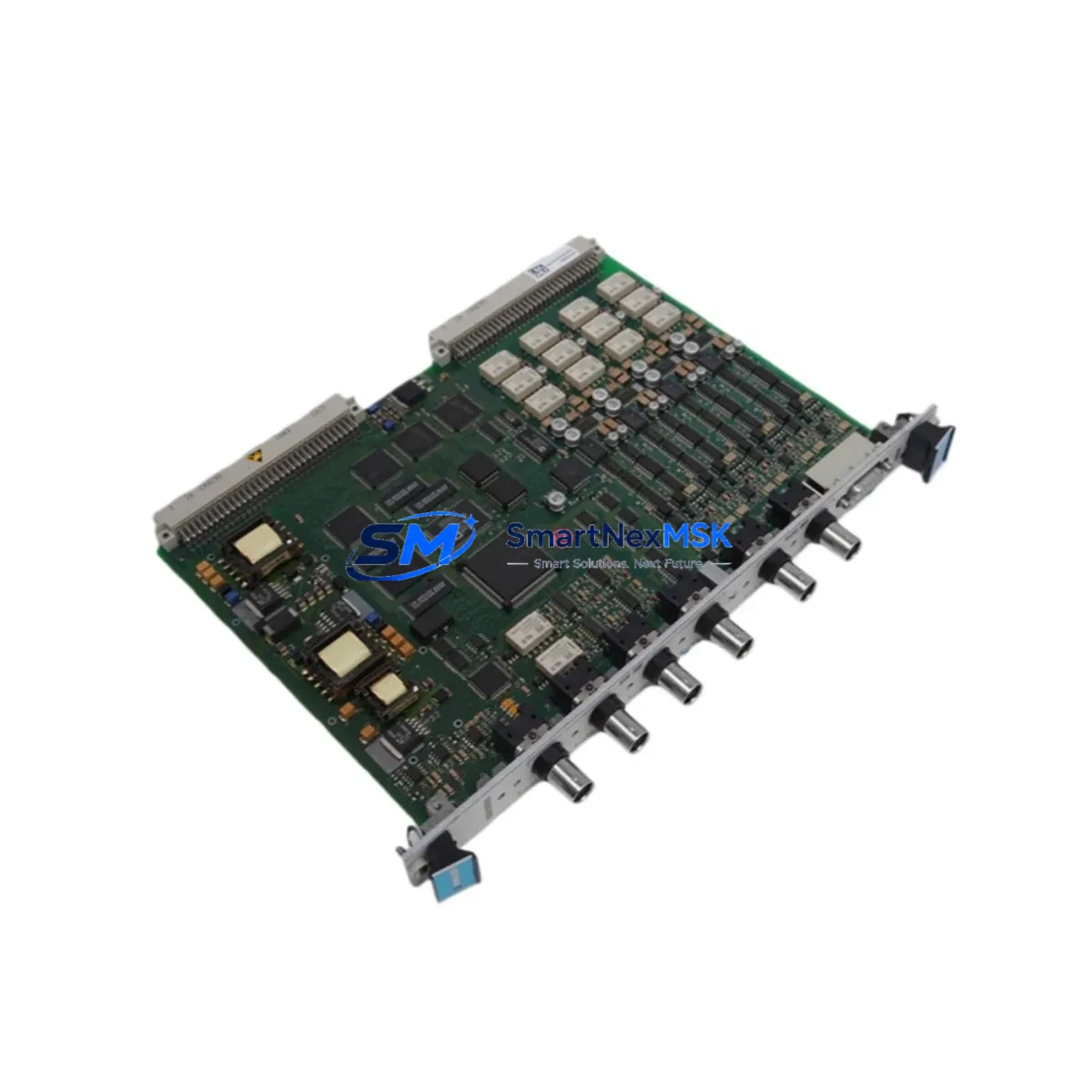

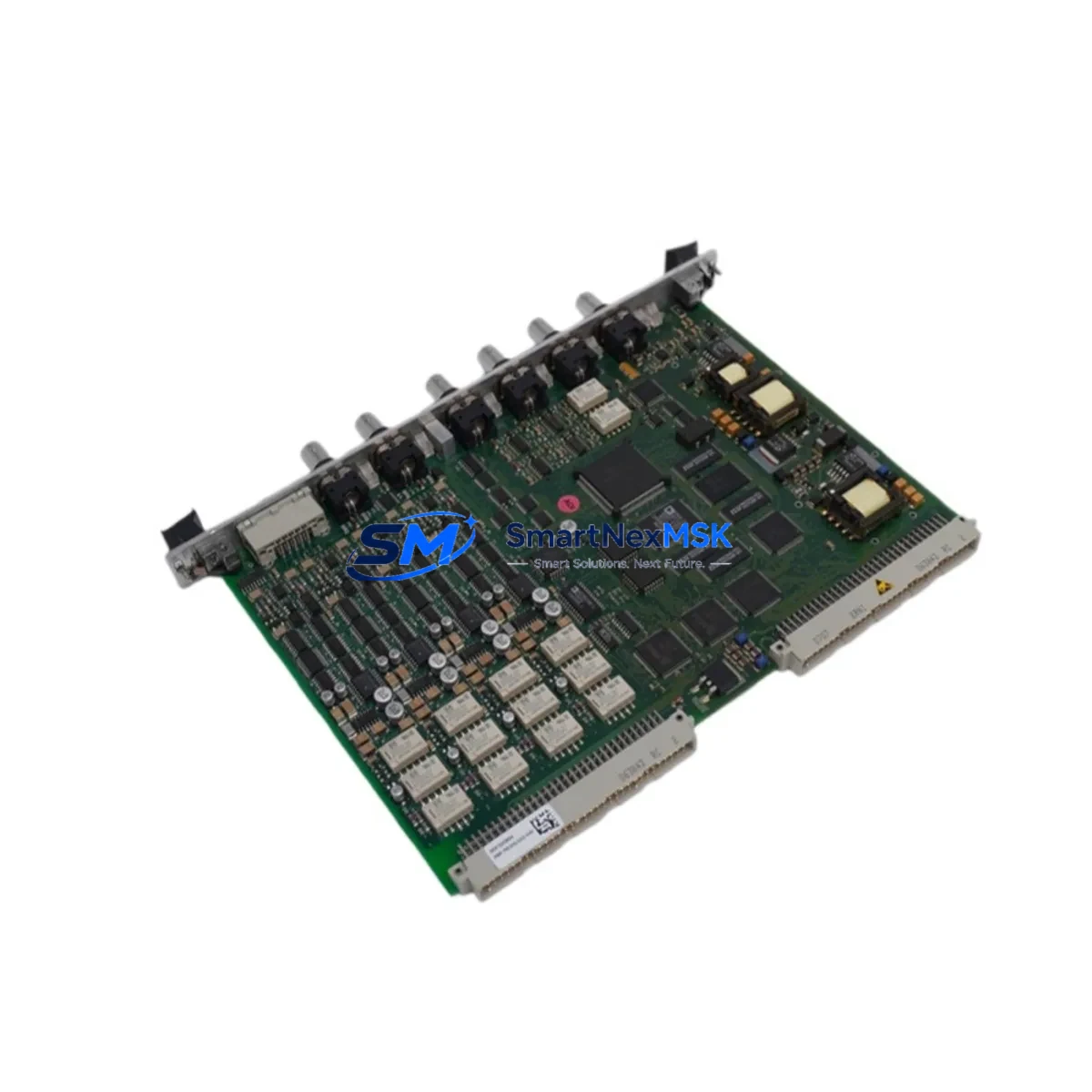

VIBRO-METER MPC4 200-510-SSS-1Hh Maintenance-Ready Spare for MPC4 Series Automation
The VIBRO-METER MPC4 200-510-SSS-1Hh is a rack-mount vibration protection card engineered for continuous operation in rotating machinery protection systems. As a critical component in turbine, compressor, and pump protection panels, this module monitors shaft vibration, axial displacement, and bearing condition signals in real time. When this card fails or degrades, the entire protection chain is compromised — making fast, verified spare availability essential for any maintenance team managing high-availability plant assets.
At SMARTNEXMSK, we supply original MPC4 200-510-SSS-1Hh units sourced from authorized channels, fully tested before shipment, and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned overhaul, and long-term spare parts stocking programs for industrial facilities worldwide.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | MPC4 200-510-SSS-1Hh |
| Brand | VIBRO-METER (Meggitt) |
| Series | MPC4 |
| Product Type | Vibration Protection Module |
| Form Factor | Rack-mount card |
| Input Signal Type | Eddy-current / velocity / acceleration sensor inputs |
| Protection Functions | Overspeed, high vibration, axial displacement trip |
| Output | Relay trip outputs, 4–20 mA analog outputs |
| Power Supply | 24 VDC (rack-supplied) |
| Operating Temperature | 0°C to +55°C |
| Origin | Switzerland |
| Compatibility | MPC4 Series rack systems; replaces legacy MPC4 variants |
| Installation | Direct card replacement; no rack modification required |
| Warranty | 12 Months — tested and verified before shipment |
| Lead Time | In stock — ships within 2–5 business days |
Maintenance Planning for Continuous Operation
Replacing the MPC4 200-510-SSS-1Hh is rarely an isolated task. Maintenance engineers performing a planned overhaul or responding to a protection trip should treat this card replacement as an opportunity to inspect the entire vibration monitoring loop and associated control cabinet components.
Start with the MPC4 rack backplane and power supply module — a degraded backplane connector or unstable rack power rail can cause intermittent card faults that mimic sensor failures. Verify the CM-series signal conditioning modules (such as the CM-E or CM-V) that feed processed vibration signals into the MPC4 card; worn or contaminated signal conditioners will produce erratic readings even after a card swap.
Check the eddy-current proximity probe cables and extension cables (typically Bently Nevada or VIBRO-METER compatible types) for insulation breakdown, connector corrosion, or shield continuity loss — these are a leading cause of false trips and should be replaced on a scheduled basis alongside protection cards. Inspect the terminal blocks and field wiring terminations on the I/O side of the card; loose or oxidized terminals introduce noise into the measurement chain.
For facilities running integrated turbine control systems, also verify the communication interface between the MPC4 rack and the DCS or safety PLC — Modbus RTU or hardwired relay interfaces should be tested for signal integrity after any card replacement. If the protection system feeds a Bently Nevada 3500 series rack or a VIBRO-METER VM600 chassis in a parallel monitoring role, confirm that both systems are reading consistent vibration levels post-replacement to rule out sensor or cabling issues.
Additionally, review the relay output wiring to the trip solenoid valves and shutdown logic in the control cabinet. A card replacement is the right moment to test the full trip chain — from sensor input through the MPC4 card relay output to the final shutdown actuator — using a portable vibration calibrator or signal injector. Document the as-found and as-left setpoints for the danger and alert thresholds configured on the card, and confirm they match the current machinery protection philosophy.
For older installations, consider stocking a spare MPC4 rack chassis alongside individual cards. Chassis corrosion, damaged card guides, or failed backplane power distribution are common failure modes in systems that have been in service for 10+ years, and a chassis-level spare eliminates the risk of extended downtime caused by infrastructure failures rather than card failures.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the exact part number on the installed card matches MPC4 200-510-SSS-1Hh. Record all setpoint values (alert, danger, time delays) from the existing card configuration before removal. Take a photograph of the front-panel DIP switch or jumper settings if applicable.
Step 2 — Safe isolation: Follow site LOTO procedures. Bypass the protection channel at the DCS or safety system level before removing the card to prevent a spurious trip during the swap. Notify the control room of the planned bypass window.
Step 3 — Card removal and inspection: Remove the MPC4 200-510-SSS-1Hh card and inspect the backplane connector for bent pins, corrosion, or debris. Clean the card slot before installing the replacement unit.
Step 4 — Replacement installation: Insert the new MPC4 200-510-SSS-1Hh card and verify it seats fully in the backplane. Restore field wiring connections and confirm terminal torque values.
Step 5 — Functional test: Apply a calibrated test signal to the sensor input and verify the card responds correctly at the configured alert and danger setpoints. Confirm relay outputs operate correctly before removing the bypass.
Step 6 — Documentation: Update the maintenance log with the replacement date, new card serial number, and post-replacement test results. Flag the removed card for bench testing or return-to-supplier evaluation.
Spare Parts Support FAQ
Q: Is the MPC4 200-510-SSS-1Hh a direct drop-in replacement for older MPC4 variants?
A: In most cases, yes. The MPC4 200-510-SSS-1Hh is designed for backward compatibility within the MPC4 rack system. However, we recommend verifying the rack firmware version and backplane revision before installation, particularly in systems manufactured before 2005. Our technical team can assist with compatibility confirmation prior to shipment.
Q: How is the unit tested before shipment?
A: Every MPC4 200-510-SSS-1Hh unit we supply undergoes functional verification including power-on self-test, input channel response check, and relay output continuity test. A test report is available upon request. Units are shipped in anti-static packaging with protective card guides to prevent transit damage.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
Q: Can you support long-term spare parts stocking programs for this model?
A: Yes. We maintain standing inventory of MPC4 series components and can support annual blanket orders, consignment stock arrangements, and emergency call-off agreements for facilities that require guaranteed availability. Contact our sales team to discuss a tailored spare parts support contract.
