VIBRO-METER VM600 RPS6U SIM-275A Spare for VM600 Automation

VIBRO-METER VM600 RPS6U SIM-275A Spare for VM600 Automation: Spare Replacement & Industrial Downtime Risk Control

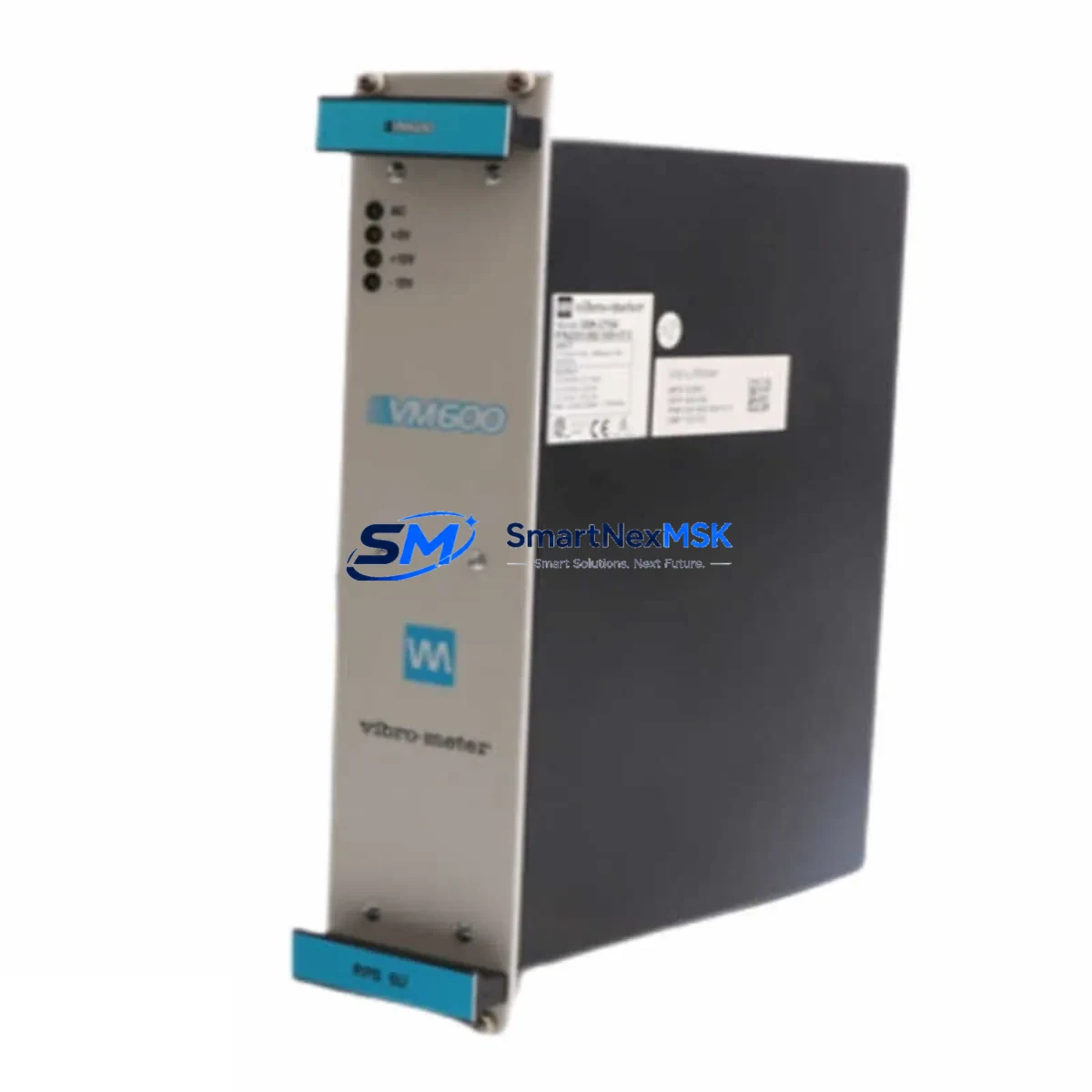

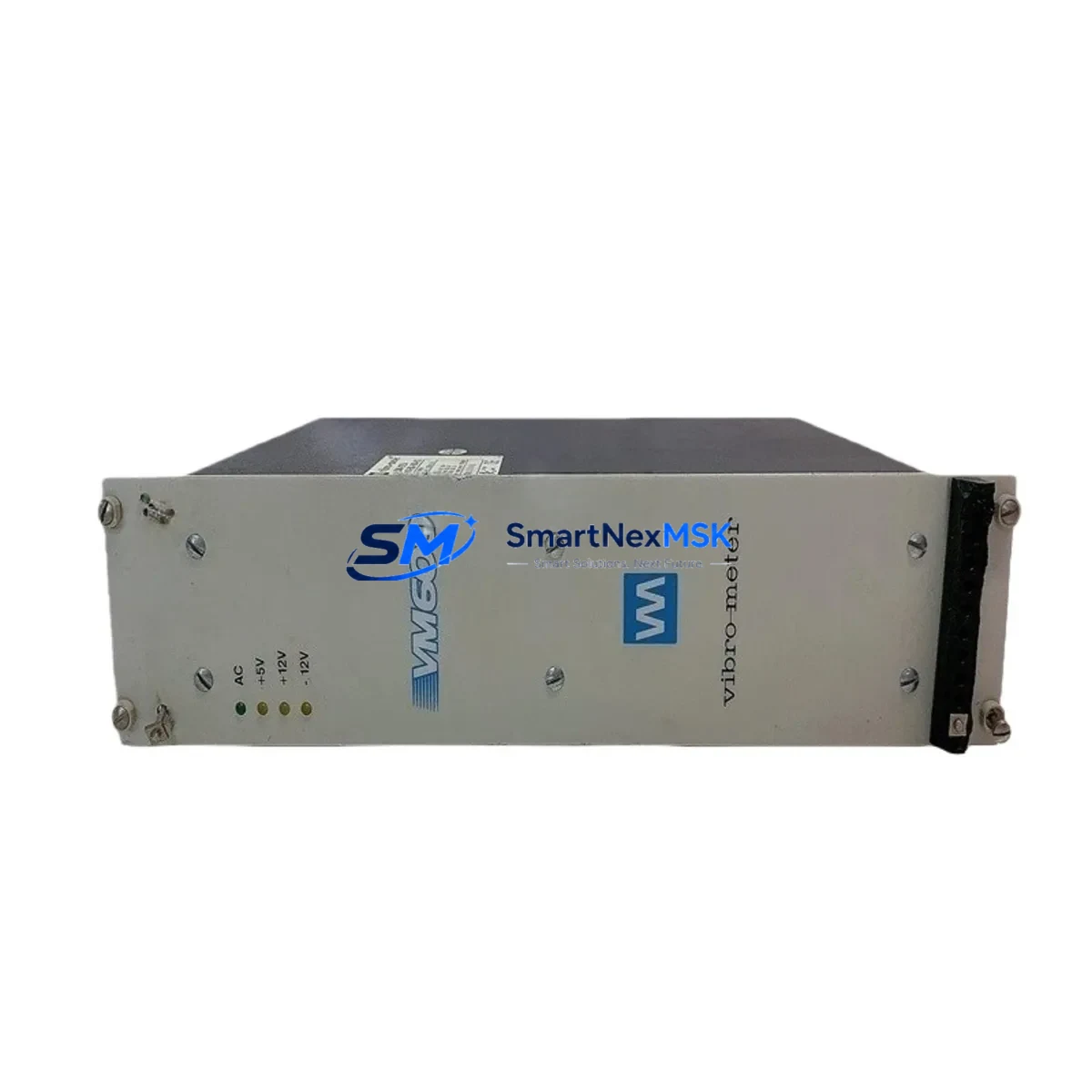

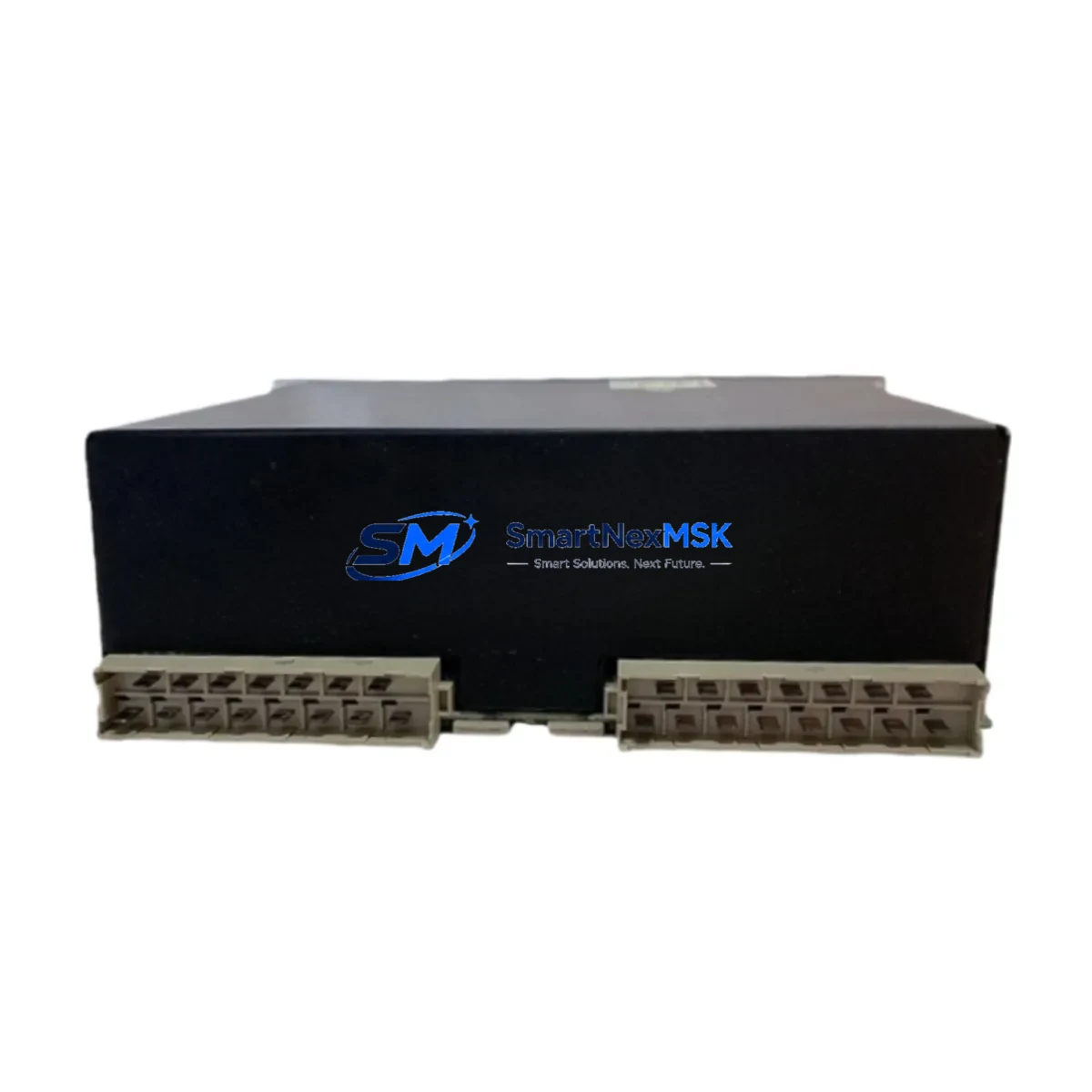

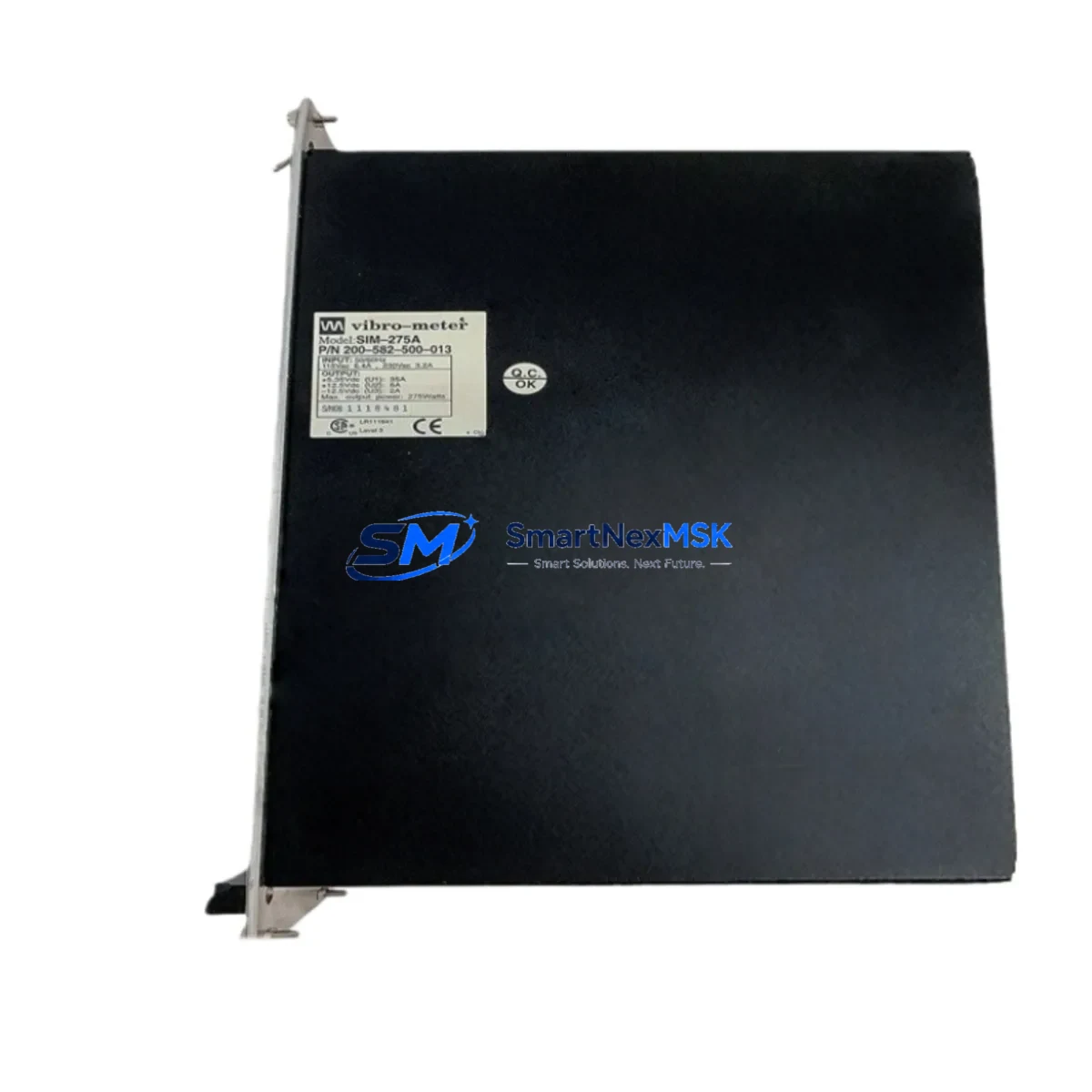

The VIBRO-METER VM600 RPS6U SIM-275A (Part No. 200-582-500-013) is a rack-mounted power supply module engineered for the VM600 vibration monitoring system — a platform widely deployed in turbomachinery protection, rotating equipment surveillance, and critical industrial automation environments. When this module fails or degrades, the entire VM600 rack loses its regulated DC supply, rendering all installed I/O cards, signal conditioning boards, and communication interfaces inoperative. Sourcing a verified original spare with confirmed compatibility is the single most effective action a maintenance team can take to restore system integrity and minimize unplanned downtime.

At SMARTNEXMSK, every VM600 RPS6U SIM-275A unit is sourced from authorized supply chains, subjected to pre-shipment functional verification, and dispatched with a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, planned overhaul cycles, and long-term spare parts stocking programs for VM600-based protection systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A VM600 RPS6U SIM-275A failure rarely occurs in isolation. Maintenance engineers performing a power supply replacement should treat the event as a trigger for a broader rack-level inspection. The VM600 backplane distributes regulated voltage to every installed card — meaning a degraded PSU can cause intermittent faults across the VM600 MPC4 machinery protection card, corrupt measurement data on AMC8 analog monitoring cards, and disrupt communication on the IOC4T I/O interface card.

During the replacement window, inspect the VM600 RLC16 relay output card for contact wear and verify that all relay trip outputs are functioning correctly — a degraded power rail is a common root cause of spurious relay activations. Similarly, check the VM600 XMC16 expansion module for any latched fault states that may have been triggered by the power anomaly.

On the signal input side, verify the integrity of Bently Nevada 3500-series compatible proximitor cables and sensor connectors routed into the VM600 rack. Power supply instability can induce noise on high-impedance vibration sensor lines, leading to false high-vibration alarms. If the system interfaces with a DCS or SCADA platform via Modbus RTU or PROFIBUS DP communication modules, confirm that the communication link re-establishes cleanly after the PSU swap and that no watchdog timeouts have been logged.

For sites running redundant PSU configurations, test the automatic switchover function of the standby VM600 RPS6U unit before returning the system to service. Inspect the VM600 rack backplane bus connectors for oxidation or micro-arcing damage — a common but overlooked failure mode in high-humidity or coastal industrial environments. Finally, review the VM600 MPS4 power supply status card (where installed) to confirm that all supply rail voltages are within tolerance and that no latent alarms remain active.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed unit’s part number (200-582-500-013) against the rack label and system documentation. Verify that the replacement RPS6U SIM-275A matches the input voltage range configured for your site (AC or DC supply).

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. If a redundant PSU is installed and operational, the VM600 rack may remain powered during hot-swap — consult your VM600 system manual for hot-swap authorization specific to your firmware version.

Step 3 — Module extraction: Release the front-panel ejector levers, slide the RPS6U out of the rack slot, and inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement insertion and power-up: Seat the new VM600 RPS6U SIM-275A firmly until the ejector levers lock. Apply power and observe the front-panel LED status indicators — green steady indicates normal operation. Allow 30–60 seconds for the rack to complete its internal self-test sequence.

Step 5 — System validation: Confirm all installed cards have resumed normal operation via the VM600 rack management interface or connected HMI/SCADA display. Verify that all vibration channel readings are within expected baseline ranges and that no new alarms are active. Log the replacement event in your CMMS with the new unit’s serial number and warranty start date.

This workflow is designed to minimize mean time to repair (MTTR) and restore full system protection coverage as rapidly as possible — critical in turbomachinery applications where unmonitored operation is not permissible.

Spare Parts Support FAQ

Q1: Is the VM600 RPS6U SIM-275A 200-582-500-013 an original VIBRO-METER part?
Yes. SMARTNEXMSK supplies original VIBRO-METER (Meggitt) parts sourced through verified industrial supply channels. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Q2: How do I confirm compatibility with my existing VM600 rack before ordering?
The RPS6U SIM-275A is designed for the standard VM600 6U rack chassis. Compatibility is confirmed by matching the part number 200-582-500-013 against your rack’s power supply slot label or system BOM. If your rack uses a dual-PSU configuration, both slots accept the same RPS6U model. Contact sales@smartnexmsk.com with your rack serial number for pre-order compatibility confirmation.

Q3: What is your recommended spare parts stocking strategy for VM600 systems?
For critical turbomachinery protection applications, we recommend maintaining a minimum of one RPS6U SIM-275A per VM600 rack as an on-site cold spare. For multi-rack installations or remote sites with extended logistics lead times, a ratio of one spare per two racks is advisable. Pairing the PSU spare with a spare VM600 MPC4 or AMC8 card covers the majority of field-replaceable failure scenarios.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, unit serial number, and a brief description of the fault. SMARTNEXMSK will arrange return logistics and dispatch a replacement unit upon fault verification. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.
