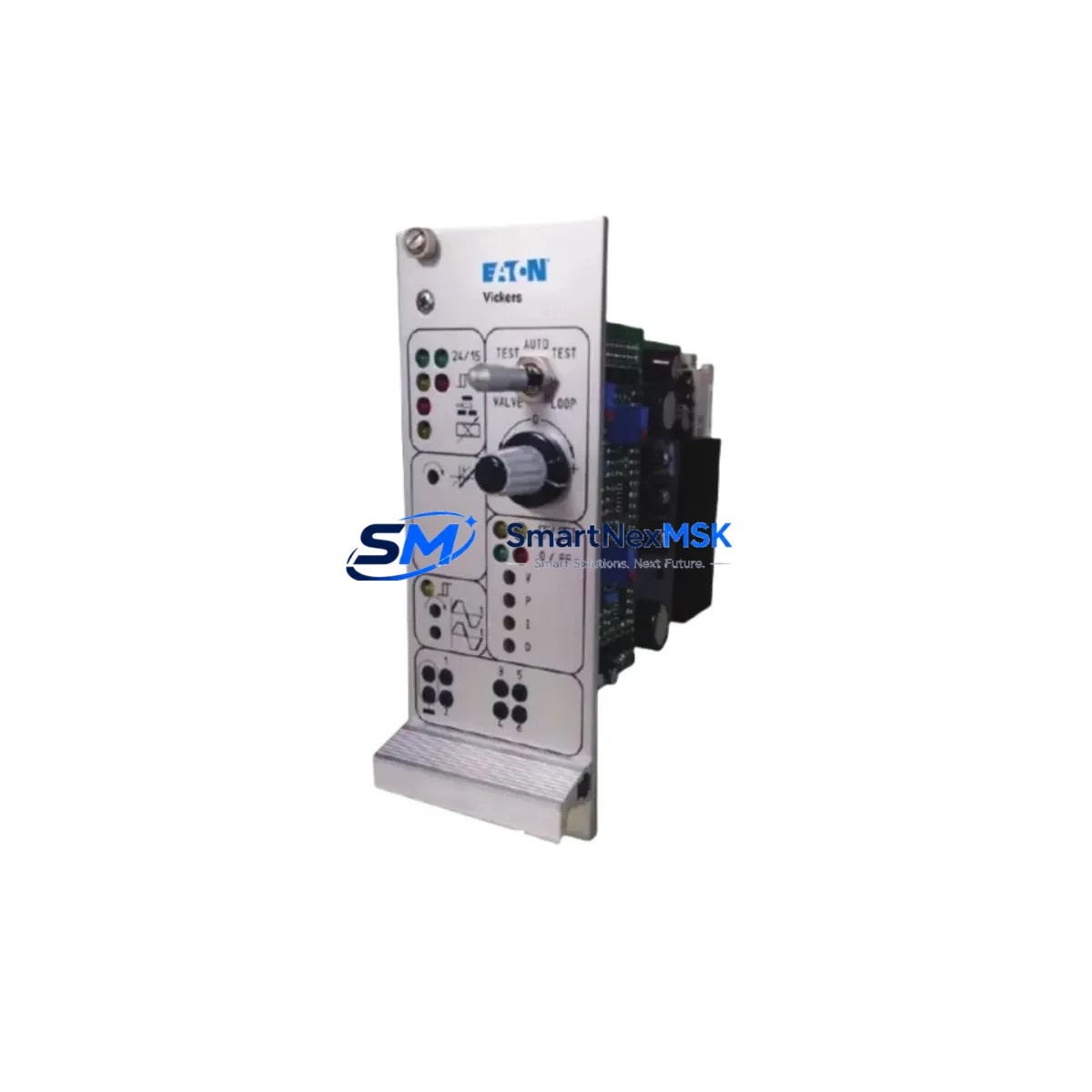

Vickers EEA-PAM513A32-EN53 Retrofit-Ready Proportional Amplifier for EEA Series Control Systems
The Vickers EEA-PAM513A32-EN53 (also referenced as 6025852-001) is a proportional amplifier card engineered for closed-loop electrohydraulic control within the Vickers EEA Series platform. As legacy hydraulic control systems reach end-of-life and OEM support is discontinued, this module serves as a verified retrofit solution for facilities operating aging proportional valve drives, servo amplifier racks, and multi-axis hydraulic motion controllers. Whether you are replacing a failed card in a press line, injection moulding machine, or steel mill hydraulic unit, the EEA-PAM513A32-EN53 is designed to restore system performance with minimal downtime and no rewiring.
This amplifier card interfaces directly with Vickers proportional directional control valves and is compatible with the standard EEA Series backplane and rack architecture. Engineers migrating from earlier EEA-PAM variants — including the EEA-PAM513A20 and EEA-PAM513A28 — will find that the EN53 revision maintains backward-compatible terminal assignments, enabling a direct card swap without modification to existing field wiring or DIN rail enclosures. The module accepts a standard ±10 V command signal and provides integrated ramp, dither, and gain adjustment via onboard potentiometers, preserving the tuning workflow familiar to maintenance engineers on legacy Vickers platforms.
For facilities running mixed-generation hydraulic control cabinets, the EEA-PAM513A32-EN53 can coexist in the same rack alongside Vickers EEA-PAM502 current amplifiers and EEA-FFD-010 feedback interface cards without bus conflicts. Power supply requirements align with the standard Vickers EEA-PAM Series 24 VDC regulated power supply used across the EEA platform, eliminating the need for auxiliary power conditioning during retrofit. Grounding and shielding practices established for the original installation remain valid.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Replacement SKU | EEA-PAM513A32-EN53 / 6025852-001 |
| Compatible Series | Vickers EEA Series Proportional Amplifier Platform |
| Direct Replacements | EEA-PAM513A20, EEA-PAM513A28, EEA-PAM513A30 |
| Backplane Interface | EEA Series standard card-edge connector, no adapter required |
| Command Signal Input | ±10 VDC analog, differential |
| Supply Voltage | 24 VDC regulated (±5%) |
| Communication Compatibility | Analog command; compatible with PLC analog output modules (e.g., Siemens SM 332, Allen-Bradley 1756-OF8) |
| Installation Requirement | Standard EEA rack slot; no mechanical modification required |
| Commissioning Focus | Ramp time, dither frequency, gain — set via onboard trimmers |
| Warranty | 12 months from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the EEA-PAM513A32-EN53 begins with a systematic review of the existing control cabinet architecture. Before removing the failed card, document the current potentiometer settings for ramp-up time, ramp-down time, dither amplitude, and gain — these values represent years of field tuning and must be replicated on the replacement module. Photograph the terminal block wiring on the Vickers EEA Series terminal base before disconnection, paying particular attention to the enable signal, command input, and valve coil output terminals.
In systems where the EEA-PAM513A32-EN53 receives its command signal from a Siemens S7-300 analog output module (SM 332) or an Allen-Bradley 1756-OF8 ControlLogix analog output card, verify that the output scaling in the PLC program matches the ±10 V full-scale range expected by the amplifier. No program changes are typically required when replacing like-for-like within the EEA-PAM513A32 revision family, but engineers should confirm the enable logic rung in the ladder program remains active during the card swap sequence to prevent unintended valve actuation on power-up.
For facilities that have integrated the hydraulic axis into a broader motion control architecture — for example, coordinating with a Bosch Rexroth HNC100 axis controller or a Parker SSD 690+ drive on adjacent servo axes — the EEA-PAM513A32-EN53 retrofit does not affect the inter-axis communication bus. The proportional amplifier operates as a standalone analog device; its replacement is transparent to the supervisory controller. However, after card installation, perform a slow-speed valve stroke test at 10% command to confirm valve response before returning the axis to full production speed.
Where the original system includes a Vickers EEA-FFD-010 LVDT feedback card for closed-loop position control, verify that the feedback cable shield is terminated at one end only (typically at the amplifier card end) to prevent ground loops that can introduce noise into the position signal. If the system uses a Balluff BTL magnetostrictive linear position transducer as the feedback device, confirm the analog output range (0–10 V or 4–20 mA) matches the feedback input configuration on the EEA-PAM513A32-EN53. Recalibration of the feedback zero and span may be required after card replacement if the previous card’s trim settings were not recorded.
Facilities upgrading from a fully discontinued EEA-PAM502 platform to the EEA-PAM513A32-EN53 should also audit the Vickers EEA Series rack and backplane assembly for corrosion on the card-edge connector fingers. Clean with isopropyl alcohol and a lint-free swab before inserting the new card. If the rack itself is damaged, a compatible Vickers EEA Series 4-slot or 8-slot rack can be sourced as part of the same retrofit order to ensure a complete, tested assembly is returned to service.
Downtime Control During System Migration
Minimizing production downtime during an EEA-PAM513A32-EN53 replacement requires preparation before the maintenance window opens. The recommended approach is to pre-configure the replacement card on the bench: set all potentiometers to the documented values from the failed card, apply 24 VDC bench power, and verify the enable and fault indicator LEDs respond correctly before the card enters the cabinet. This bench pre-commissioning step typically reduces in-cabinet commissioning time to under 30 minutes.
Where the hydraulic axis is part of a safety-rated circuit — for example, a press brake or injection moulding clamp — coordinate the card swap with the machine safety controller to ensure the safety relay output is de-energized and the hydraulic power unit is at zero pressure before work begins. After installation, restore power in sequence: first the 24 VDC control supply, then the hydraulic power unit, then the PLC enable output. Monitor the valve coil current on the amplifier’s test point during the first commanded stroke to confirm the output is within the expected milliamp range for the installed valve model.
For multi-axis systems where stopping one hydraulic axis requires a full line shutdown, consider pre-staging the replacement EEA-PAM513A32-EN53 alongside a spare Vickers proportional directional valve coil and a spare EEA Series terminal base so that the complete assembly can be swapped as a unit rather than troubleshooting individual components under production pressure. This approach, combined with a pre-tested spare card held in local inventory, is the most effective strategy for keeping mean time to repair (MTTR) below two hours on critical hydraulic axes.
Retrofit Support FAQ
Q1: Is the EEA-PAM513A32-EN53 a direct drop-in replacement for the EEA-PAM513A28 and EEA-PAM513A30?
Yes. The EN53 revision maintains the same card-edge connector pinout, terminal block assignments, and command signal interface as the A28 and A30 revisions. No wiring changes or mechanical modifications are required. Potentiometer positions should be transferred from the old card to the new card before installation.
Q2: What commissioning steps are required after installing the replacement card?
After installation, verify the 24 VDC supply is within tolerance, confirm the enable signal is present, and command a slow valve stroke (10% of full command) to verify valve response. Check the valve coil current at the amplifier test point and compare against the valve manufacturer’s rated coil current. Adjust the gain trimmer if the measured current deviates by more than ±5% from the target value. No PLC program changes are required for a like-for-like replacement.
Q3: Can this card be used with valves from other manufacturers, or is it limited to Vickers valves?
The EEA-PAM513A32-EN53 is optimized for Vickers proportional directional control valves but can drive any proportional solenoid valve with a coil resistance and inductance within the amplifier’s output specification. Confirm the target valve’s coil current rating against the amplifier’s output range before use. For non-Vickers valves, gain and dither settings will require field adjustment during commissioning.
Q4: What does the 12-month warranty cover?
All EEA-PAM513A32-EN53 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch, including supply voltage, enable logic, command signal response, and output current verification. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
