Wavelength Electronics LFI-3751 Spare for LFI Automation

Wavelength Electronics LFI-3751 Maintenance-Ready Spare for LFI Series Automation

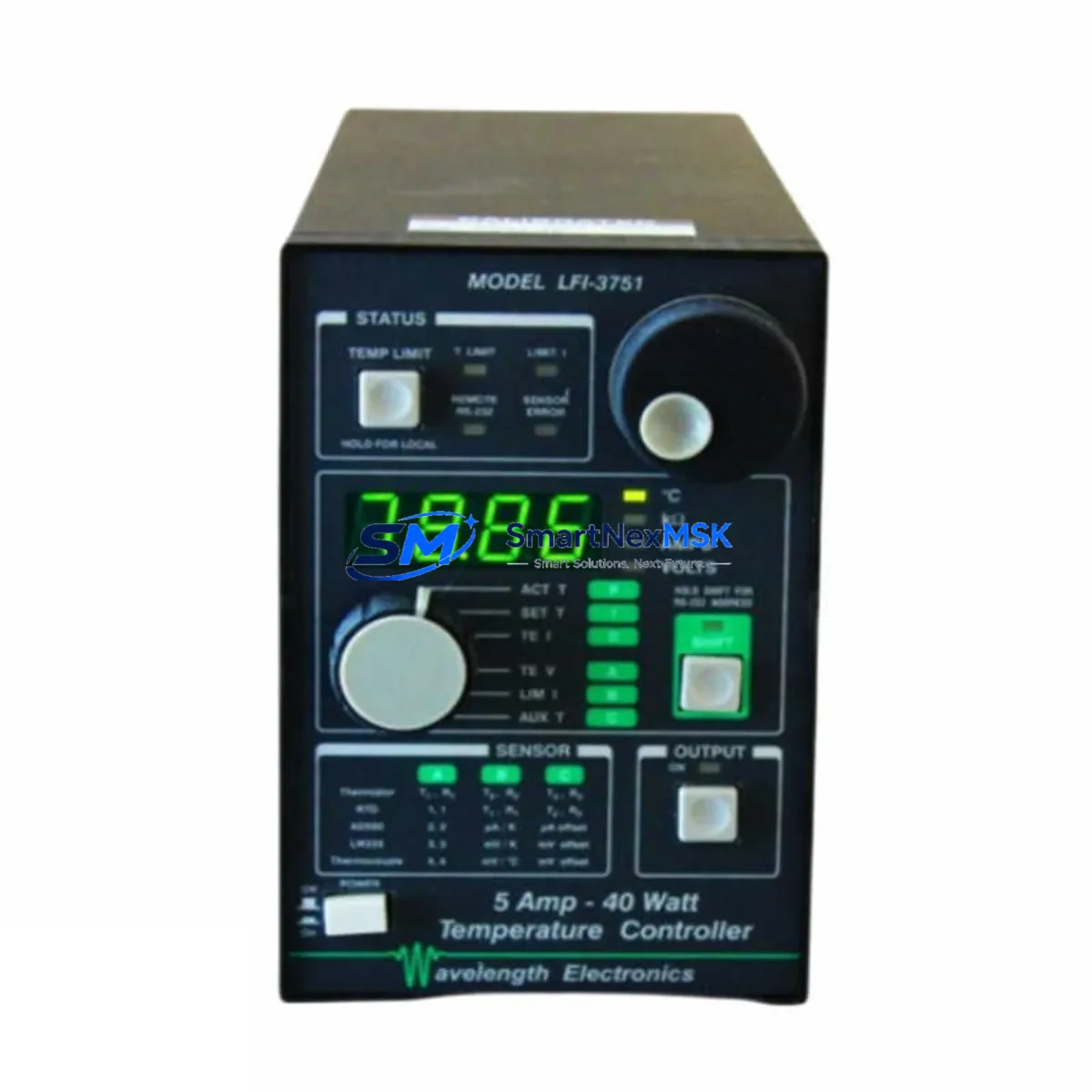

The Wavelength Electronics LFI-3751 is a precision TEC (Thermoelectric Cooler) and Laser Temperature Controller designed for demanding industrial and laboratory automation environments. As a maintenance-ready original spare, the LFI-3751 is engineered to deliver drop-in replacement capability for aging or failed units within LFI Series control systems — minimizing unplanned downtime and restoring laser or thermoelectric process stability with confidence.

For maintenance engineers managing laser-based manufacturing lines, photonics test benches, or precision thermal management systems, the LFI-3751 represents a critical node in the control loop. Its failure can cascade into process drift, product yield loss, or complete line stoppage. Stocking a verified original spare eliminates the lead-time risk associated with sourcing from OEM channels under emergency conditions. Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification and ships with a 12-month warranty.

Procurement engineers should note that the LFI-3751 is compatible with standard 19-inch rack enclosures and integrates with analog setpoint inputs, RS-232 communication interfaces, and external thermistor or RTD sensor inputs — making it a versatile fit across multiple system generations without requiring firmware or wiring modifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the LFI-3751 in a laser or TEC-controlled system, maintenance engineers should treat the controller as part of a broader thermal management and signal chain audit. A controller swap is the ideal opportunity to inspect and, where necessary, replace adjacent components that share the same electrical environment.

Begin with the power supply module feeding the LFI-3751 — verify output voltage stability and ripple levels, as an unstable supply is a common root cause of controller instability or premature failure. Check the TEC element itself for signs of degradation: increased resistance, asymmetric heating/cooling response, or physical delamination. A healthy controller paired with a failing TEC will not restore process performance.

Inspect the thermistor or RTD temperature sensor and its associated wiring harness. Sensor drift or intermittent contact is frequently misdiagnosed as controller failure. Replace the sensor cable and verify connector integrity at both the sensor head and the LFI-3751 input terminal. If the system uses a signal isolator between the sensor and the controller input, verify isolation resistance and check for ground loop conditions that can introduce offset errors into the temperature feedback loop.

For systems using the RS-232 communication port for remote setpoint control or data logging, inspect the RS-232 to USB converter or serial communication card in the host PC or PLC. Corrupted communication can cause erratic setpoint behavior that mimics controller malfunction. Verify baud rate settings and cable shielding continuity.

In control cabinet environments, also check the terminal blocks and DIN rail connectors associated with the LFI-3751’s I/O wiring. Loose or oxidized terminals are a leading cause of intermittent faults in precision temperature control loops. Inspect fuse holders and circuit protection devices on the controller’s supply line — replace any fuse showing signs of heat stress or discoloration. If the system includes an interlock relay or safety relay module that gates the TEC output, verify relay contact resistance and coil drive voltage. Finally, for systems with an HMI panel or operator display connected to the LFI-3751 via serial or analog link, confirm display calibration and communication integrity as part of the commissioning check after controller replacement.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record the existing LFI-3751 configuration parameters via RS-232 (setpoint, PID gains, sensor type, output limits) before powering down. This eliminates re-commissioning time and ensures the replacement unit is configured identically to the outgoing controller.

Step 2 — Safe isolation: De-energize the control cabinet following site LOTO (Lockout/Tagout) procedures. Disconnect the TEC output leads, sensor input wiring, RS-232 cable, and power supply connections in sequence. Label all connectors before removal to prevent wiring errors during reinstallation.

Step 3 — Physical swap: Remove the failed LFI-3751 from the rack enclosure. Install the replacement unit — the LFI-3751 is a direct mechanical and electrical replacement, requiring no bracket modifications or panel cutout changes. Reconnect all wiring per the original labeling.

Step 4 — Configuration restore: Apply power and upload the saved configuration parameters via RS-232. Verify setpoint, PID parameters, and sensor type match the pre-replacement record. Perform a controlled ramp to operating temperature and confirm stable regulation within specification before returning the system to production.

Step 5 — System validation: Monitor the first 30 minutes of operation for temperature stability, output current behavior, and alarm status. Log the replacement date, unit serial number, and post-replacement performance data in the site maintenance record for lifecycle tracking.

This workflow supports a target downtime of under 2 hours for a planned LFI-3751 replacement in a prepared maintenance environment, and under 4 hours for an emergency unplanned swap where pre-documentation was not available.

Spare Parts Support FAQ

Q1: Is the LFI-3751 supplied by SMARTNEXMSK an original Wavelength Electronics unit?
Yes. All LFI-3751 units are sourced as original Wavelength Electronics components. Each unit undergoes pre-shipment functional verification to confirm electrical performance before dispatch. A certificate of conformance is available upon request.

Q2: What is the warranty coverage and how is a warranty claim initiated?
Every LFI-3751 ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the order reference, unit serial number, and a description of the observed fault. Replacement or repair is coordinated within 5 business days of claim receipt.

Q3: Can the LFI-3751 replace older LFI Series controller variants without system modification?
The LFI-3751 is designed as a direct replacement within the LFI Series platform. For installations using earlier LFI Series variants, verify the sensor input type (thermistor vs. RTD) and output current range match your system requirements before installation. SMARTNEXMSK technical support can assist with compatibility confirmation prior to order.

Q4: What is the recommended inventory strategy for the LFI-3751 in a multi-system facility?
For facilities operating three or more LFI-3751-controlled systems, maintaining one spare unit on-site is recommended as a minimum buffer. For critical production lines where downtime cost exceeds the spare part value within hours, a two-unit buffer is advisable. SMARTNEXMSK supports blanket order arrangements and scheduled replenishment to maintain your site inventory without capital lock-up.
